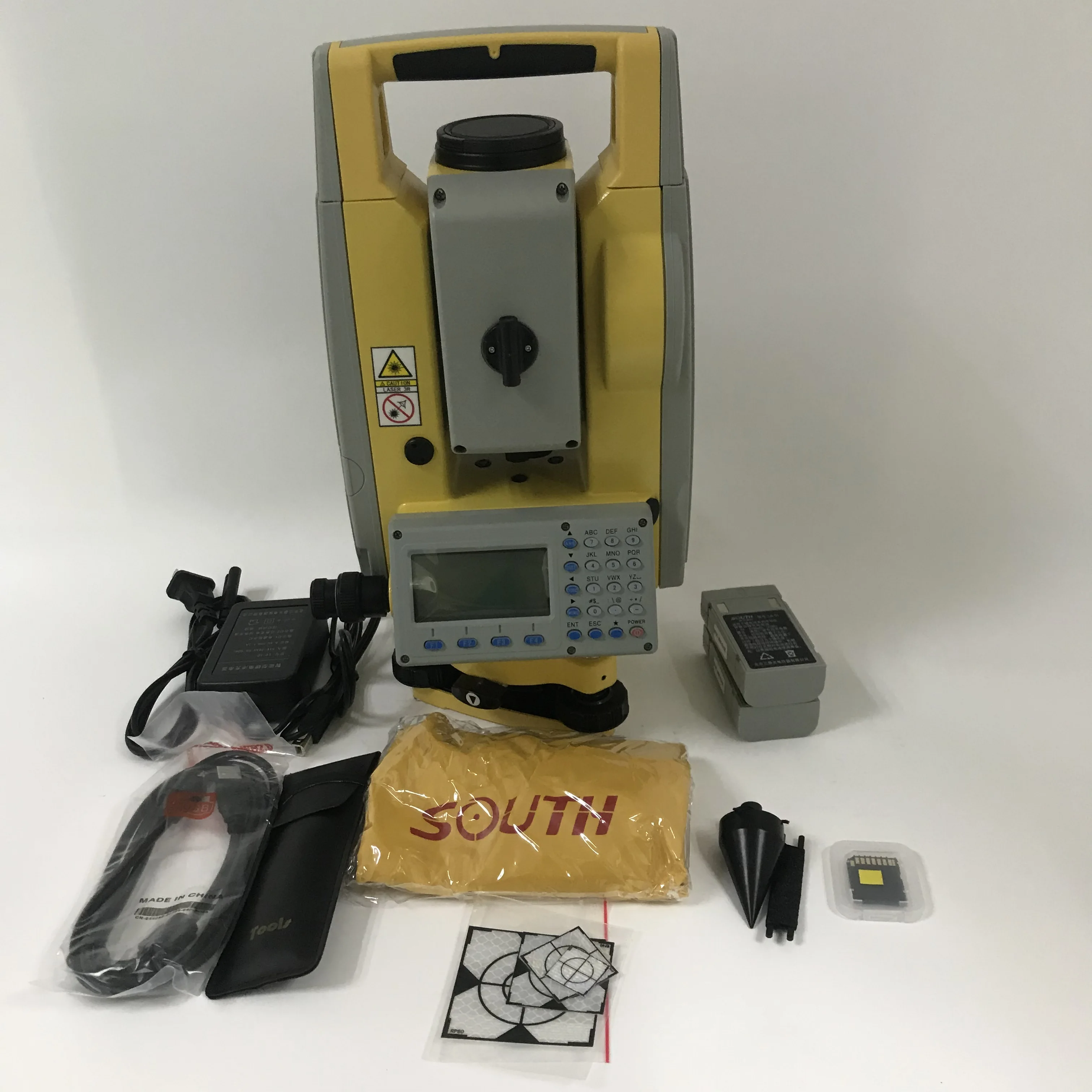

Последняя модель 2020 общая цена на южную станцию Южный NTS362R10LNB 1000 м без отражателя

Сохранить в закладки 60362820899:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

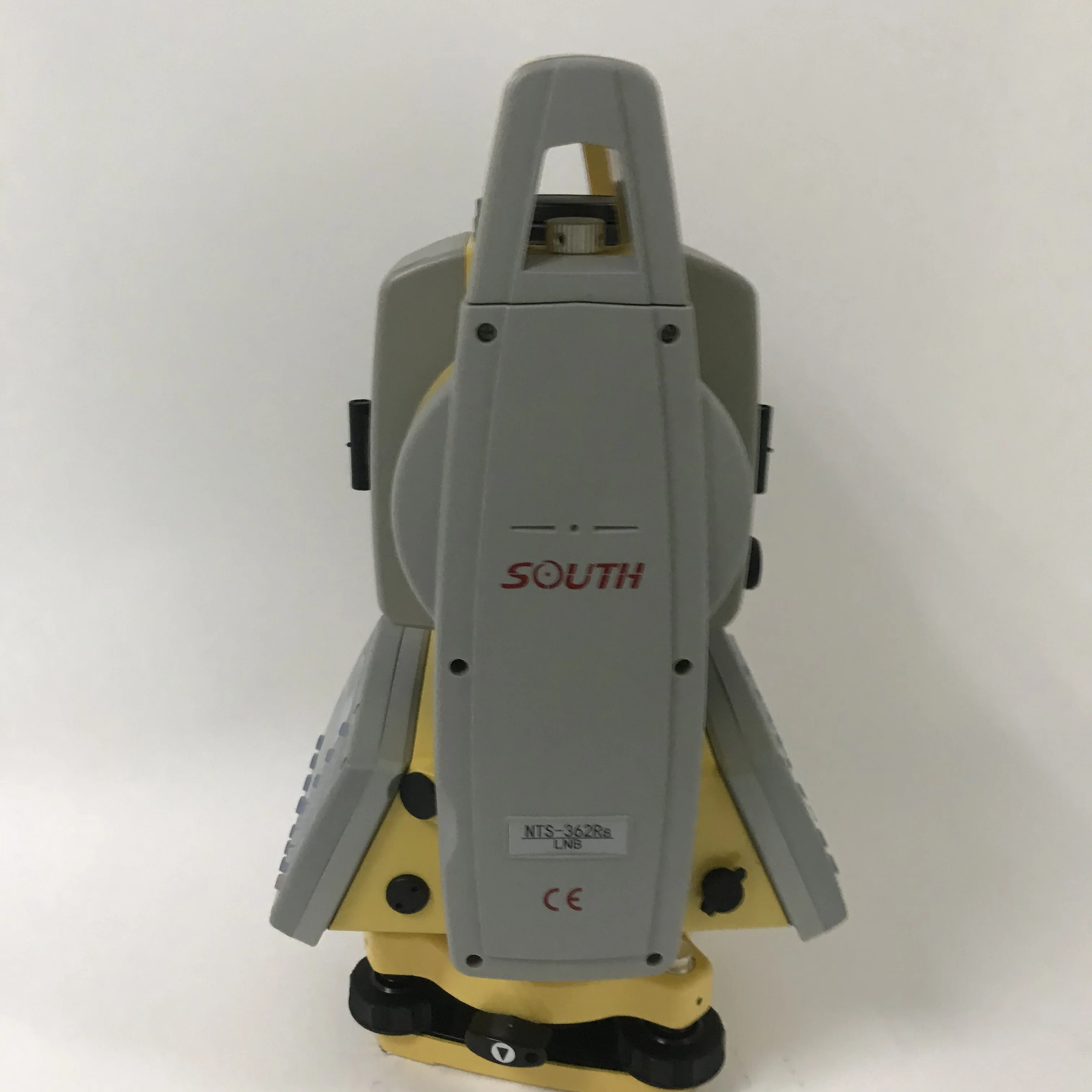

          2020 latest model South total station  NTS362R10LNB


Improved EDM System


·Up to 1000m reflectorless range and 5.0km single prism range.
·New Optical Light-path Change, fully isolate the emitting and reflect signal.
·Optimized Algorithm, measurement speed less than 0.3s.
·New Circuit Design, 150MHZ ultra high measure frequency, which also improve the accuracy of measure tape


Better Angle Measurement


·2”/5” accuracy for option
·Absolute encoding disk
·Azimuth angle will be saved automatically even if N6 is shut down incidentally when you operation


Reasonable Industrial Design


·Integrated Straight-through Horizontal Axis
·Dense Steel-ball Vertical Axis
·Embed Laser Plummet
·TP Sensor with automatic correction
·Dual-axis Compensator

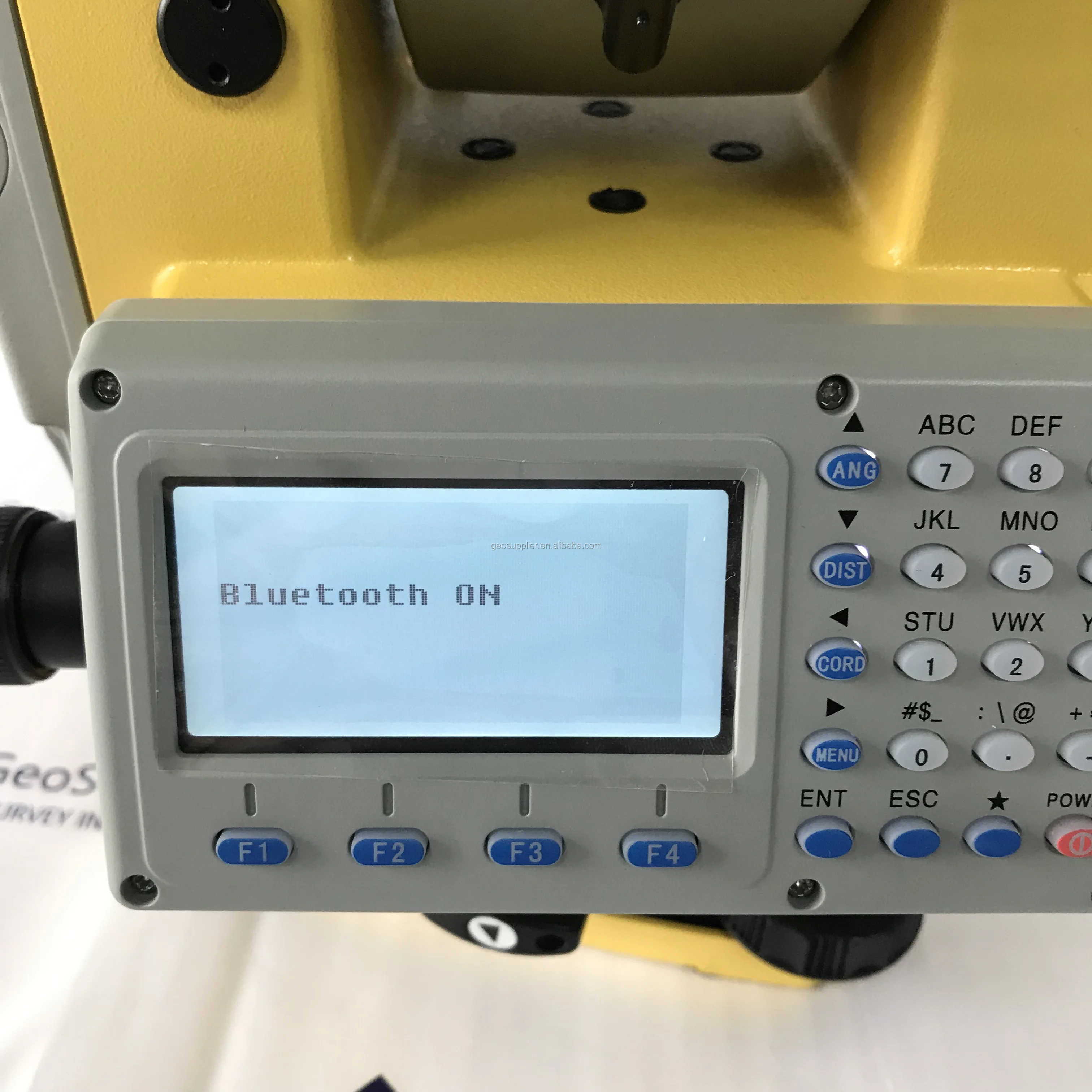

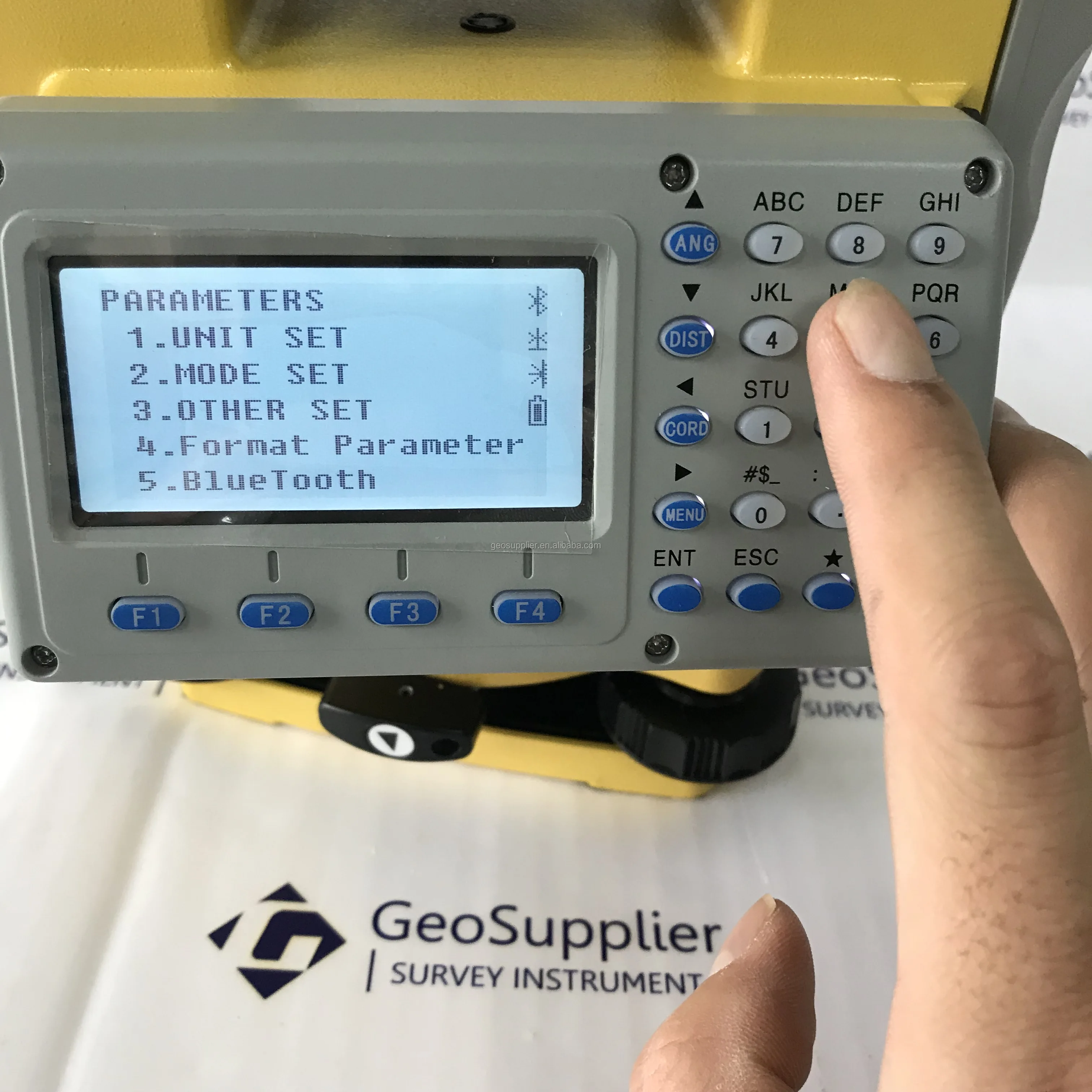

 Bluetooth enable
























































































































































































































ModelNTS362R10LNB
Distance Measurement
Max.RangeReflectorless1000m
Single prism5.0km
3 prism8.0km
AccuracyReflectorlessFine5+2ppm
Tracking10+2ppm
ReflectorFine2+2ppm
Tracking5+2ppm
IR-sheet5+2ppm
ReadingMax:99999999.9999 m Min:0.1 mm
Measuring TimeReflectorlessFine mode: <1.2s ; Tracking mode:0.5s
ReflectorFine mode: <1.2s ; Tracking mode:<0.5s IR sheet mode:<1.2s
Atmospheric CorrectionManual input, Auto correction
Prism ConstantManual input, Auto correction
  ANGLE MEASUREMENT
Measuring methodAbsolute continuous
Diameter of Raster Disk79mm
Minimum reading1″/ 5″Selectable
Accuracy2"
Detection methodHorizontal:Dual /Vertical:Dual
TELESCOPE
ImageErect
Tube length154mm
Effective aperture45mm,(EDM:50mm)
Magnification30×
Field of view1°30′
Minimum Focusing Distance1m
Resolving Power3″
AUTO COMPENSATOR
SystemDual axis Liquid-electric
Working range±3′
Accuracy1″
VIAL
Plate vial30″/2mm
Circular vial8′/2mm
OPTICAL PLUMMET
ImageErect
Magnification
Focussing range0.5m~∞
Field of view
ON-BOARD BATTERY
TypeRechargeable Ni-H battery
VoltageDC 6v
Continuous operation time8 hrs
OTHERS
IP standIP 66

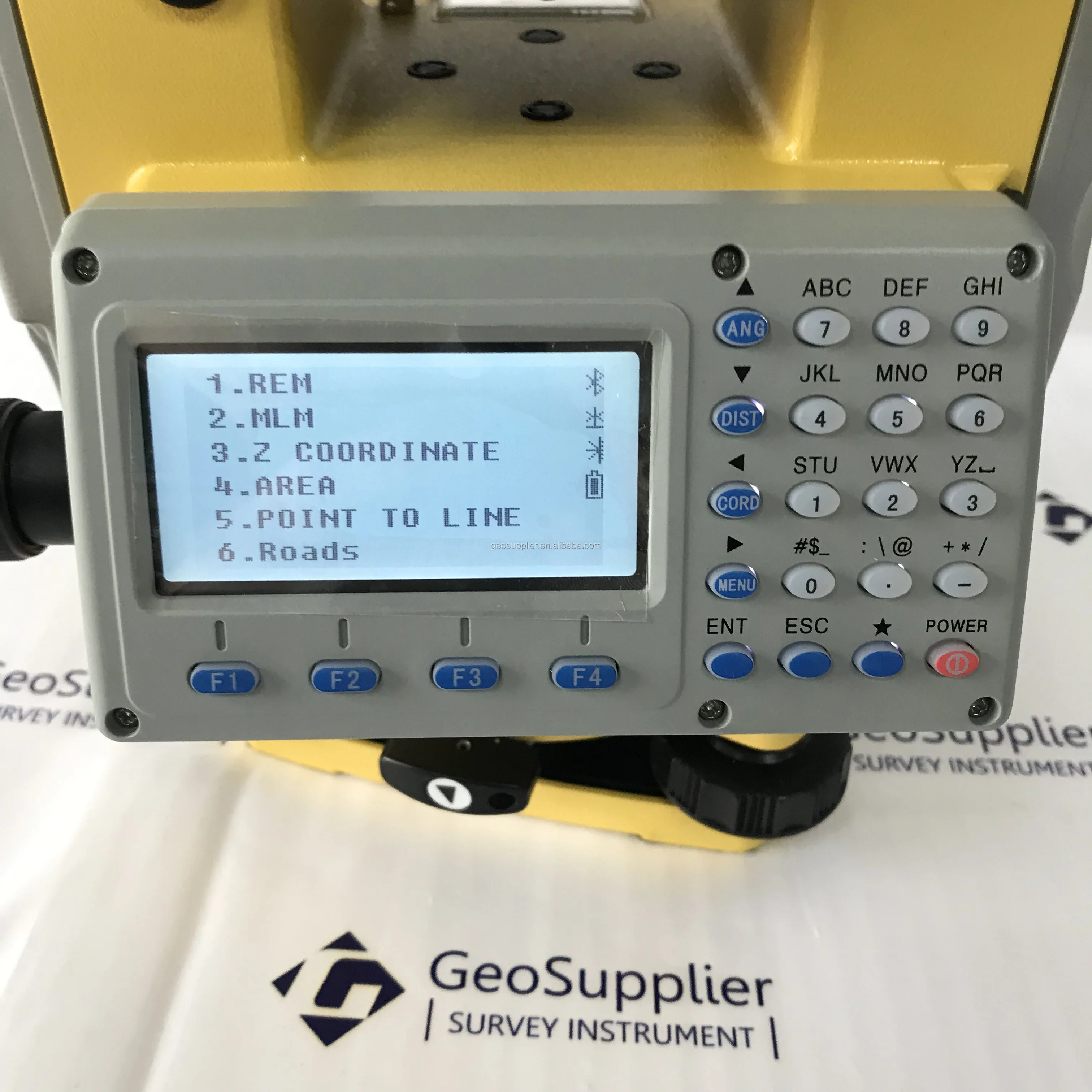

DisplayLCD,6 lines,digital
Data storageInternal memory2M,ready for 17,000 data blocks
External memorySD card 2GB, ready for approx,17,000,000 data blocks
Temperature-20°~+50℃
Dimension and Weight160×150×330mm, 5.2kg






Other hot sell Total  Station,click the picture  to view

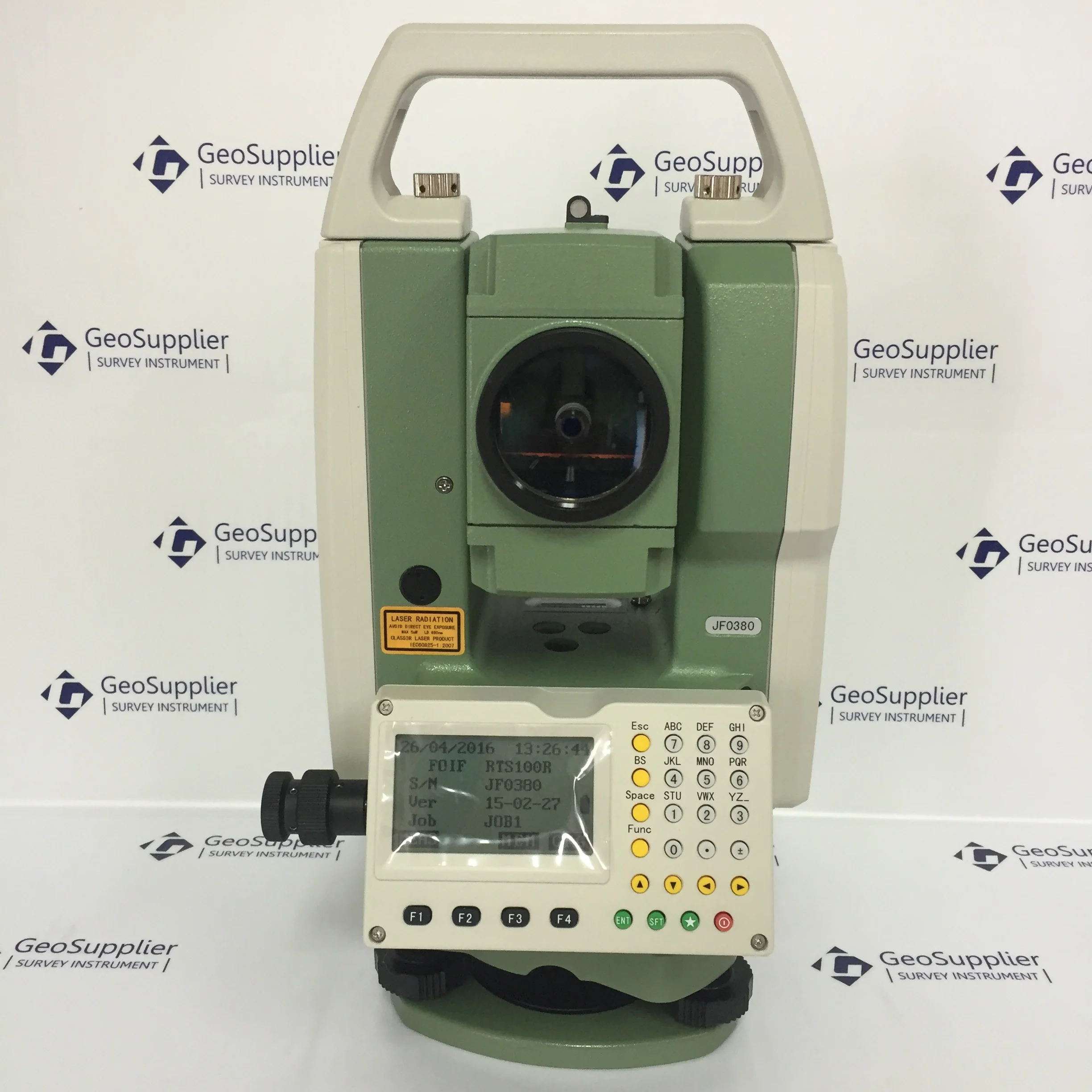

FOIF RTS-102R

2Foif RTS-102R.JPG

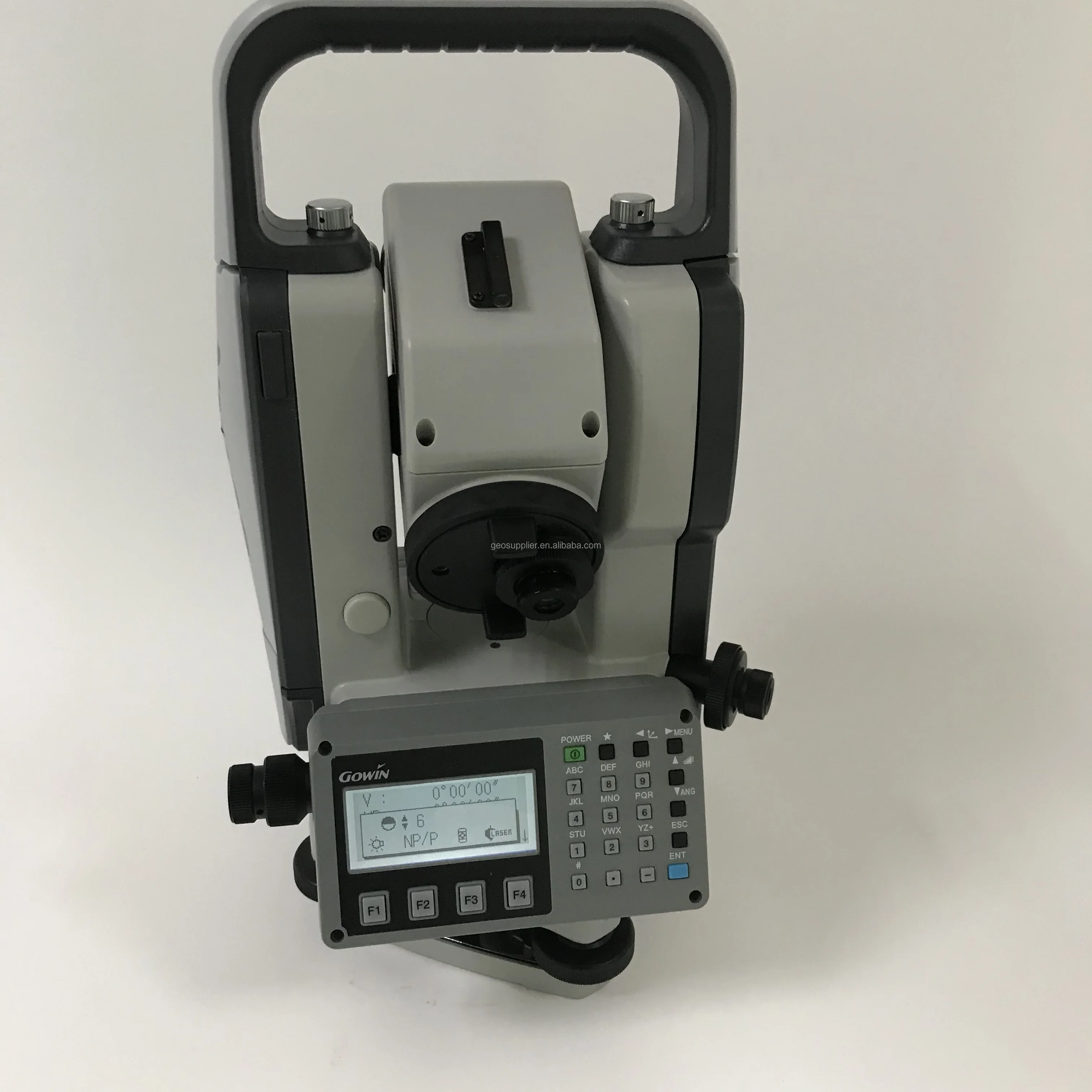

GOWIN TKS-202N

2Gowin TKS-202N.JPG

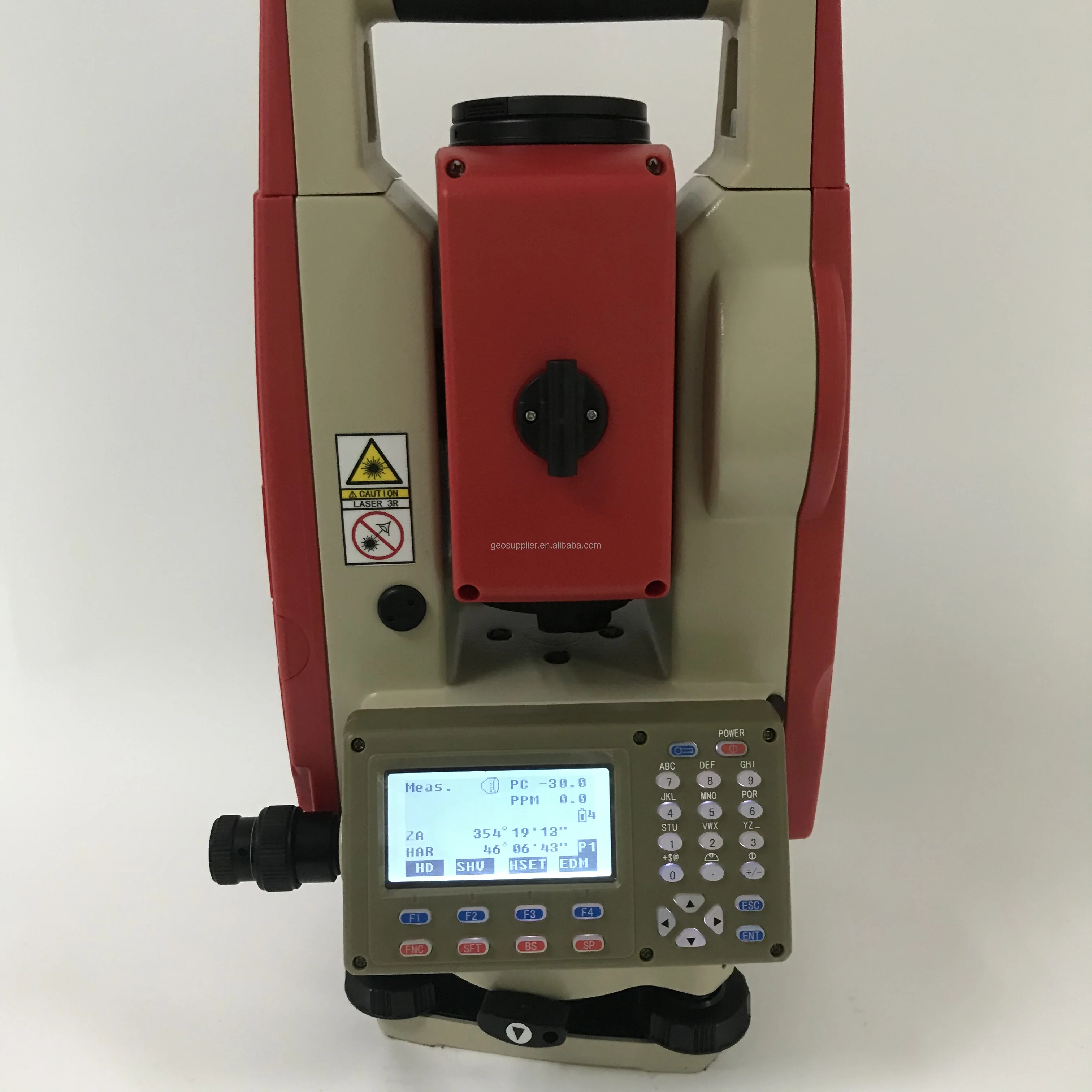

KOLIDA KTS-442R10LCN

2Kolida KTS-442R10LCN.JPG

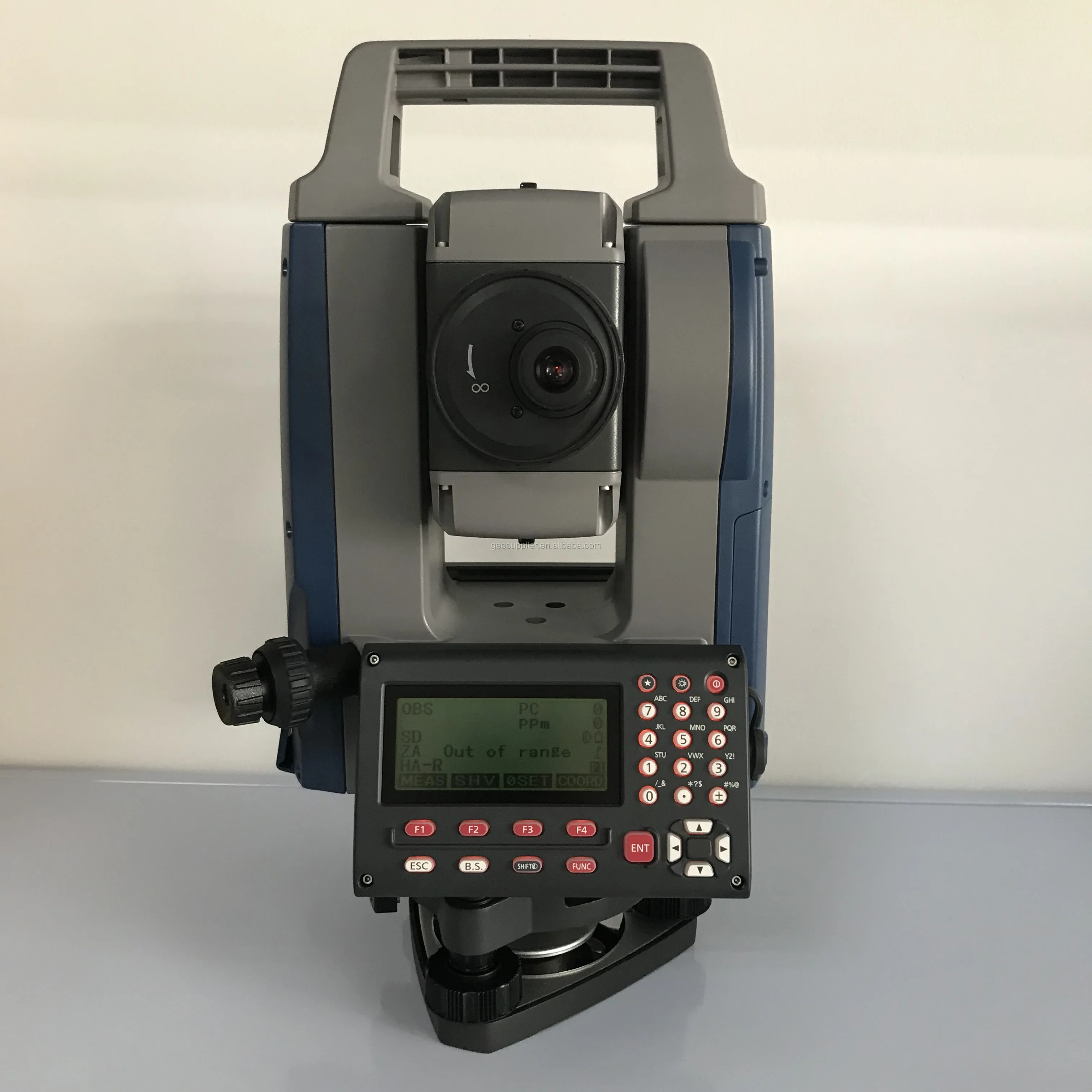

SOKKIA IM-52

2Sokkia IM-52.JPG

TRIMBLE C5

2Trimble C5.JPG





Packaging & Shipping

Packaging: Engineer case +paper carton

 Delivery date: 3 days upon payment confirmed





Our Services


  We offer qualify superior pre-sale service to help you choose the right goods, high-class after service to ravel out your concerns,and  life-long technical support.


Our warranty policy:


1. For instruments (total station,theodolite,GNSS,auto level), we offer 1 year warranty,for accesories(Prism,pole,tripod ,levelling staff).we offer 6 months warranty,from the day you get the product.


2.For product within the warranty period,please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair.We will be responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct to us.


 3.For problem out of the warranty period or warranty liability,we will judge the probelm and quoted for you.You need to pay double-run freight and the maintenace cost.


4.For all instrument we provide life-long technical support.


Remark:Improper use of   the instrument and man-made damage of the instrument is not coverd in warranty liablity.Warranty  only aimed at the problem caused by the product quality.
