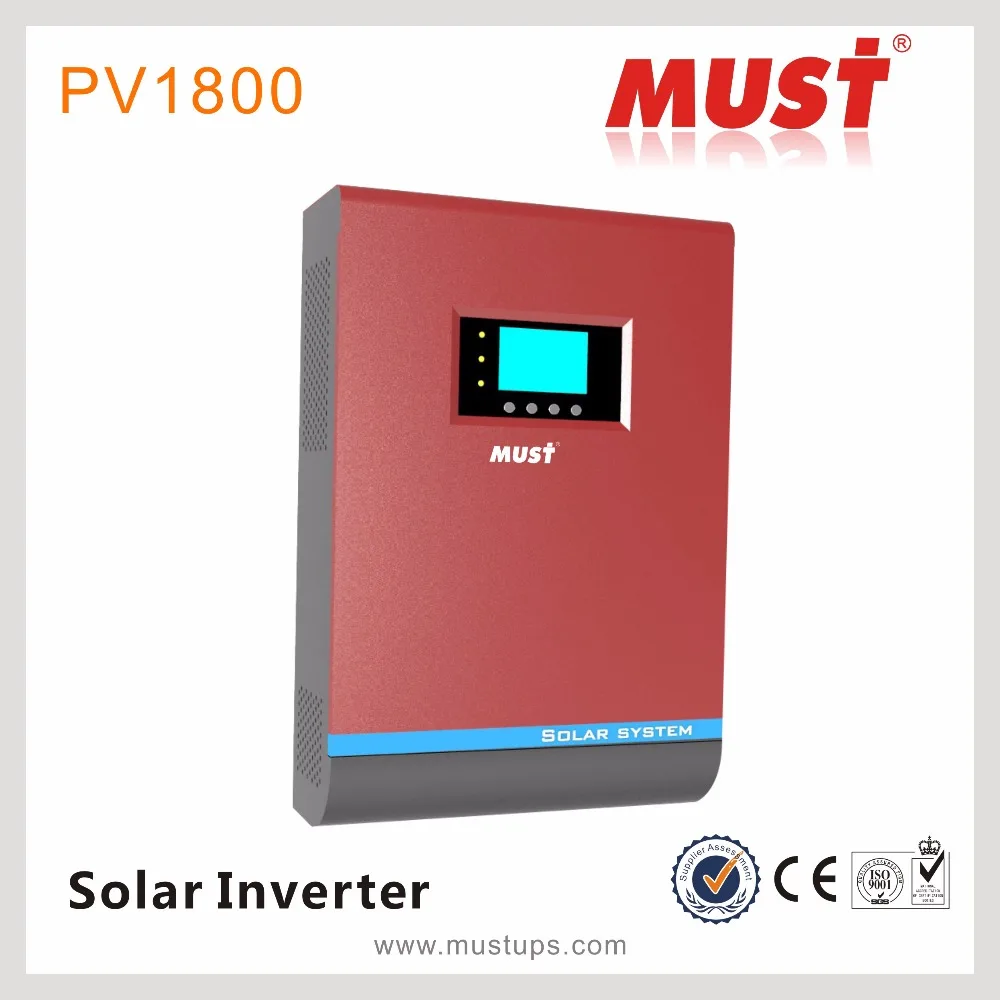

Лидер продаж 2015 солнечный инвертор Must power изготовленный в Индии подключается параллельно 30
- Категория: >>>
- Поставщик: Shenzhen Must Power Limited
Сохранить в закладки 60365044722:
Описание и отзывы
Характеристики
Must power 2015 hot sale solar inverter made in india connect parallel to be 30kva
![WJXMM{][[W467%36{T[I9R.png](http://g02.s.alicdn.com/kf/HTB1OsyCKXXXXXaYXVXX760XFXXXV/200574837/HTB1OsyCKXXXXXaYXVXX760XFXXXV.png)
2A%Q`XP$T_FS]RJJA6I9L.png" width="750" height="287" ori-width="909" ori-height="348"/>
Product Description
This is a multi-function inverter/charger, combining function of inverter, MPPT solar charger and battery charger to offer uniterruptible power support with portable size, Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
What is Solar inverter?
Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.
Main Feature:
. Pure sine wave inverter
. Selectable input voltage range for home appliances and personal computers
. Selectable charging current based on applications
. Configurable AC/Solar input priority via LCD setting

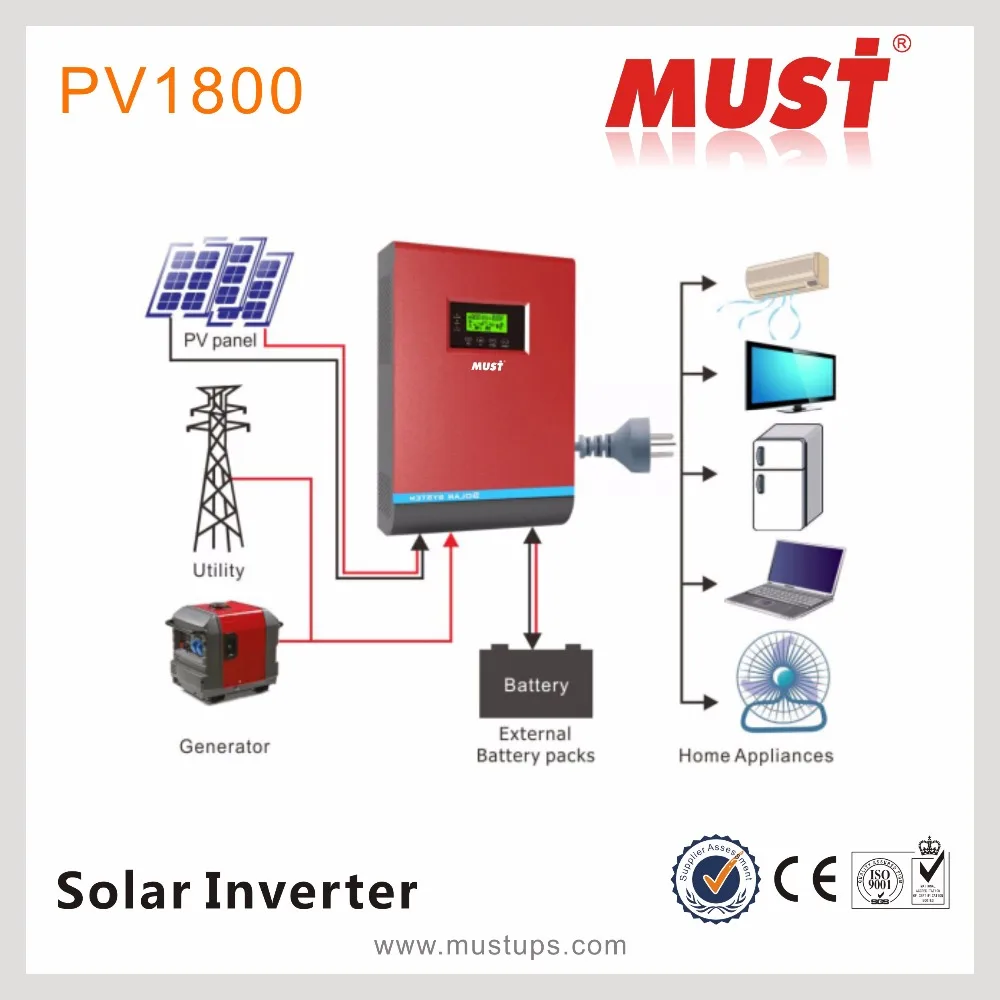

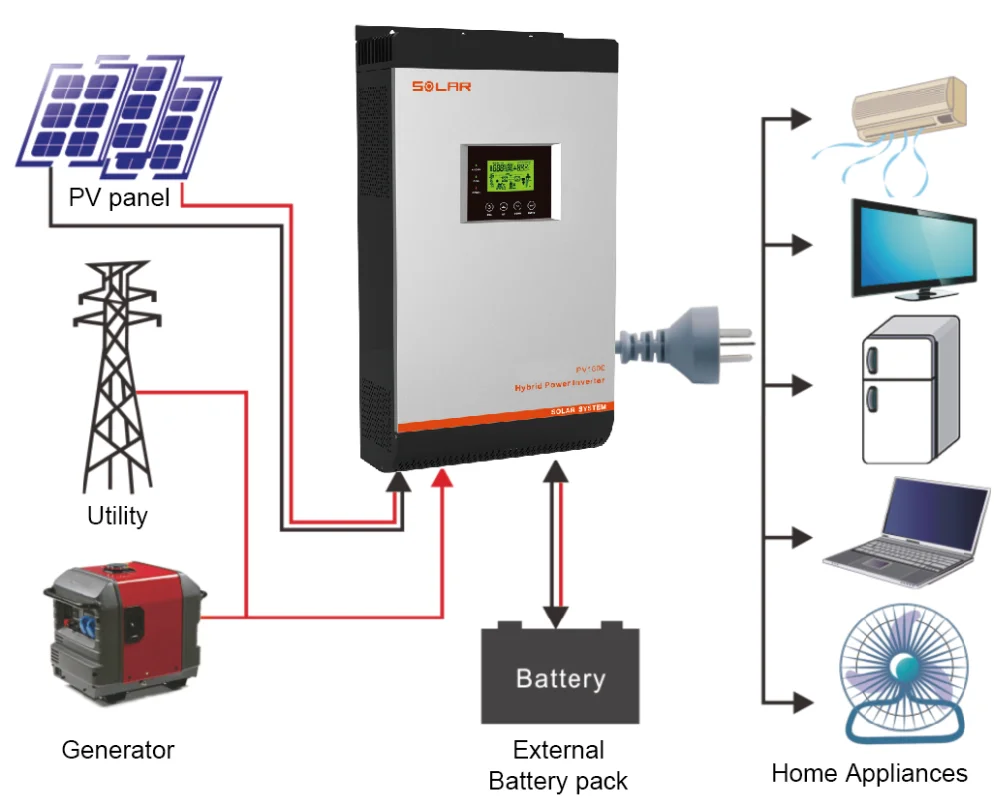

. Compatible to mains voltage or generator power
. Parallel operation with up to 6 units only available for PV18-4K/5K
. Auto restart while AC is recovering
. Overload and short circuit protection
. Smart battery charger design for optimized battery performance
. Cold start function
What is specification of hybrid solar inverter with mppt charge controller?
| MODEL | PV18-1K | PV18-2K | PV18-3K | PV18-4K | PV18-5K | |
| Default Battery System Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | |
| INVERTER OUTPUT | Reted Power | 1000VA/ 800W | 2000VA/ 1600W | 3000VA/ 2400W | 4000VA/ 3200W | 5000VA/ 4000W |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||||
| Inverter Efficiency (Peak) | 90% | 93% | ||||
| Transfer Time | 10ms(For Personal Computers) 20ms(For Home Appliances) | |||||
| AC INPUT | Voltage | 230VAC | ||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | Nominal voltage | 12VDC | 24VDC | 48VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | |||
| Overcharge Protection | 15VDC | 30VDC | 60VDC | |||
| SOLAR CHARGER & AC CHARGER | Maximum PV Array Open Circuit Voltage | 30VDC | 60VDC | 105VDC | ||
| Standby Power Consumption | 1W | 2W | 2W | |||
| Maximum Solar Charge Current | 50A | 50A | 50A | |||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||
| Maximum Charge Current | 50A | 110A | ||||
| MECHANICAL SPECIFICATIONS | Dimension,WxHxD(mm) | 240×316×95 | 272×355×100 | 297.5×468×125 | ||
| Net Weight(kg) | 5 | 6.4 | 6.9 | 9.8 | ||
| OTHER | Humidity | 5% to 95% Relativ Humidity (Non-condensing) | ||||
| Operating Temperature | 0℃-55℃ | |||||
| Storage Temperature | -15℃-60℃ | |||||
What is hybrid solar inverter with mppt charge controller?
Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

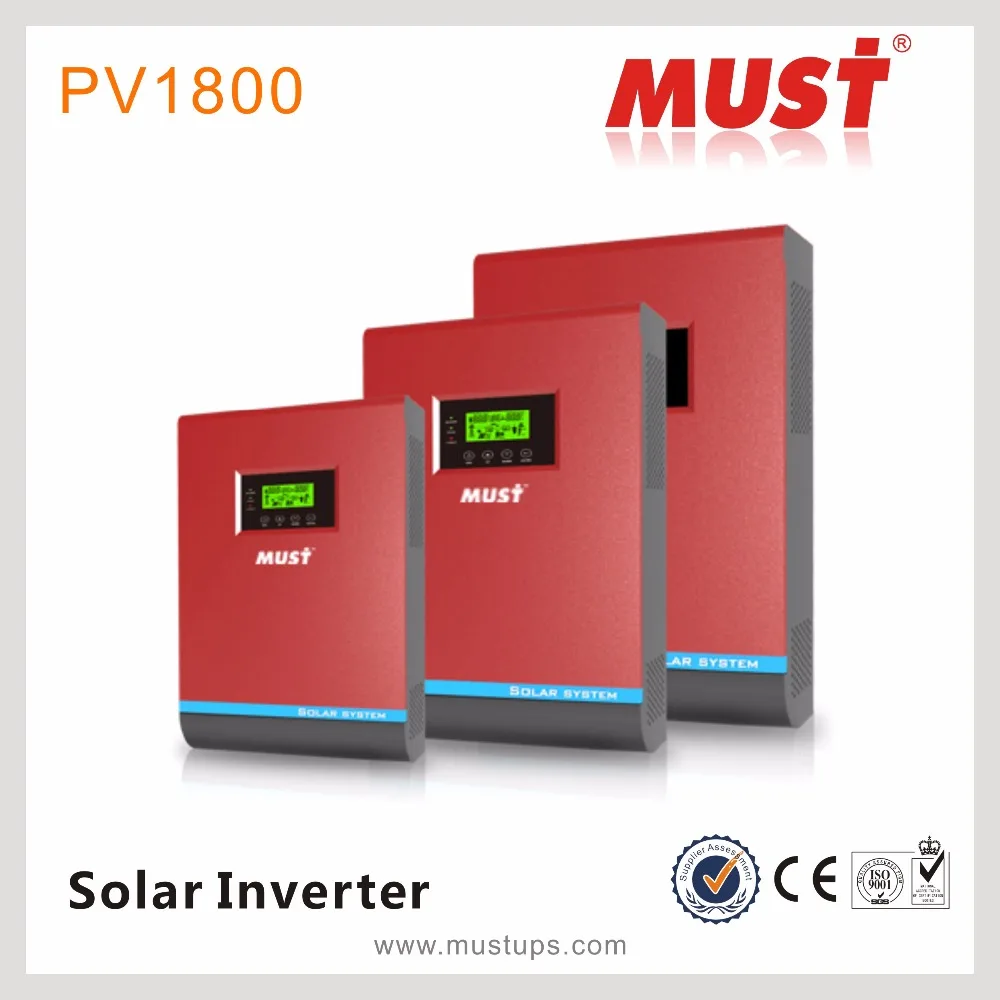

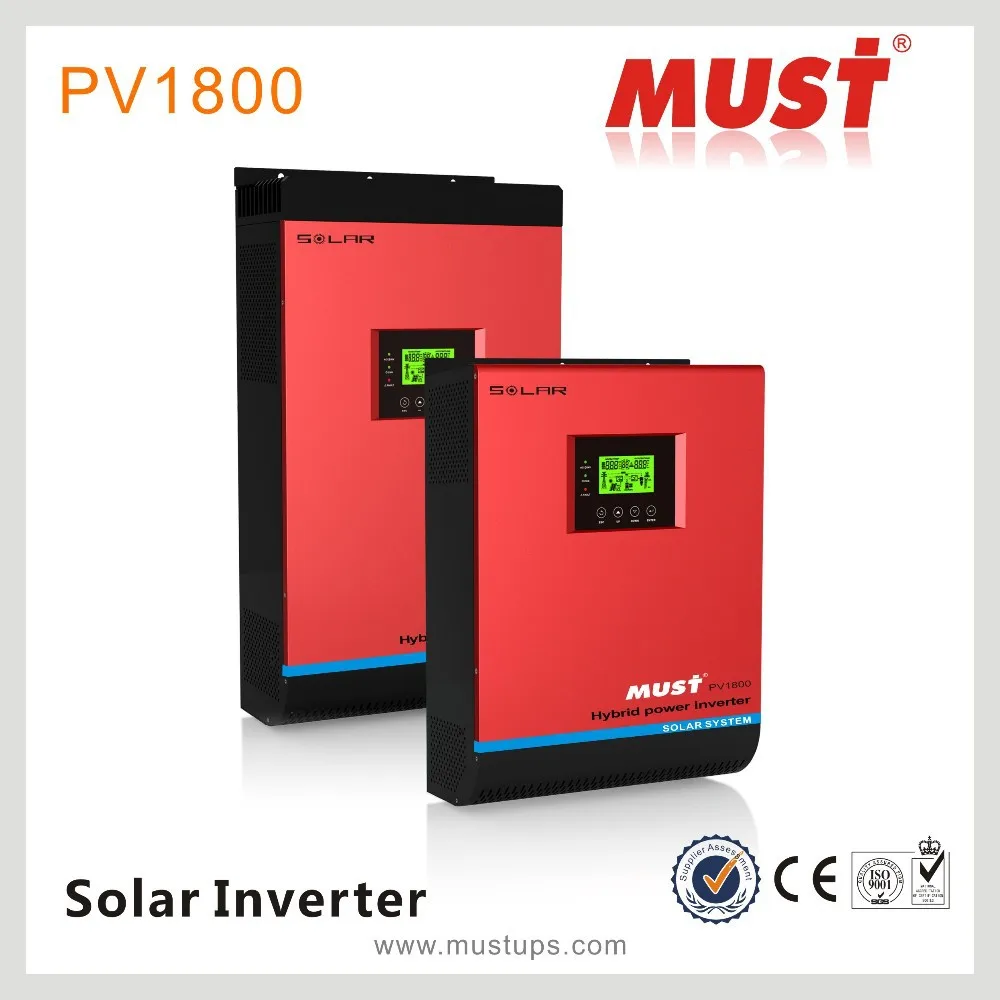

Pictures of hybrid solar inverter with mppt charge controller:
LIWMT_6U)4FXG$X$BRMNX.png" width="750" height="489" ori-width="757" ori-height="494"/>
5kva solar inverter connect in parrallel to be 10kva
6pcs 5kva PV1800 parallel to 30kva/24kw:
Item: Must power 2015 hot sale solar inverter made in india connect parallel to be 30kva
Packaging & Shipping
1. Cartons or wooden box OR According to customer's need
2. 15-20workdays for order under 2,000pcs, Sample order 7 days
3. Payment: TT or Wester Union
Our Services
1.OEM service is welcome
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respested
5.Necessary test and certification can be obtained as your request
Warranty :
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
Company Information
Welcome to MUST factory visiting:
5.Must energy
![CK)56ZMOS3ML]WU~VOTQ57.png](http://g02.s.alicdn.com/kf/HTB1vndMJXXXXXa3aXXX760XFXXXq/200574837/HTB1vndMJXXXXXa3aXXX760XFXXXq.png)
6. Production line
7.Show room
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
** Welcome your Sample Order to test quality first **
** For more information, Please Inquiry NOW ^_^ **
(Note: Any questions please contact: Vena Tang, Skype: mustf_23, 24 hours online)
Похожие товары
100% Высококачественные замороженные свиные ножки/мясо свиной головы/замороженные
450,00 $

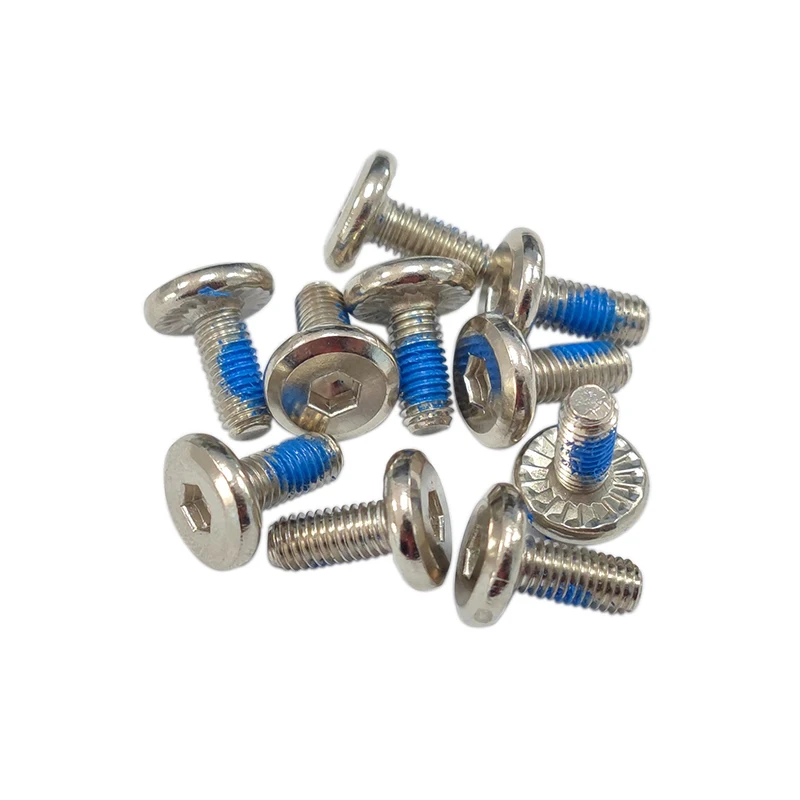

High quality hot selling furniture hardware fittings iron galvanized pair locks antislip socket head screw
Датчик натяжения ролика с одним роликом с одним шкивом

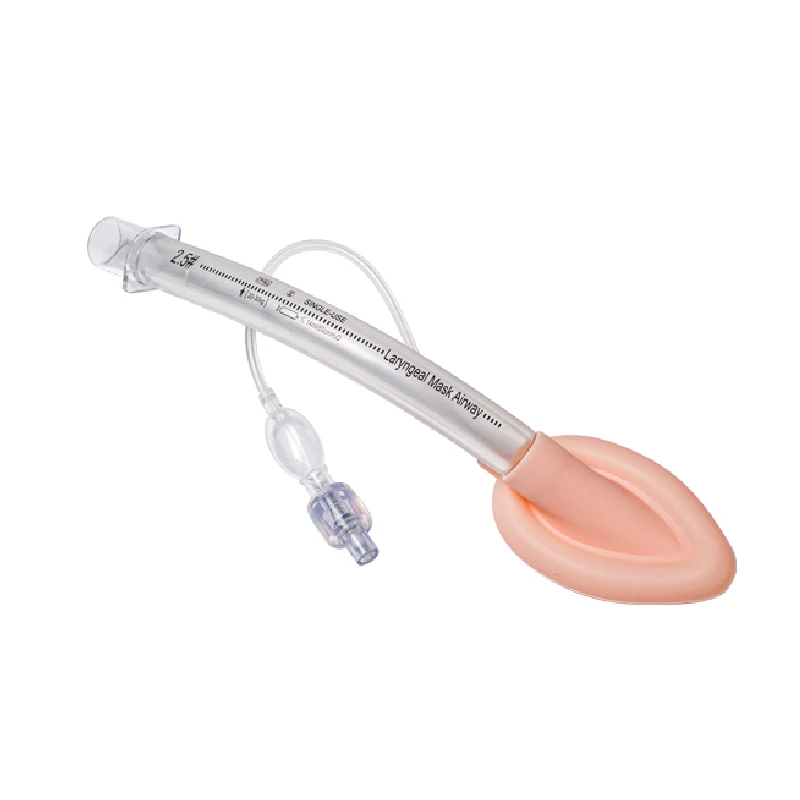

Оптовая продажа от производителя, медицинская ларингеальная импортная медицинская силиконовая ларингеальная маска для дыхательных путей
Резиновая подошва для обуви, мужская повседневная кожаная одежда OEM, кроссовки, материал для обуви с цветным дизайном
3,00 $ - 3,80 $

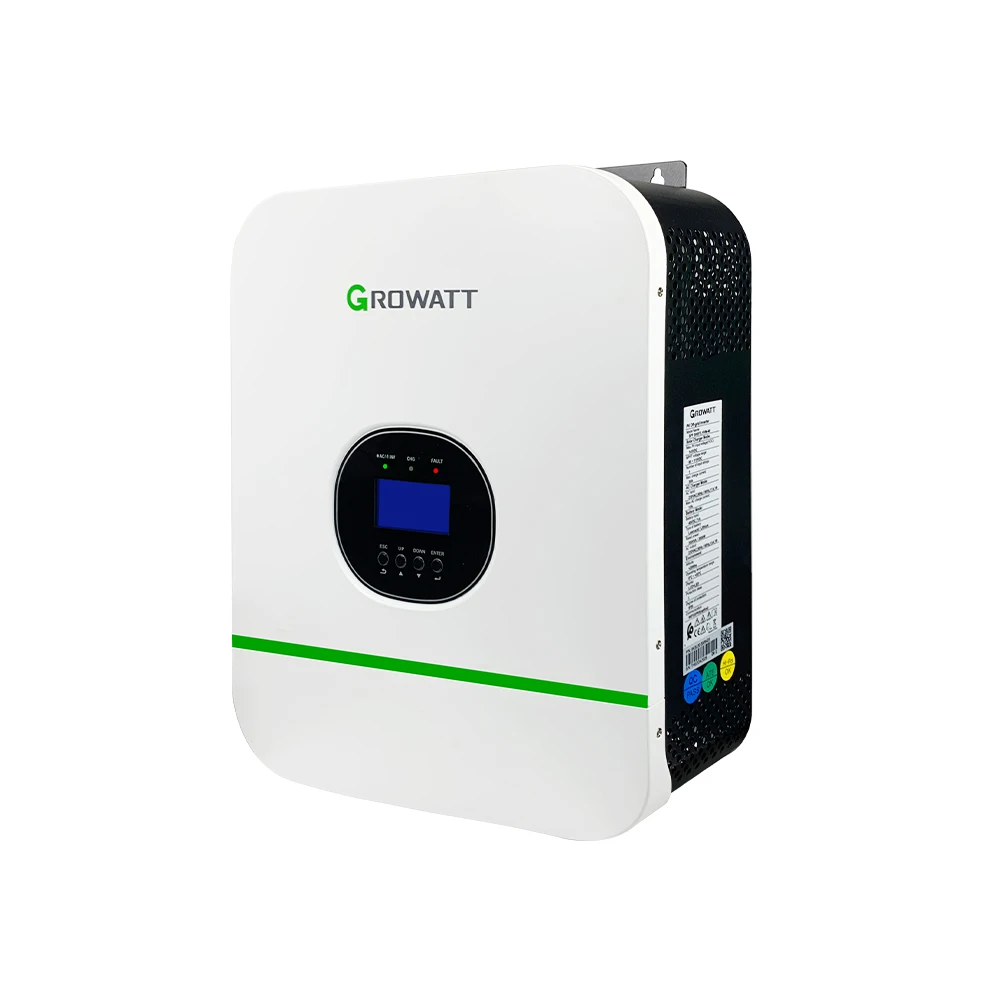

Growatt, HVM-24 солнечный инвертор, 3 кВт, 24 В для системы хранения энергии IP20
