8 DVB C/S/S2/S2X 6 ASI 2 IP Mux Scrambler QAM Modulator

Outline

SNK6121D is a high performance and cost-effective mux-scrambling QAM modulator designed by Shineco. It has multiple input ports optional. After multiplexing, scrambling and QAM modulating process, then it gives 4 RF output. To meet customers’ various requirements, this device is also equipped with IP port to output 4 MPTS over UDP. Its pluggable structure design greatly facilitates the change of modules (demodulator) as needed.

The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.

Key Features

        * Input: 8 DVB-C/S/S2 Tuner + 6 ASI input ports (Version 1)

             4 DVB-C/S/S2 Tuner + 6 ASI + 2 IP input port (Version 2)

                    8 DVB-C/S/S2 Tuner + 2 ASI + 2 IP input port (Version 3)

* Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C

* Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197

* Support 4 channels multiplexing+4 channels scrambling+4 channels QAM modulating

* Support accurate PCR adjusting

* Support PSI/SI editing and inserting

* Excellent RF output performance index, MER≥40db

* Support 4*MPTS output over UDP

* Support LCD display and keyboard

* Support Web management, Updates via web and USB

Specifications

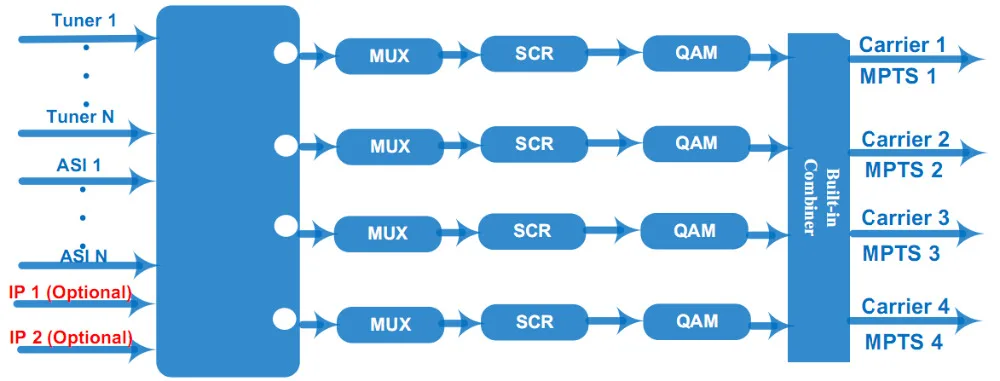

Working Principle

Advantage
