Коллер 1 тонны малых пробки льда maker машины с передачу тепла интернет магазины

Koller 1 ton small ice tube maker machinery with heat transfer online shopping

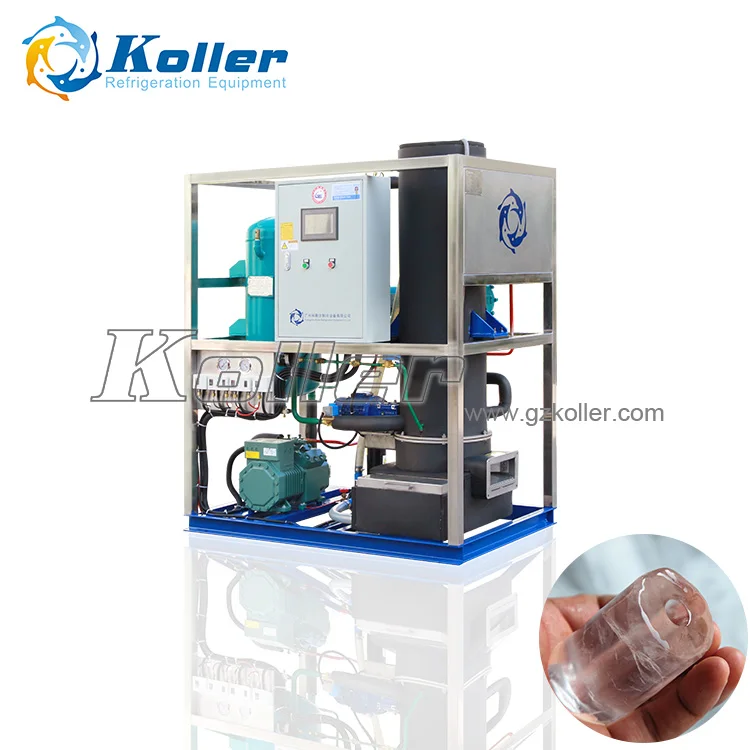

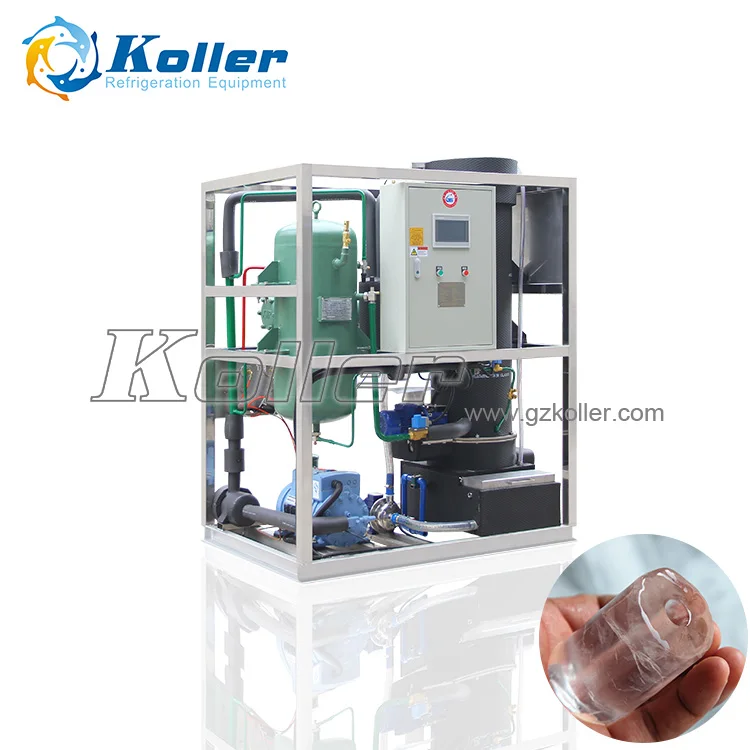

Koller TV series tube ice machine is a type ice machine, which produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space. Ice thickness and hollow part size can be adjusted according to customer requirements. Under PLC program control system to work automatically, the machine has high capacity, low-power consumption, and minimal maintenance.

SUS304 MADE!

Reasonable design for the frame and structure and water system with SUS304 ensure the ice cube sanitary for human consumption

ENERGY SAVING!

Greatly save energy, only 75~80KW*H are consumed to produce one-ton ice;

INTELLIGENT!

Equipped with Siemens PLC + Touch Screen Controlling System, which allows multiple functions such as automatic timer function for start and shut down; ice stopping production when the ice bins are full. All parameters can be easily set, all running history can be checked.

BEST PARTS!

Adopts the world's famous brand components, which will guarantee the best refrigeration effect and working condition.

GERMANY SIEMENS PLC

Highly automatic self-controlling system

Touch Screen Design

Easy Understand, Parameter Set, History Checking, Timer function

GERMANY BRAND BITZER SEMI-HERMETIC PISTON TYPE COMPRESSOR

DANFOSS EXPANSION VALVES

DANFOSS PRESSURE SWITCHES AND EXPANSION VALVES AND SOLENOID VALVE

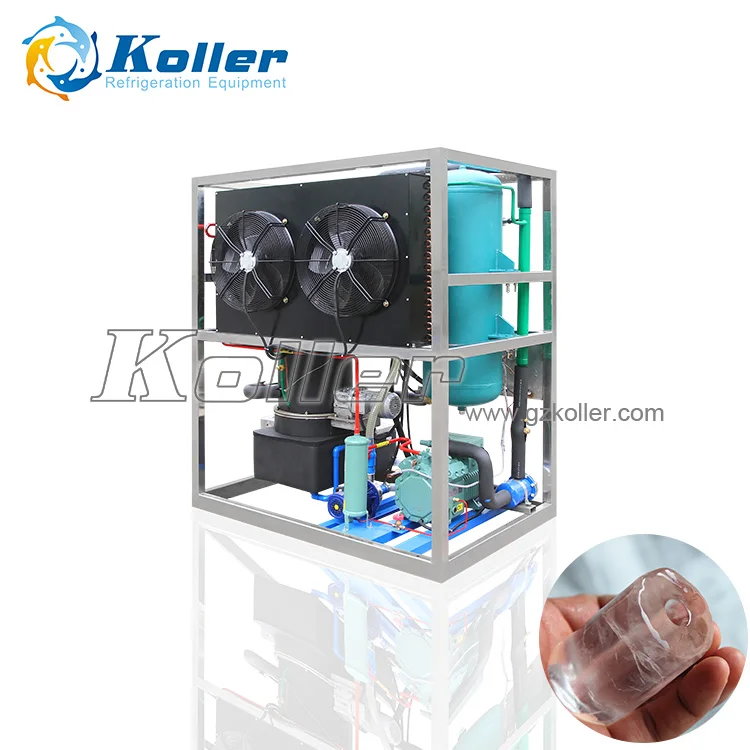

Air cooling type ice tube machine is all in one design, to avoid the heating effect, suggest you install it in a room with good ventilation. Only need you to connect the power and water.

Water cooling type ice block machine with water cooling condenser design, ice machine is for indoor installation,  The cooling tower should be installed outdoor and connected to the ice machine, the pump/pipe/valves will be provided by us.

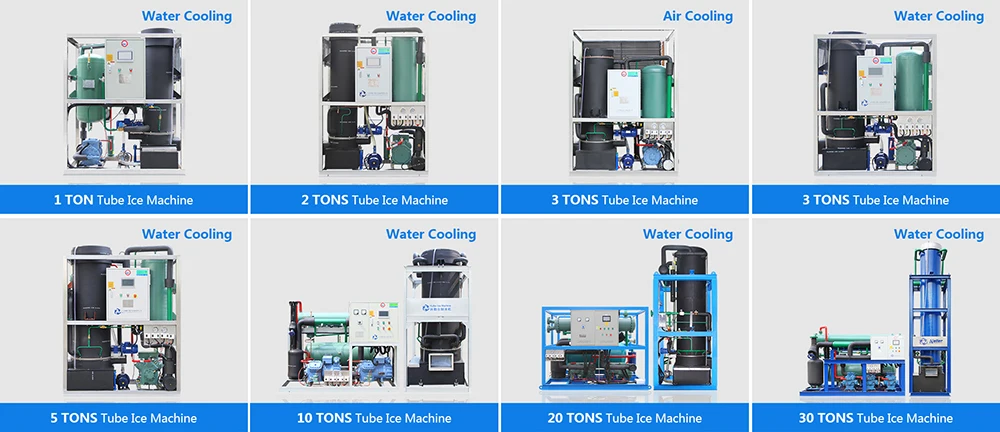

HOT SELL ICE TUBE MACHINE MODELS: TV10, TV20, TV30, TV50, TV100, TV200

First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?

Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.

Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment[T/T or L/C or Trade Assurance Order on Alibaba.com directly] to close the deal, for all our standard design, we will need about 35~45 working days on the production.

Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.

For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.

For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.

All KOLLER ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, KOLLER will send the parts for free, even send the technician over if situation needed. When beyond the warranty, KOLLER will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.

Dear friends, don't hesitate to send your inquiry if you are interested!

We would be very glad to be in service for you, as the most professional ice machine manufacturer with the biggest factory in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
