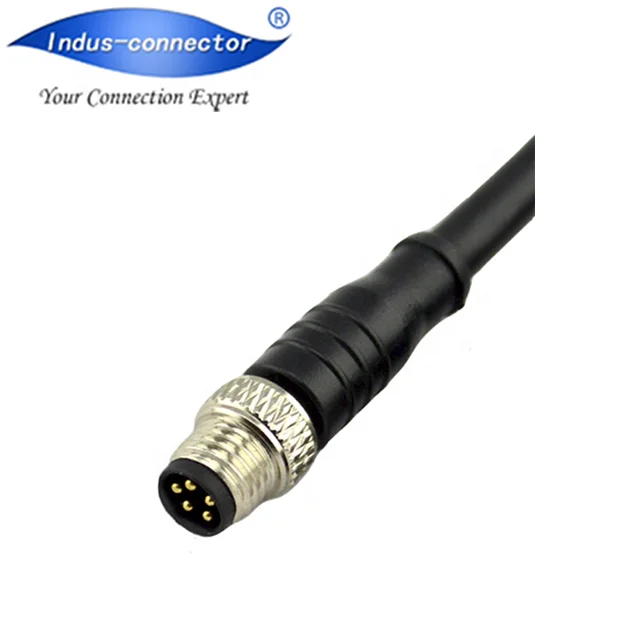

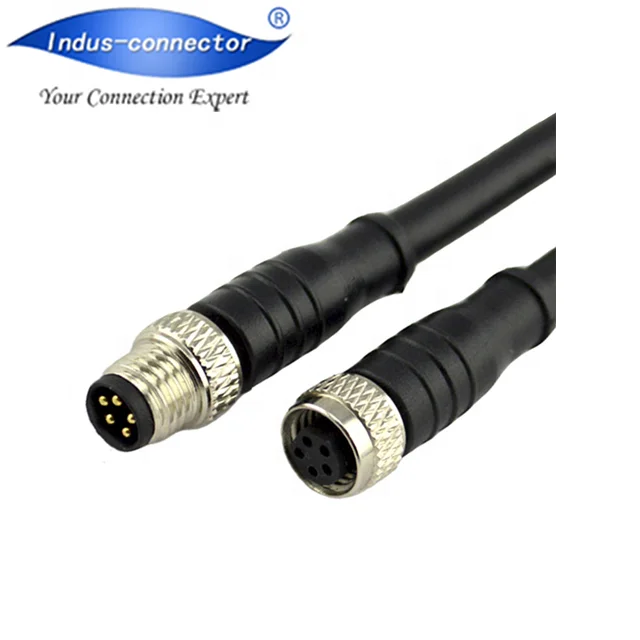

IP67IP68 прямой B кодирования датчик m8 5 pin подключению can шины кабель

Anti-vibration locking screw design
IP67/IP68, RoHS, REACH, UL certification

B Coding 5 Pin

1--------------------Brown
2--------------------White
3--------------------Blue
4--------------------Black
5--------------------Grey

Electrical Data:
Rated current: 3A / 1A
Rated voltag: 60V / 30V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ

Connector Specification:
Pole: 3 pin / 4 pin / 5 pin
Coding: A / B

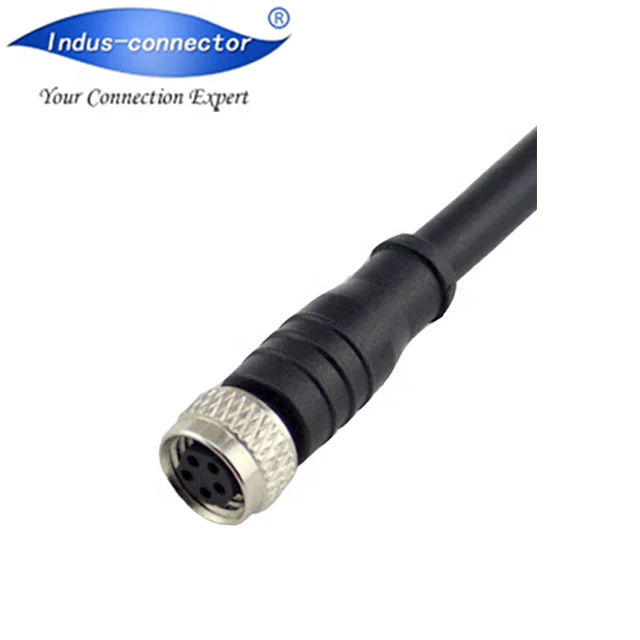

Gender: Male & Female
Insert: PA66+GF
Contacts: Brass / Phosphorus copper with gold plated
Screw: Brass with nickel plated
Over-mold: PVC / TPU
Termination: Riveting
Connector locking system: Screw locking
Degree of protection: IP67 in locked condition

Cable/Wire Specification:
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC / PUR
Temperature range: -25°C ~ +90°C / -40°C ~ +105°C

• The M8 circular connector we produced conform to international standard IEC61076-2-104 with M8*1.0 screw locking compatible with Binder, Phoenix, LTW, Molex...

• Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical

• All materials conform to RoHS, REACH without any harmful substance comprising strickly checked QC
• 100% testing for open circuit and short circuit and 100% smooth operation before shipping
• Insulation resistance: 10M OHM
• Hi-pot: DC 300V 10ms

To Be Your The Best Connector Expert

• Low cost but good quality in ip68 waterproof in locked condition with ISO9001 management under efficient service

• Provide free samples within 2 working days if it is normal product with existing tooling

• 10 years quality assurance

• OEM, ODM are available

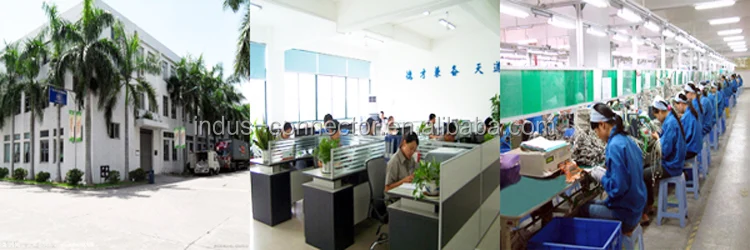

With 9 years experience in self researching and developing covers diversified connectors equivalent to Binder, Phoenix, Lumburger-automation...Shenzhen Indus-connector Limited, a well-known for sensor connector, waterproof connector, circular connector, industry connector and customized solution connector manufacturer, mainly in M5, M8, M10, M12, M16, M23 and 7/8''.
