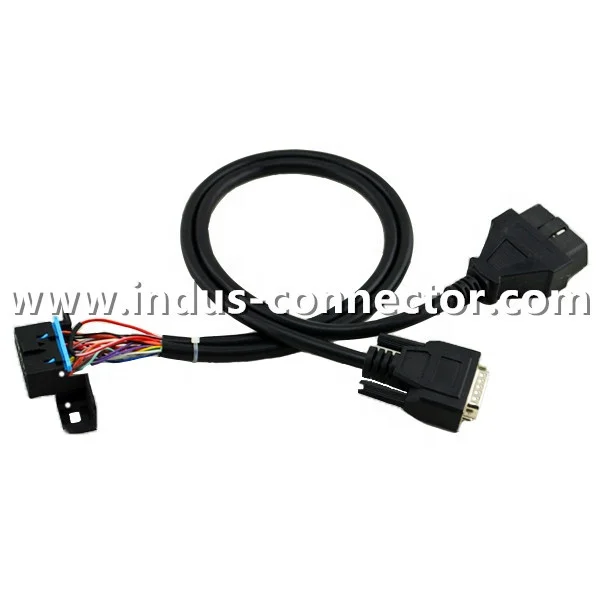

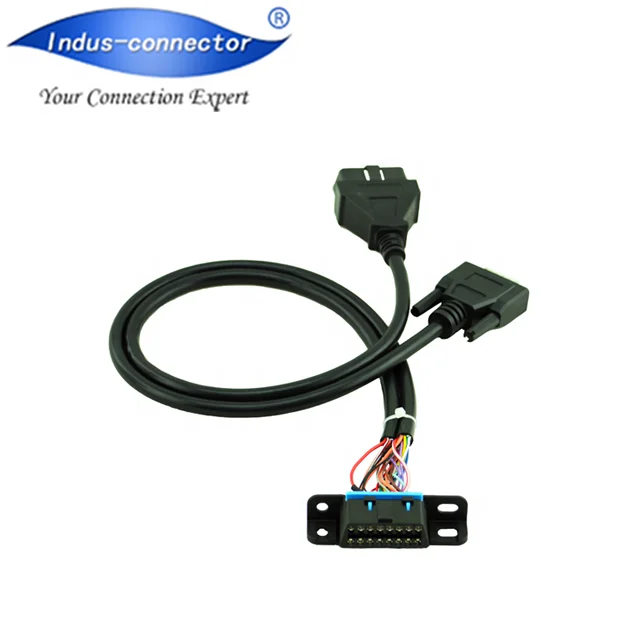

D SUB 15 штыревой соединительный кабель obd obd2 разъем Диагностический Кабель адаптер для

D-SUB 15 pin male to obd obd2 connector diagnostic adapter cable for cars
RoHS, REACH, UL certification

OEM, ODM are available

Electrical Data:
Rated voltag: 300V/DC
Contact resistance:  ≤5mΩ
Insulation resistance:  ≥100MΩ

Connector Specification:
Connector locking system: Screw-locking
Material of contacts body: PBT
Material of connetor contact: Copper with gold plated

Cable/Wire Specification:
Wire gauge (AWG): 20AWG / 28AWG
Cunductor: Bare copper
Wire gauge (mm²): 0.50mm² / 0.12mm²
Wire jacket material: XL-PE /  PVC
Jacket material: TPU /  PVC
Temperature range: -55°C ~ +125°C
Diameter: 6.0mm-9.0mm

• All materials conform to RoHS, REACH without any harmful substance comprising strickly checked QC

• 100% testing for open circuit and short circuit and 100% smooth operation before shipping

• Insulation resistance: 10M OHM

• Hi-pot: DC 300V 10ms

• Our standard packing:

• Individual part with transparent PE bag with label

• Outer carton size: 46x30x30cm
Note: The cable length depend on the quantity of per carton

To Be Your The Best Connector Expert

• Low cost but good quality in ip68 waterproof in locked condition with ISO9001 management under efficient service

• Provide free samples within 2 working days if it is normal product with existing tooling

• 10 years quality assurance

• OEM, ODM are available
