Sound insulation eps cement sandwich wall partition dwg
Product Description
Products Name: | Sound insulation eps cement sandwich wall partition dwg |
Double Sides Surface Board: | Calcium silicate board 5.0mm thickness; Fiber reinforced cement board, FRC board |
Core: (100% non-asbestos) | EPS beads, (ceramicite/ceramsite/ceramic), Patented additive, Portland cement, sand |
Panel Joining Method: | Tongue & Groove Type |
Specification: (Length*Width*Thickness) | 2270mm*610mm*60mm 2270mm*610mm*75mm 2270mm*610mm*90mm 2270mm*610mm*100mm 2270mm*610mm*120mm 2270mm*610mm*150mm |
CE, ISO9001, ISO14000, SGS, STC, BV, National Test, Patent acquired | |
Technic Index
Name | Sound insulation eps cement sandwich wall partition dwg |
Light weight | Capacity 650kg/m3, 1/6 of traditional wall with same volume |
Space saving | Save 4.26m2 per 100 m2 |
Waterproof | The back of panel can keep dry without any blot |
Fireproof | After 4 hours 1000 degree fire, EPS no change, no smoke |
Sound Insulation | 46dB, soundproof, sound absorption |
Hanging force | Single point hanging force 50kg while embed hanging force can exceed 150kg |
Windproof | 75m/s; 270km/h |
Anti-seismic | Class 8, anti earthquake |
Anti-impact | Hight strength, 1.5 times of tranditional wall |
Fast construction | 8~10 times of tranditional wall, easy decoration |
Eco-friendly | 100% no asbestos, asbestos free |
Service Life | 60-70 years life span |
Hanging force test for eps sandwich panel/ eps cement sandwich wall partition dwg
Fire proof test, heat insulation test, water proof test for eps sandwich panel/ eps cement sandwich wall partition dwg
Features&performance
EPS cement sandwich panel is fire proof, heat insulation, sound insulation, waterproof, windproof, anti-impact, anti-seismic.
EPS cement sandwich panel is light weight, energy saving, space saving, eco-friendly, weathering resistance, good resistance to freezing, thawing and ageing.
EPS cement sandwich panel is strong and durable, long life span. It has great load bearing & hanging force for TV, air conditioner, panel board, splitter box, cabinet, closet, etc.

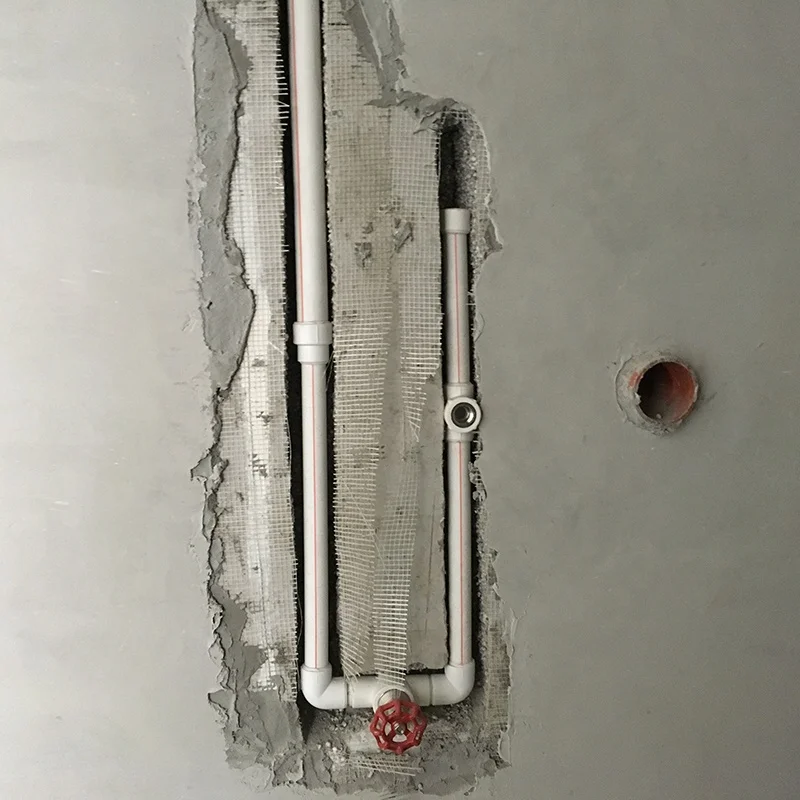

EPS cement sandwich panel is easy installation, fast construction, easy decoration, easy pre-bury for water pipe, electric wire, concealed wire, switch, etc.
Sound insulation eps cement sandwich wall partition dwg | |
Thermal conductivity(BS 874: Part 2: 1986) | 0.221 W/mK |
Flexural Strength(longitudianal) | 4.27 MPa |
Flexural Strength(transverse) | 4118N |
Moisture Movement | 0.06% |
Moisture Content | 9% |
Resistance to continuous heating | 80 °c |
Surface Alkalinity | pH 7-10 |
Non-combustibility(face Boards) | BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1997, Grade A |
Heat of conbustion(face boards) | BS EN ISO 1716: 2002 |
Building regulations classfication(face boars) | Euro Class A1 |
Fire rated partition | 2 hour FRP BS EN 1364-1 BS 476: Part 22 GB/T9978 |
Water tightness to ASTM C1185 | No droplets observed behind the panel, Test of 24 hours at 250 mm water head |
Partition stiffnesss-heavy duty grade (BS 5234; Part2: 1992, Annex A) | Pass |
Resistance to structureal damage by multiple impacts from a large soft body -heavy duty grade( BS 5234; Part2: 1992, Annex E) | No collapse of dislocation |
Surface damage by hard body impact- heavy duty grade(BS 5234; Part2: 1992, Annex B) | Pass |
Effects of door slamming-heavy duty grade BS 5234; Part2: 1992, Annex B | Pass |
resistance to crowd pressure-heavy duty grade BS 5234; Part2: 1992, Annex G | No collapse of damage |
Resitance to anchorage(high level wall cupboard)eccentric downward BS 5234; Part2: 1992, Annex K | No damage or detachment of anchor |
Anchorge Load | 45 kg |
Acoustic performance - 60 mm thick - 75 mm thick - 100 mm thick - 120 mm thick - 150 mm thick | 38 dB 40 dB 42 dB 44 dB 46 dB
|
Installation
Installation flow of EPS cement sandwich wall panel/ eps cement sandwich wall partition dwg
(a). Clean up site
(b). Setting the line
(c). Sizing
(d). Install the panels
(e). Insert rebar
(f). Panel joints treatment
(g). Acceptance inspection
Pls kindly email us if you need installation flow, node diagram, video,ect.
Application
EPS cement sandwich wall panel/ eps cement sandwich wall partition dwg can be widely used in industry and civil buildings, such as school, bank, office, hospital, hotel, workshop, apartment, factory, casino, modular house, portable dwelling, amusement hall, booth, kiosk, carport etc.
Eps sandwich panel's advantages in application:
Floor system
Advantages: Damp proof, corrosion resistance, high load-bearing capacity, no deformation, no split.
Roof system
Advantages: Light weight, heat insulation, sound proof, water proof, wind proof, safe & durable.
Interior wall system
Advantages: Sound insulation, fire proof, convenient for wire groove and water pipe inbuilt, easy decoration, saving space, high hanging force.
Exterior wall system
Advantages: Solid and firm, high bonding strength, stable performation, compressive strength, anti-crack, weather resistance.
Certification
Vanjoin eps cement sandwich wall panel/ eps cement sandwich wall partition dwg has passed CE, SGS, ISO9001, ISO14000, Invention Patent, STC tests, etc.
We can provide free samples if you need further testing.
Packaging & Shipping

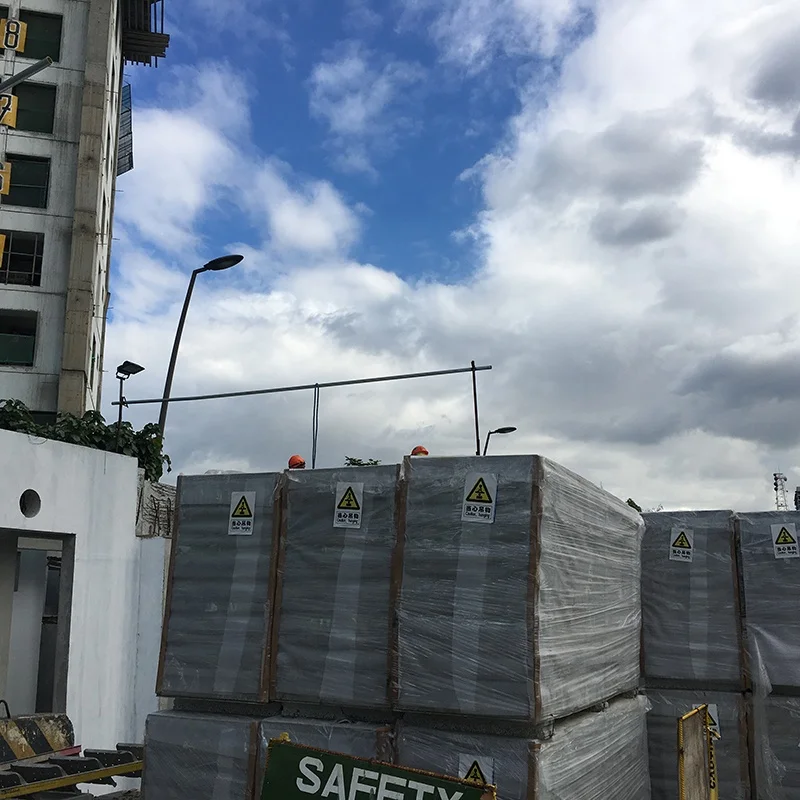

EPS cement sandwich wall panels/ eps cement sandwich wall partition dwg are packed with plastic thin film, wedge protected and good pallet.
20' GP container loading details basing on different size:
| Specification (L*W*T)(mm) | Weight(kg/m2) | Packing(pcs/m2 per 20’GP) | Application |
Sound insulation eps cement sandwich wall partition dwg | 2270*610*60 | 45~48 | 315pcs/436m2 | Roof system |
2270*610*75 | 50~53 | 252pcs/349m2 | Floor system | |
2270*610*90 | 55~58 | 207pcs/287m2 | Interior/Exterior wall | |
2270*610*100 | 60~65 | 189pcs/262m2 | Interior/Exterior wall | |
2270*610*120 | 65~75 | 153pcs/212m2 | Exterior wall | |
2270*610*150 | 80~90 | 126pcs/175m2 | Exterior wall |
Company Information
Hubei Vanjoin Building Co., Ltd. is a high tech building material enterprise specialized in the R&D, production, sales and international trade of new energy-saving light weight wall materials. It is located in Wuhan with production area based in Jingshan economic development zone, well-located and easy of access.
Vanjoin have modern enterprise management mechanism, professional administrative staff, scientific decision system, perfect quality control, flexible management system, which bring Vanjoin's unceasing development. we now own a factory with 40,000m2, with annual production capacity 2,000,000m2 wall panels, 4 times higher than past, ranking TOP 3 in China,
Our products have been certificated by CE, SGS, ISO9001, ISO14000 and OHSAS18001.
Below points you may be interested:
- We are experienced in this field for 10 years;
- We have a 40,000m2 factory, with 60000m2 sotcking area;
- We are ranking Top 3 manufacturer in China, and Top 1 manufacturer in Hubei;
- We are certificated with CE, SGS, ISO9001, ISO14000, Invention Patent, STC tests, etc;
- Our production capacity is 2,000,000m2/year;
- Our average exports is over 400 containers/month;
- Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.
We are on Fairs
Test reports and FREE samples for our EPS cement sandwich panels are available.
Warmly welcome your new inquiries.
Welome for your visit to our factory at any time.
