Company Description
Shanghai SIEN Food Machinery Manufacturing co., LTD is a modern enterprise specializing in the development, manufacture and sales of confectionery machinery and baking equipment. The company has passed the certification of ISO9001 quality management system, and some products have passed the EU CE test and obtained the CE certificate.
Our factory has specialized in candy machine manufacture for several years. We have our own intellectual property and professional engineers who have gone many countries to install, debug and test mass equipment.Besides,we have new condition mould which can be connected to increase production. Please have faith in our product, we will provide high efficient machine and high quality service. If you are interested in our machine, please contact with us.

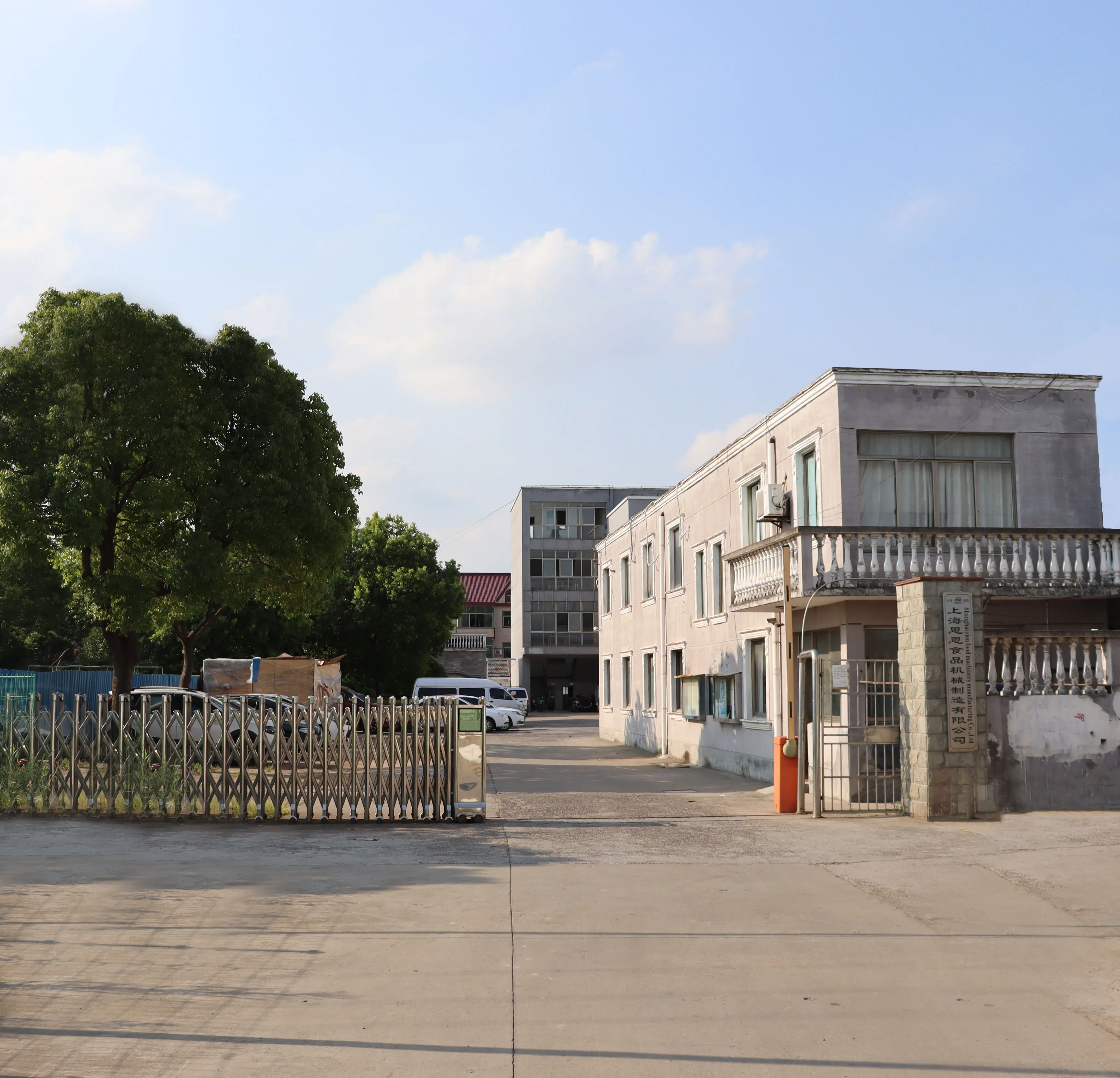

Shanghai Sien Food Machinery Manufacturing Co., LTD.
It is a modern enterprise ,specialized in the R&D,manufacturing and sales of confectionery machinery and baking equipment. We have strong technical force,sophisticated equipment, advanced technology. Our products sell well all over the country and far to Russia,Middle East, South Asia, South America and other countries and regions.We will use high quality products,efficient and professional pre-sales and after-sales services to give back the support and love of both old and new customers at home and abroad.
Product Description

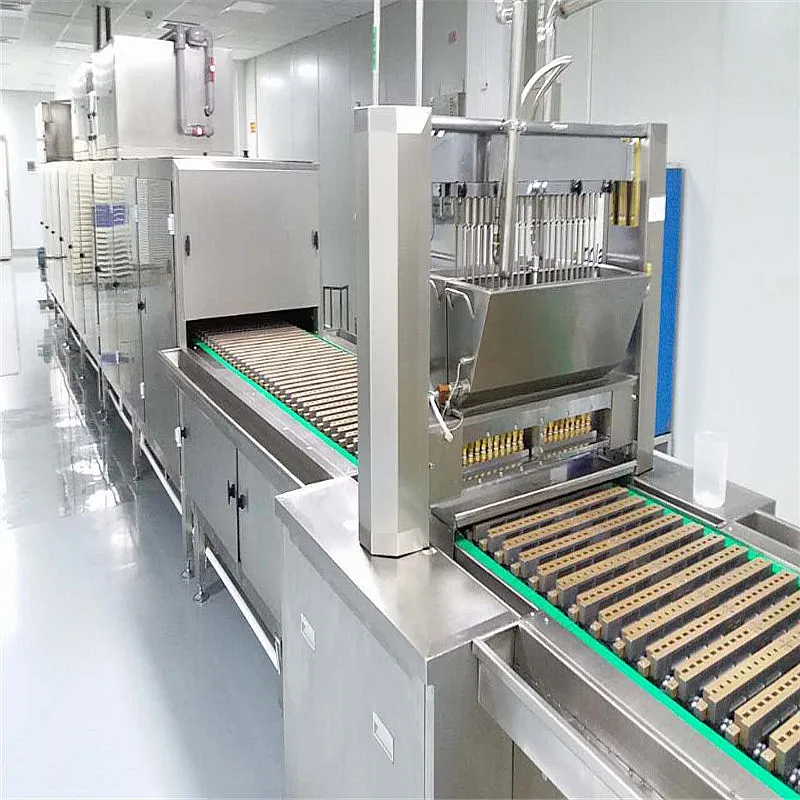

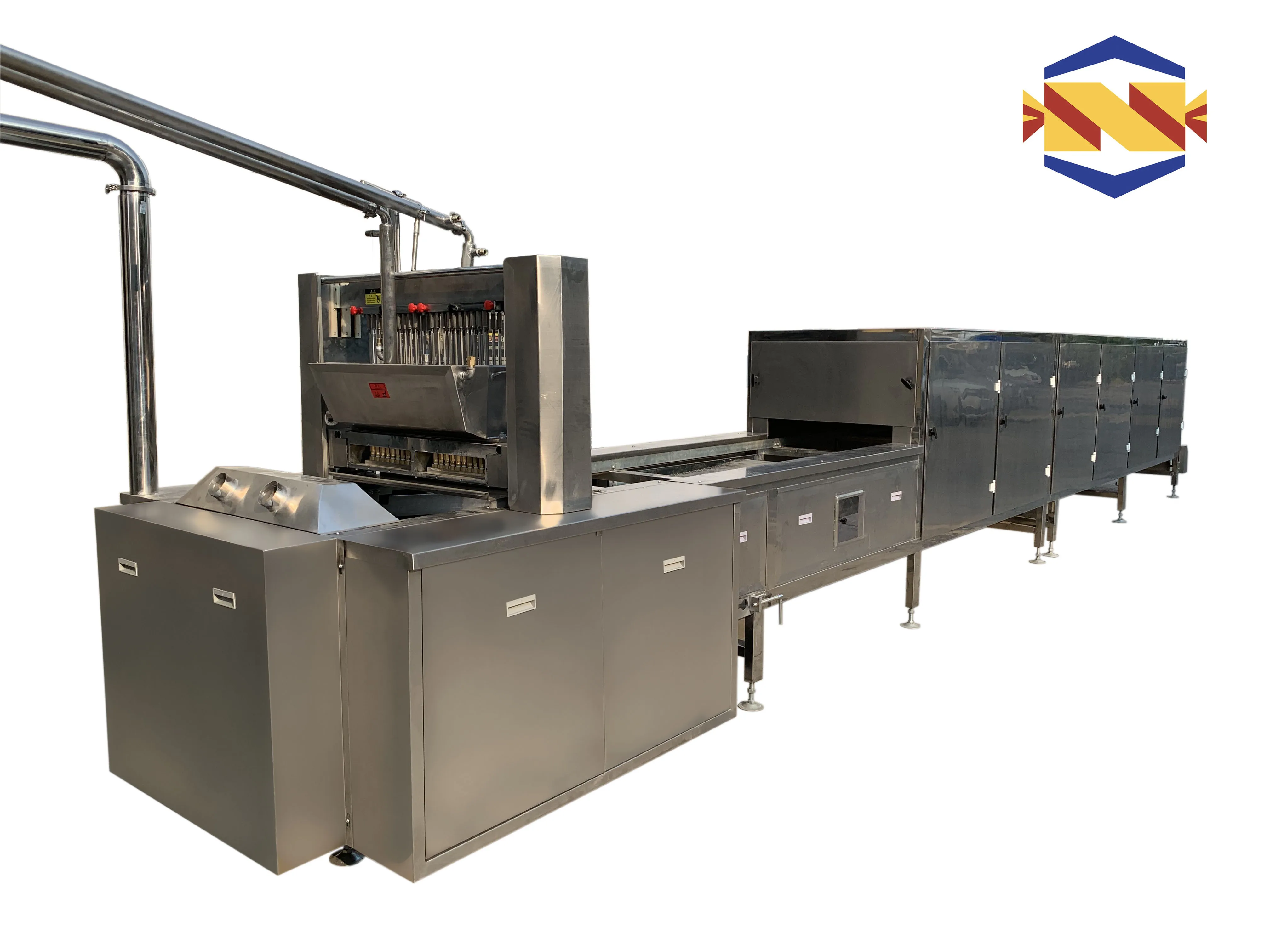

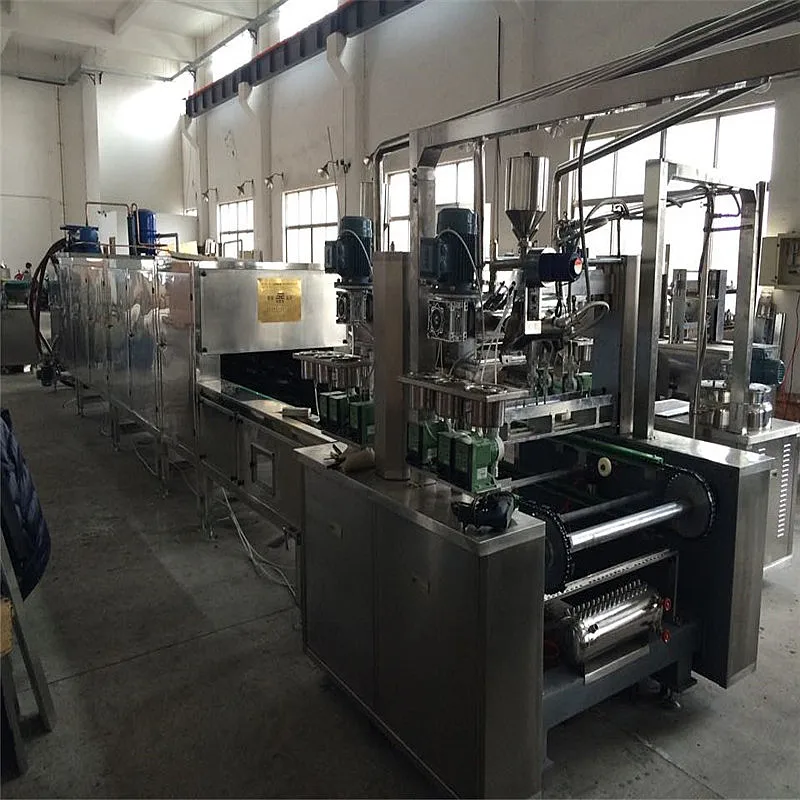

Automatic Jelly / Gummy candy depositing line
SE150/300/450/600/750 Jelly candy depositing line is not only an ideal equipment which can produce products of good quality ,but also an advantage for the candy manufacturer to pass the GMP,HACCP,QS authentication easily.This line mainly consists of dissolving tank, storage tank,weighing and mixing system,depositor and cooling machine and adopt the advanced servo system to control.
Model | SE150 | SE300 | SE450 | SE600 | |||
Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h | |||
Candy weight | As per the candy size | ||||||
Depositing speed | 25-45n/min | 25-45n/min | 25-45n/min | 25-45n/min | |||
Steam requirement | 100kg/h 0.2-0.6MPa | 200kg/h 0.2-0.6MPa | 300kg/h 0.2-0.6MPa | 400kg/h 0.2-0.6MPa | |||
Compressed air requirement | 0.6m³/min 0.4-0.6MPa | 0.6m³/min 0.4-0.6MPa | 0.6m³/min 0.4-0.6MPa | 0.6m³/min 0.4-0.6MPa | |||
Working condition | Temp:20-25C° Humidity:55% | Temp:20-25C° Humidity:55% | Temp:20-25C° Humidity:55% | Temp:20-25C° Humidity:55% | |||
Total power | 18KW/380V | 20KW/380V | 22KW/380V | 25KW/380V | |||
Total length | 13.5m | 14m | 15m | 17m | |||
Gross weight | 3500kg | 4000kg | 4500kg | 5000kg | |||
The advantage of the line is as following:
· PLC/computer process control available;
· An LED touch screen for easy operating;
· The main part is made of stainless steel;
· Molds can be made according to the candy samples provided by customer;
· Exported to more than 20 countries(Vietnam and India etc)
· 24 hours before and after sales

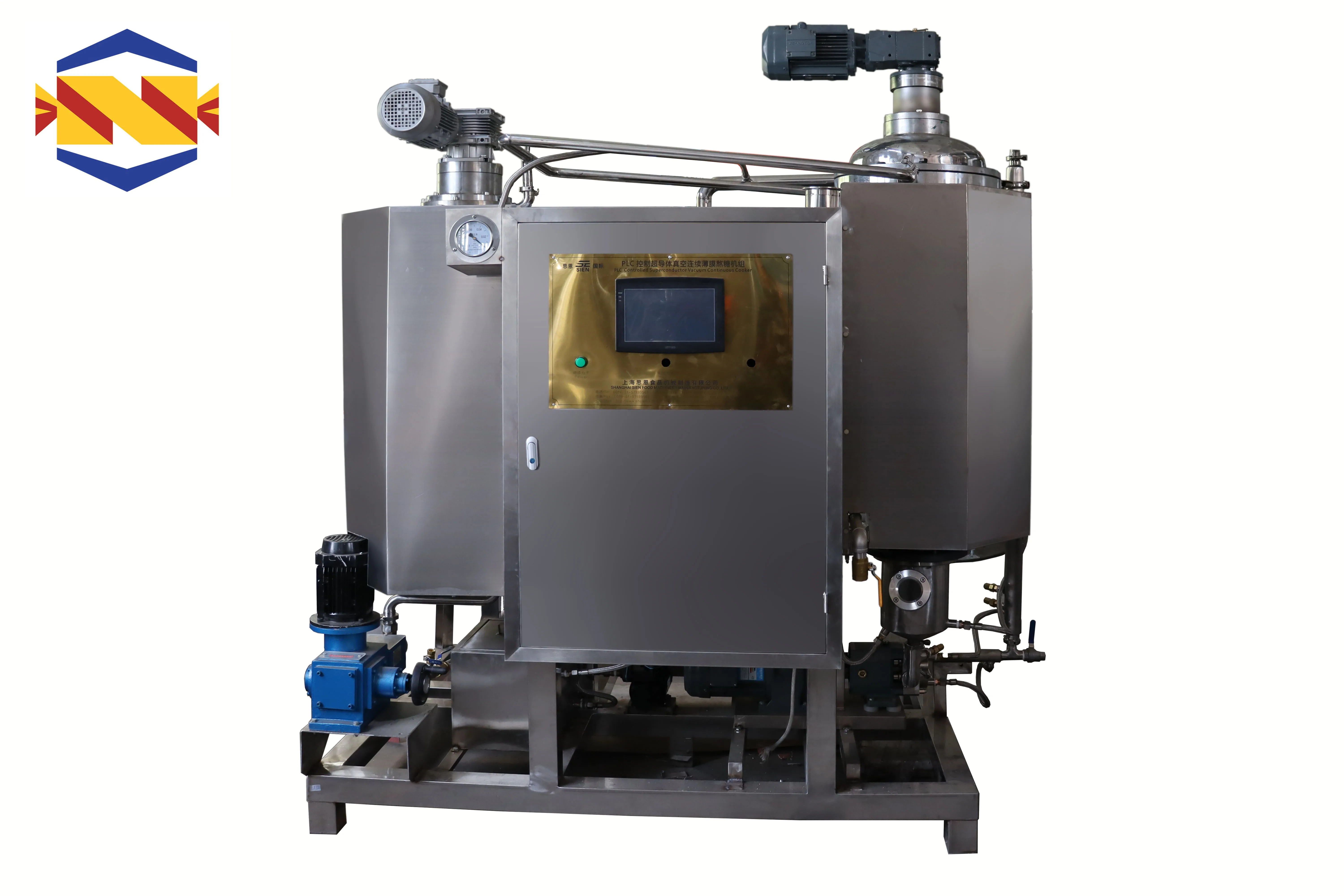

Dissolving cooker
Volume: 150L
Working pressure: 0.32Mpa
It can dissolve raw matericals and form a basis for the continuous production.
150L Storage tank
Power：6kw
Material:stainless steel 304 double layer with insulation
Size：900*1400mm
Conveying pump
Quantity :1 set
Power:1.5kw
Power:1.5kw
Material :stainless steel pump head , food grade inner
Size :600*280*260mm
Motor :ABB
Pressure:0.33Mpa
Essence, pigment Tank
Material:stainless steel 304
Remark:5-8L

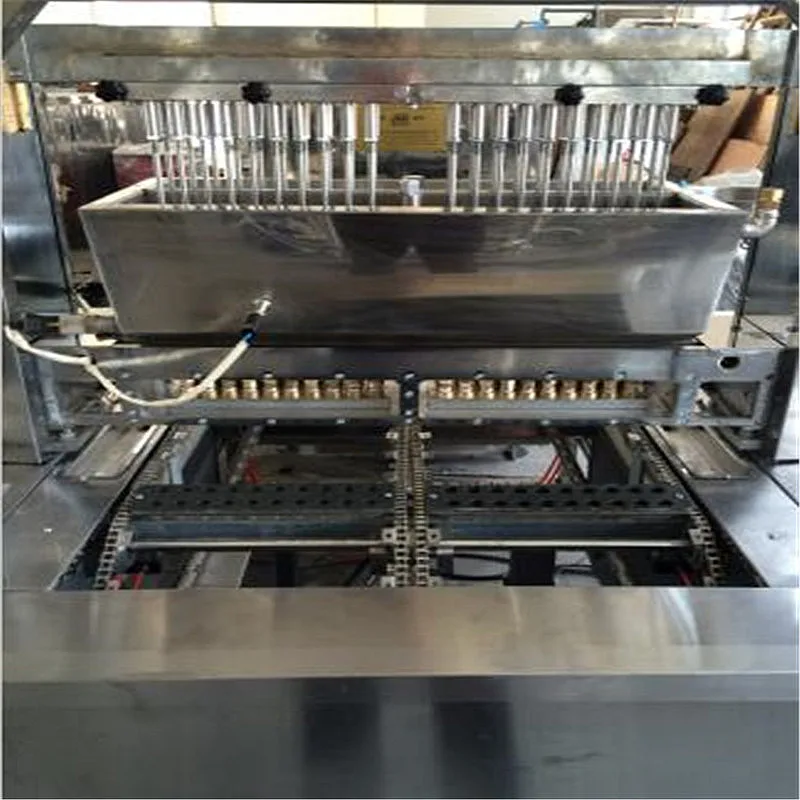

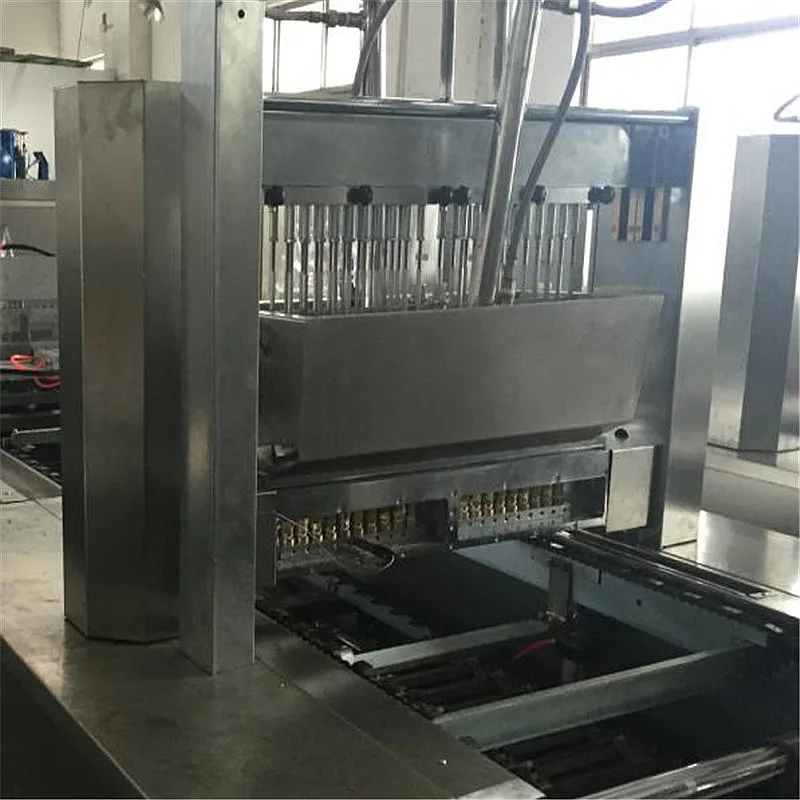

Servo depositing machine
Power：6kw
Size：1200*1100*1800 mm
Cooling machine
Quantity：1 set
Power:10kw
Material : The frame of machine is stainless steel;Size：8400*750*2300 mm
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Production Flow
→Preheating→Microfilm cooking→Discharging→Mixing with flavor and color→Depositing
→Cooling→Demoulding→Conveying→Packing→Final product
Here is the molds:
We can design the molds for you.
Main electric suppliers：
Application
Certifications
Packing & Delivery

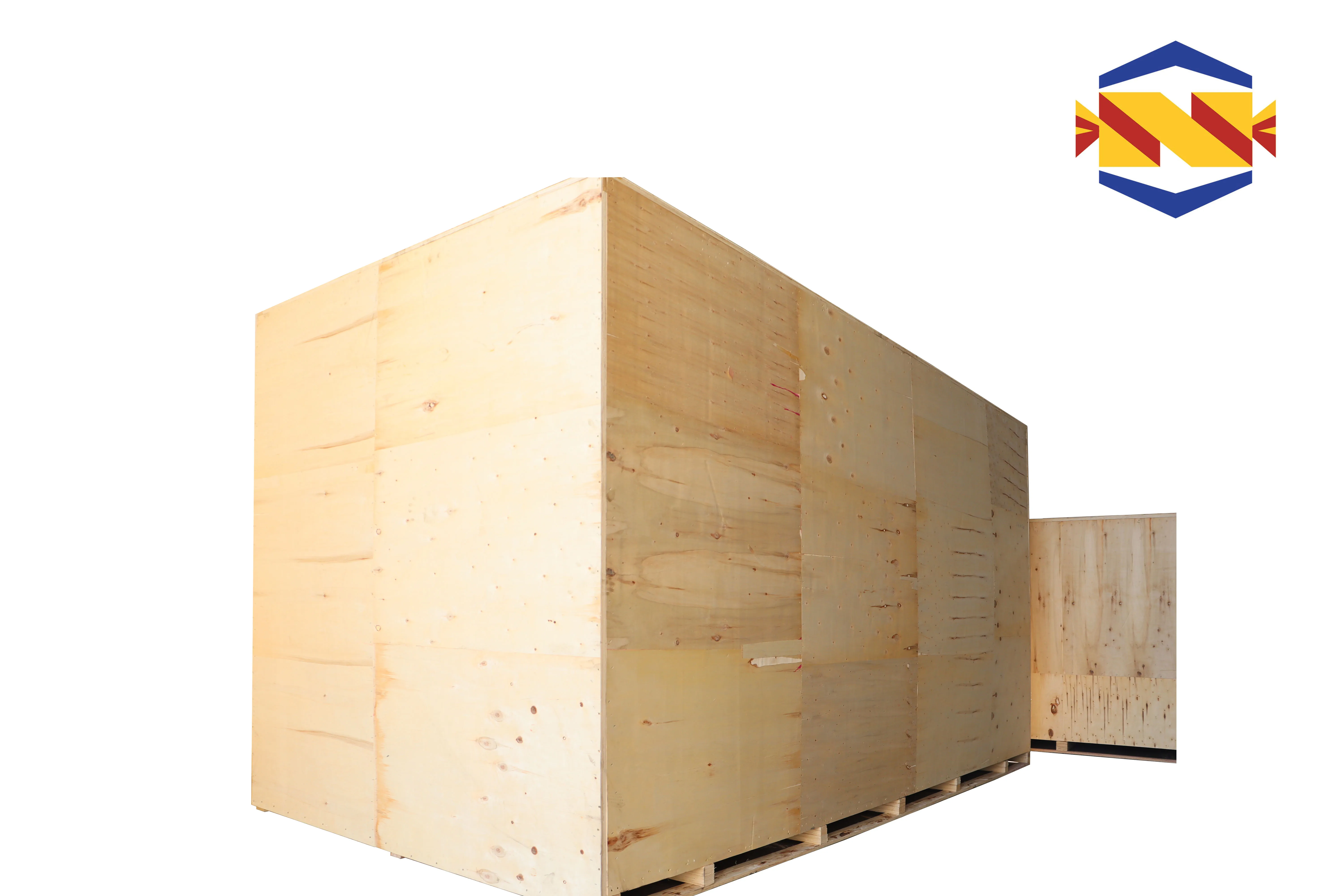

We use wooden pallet or wooden box.
45 working days after the deposit received.
Our Service
Quality assurance:
Adhere firmly to the regulations provided by the the quality will be guaranteed for one year on condition that buyer flowing the operating instruction strictly provided by the supplier. (except man-made fault or vulnerable parts)1,Permanent guarantee of the product in or beyond the guarantee period. Quick response to customers' reporting of the failure of machine. "Recover the production" is priority.
2,Providing expect for the instruction of install and debug of the equipment
3,Providing specialized trainings for the workers, through which they could have a better grasp of the operation and fixing skill of a machine
4,Providing accessories of equipment permanently at a reasonable price and quick delivery.
5,Can provide you with a whole candy production line and technology solution.
Recommend Products
FAQ
Q:Are you a factory or trading company?
A:We are a factory and have more than 10 years manufacture and sales experience.
Q:What’s your MOQ?
A: 1set.
Q:How should i do if meet some trouble while using?
A:We can help you resolve the problems online or dispatch our worker to you factory.
Q:How can I contact with you?
A:You can send inquiry to me. Also can contact with me by wechat/cellphone.
Похожие товары
Инструменты для полировки камня, алмазные мраморные гибкие прокладки
9036945003 подшипник ступицы переднего и заднего колеса 90369-45003, автомобильный подшипник для Toyota Lexus
5,70 $ - 6,00 $
Высококачественный комплект ступицы подшипника переднего колеса, ступица колеса для Land rover второго поколения 9340005 9340005K LR003157 ZV710LR

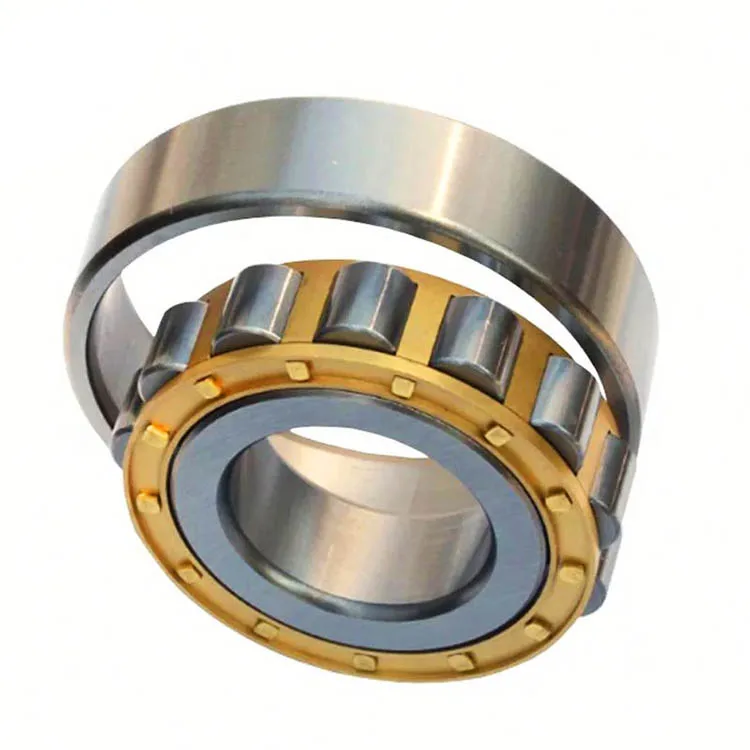

0735541136 0750118180 цилиндрический роликовый подшипник, подшипник прицепа, подшипник коробки передач для ZF
