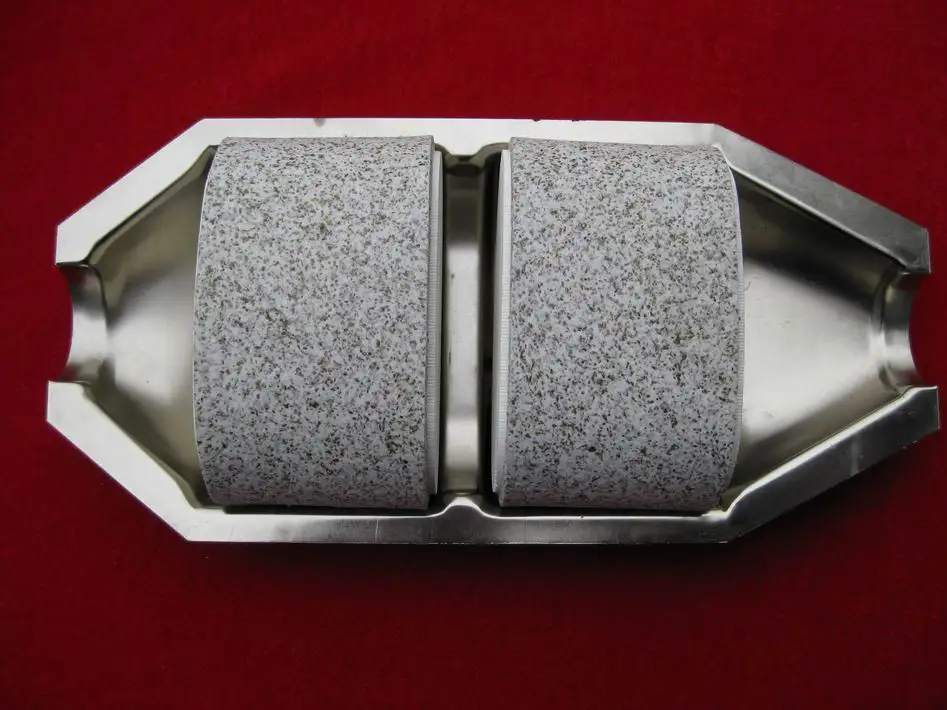

Коврик для поддержки каталитического конвертера M

Описание и отзывы

Характеристики

Catalytic Converter Support Mat TYM

TYM Mat is made of resistance ceramic fiber and handpicked vermiculite. TYM Mat has given the excellent performance with the benefit of Years of insulation products manufactured in advanced technology.

1. Excellent insulation properties

Compared with wire mesh, TYM provide lower the outside temperature of the catalytic converter, increasing the internal temperature and conversion efficiency.

2. Right expansibility and Good flexibility

TYM provide right expansibility hold the coated monolith in just place, With the help of the support from soft ceramic fiber, the mounting system can maintain durability.

3. Prevent exhaust gas bypass

Under normal operating conditions, TYM Mat can seal the monolith perimeter to prevent exhaust bypass, because all the good things for catalytic converter are meaningless without effective sealing.

4. Compared with wire mesh, TYM can improve the exhaust systems noise situation.

There are two general types of TYM mats: Intumescent mat and Non-intumescent mat.

TYM 200 Mat

TYM 200 Mat contain the unexpanded vermiculite which provides the intumescent property, applications include total mount system used in most converters,

acteristics:

1. Excellent insulation Properties

2. Superior sealing performance

3. Excellent durability

4. High peak holding forces

TYM 200 Mat

Application and graphical representation

Basic structure

Total mount system

TYM 2001/2002Mat

TYM 2001 Mat consists of TYM intumescent mat and TYM non-intumescent mat, applications include total mount system used in most converters , special operating parameters(i.e., ultra-thin wall monoliths , high temperature , etc.). For example; gasoline motor

acteristics:

1. Excellent insulation Properties

2. Superior sealing performance

3. Excellent durability

4. Low peak holding forces

TYM 2001 Mat

Attention

The ceramic monolith is wrapped with the TYM 2001 Mat which is white surface

TYM 2002 Mat consists of TYM intumescent mat and the expandable graphite which provides low Cross-Over Expansion Temperature, applications with total mount system used in most converters, For example; diesel motor.

acteristics:

1. Excellent insulation Properties 2. Superior sealing performance
3. Excellent durability
4. Low temperature expansion
Application Of The Edge Seal Hybrid Mat
TYM 300 mats can also be combined very effectively with TYM 200 mats to from Hybrid mats.
The edge seal hybrid mats are normally comprises one or two narrow strips of 300 mat on one or both sides of a wide strip of intumescent mat. The 200 mat strips protect the leading and/or trailing edges of the intumescent mat from erosion caused by impingement, high temperature , and pulsation effects of the exhaust gas.

acteristics:

1.  High temperature resistance
2.  Reduced exhaust gas bypass
3.  Lower thermal conductivity

Applications:
Close-coupled and manifold mounted converters
High aspect ratio monolith configurations
Wide oval, racetrack monolith contours
