GBG 48 шпинделя Нержавеющая Сталь Горизонтальный провод оплеточная

GBG 48 шпинделя Нержавеющая Сталь Горизонтальный провод оплеточная

Категория: >>>
Поставщик: Wuxi Longterm Machinery Technologies Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

GBG-48 Spindle Stainless steel horizontal wire braiding machine

Product Description

Application of the Braiding Machine:

The Braiding Machine can be applicated in the production of the braids as follows:

1. Wire diameter:0.3mm to 0.8mm

2. No.of spindles:16-128 spindle braiding machine

3. ID of the braids:4mm to 600mm

4. Material of wires:stainless steel,galvanized carbon steel, copper wire

Technique Parametre:

Single decker steel wire braiding technical data:

Type No.	Braid ID (mm)	rotation speed of spindle r/min	braiding angle	Pitch(mm)	pulling speed (m/h)	no.of carriers	Motor power(KW)
BG-16	4-10	24.8	54°44'	9-22	13-33	16	Y132M1-6 5.5KW
BG-20	6--13	19.8	54°44'	13-29	15-34.5	20	Y132M1-6 5.5KW
BG-24	10--31	14.25	54°44'	22--69	21--66	24	Y132M1-6 5.5KW
BG-36	15--45	10	54°44'	33--100	22--66	36	Y132M1-6 6.0KW
BG-48	30--75	7.25	54°44'	66--166	29--72	20	Y132M1-6 9.5KW
BG-64	51--110	4.56	54°44'	67--240	18.6--102	64	Y160L-6 11.5KW
BG-72	80--150	4.25	54°44'	170--330	44--83	72	Y160L-6 11.5KW
BG-96	150--400	2.75	54°44'	240--750	50--120	96	Y160L-6 22.5KW
BG-112	115-400	2.778	54°44'	310-800	42-130	112	Y100L-6 19KW
BG-128	180-500	2.088	54°44'	500-1300	72-300	128	Y100L-6 20.5KW

Double decker steel wire braiding technical data:

Type No.	Braid ID (mm)	rotation speed of spindle r/min	braiding angle	Pitch(mm)	pulling speed (m/h)	no.of carriers	Motor power(KW)
BG-2S16	4-10	24.8	54°44'	9-22	13-33	32	Y132M1-6 5.5KW
BG-2S20	6--13	19.8	54°44'	13-29	15-34.5	40	Y132M1-6 5.5KW
BG-2S24	10--31	14.25	54°44'	22--69	21--66	48	Y132M1-6 5.5KW
BG-2S36	15--45	10	54°44'	33--100	22--66	72	Y132M1-6 6.0KW
BG-2S48	30--75	7.25	54°44'	66--166	29--72	96	Y132M1-6 9.5KW

Our Machines:

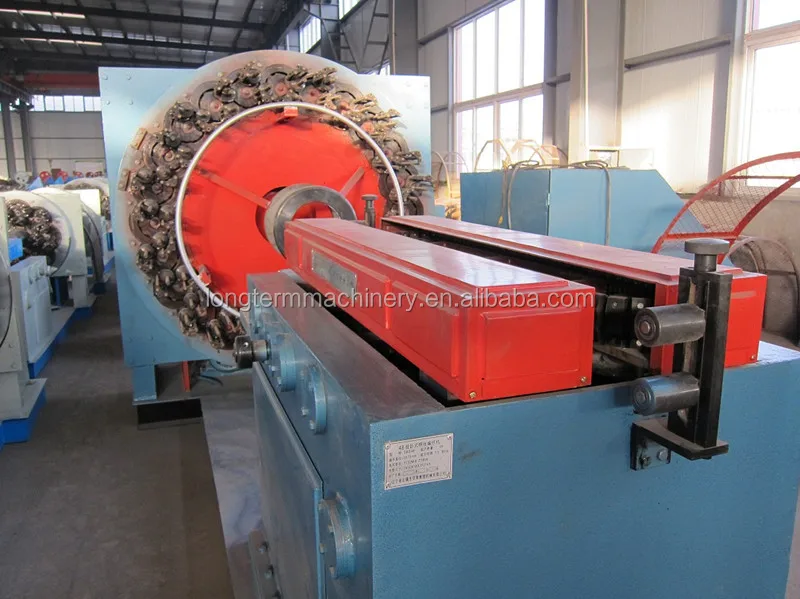

24Carriers Wire Braiding Machine

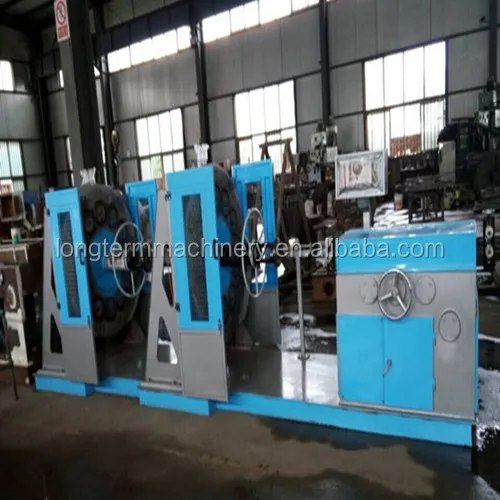

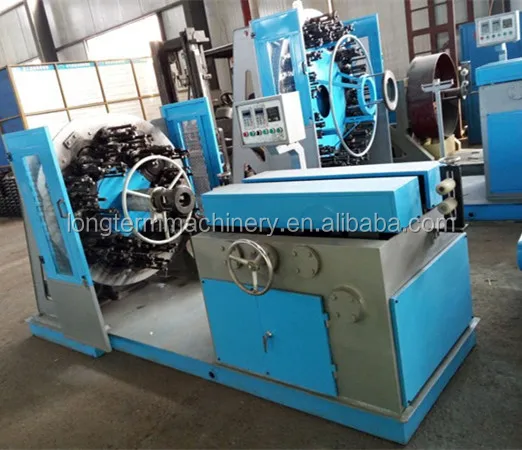

48Carriers Wire Braiding Machine

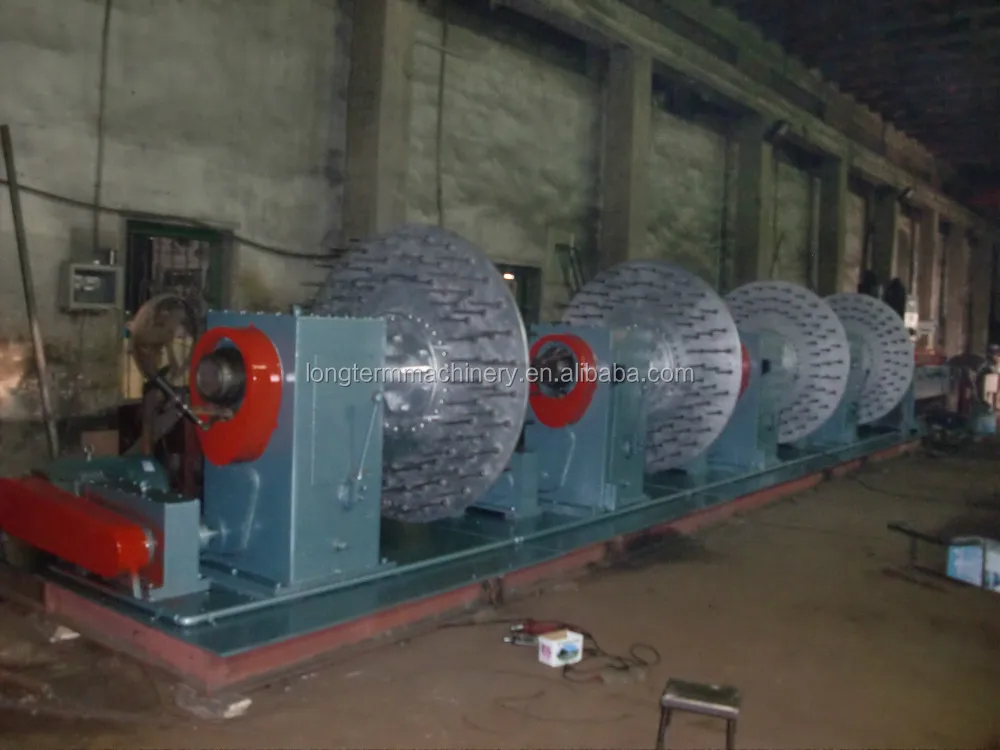

96Carriers Wire Braiding Machine

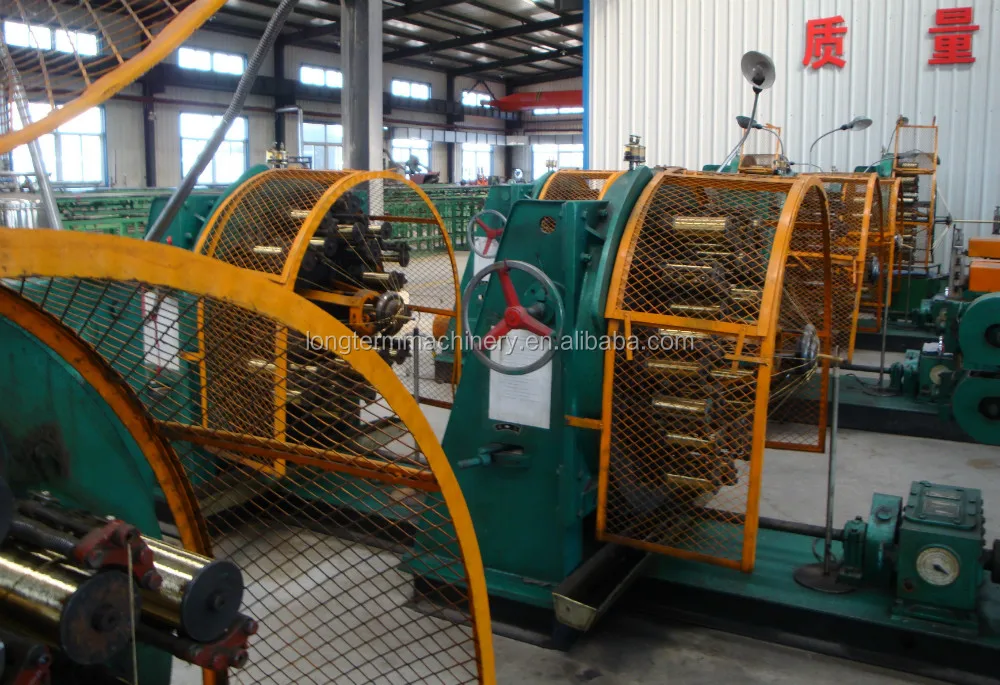

128Carriers Wire Braiding Machine

Braiding Details

Bobbin Winder

Packing and Shipping

Company Information

We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine, hydraulic forming machine,wire braiding machine, rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.

We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.

SGS1jpg__

Our Services

Warranty period of one year

standard seaworthy package

Engineers available to service machinery overseas

FAQ

1. Why choose us as your supplier?

We are the most professional supplier of steel wire braiding machines with more than 30 years of experience.

2.What wires can your machine braid?

A. Stainless steel wire

B. Copper lad steel wire

C. Copper wire

3. What is the application of your braiding machine?

Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:

1.What outer diameter of the hose you want to braid?

2. Structure of the braid?

3.How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
