Машина для изготовления брикетов, машина для изготовления брикетов для брикетов, машина для производства брикетов
107 898,20 ₽
С двумя выходами валы редуктор структура DRI штрафы для брикетирования хромового порошка машина
- Категория: >>>
- Поставщик: Luoyang Zhongyuan Mining Machine Manufacture Co. Ltd.
Сохранить в закладки 60387854768:
Описание и отзывы
Характеристики

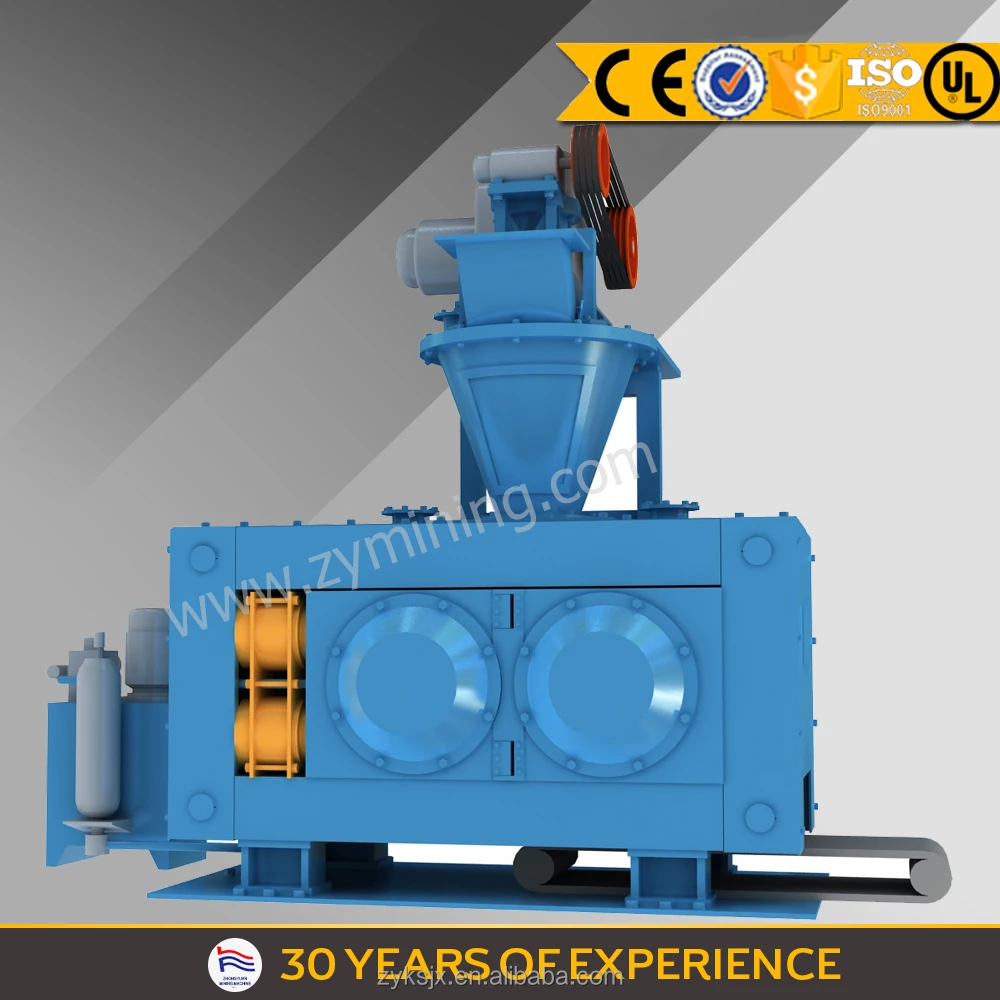

Dual-Output Shafts Structure DRI Fines Briquetting Press Machine
Luoyang Zhongyuan Mining Machine Manufacture Co.,Ltd. is located in Luoyang
City, covering 30000 m2. Since established in 1986, it is specialized in developing and
manufacturing briquetting & compacting system, crushers, cement equipments, coal
machinery, conveying equipments, mixing equipments and other complete plant which
can be widely used in metallurgy, mine, building materials, chemical, coal, power and
urban garbage disposal industries. Our products have been exported to Southeast Asia,
Europe, Africa, Asia and other areas. The company has passed the ISO9001:2000. GY
series briquette machine has CE certificate. Equipments also could be tailored according
to customer’s requirements.
City, covering 30000 m2. Since established in 1986, it is specialized in developing and
manufacturing briquetting & compacting system, crushers, cement equipments, coal
machinery, conveying equipments, mixing equipments and other complete plant which
can be widely used in metallurgy, mine, building materials, chemical, coal, power and
urban garbage disposal industries. Our products have been exported to Southeast Asia,
Europe, Africa, Asia and other areas. The company has passed the ISO9001:2000. GY
series briquette machine has CE certificate. Equipments also could be tailored according
to customer’s requirements.
Product

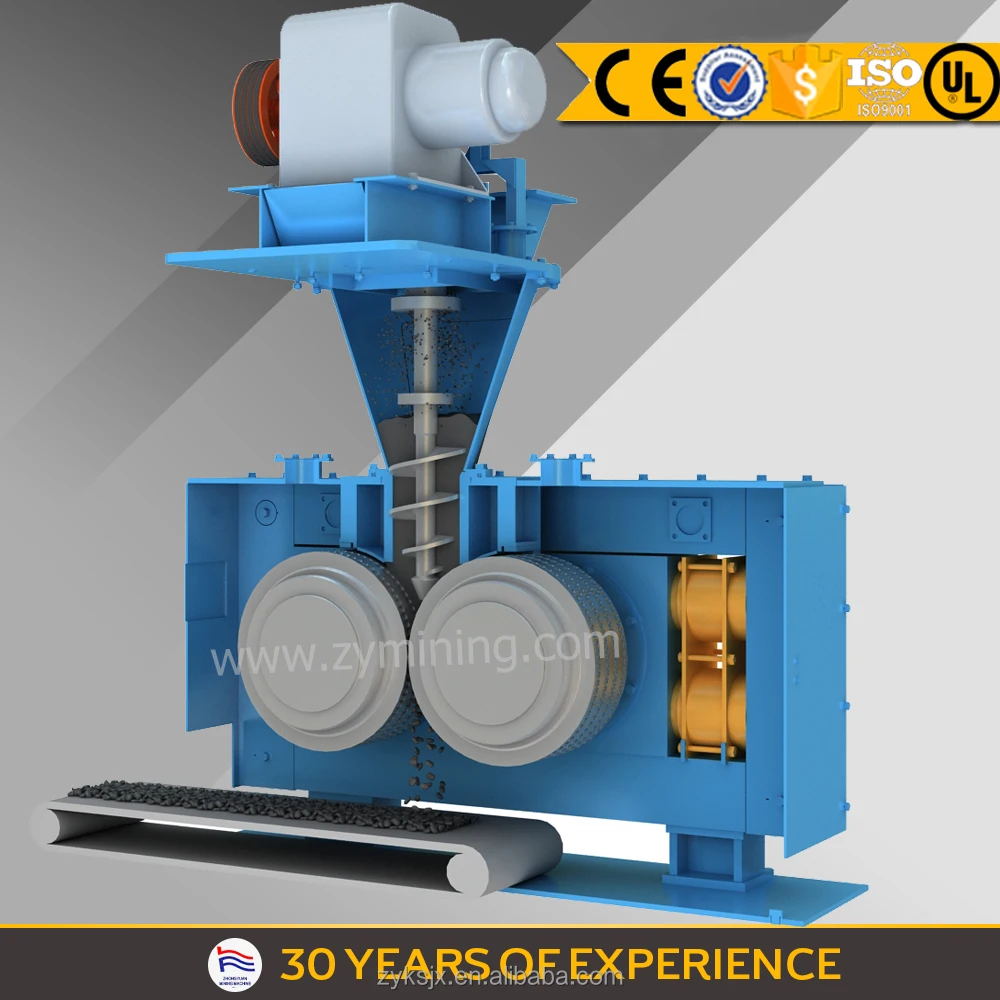

GY high-pressure briquetting machine is a kind of pelletizing machine which can feed various kinds of dry and wet powder through the preliminary pressure device compulsorily into the roll press area and make into high bulk density ball. It is mainly applied in the coal, mining, metallurgy, fire-resistant materials, construction materials and other light metal industries.
Luoyang Zhongyuan Mining Machine Manufacture Co., Ltd. is the first specialized enterprise of manufacturing briquetting machine in domestic. Since the first large high-pressure briquetting machine GY750-300 was finished trial-manufacture in 1989, the company has formed three series, more than twenty models after many years of research, tests, and improvements. The structure, performance, quality and service life of products have high perfoamnce.
The capacity in the below sheet is calculated based on the density of bauxite briquettes in standard size of our company.
.
Model |
Roller dia. (mm) |
Roller width (mm) |
Total pressure (t) |
Max. line specific pressure (t/cm) |
Main motor power (kw) |
Capacity (t/h) |
Weight (t) |
GY520-150 | 520 | 196 | 150 | 8 | 55 | 2.2-3.5 | 13.7 |
GY650-220 | 650 | 205 | 220 | 11 | 90 | 4-6.5 | 19.2 |
GY750-200 | 750 | 320 | 200 | 6 | 110 | 7-10 | 24.5 |
GY750-300 | 750 | 280 | 300 | 11 | 185 | 6-8.5 | 34 |
GY800-380 | 800 | 350 | 380 | 11 | 200 | 8-10 | 39.3 |
GY1000-350 | 1000 | 460 | 350 | 8 | 250 | 10-15 | 50 |
GY1000-450 | 1000 | 500 | 450 | 9 | 280 | 14-17 | 58.5 |
GY1000-500 | 1000 | 500 | 500 | 10 | 315 | 15-20 | 58.5 |
GY1000-500 | 1000 | 900 | 450 | 5 | 280 | 25-30 | 63 |
GY1000-540 | 1000 | 900 | 540 | 6 | 185×2 | 30-35 | 59.3 |
GY1200-800 | 1200 | 900 | 800 | 8 | 280×2 | 40 | 110 |
GY1400-1000 | 1400 | 1000 | 1000 | 10 | 355×2 | 50 | 156 |

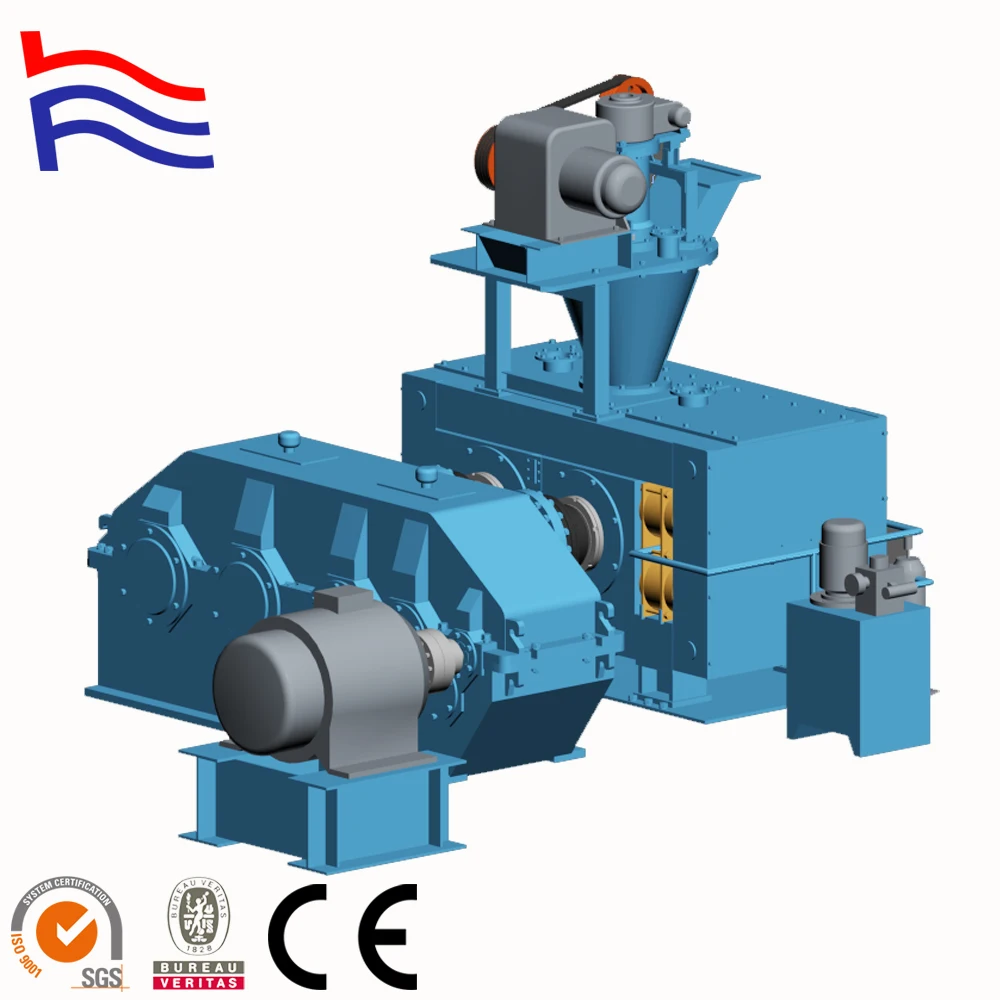

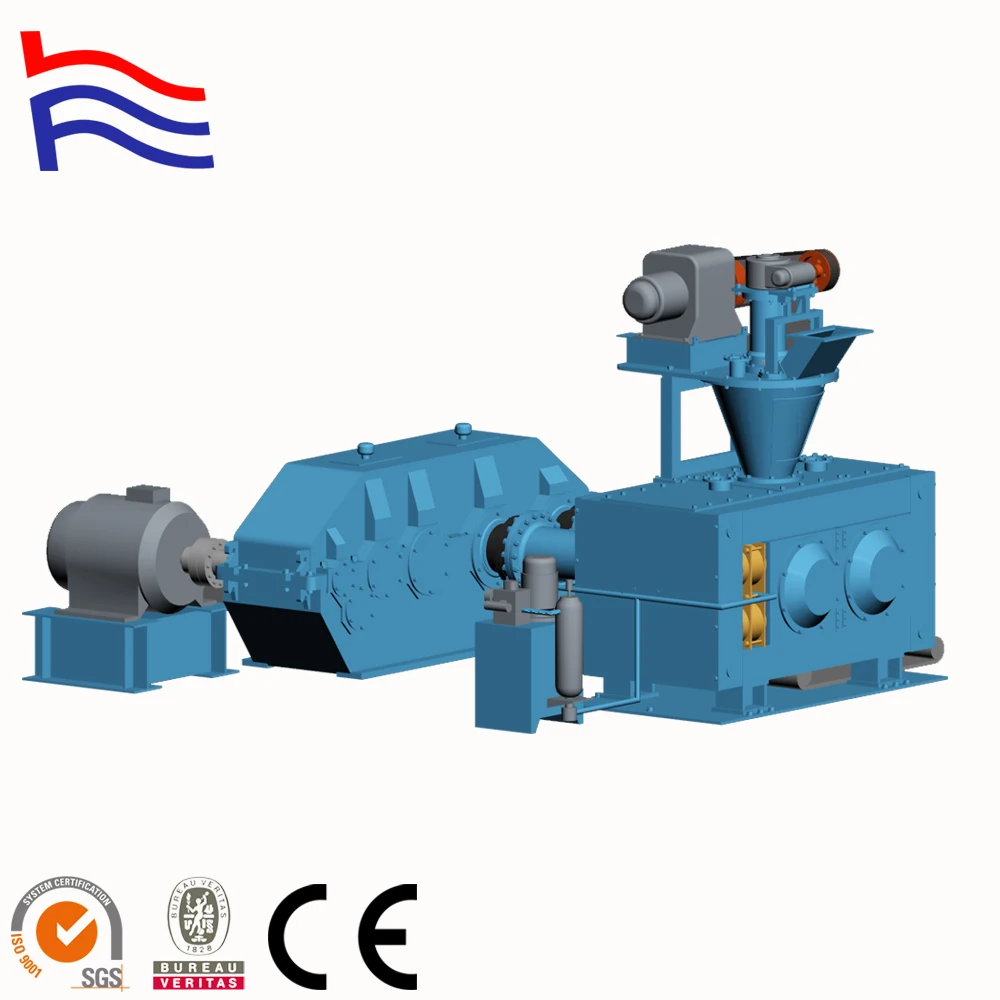

High Pressure Briquetting Machine

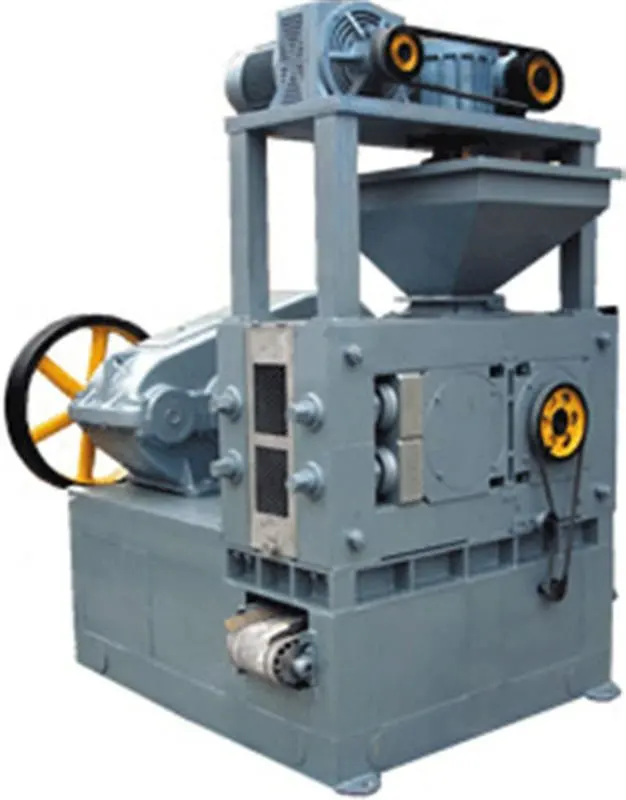

Medium Pressure Briquetting Machine for coal
Gearbox
Fastening device
Lubrication distributor
Hydraulic cylinder
Packing & Shipping
Factory
Introduction:
There has 50 sets of machinery and
equipments to manufacture standard or
customer tailored mining equipments.
The maximum lifting capacity of the
mechanical processing reaches 40T,
and the maximum lifting capacity of the
assembling reach 65T. The company
has a complete testing capacity and a
highly-efficient and complete product
quality inspection tracking system.
There has 50 sets of machinery and
equipments to manufacture standard or
customer tailored mining equipments.
The maximum lifting capacity of the
mechanical processing reaches 40T,
and the maximum lifting capacity of the
assembling reach 65T. The company
has a complete testing capacity and a
highly-efficient and complete product
quality inspection tracking system.
Foreign Visitors
Foreign
customer to
visit the
factory and
talks
customer to
visit the
factory and
talks
Team
It is the mining machinery integrated technical research institute with strong R & D strength, many years of basic research in the heavy machinery in common
Certifiacte
FAQ
Q1 Whychoose us ?
Luoyang Zhongyuan Mining Machine Manufacture Co., Ltd. is the first specialized enterprise of manufacturing briquetting machine in domestic. Since the first large high-pressure briquetting machine GY750-300 was finished trial-manufacture in 1989, the company has formed three series, more than twenty models after many years of research, tests, and improvements. The structure, performance, quality and service life of products have reached world-advanced level.
We have a professional installation and after-sales staffs with over 15 years experiences;
We have the largest factories and production capacity,
The ZHONGYUAN Briquetting machine, worthy of your trust!
Q2 Is there any free service ?
We have lab in workshop to do tests for showing the feed material properties and equipment performance.
Provide free technical guidance
Q3Does the equipment have any special?
Raw materials can be pressed well with high ratio of briquetting and high strength of pressed briquettes;
Better application result of roller surface, longer service life;
Adopting the structure of dual-output shaft reducer, improving the roller precision, using hard surface gear to improve the working performance and service life;
Pre-pressing adopts the speed-adjusting motor;
All wearing parts are welded with wearing-resistance alloy to improve working performance and service life;
Hydraulic plant is placed independently with the function of pressure-adjusting and protective function when overloading
Q4 What information should we provide if we would like to place order?
1.The equipment is supplied as right-installed generally. Please specify in the contract if it needs to be installed at left.
2.The capacity and energy-consumption are related with the following factors such as material characteristics, size of finished products. The capacity in the above sheet is calculated based on the density of bauxite briquettes in standard size of our company.
3.The company provides general motor for main frame. Please specify in the contract if variable frequency motor is required.
Похожие товары

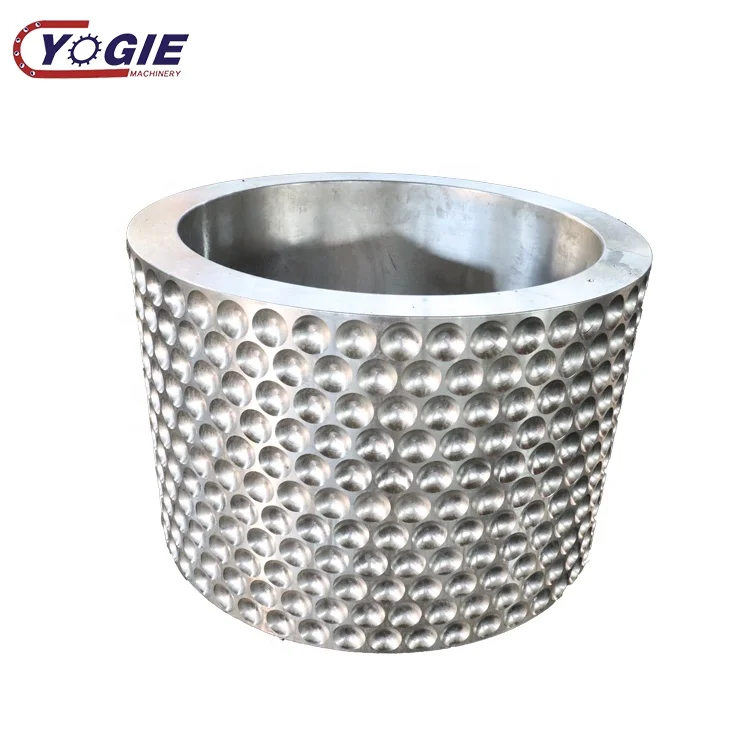

Высококачественная роликовая оболочка с ЧПУ 9Cr2Mo от производителя
