Плавкий предохранитель низкого напряжения NT0 NT 500 в 600 HRC плавкий 6A 160A
- Категория: >>>
- Поставщик: Wenzhou Fuka Imp.& Exp. Co. Ltd.
Сохранить в закладки 60390560172:
Описание и отзывы
Характеристики
NT0 100A fuse 500V 690V NT fuse hrc fuse link

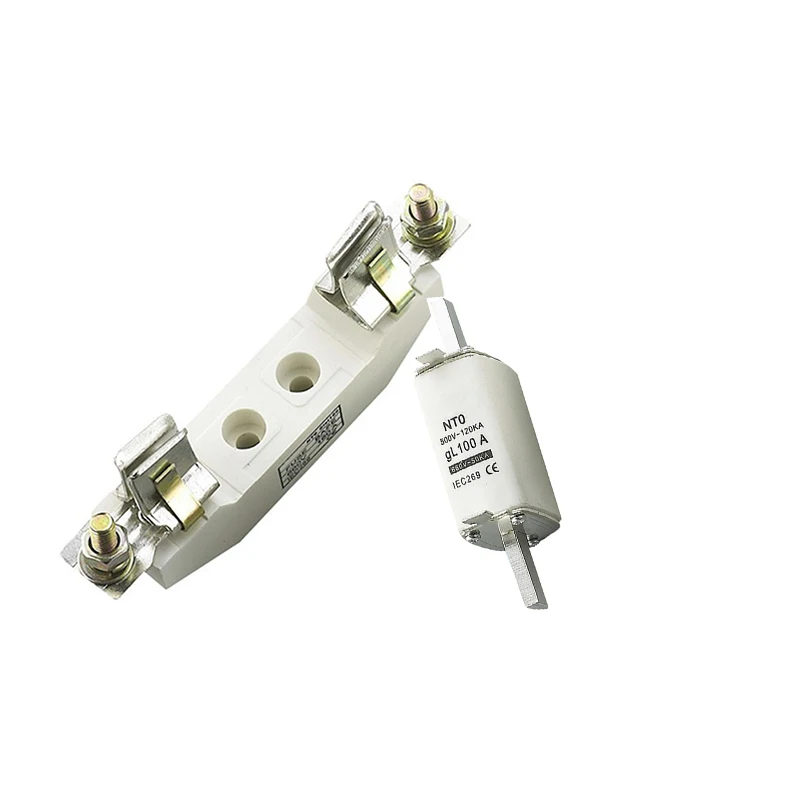

Low voltage fuse base picture:
NT Low Voltage Fuse
Application
NT low voltage H.R.C. fuse features light in weight, small in size, low in power loss and high in breaking capacity. This product has been widely used in overload and short circuit protection of electric installation. This product conforms to IEC 60269 standards with all of the rating at the world advanced level.
Specification:
| Type | Fuse link | Fuse | |||||
| Rated current (A) | Rated voltage(V) | Rated power loss(W) | Weight(kg) | Type | Rated current (A) | Weight(kg) | |
| NT00C | 2 | 500,600 | 0.41 | 0.15 | Sist101 | 160 | 0.2 |
| 4 | 0.62 | ||||||
| 6 | 0.81 | ||||||
| 10 | 1.08 | ||||||
| 16 | 1.60 | ||||||
| 20 | 1.81 | ||||||
| 25 | 2.31 | ||||||
| 32 | 3.07 | ||||||
| 36 | 3.17 | ||||||
| 40 | 4.05 | ||||||
| 50 | 4.25 | ||||||
| 63 | 4.70 | ||||||
| 80 | 5.7 | ||||||
| 100 | 7 | ||||||
| NT00 | 4 | 500,600 | 0.67 | 0.15 | Sis 101 | 160 | 0.2 |
| 6 | 0.89 | ||||||
| 10 | 1.14 | ||||||
| 16 | 1.65 | ||||||
| 20 | 1.94 | ||||||
| 25 | 2.50 | ||||||
| 32 | 3.32 | ||||||
| 36 | 3.56 | ||||||
| 40 | 4.30 | ||||||
| 50 | 4.5 | ||||||
| 63 | 4.6 | ||||||
| 80 | 6 | ||||||
| 100 | 7.3 | ||||||
| 125 | 500 | 7.6 | |||||
| 160 | 9.6 | ||||||
| NT0 | 6 | 500,600 | 1.03 | 0.2 | Sist160 | 160 | 0.32 |
| 10 | 1.42 | ||||||
| 16 | 2.45 | ||||||
| 20 | 2.36 | ||||||
| 25 | 2.7 | ||||||
| 32 | 3.74 | ||||||
| 35 | 4.3 | ||||||
| 40 | 4.7 | ||||||
| 50 | 5.5 | ||||||
| 63 | 6.9 | ||||||
| 80 | 7.6 | ||||||
| 100 | 8.9 | ||||||
| 125 | 500 | 10.1 | |||||
| 160 | 15.2 | ||||||
Construction Feature
This series of fuse consists of fuse link, fuse base and carrier fuse. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the square fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate(or junction panel) and to form the square knife shape contact structure. The fuse may have fuse indicator or striker, when the fuse element fusing it can demonstrate fusing (indicator) or transforms each kind of signal as well as automatic transfer circuit (striker). The fuse base consists of high temperature resistance resin plate(or high intensity porcelain plate) and wedge-shaped static contact to form open-type structure and it can be used as the supporting device of the appropriate size of the fuse link. This series of fuse has many merits such as good in heat dissipation, high mechanical strength, reliable in contact, convenient in performance and so on.

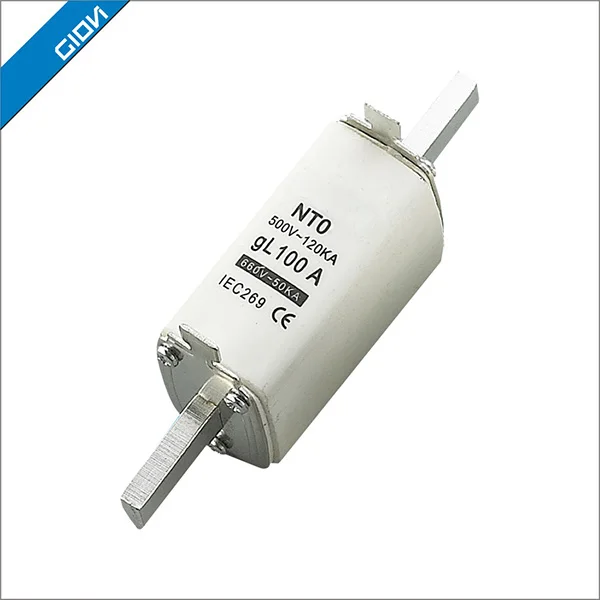

NT Low Voltage Fuse details:
Trade term
1.Payment: T/T , 30% deposits before production, 70% balance to be paid before deliverying (paypal, western union, bank transfer are welcomed)
2. sample can be delivered in 3days
3.Shipping freight are quoted under your requests
4.Shipping port: Shenzhen, Guangzhou,Zhongshan
5.Discounts are offered based on order quantities
6.MOQ:100Pcs
Our trading process:
Our seivice:
1.Professional person communicate with you before the order
2.OEM&ODM, also provide customized service
3.Distributership are offered for your unique design and some our current model
4.Protection of your sales area, ideas of design and all your private information
5.Provide strict quality check for each part,each process before export
6.Provide complete post-sale service,including installation,technical guide
Our production and workshop:
Our campany introduction:
Wenzhou Fuka Enterprise with ISO900 is one of the largest professional manufacturers in Low-voltage electrical appliances,especially specialized in different types of Relays,Circuit Breakers,,AC Contactors, Instruments, Meters,Switches,Pushbuttons and Indicator Lights,Fuse and so on.With the long-term efforts of our whole employees,we have accumulated rich experience in design and production.
We Beieve that quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced staff make sure our quality is the best.
Warranty:
1) quality problem: 100% compensation or change
2)transport problem: before loading, our side; after loading, borne by buyerself, but we will assist
Factory visit & inspection:
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Certificates:
FAQ:
Q: What's your warranty ?
A: Two years
Q: How can i trust you and your company ?
A:OEM Service Offered Design Service Offered Buyer Label Offered. Our products passed CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: What's your contact information:
A:No. 11, Lane 68, Xinguang Road, Liushi Town, Yueqing, Zhejiang, China (Mainland)Website://www.china-fuka.com
Website on alibaba.com://china-fuka.en.alibaba.com
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=100pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
