DIN3352 F4 клиновидный запорный клапан DN50 PN10/PN16 упругое уплотнение плотно закрывающееся руль корпус из ковкого чугуна Не поднимающийся стержень

Описание и отзывы

Характеристики

wedge DIN3352 F4 Gate Valve DN50 PN10/PN16

Main datas for Ductile Iron DIN3352 F4 dn50(2 inch) gate valve

Gate valve body materials:Ductile Iron

Design standard:DIN3352 F4.

working pressure:PN10,PN16

Gate valve size :DN50.

Connect type:Flanged gate valve

Seal type:Resilient seated gate valve

weigtht:9kg/pc for DN50

Coating:

Fusion bonded epoxy coated both on the interior as well as the exterior surfaces of the valve, flange surfaces are also fully epoxy coated,blue color.

Application:

potable water, neutral liquids, irrigation, heating and chilled water, fire systems etc, in either above ground or buried service applications and requires minimal maintenance

Feature

This Ductile Iron Resilient Seated Gate Valve is fully compliant to DIN3352 F4,Its middle weight design construction of ductile iron offers a robust and durable extended life performance.

Durable

This valve is suitable for use in a wide range of applications including potable water, neutral liquids, irrigation, heating and chilled water, fire systems etc, in either above ground or buried service applications and requires minimal maintenance. This Resilient Seated Gate Valves have a rated working pressure of 16 Bar. The valves seal 100% leak tight. The waterway is clear, unobstructed and free from pockets. Resilient seated gate valves are fusion bonded epoxy coated both on the interior as well as the exterior surfaces of the valve, flange surfaces are also fully epoxy coated.

Main Components and their materials

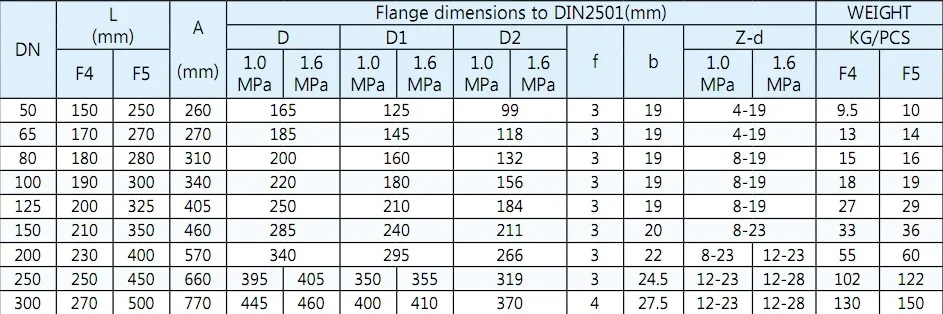

Dimentions and Weights

 Our factory manufacture ductile iron industrial valve for waters for many years.and have exported to UK,Germany,France,Italy,Spain,Morocco,Egypt,SKA,UAE,Russia,Peru,Brazil,Chile etc. many markets,countries and Region.

Quanzhou Zhixin Valve Manufacturing CO.,Ltd, is a pressessional manufacturer of ductile iron industrial valves for water in Luncang,Nan'an,Fujian,China.

Our valve series are:

1)Resilient seated,flanged/socketted/threaded,Non Rising Stem/Rising Stem gate valve according to DIN3352 F4,F5,BS5163,AWWA C509,C515,JIS 10k

2)Flexbible disk Check valve BS5153,DIN3202 F6,Ball Check Valve DIN3202 F6,Butterfly type check valve

3)Double Flanged double eccentric butterfly valve EN593 IS5752 S13 and S14,

4)Single orifice and double orifice air valve,

5)Y strainer DIN3202 F1,ANSI,JIS,BS.

6)Foot Valve
