Model:2GBD30 200 300 Bar Output Double Acting Twin Head Helium Gas Cylinder Filling Pump

Описание и отзывы

Характеристики

WHY CHOOSE OUR PUMP?

This brochure introduces pneumatic driven gas/Hydraulic boosters and Complete booster system.

These gas booster pump offer a flexible and efficient source for delivering high pressure gases.

1.Oxygen or High Purity cleaning : Our booster are noted for their cleaniness and can handle pure gases such as

oxygen without risk of any contamination.We will use customized lubricants for oxygen and also clean it with ultrosonice cleaner

2. High Flow rates at High pressure: When High flow rates at high pressure are needed ,the booster

can charge a receiver to an even higher pressure level ,thus storing a volume of gas aviable for rapid release at a constant

pressure through a pressure reducing valve

3.Cost savings:Most Industrial gases are commonly delivered at pressure of 2000-2600 Psi in steel cylinders .If the

Gas is to be used well bellow the supply pressure ,the pressurized supply is easily piped  and controlled to the point of use

with simple valving .However,if the end user requires  the gas to be used at higher pressure then the supply it will have to be

boosted  gas.Gas booster can untilize all the gas from a supply source such as cylinder and boost the gas to whatever

pressure and flows are required  by the application thus untilizing all the gas volume from the supply source  .

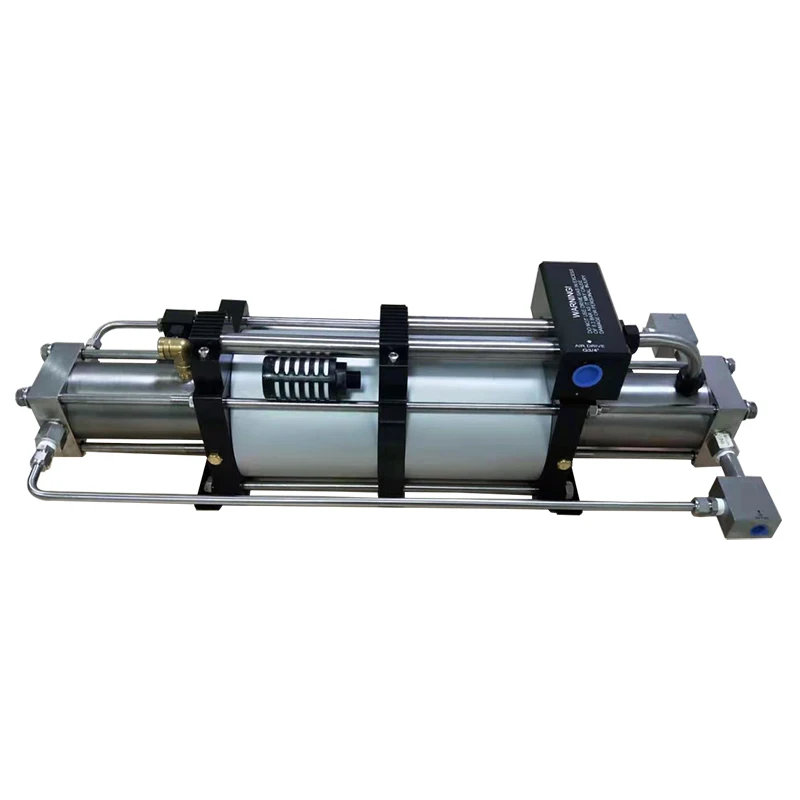

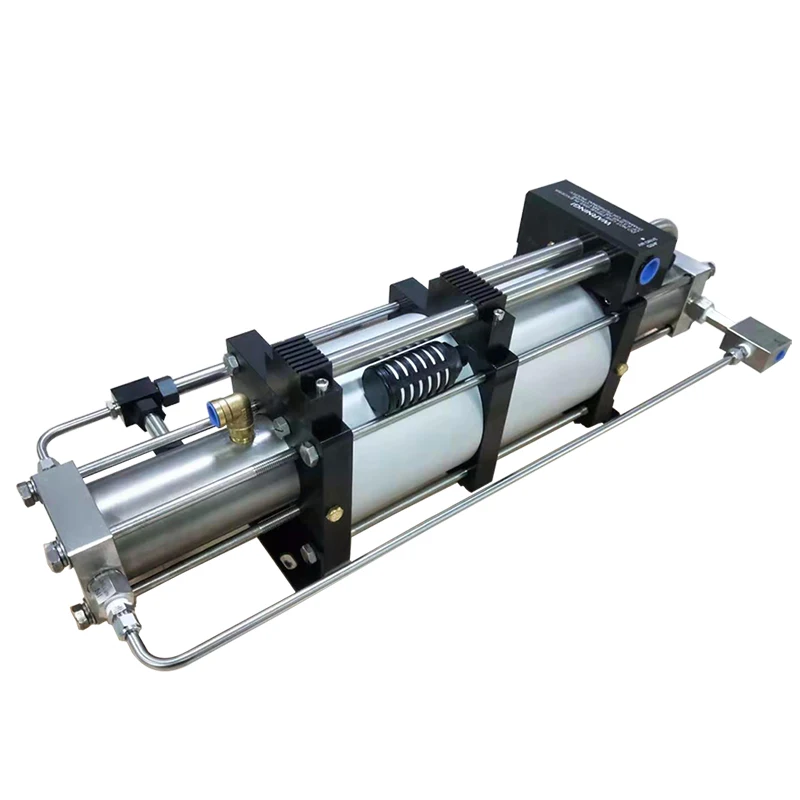

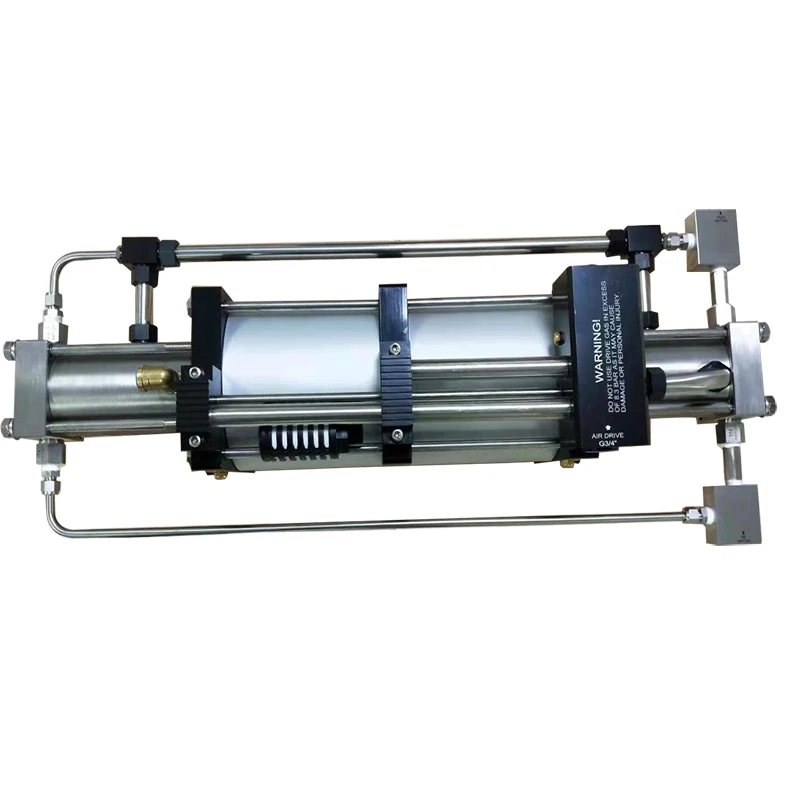

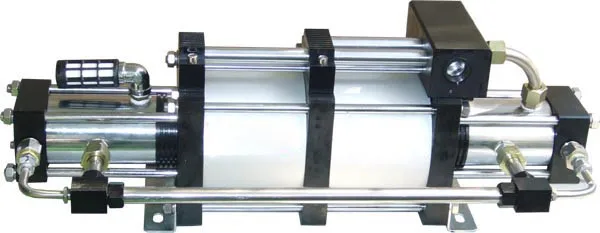

Usun Model:2GBD30 40:1 ratio 300 Bar double Acting twin head Helium gas cylinder filling pump

Application : Nitrogen filling stations ,charging high pressure gas cylinders and receivers  .Gas assisted plastic injection molding Hydraulic accumulator charging ,Components testing ,Automotive hoses and component gas testing ,biogas charging and pressure tank vessel leakage testing

Product Description

Item Model	2GBD30  40:1 200-300 Bar output  double acting ,twin head driven  fast speed filling helium cylinder filling pump
Action type	Double acting,Double  air drive
Air driven   pressure	3-10 Bar
Dealing with   air source	Compressed and dry air and air regulator on air driven port
Lubrication	Non-lubrication for oxygen gas
Operating   temperature	-4-65 degree for air driven section and Maximum temperature for gas barrel ection is not more than 115 degrees
Theory of operation	The gas booster consist of a large  reciprcating air driven piston directly and coupled by a connecting rod to small area gas piston.The gas piston operates  in a high pressure gas barrel section .Each gas barrel end contains high  pressure inlet and outlet check valves
Suitable   gases for   pumping	Nitrogen(N2), Helium (He2) ,Breathing air (N202) ,Carbon dioxideCo2)Argon (Ar) ,Neon( Ne) ,Oxygen(O2) and so on . Noted:Liquefied gases(  Propane,Co2 ,halons) Can be boosted as a liquid and gas in controlled applications
Installation	Any

Product features

1. Realiable ,Easy to Maintain ,compact and robust

2. No heat,flame or spark risk

3. Infinitely variable cycling speed and output

4. Air driven Models do not require electrical connection ,easy to apply automatic controls

5. No limit or adverse affect to contineous stop/start applications

6.Seals system designed for long working life,No airline lubricated required

7.Built-in coupling system (Most models) and suitable for most gases boosting

Main technical parameter

PA= Air driven pressure   PI=Inlet pressure  Po=Outlet pressure

Those data is theoretical and it is just for reference  .

Product outview drawing

 Product  Diagram
