Original ACHI IR6500 DARK IR BGA rework station + 27pcs 90mm universal bga stencils diagonal reball station + 21pcs free gift

Note : this price is  not included remote area delivery cost if there is delivery remote area of your shipment address,we will need charge 33USD for remote area delivery cost .you can also tell us your city name and zip code for we check for you .thanks for your cooperation

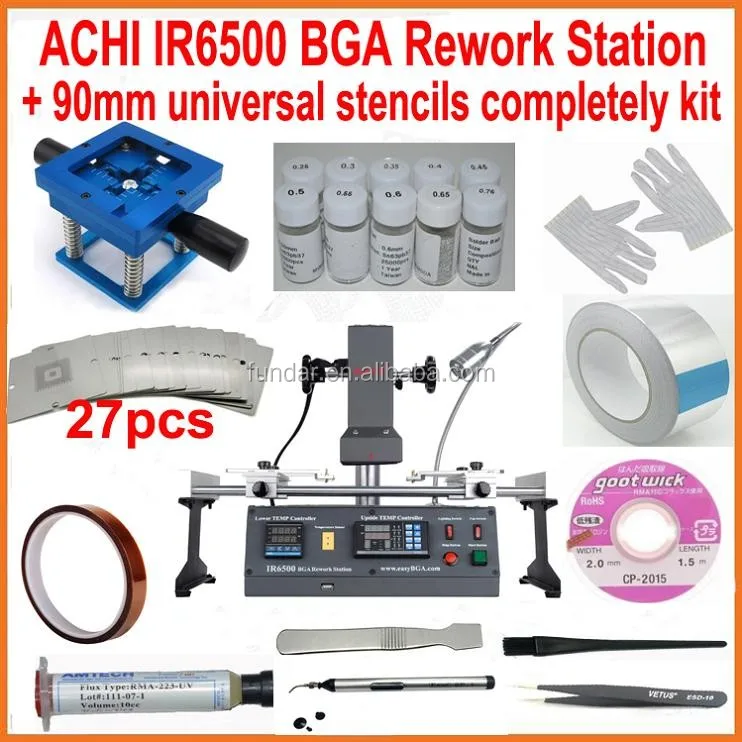

Packing list:

1) ACHI IR6500 DARK IR BGA rework station  1 set

 21 in 1 reballing kit list

(3)90MM reball station with handle x  1 piece

(4) 25K lead solder ball  x 10 bottles (0.25mm 0.30mm 0.35mm 0.40mm 0.45mm 0.50mm 0.55mm 0.60mm 0.65mm 0.76mm )

(5) 90mm universal bga stencils x 10pcs (for laptop PC game consoles etc)

(6)AMT-RMA223-UV lead solder flux 10cc  x  1 piece

(7)BGA high tempeature tape x 1 roll (0.6cm*20M)

(8)Aluminum foil tape x 1 roll (30mm*40M)

(9)ESD-10 anti-static tweezer  x 1 piece

(10)Scraper x  1 piece

(11)Anti-static gloves x 1 pair

(12)939 vacuum sucktion pen x 1 piece

(13)Desoldering wick x 1 roll (20mm*1.5M )

(14)Anti-static brush  x 1 piece

below is 90MM universal stencils 27pcs model list :

0.25mm universal (1pcs path :0.5)

0.30mm universal (2pcs )

35.3*35.4(path 0.5)

29*29mm (path 0.58)

0.35mm universal (2pcs )

29*29mm(path 0.65)

35.5*35.5mm(path 0.6)

0.40mm universal (1pcs path 0.7 )

0.45mm universal  (1pcs path 0.78)

0.50mm universal (3pcs)

35*35mm (path:0.78)

40*40mm (path:0.81)

30.9*29.4mm(path 0.8mm)

0.55mm universal (1pcs path:1.02)

0.60mm universal (8pcs)

24*24mm (path :0.99)

27*27mm (path :0.99)

30*30mm (path :0.99)

33*33mm (path :0.99)

41*41mm (path :1.01)

45.4*45.5mm(path :0.9)

45.4*45.4mm(path:1.0)

31.9*31.9mm(path:1.1)

0.65mm universal(1pcs path :1.0)

0.76mm universal(6pcs)

30*30mm (path:1.27)

33*33mm (path:1.27)

34*34mm (path:1.27)

37*37mm (path:1.27)

41*41mm (path:1.27)

50*50mm (path :1.27)

1.0mm universal (1pcs path 1.5)

Features

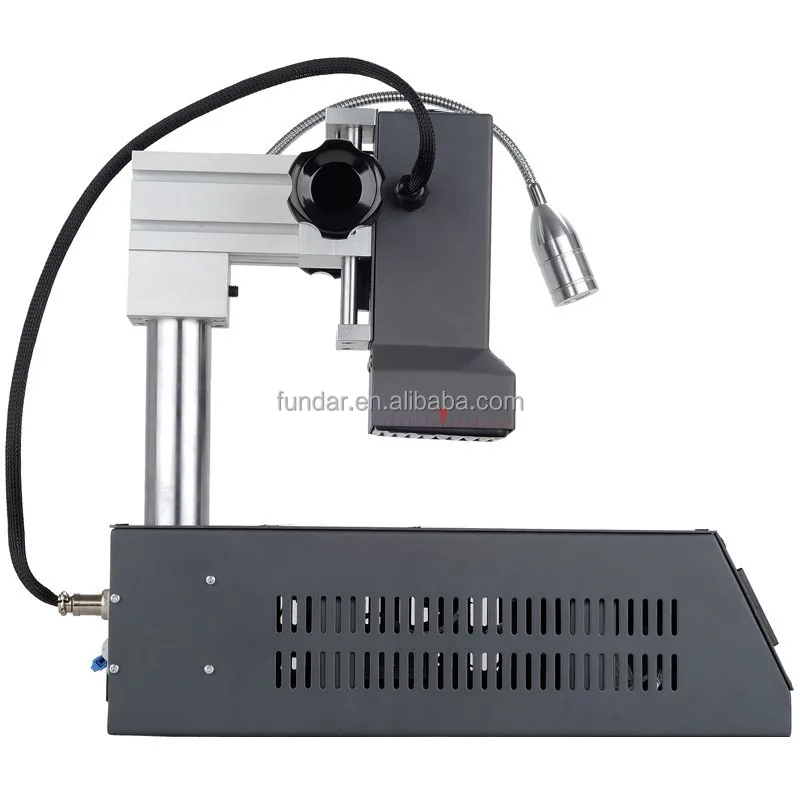

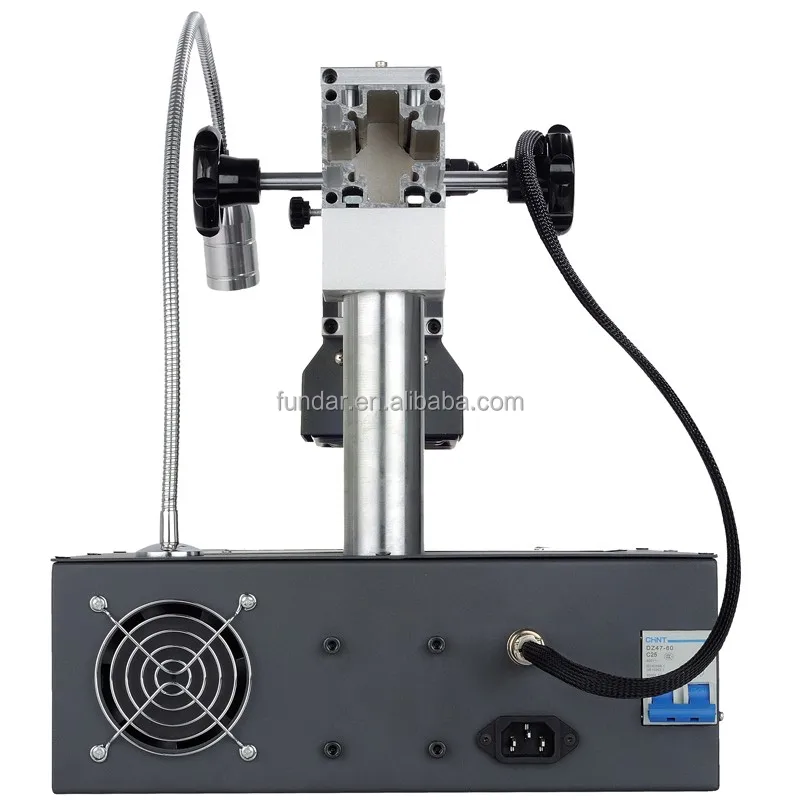

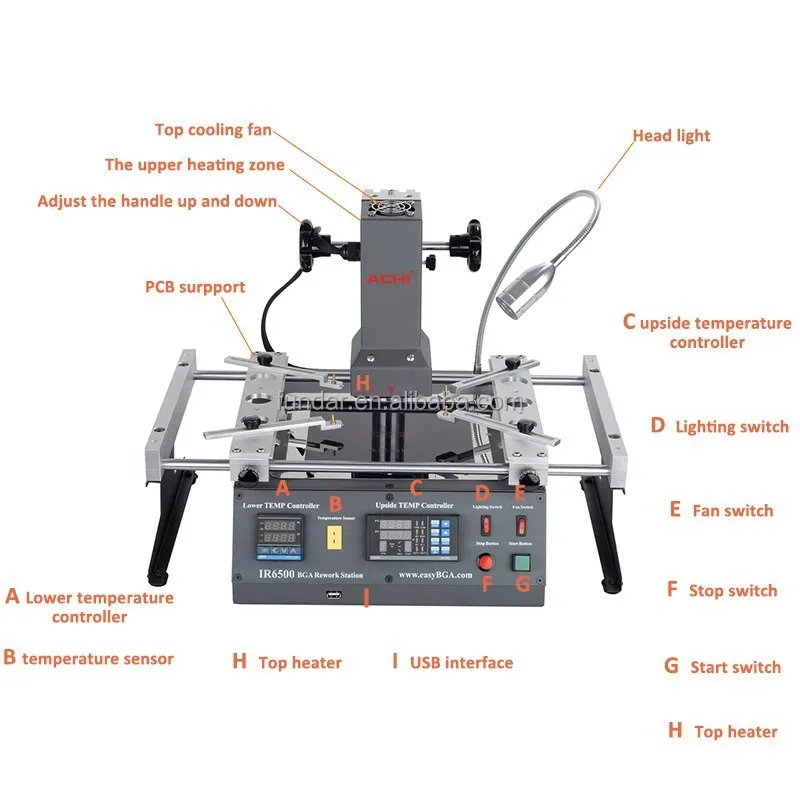

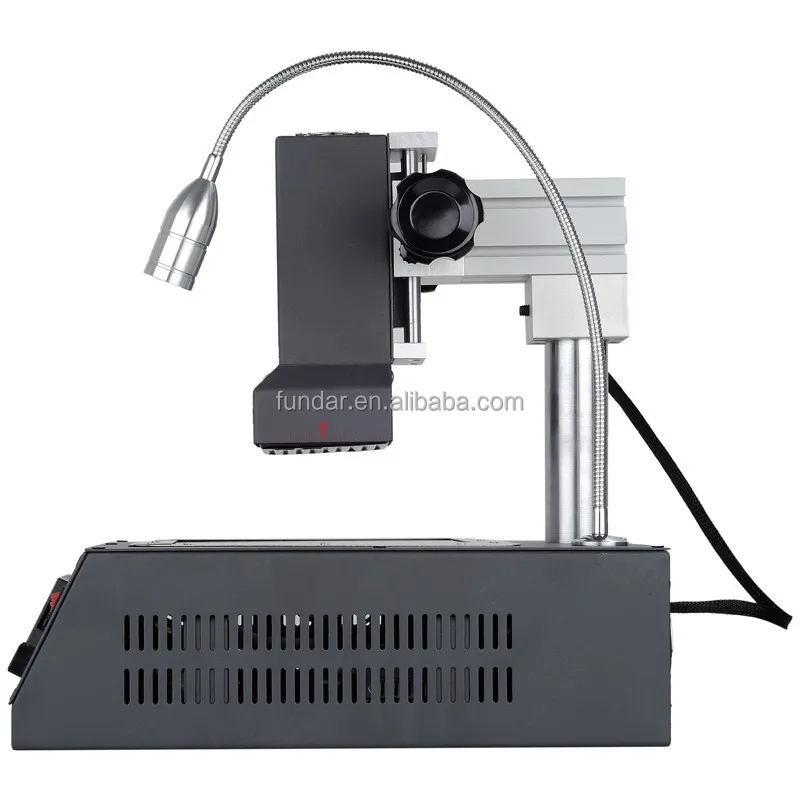

ACHI IR6500 is the latest BGA rework station made by ACHI factory,and it still uses advanced dark infrared technology with very competitive price. It updated much from ACHI IR 6000.

Below is the details:

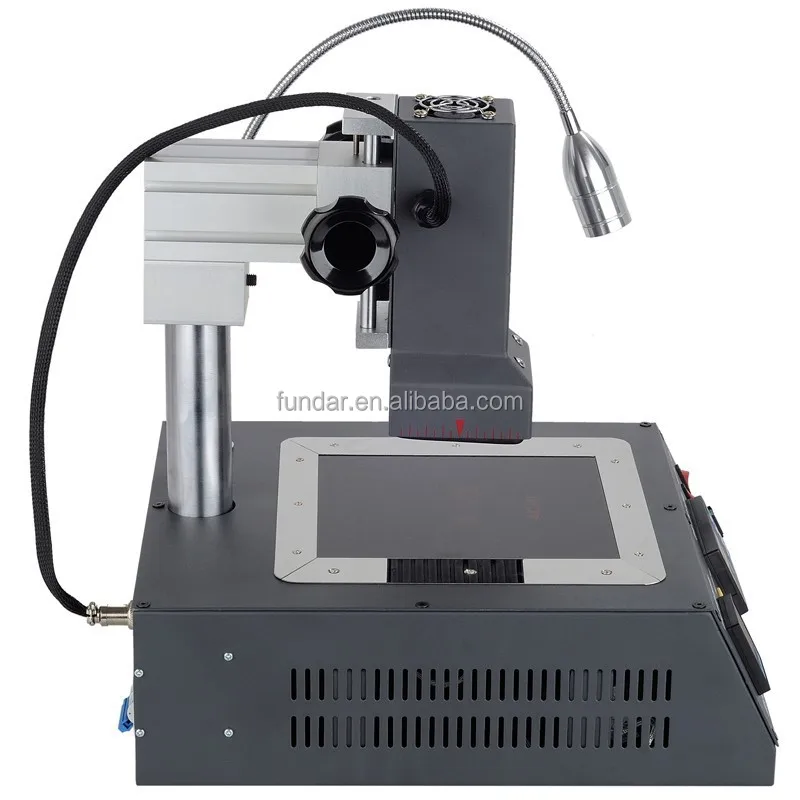

1.A tempering glass is added above ACHI IR 6500 bottom heater which can make the heat distribute evenly and improve reworking efficiency.

2.ACHI IR6500 uses advanced OMEGA K type thermocouple and the temperature detection is much more accurate.

3.RS232 is changed into plug and use USB connector , which is very convinient to connected with computer or notebook.

4.ACHI IR6500 is added an emergency power switch, which can stop the working machine automatically in time when the machine short circuit happens.

5. ACHI IR6500 was equipped with 4  pieces jig, which can help to fix the mainboard more easily.

Introduction:

1. You can use it in broad area such as notebook,desktop, switch and also XBOX360, PS3 and other area SMD reworking if you own one.

2. It is ideal for welding and reworking of CBGA, CCGA, CSP, QFN, MLF, PGA and  all the green epoxy type μBGA.

3. It has Large top heating area, it makes CPU block, Various shield cover and component slot repair much more easier.

4. ACHI IR6500 gets over the problem of ir rework station heating slowly and disorderly caused by the air flow.It is with dark infrared technology, the temperature ups quicker and steadily,which can let the desoldering process finish about only 5 minutes.

5. ACHI IR6500 BGA rework station can also easy deal with the lead free soldering. The max temperature can up to 400 °C.

6. ACHI IR6500 can be connected to computer or notebook with USB interface and can be controlled by the IRSOFT temperature software. it can set up 8 rising temperature segments and 8 constant temperature segments to control. It can store 10 groups of temperature profiles at one time.

7. ACHI IR6500 is with contact  temperature sensor, it can capture the accurate BGA temperature at any time. And when soldering finished, it will alert you.

8. No hot air flow during the reworking process with ACHI IR6500, the surrounding small components is safe. And you can reball BGA with it directly, or reball BGA by hand with it easily with no deformation of the BGA stencils.

9. ACHI IR6500 is of high integration Design, the smaller workbench, non-mixed cables and the convenient operation –all the process of soldering controlled by a button.

10. ACHI IR6500 comes with manual and video demonstration CD-ROM,the information is easy to understand. Even if you have never engaged in BGA rework , you can quickly mastere the technology.

11. The Linear guide type Bracket for ACHI IR6500 can be locked,adjusted by rotating the handle, which can fix PCB board easily, effectively with no PCB board deformation easily.

ACHI IR6500 with 3 years warranty, in the first year, offer repair part for free,and another 2 years, charge fees for spare parts, but technical support is always available.

12. Please kindly noticed that: the comsumable products for ACHI IR6500 such as top ceramic, bottom ceramic and temperature

sensor is with three months warranty.
