Высокочастотный сварочный аппарат из брезента с ПВХ покрытием сварщик HF tent_canvas_canopy
- Категория: >>>
- Поставщик: Shenzhen Keepleader Machinery Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 60404974935:
Описание и отзывы
Характеристики

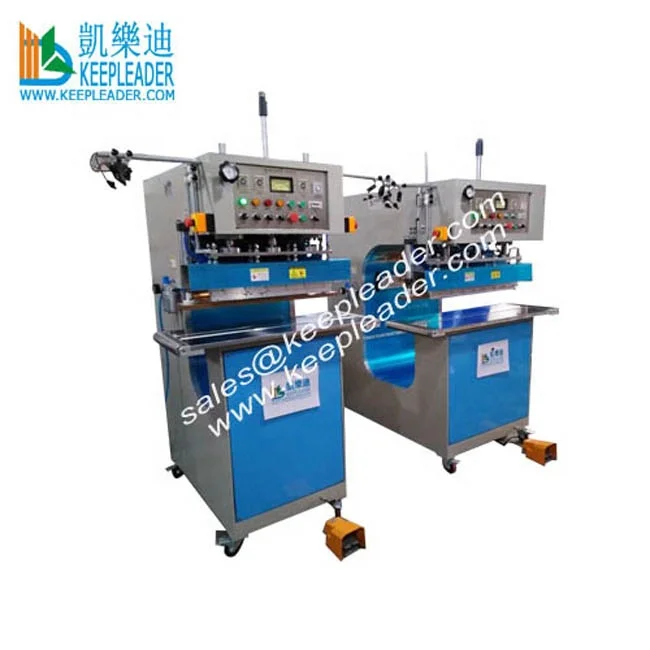

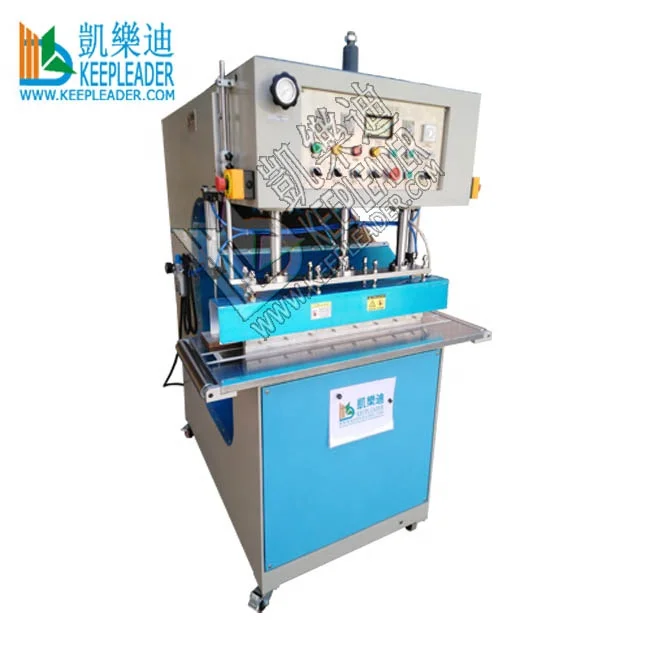

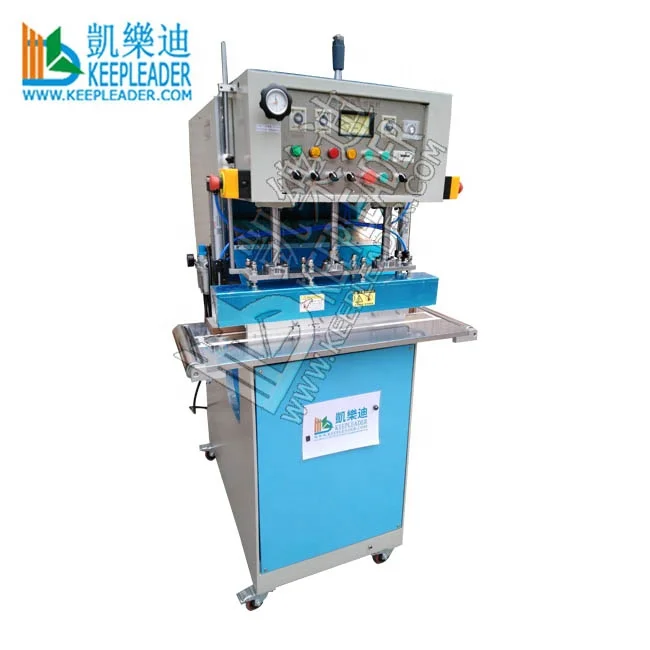

High Frequency Welding Machine Tarpaulin
High Frequency Welding Machine Tarpaulin has power scale: 5kw~25kw optional,and equipped with various size of electrode bar,which also can be curved or straight welding shape with your expected welding pattern
Product Description
Mainly application of Awning/tarpaulin/tent high frequency welding | |
Applied for tarpaulin, sun shading canvas, painting canvas, film curtain, canopy,awing,truck cover, car tent,stretch ceiling, sunshades and other around of this kind of membrane structure material welding or sealing | |
Character of tarpaulin/TENT/Inflatable high frequency welding/welder | |
High Q value oscillation tube the welding length is optional, maximum length:2000*25mm for 25kw The machine is G shape, have longer throat to hold the material High sensitive anti-sparkle device NL5557 to avoid damaging the mould. High quality imported apparatus European-model high frequency vibration box, more reliable and stable in output Laser position device for precision counterpoint Have boosting roller at two side for easy feeding materail Mounted five caster with four brakes Automatic thermostat to keep the temperature at best performance in welding High precision high frequency knob for visible control Low voltage control panel for safty purpose Anodized mould and tooling for longer life-span Top amounted cylinder for vertical pressing, which is more uniform pressure Foot pedal control and button control is optional Over current protection circuit to avoid burning the oscillation tube Power ranges 4kw up to 25kw for various welding length | |
Technique specifications of tarpaulin high frequency welding | |
High Frequency Welding Machine Tarpaulin | |
Model | KLR-5KW-SN |
Power | 5000W |
Power supply | 220V/380V 50/60HZ |
Frequency | 27.12MHZ |
Input power | 8KVA |
Rectifier | SILICON DIODE |
Oscillation tube | 7T85RB |
Max pressure | 350kg |
Gap of electrodes | 100MM |
Moving distance of active horn | 100MM |
Size of upper electrode | 600*30MM |
Size of down electrode | 1000*300MM |
Welding time | 0~10S Adjustable |
Net weight | 500KG |
Overall dimension | Customized |
Standard equipment:
Name | Origin | Brand |
Air driven components | Taiwan | Airtac |
AC contactor | Korean | LG |
Relay | Japan | Omron |
Electron Tube | Japan | Toshiba |
Time controller | Taiwan | CKC |
please contact KEEPLEADER™ for more information and technical assistance for High Frequency Welding Machine Tarpaulin
Note:
Please tell us following information:
1. The material and definite size of the product;
2. The maximum welding length in maximum
3. The features you preferred on this machine
Finished Products
High Frequency Welding Machine Tarpaulin is available for all of membrane thermoplastic film to produce inflatable or sun shading production or truck cover or liner
Detailed Images
High Frequency Welding Machine Tarpaulin comes with 1 set of welding tool, please tell us your expected "length and width", "shape in straight or curve" and pattern in denting line or flat surface"
Our Services
Our Services
PVC FILM/TARPAULIN/CANVAS/TENT/INFLATABLE/ADVERTISING CLOTH HIGH FREQUENCY WELDING/SEALING AT KEEPLEADERTM
ABOUT PRODUCT
Customized design; Safe and convenient operation and maintenance
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
Please contact KEEPLEADER™ for detailed information and technical evaluation for your application
Service process at KEEPLEADER™
the clients offer information of the workpieces being welded (eg: picture, materials, sizes, requirements, etc) if have samples, it’s better to send KEEPLEADER™ some sample to perform the welding test, if can be welded, we provide offer sheet, once confirmed, sing a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients
High Frequency Welding Machine Tarpaulin has CE certification
After-Sales Service
After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice
01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance, and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service
02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™ , we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect
03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video
04: KEEPLEADER™ can go to oversea for on-site training
05: KEEPLEADER™ can provide electric diagram in necessary
06: Remote training is acceptable at KEEPLEADER™
07:High Frequency Welding Machine Tarpaulin has "user manual“ and ”tutorial video"
Contact Us
Our company aim to provide world wide brand of High Frequency Welding Machine Tarpaulin, it is our eternal pursuit for exchange our sincerity, hard work and sweat for customer satisfaction, welcome your inquires, we, keepleader firmly grasps the opportunity of rapid economic development, adhere to the business philosophy of “forging ahead, surpassing” respecting talents, focusing on products and pursuing higher goals based on unremitting efforts
