Product Description

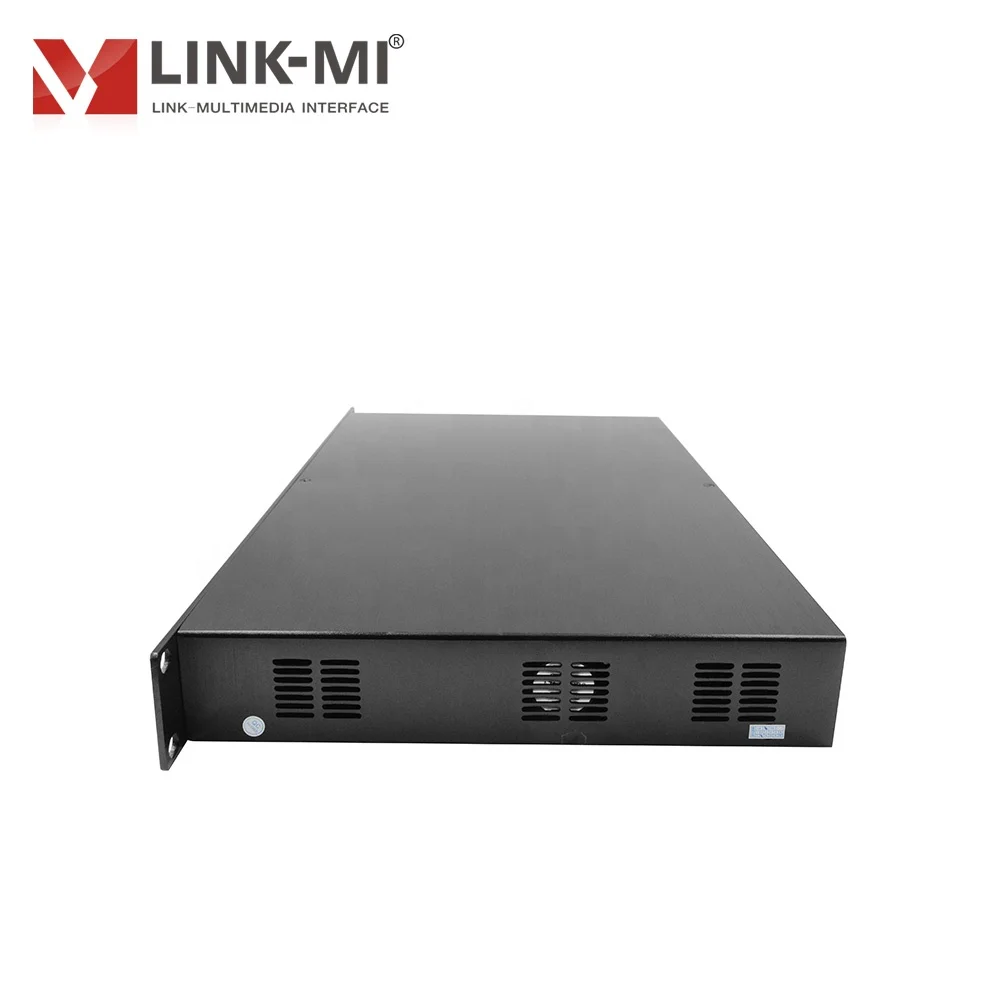

LINK-MI OEM LM-SD41 Digital Analog DVI+CVBS+VGA 4 port HD Video Synthesizer

Model No.: LM-SD41

Product Type: 1080p hd video synthesizer

Introduction

HD Video Synthesizer and use high performance processor, the main function is input 4 numbers Digital HD Video or analog video and converted into one number DVI and one number VGA signal output to one display unit, like HD projector, LCD display, DLP, PDP,and full-color LED display. It is easy to realization of switching, fenestration, superposition the video, roaming function.

It is a classic products on the market applications. The products are mainly used in the video conference, teaching, exhibition display with a single display project equipment simultaneously monitor a plurality of HD signal.

It supports 4 numbers CVBS composite video signal, 4 numbers VGA, 4 numbers DVI signal input, support 1 number DVI and 1 number VGA signal output. The display unit can display the 4 HD or HD analog signal, and the analog signal can also be mixed at the same time display. The control software can be freely switched to the input signal, the signal window, superposition, roaming, through mouse arbitrarily widening pull small screen and drag to change the position of image and other functions, and can realize the fast mode is invoked by the infrared remote control.

Features

1.the pure hardware architecture
2.the Faroudja image processing technology
3.high precision sampling of The analog input signal
4.the data processing ability strong
5.control function
6.support a variety of formats and input and output ultra-high resolution

4 different HDMI/DVI/CVBS signals simultaneously display on a single monitor

4x1

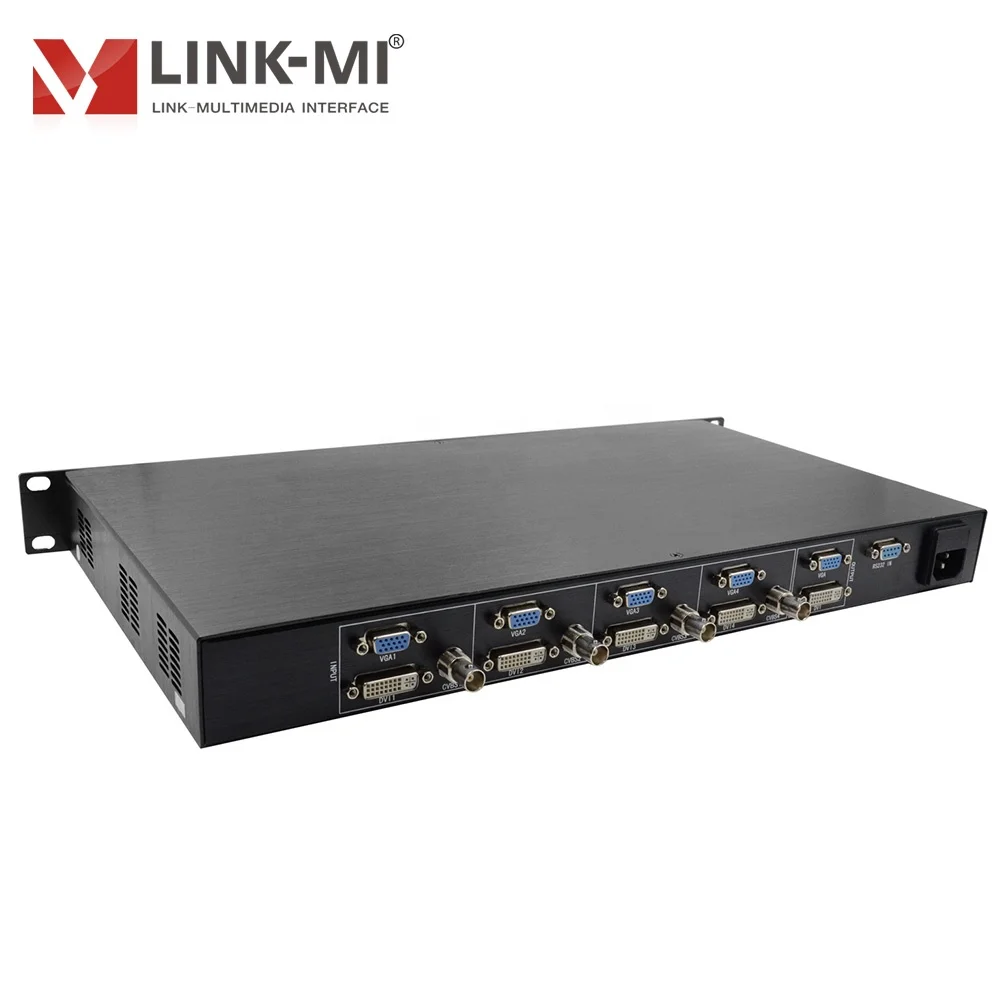

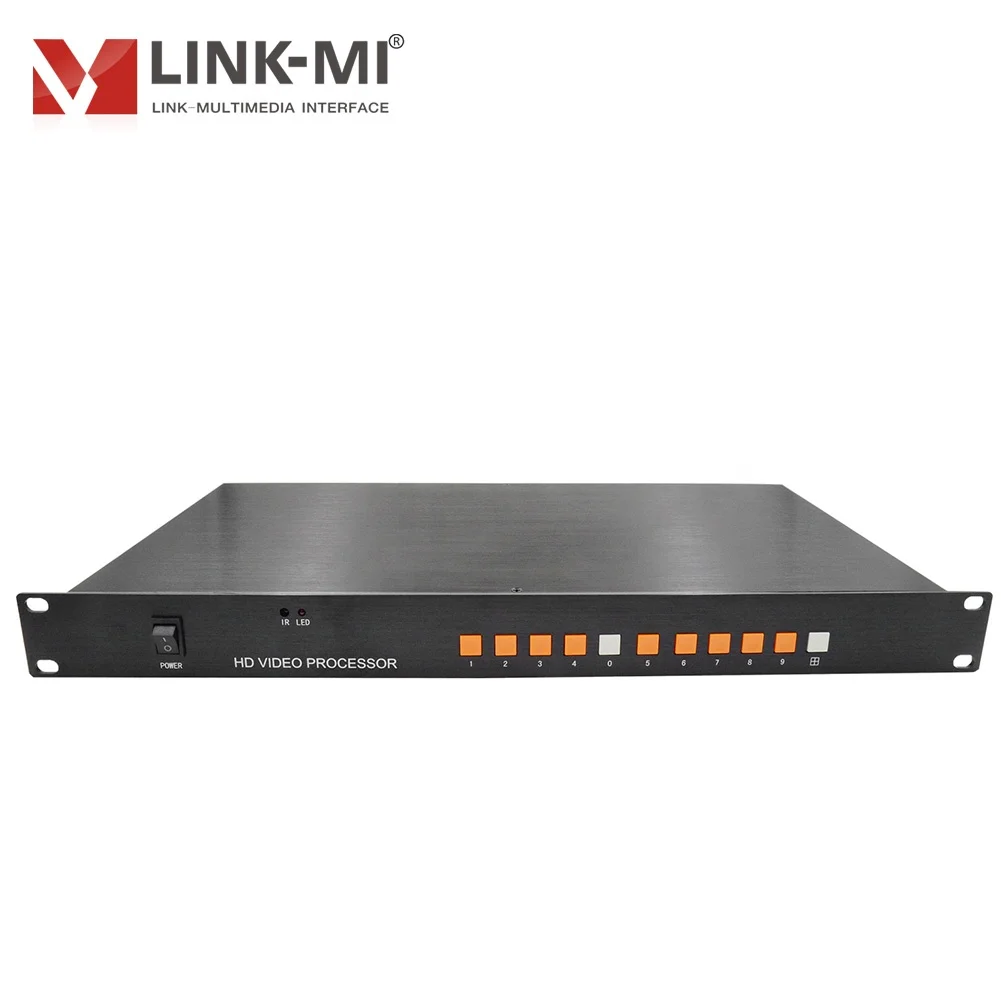

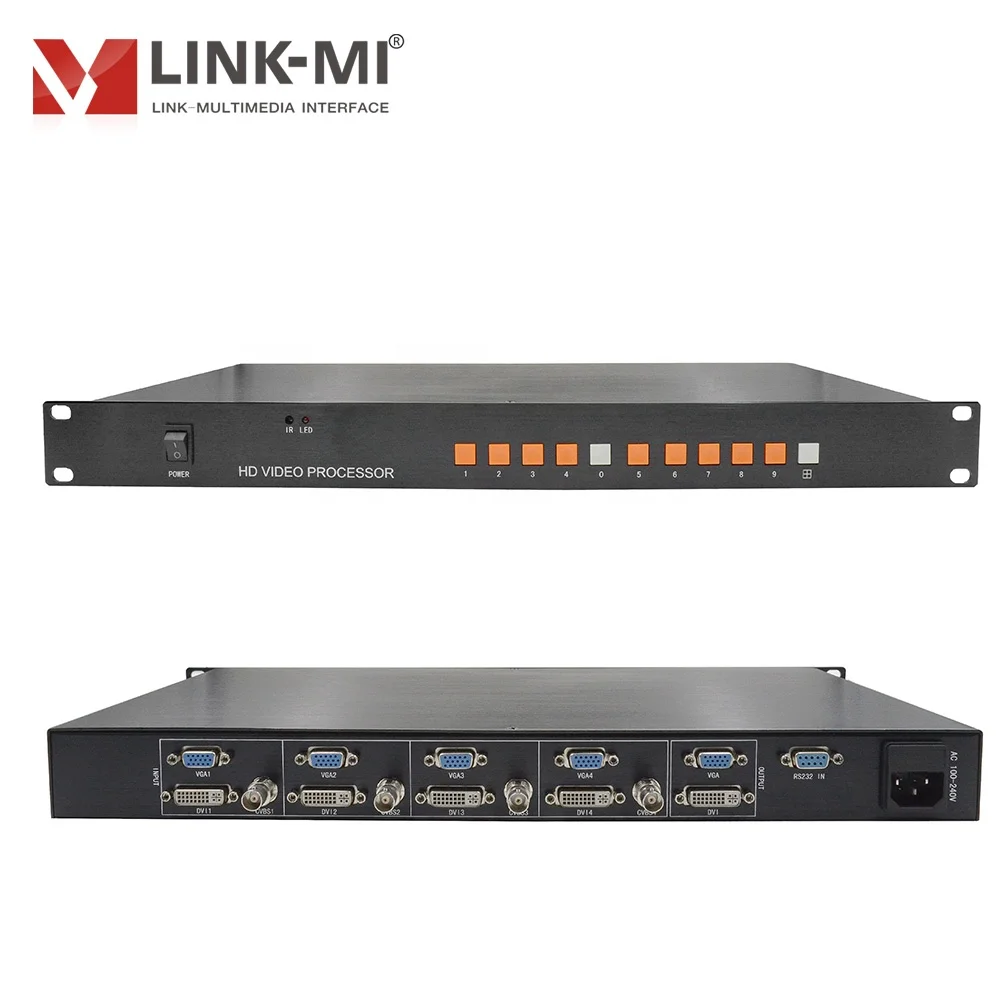

Panel Description

SD41

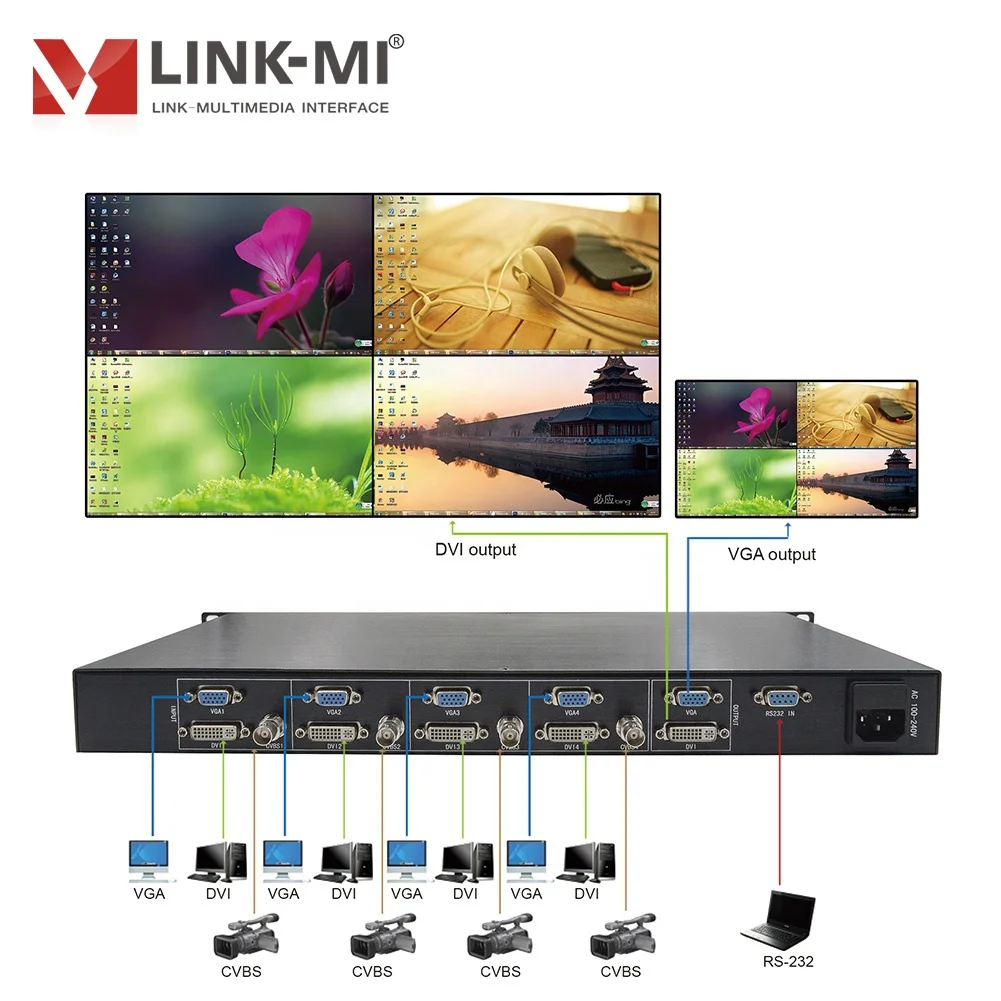

Connection Diagram

SD41_

Specification

Input interface	4 numbers CVBS/VGA/DVI
Input resolution	Support 480I~1080P,DVI and VGA signal support 640x480 to 1920x1200
Color	24bit,16.7M
Zoom	Any where,Any size
DVI	DVI1.0 and HDCP1.3
CVBS	NTSC,PAL or SECAM
Distinguish	Auto
Output interface	DVI and VGA
Output resolution	1024x768 to 1920x1200
Output frequency	60Hz and 1080P 15Hz/25Hz/30Hz/50Hz/60Hz
Control	RS232 and Remote
Control software	Free to customer
Input voltage	AC 100V to 240V
Power	25W Max.
