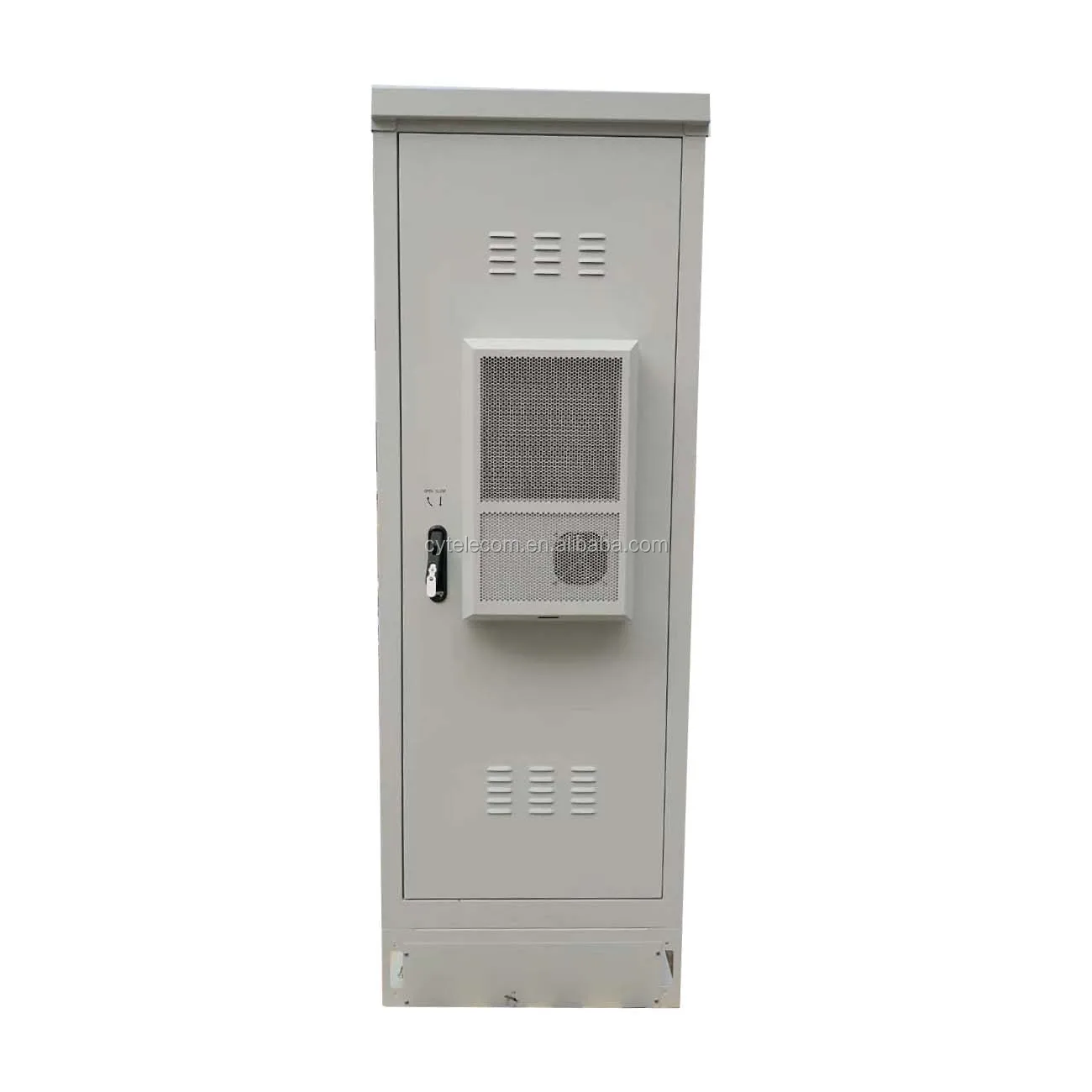

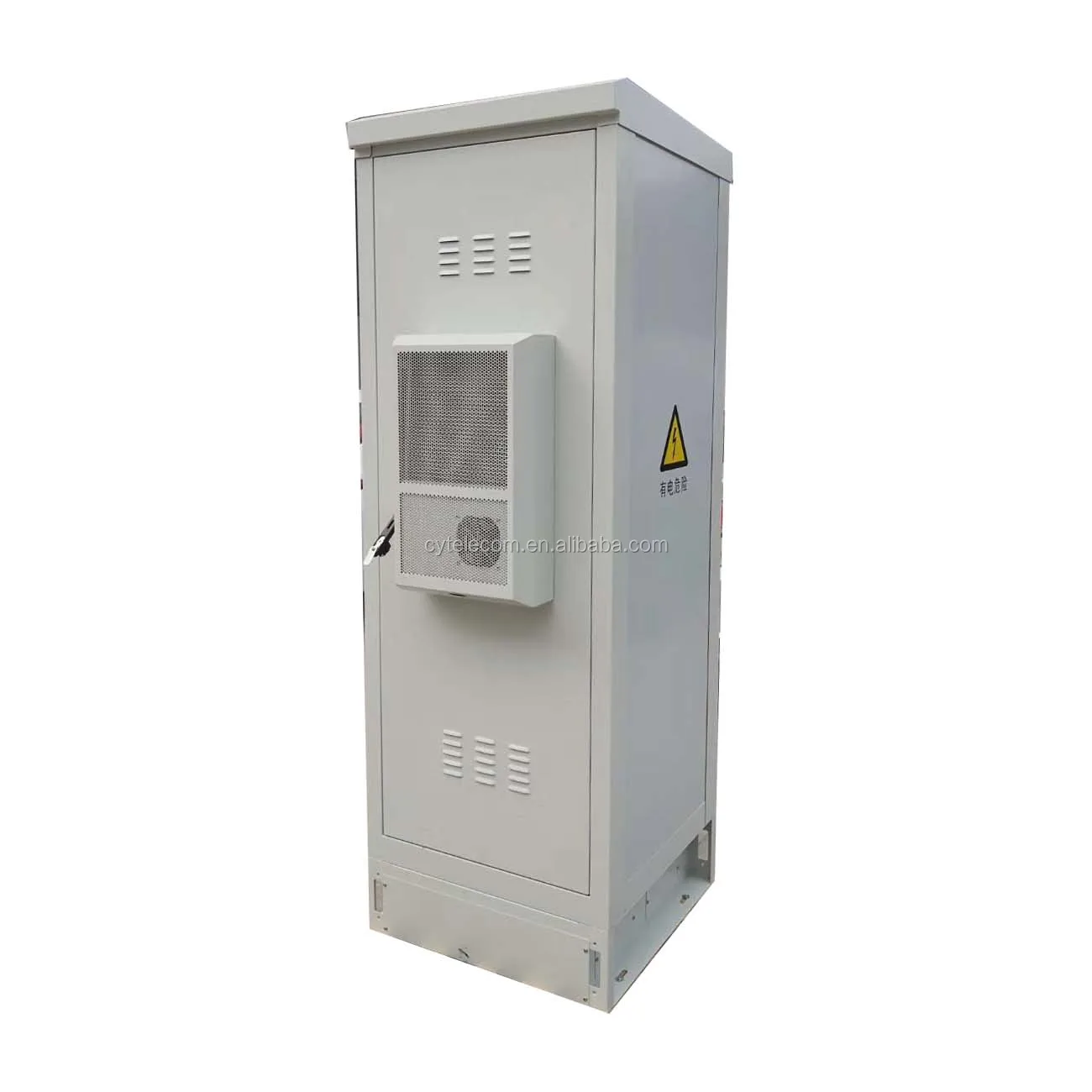

Устанавливается на этаже наружного применения

Сохранить в закладки 60419717195:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

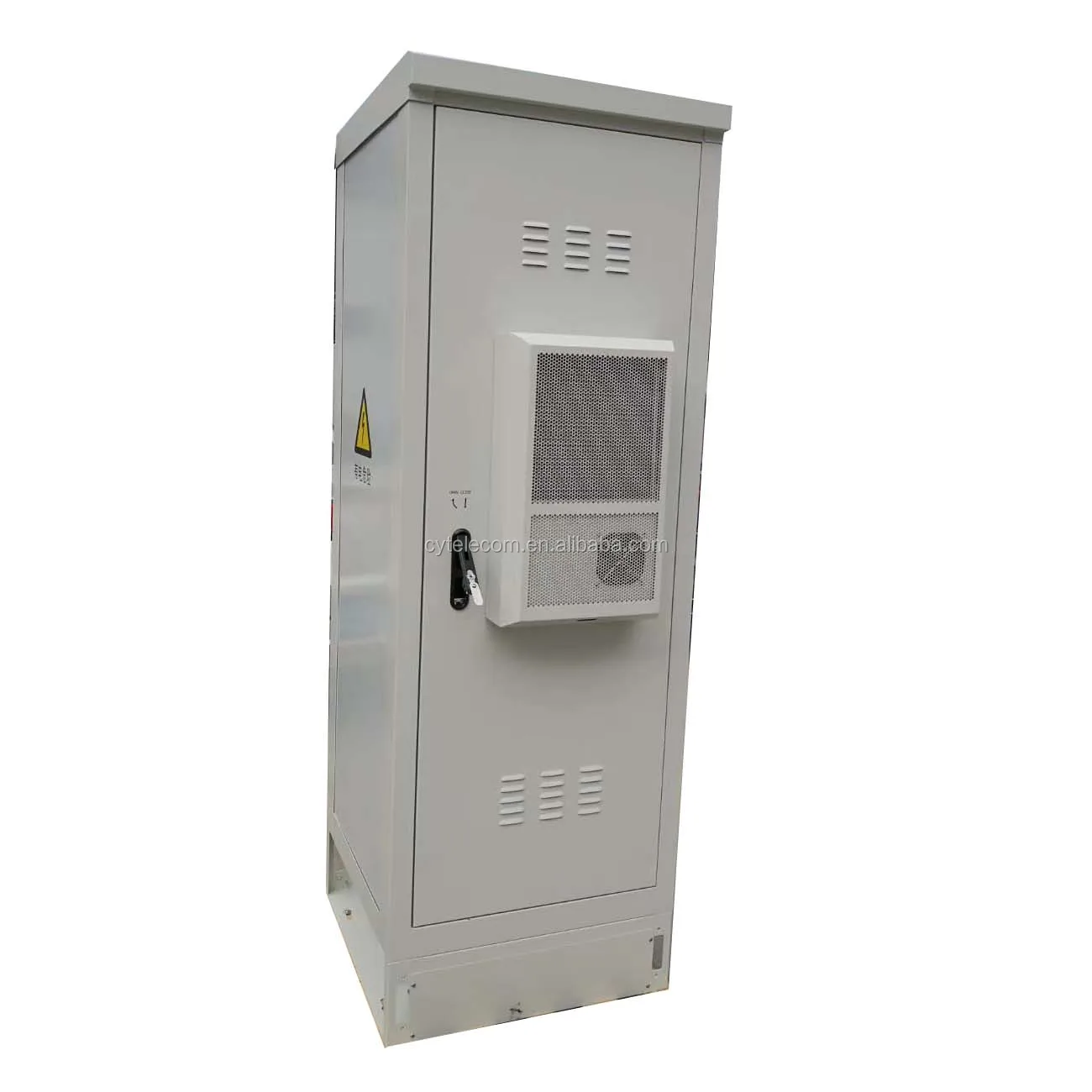

installed on the ground floor outdoor application cabinets





42U 15U 19inch 21inch rack outdoor network cabinet



Product Description


 Specification





Dimension: W800*D800*H2100mm (included the door mounted airconditioner thickness and depth size 840mm)





Internal Capacity: 42U, 19 Inch Rack.





Cooling System:  Air conditioner (1000w) 110v 60hz





Door mount 1000W cooling capacity air-conditioner (Using the 110 VAC Power, provided with display and operation panel, could set the temperature control point )








Internal Fittings:





(1) 2 pieces of plate





(2) 1 piece of LED 4W lighting tube (Using the 110VAC Power, the lighting tube Switch on and off controlled by the gate of the cabinet)





(3) 1 piece of 7 sockets plug PDU








Internal Features:





Double layer heat insulation structure (double sheet metal filled phenol insulation board, the side wall thermal insulation thickness 21mm, roof insulation thickness 45mm) which has top effective heat preservation function.





Protection Grade: IP55





Cabinet Material: Galvanized plate





Mount Method: Floor Standing

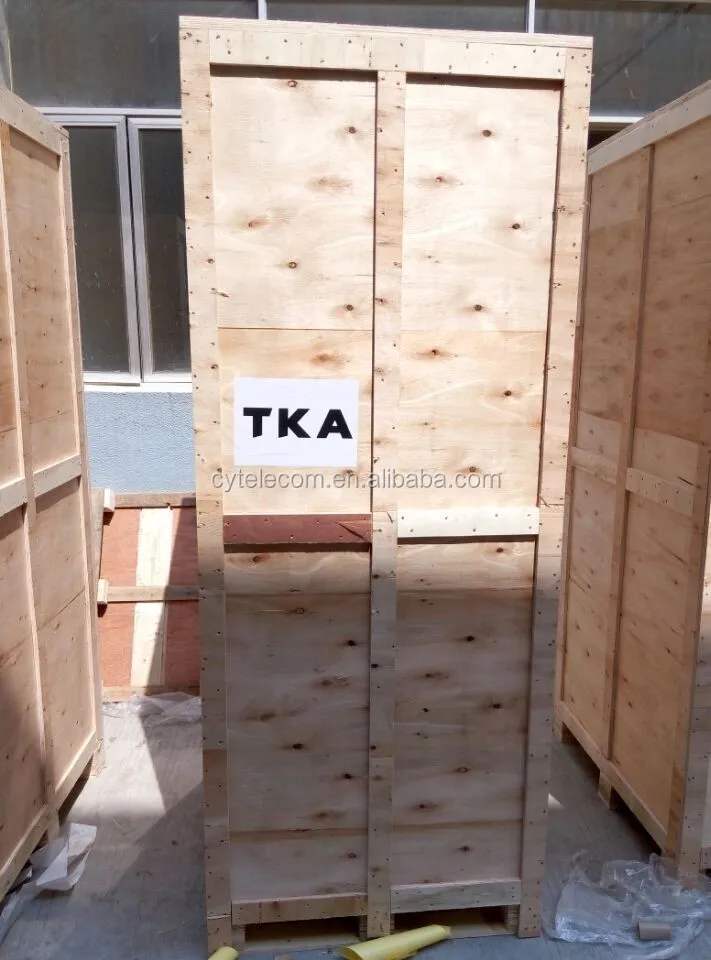

Package: Wooden Box.





Wooden Box Size: L900*W700*H1400mm





Gross Weight: 330KG

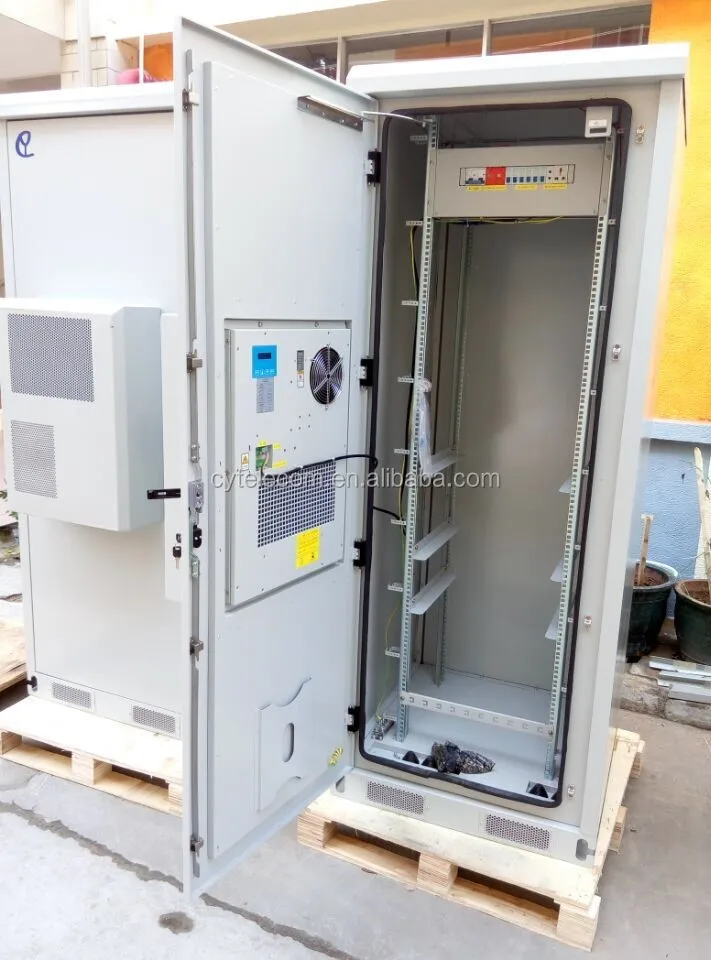

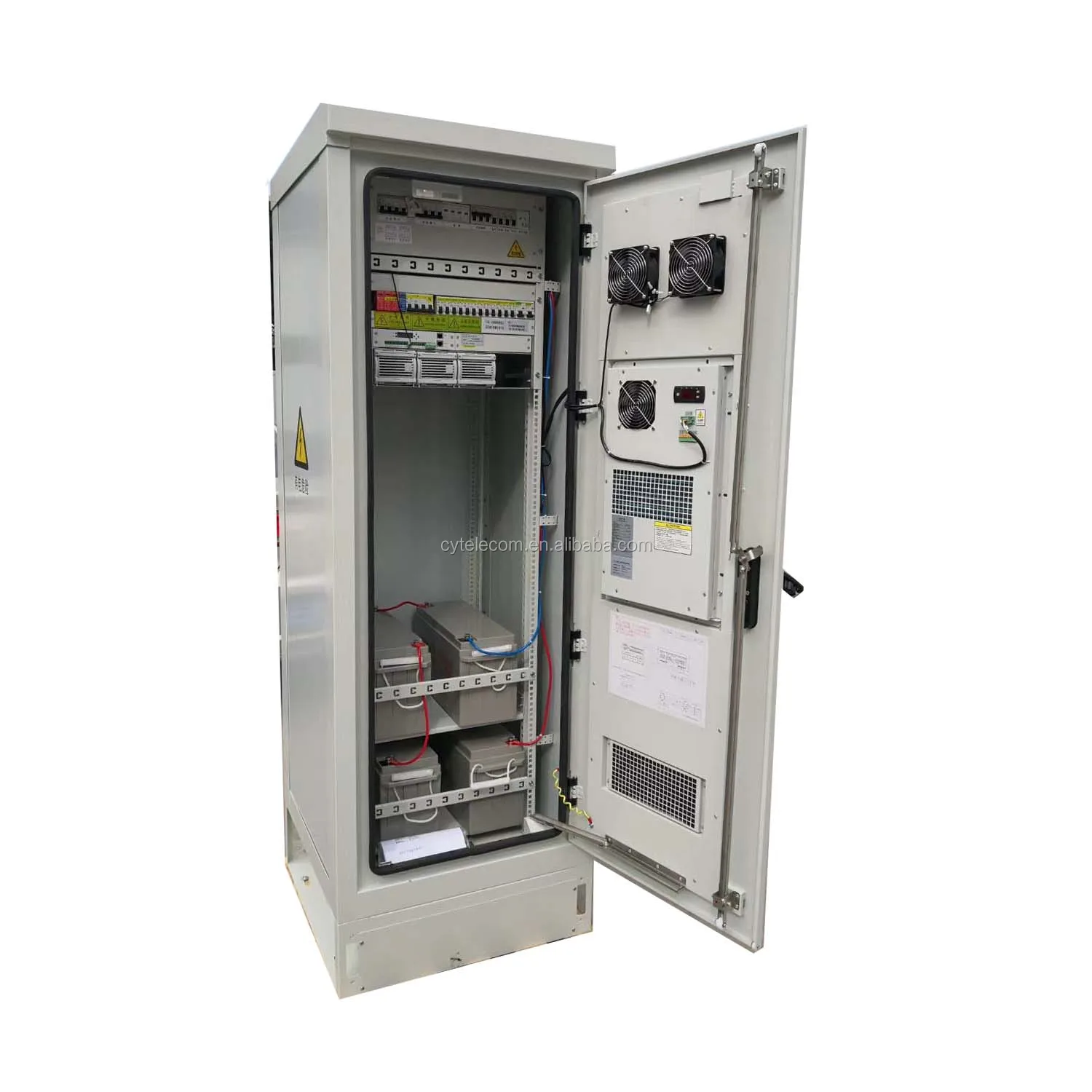

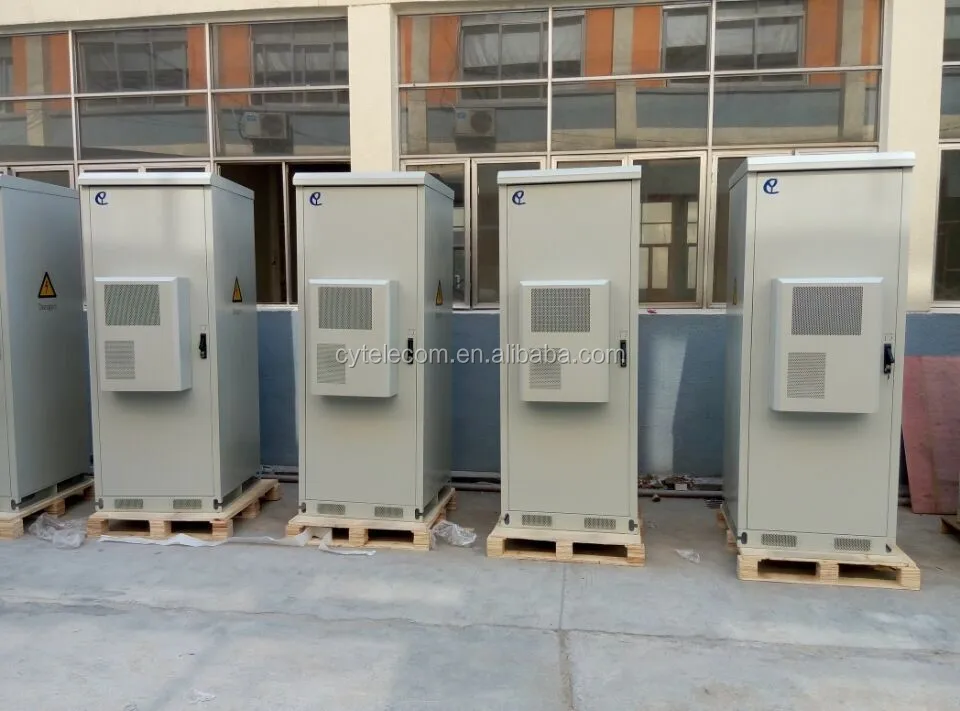

Product Display

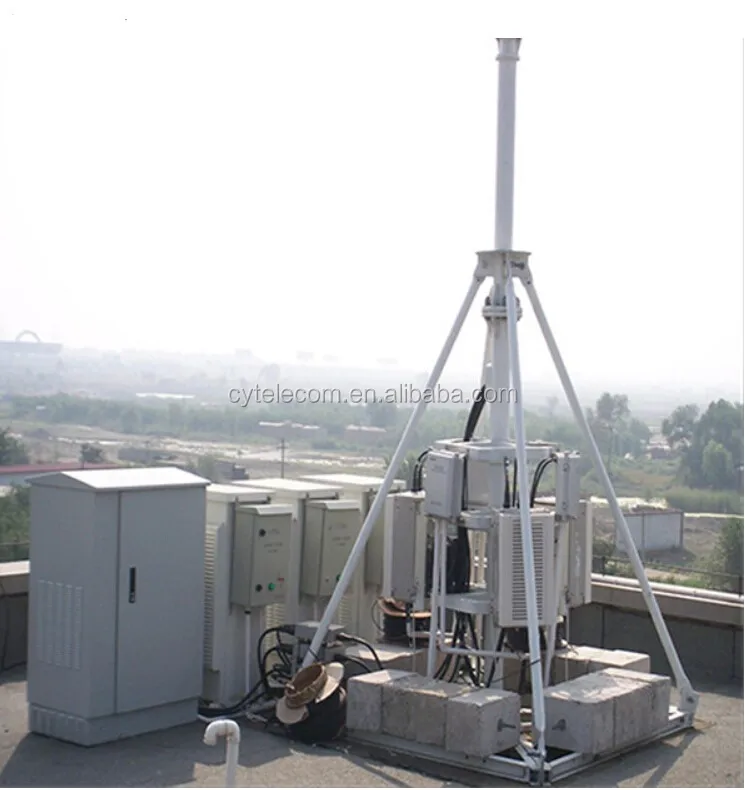

 Application







Packaging & Shipping

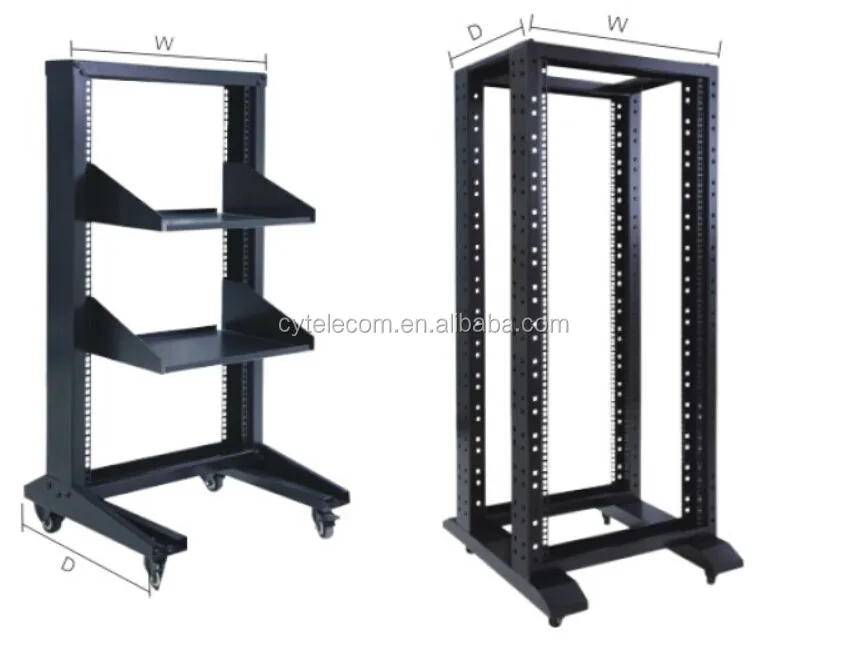

Related Products

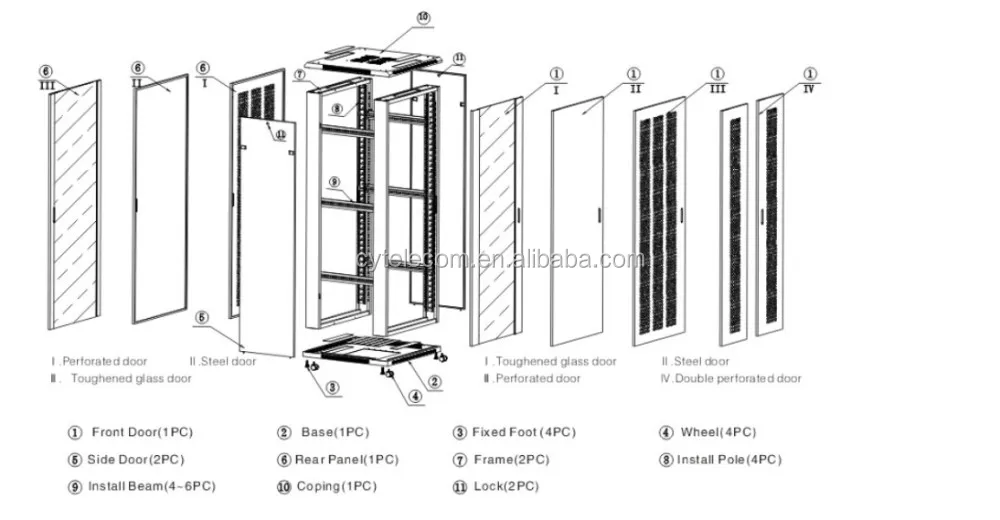

 Inner Structure
