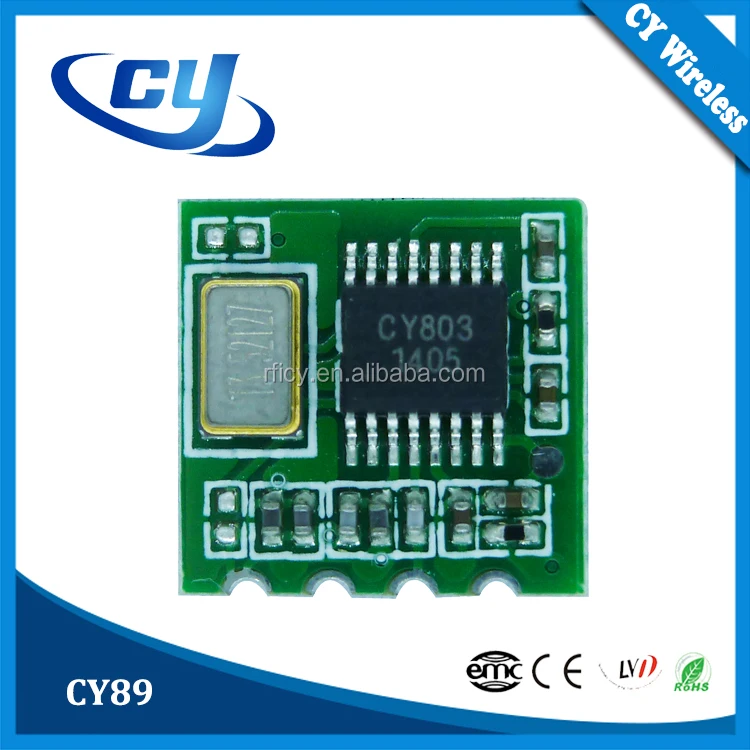

Приемник CY89 SMD типа ASK/OOK 915 модуль 433 868 МГц

Описание и отзывы

Характеристики

DESCRIPTION:
The CY89 is a ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets. The model has a high receiving sensitivity and strong ability of resisting. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development.
CY89 is for industrial level version.


FEATURES:
Frequency: 315MHz/433.92MHz/868.35/915MHz (custom frequency is available);
High sensitivity -110dBm/433.92 1kbps BER10E-2;
Supply voltage: VCC= 3 to 3.6 V;
IF band: 230KHz;
Low power consumption: 3.9mA/315M, 6mA/433.92M.
Wide operating temperature:-40~85℃;
Excellent selectivity and noise rejection;
Analog RSSI Output ;
SIL(single in line) small package


APPLICATION:
Remote gate controls
Remote keyless entry
Car alarm systems
wireless security systems
Automation systems

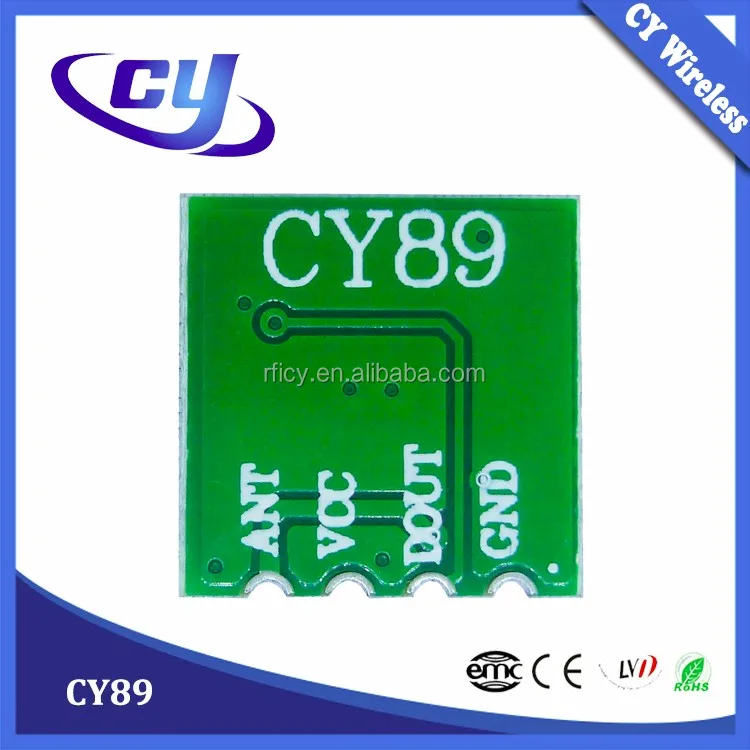

PIN DEFINITION:

Pin-out as showed in figure1 above.

Note1: ANT pin is a 50 ohm antenna input. The length is about:
23cm for 315MHz
17cm for 433.92MHz

8.6cm for 868.30Mhz

ELECTRICAL CHARACTERISTICS:

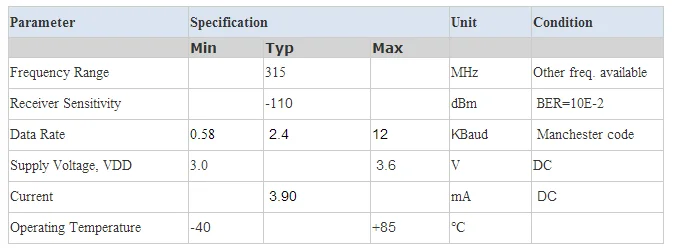

Condition: Ta=25℃ Vcc=5.0V Frequency=315MHz

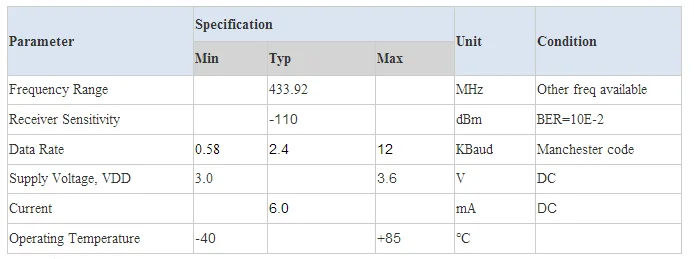

Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz

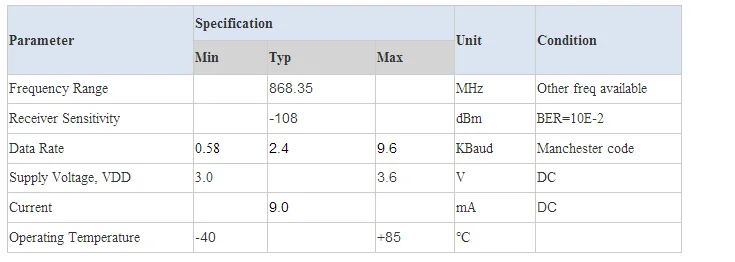

Condition: Ta=25℃ Vcc=5.0V Frequency=868.30MHz

MECHANICAL SIZE: (UNIT: mm)

Figure2 CY89 Dimension

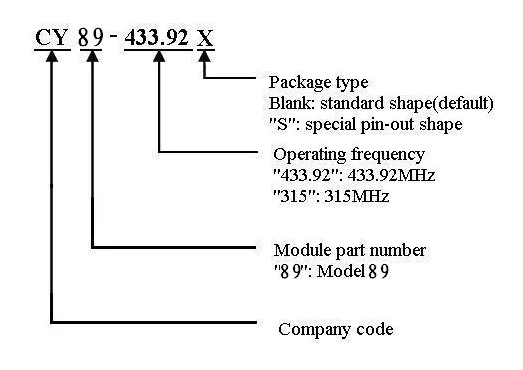

ORDER INFORMATION:
