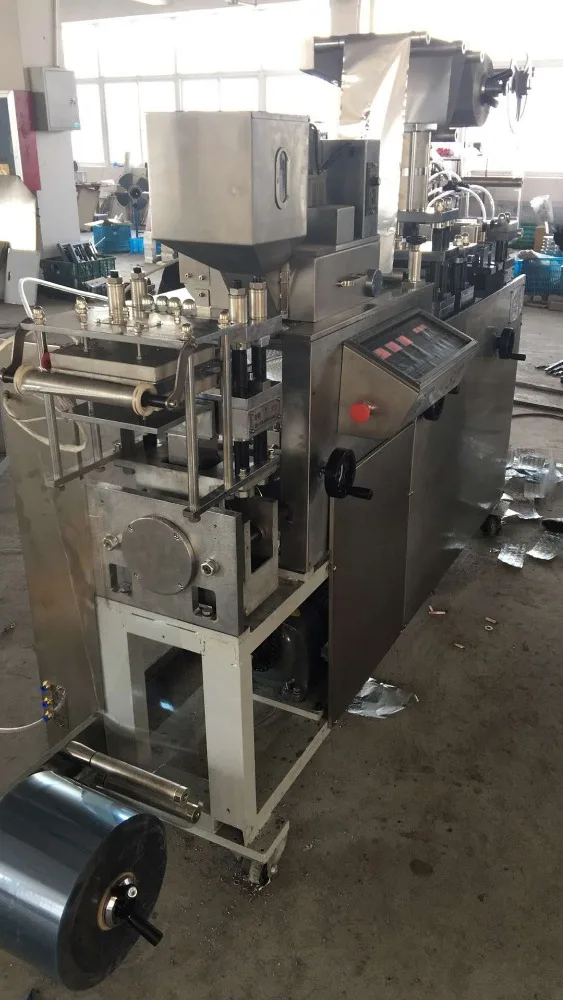

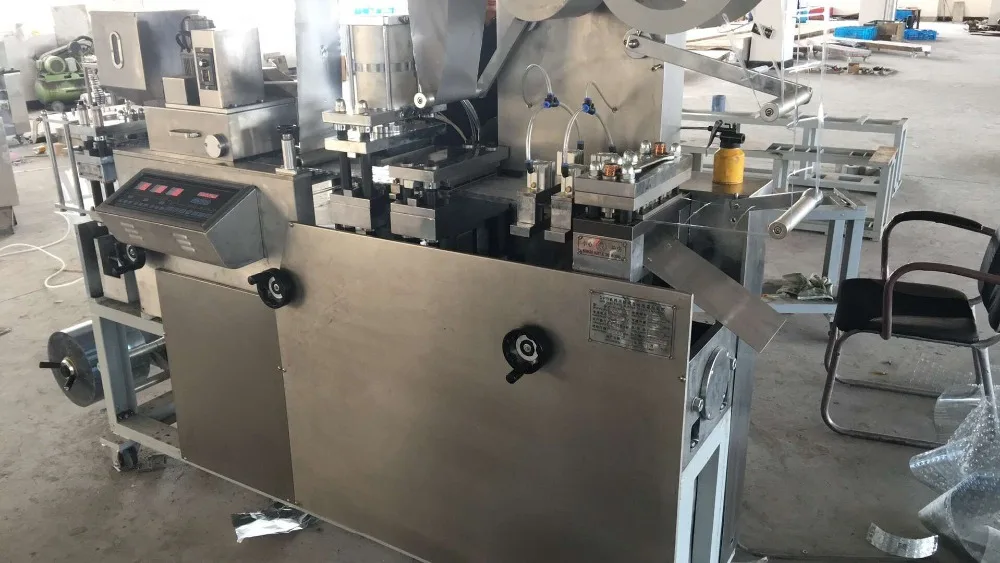

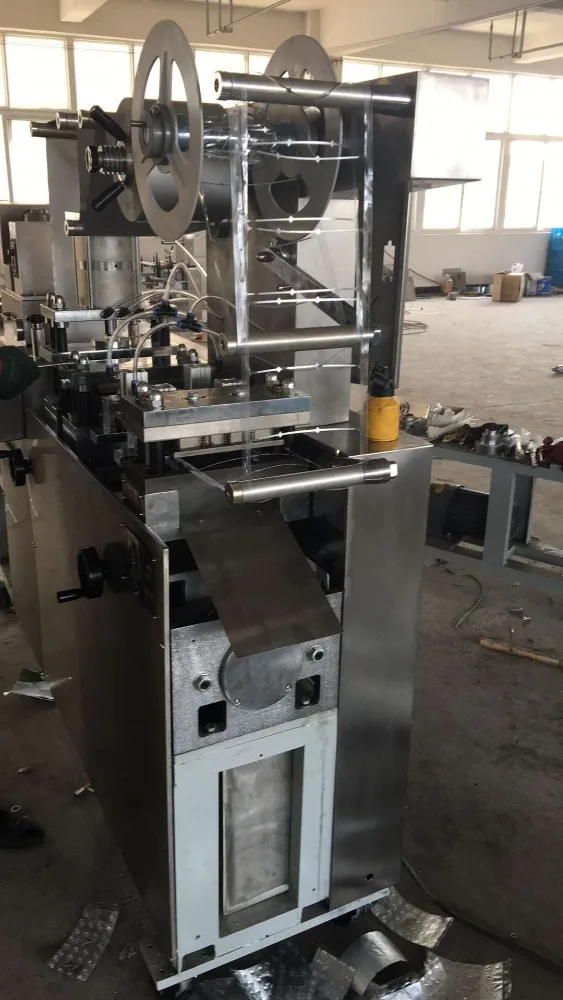

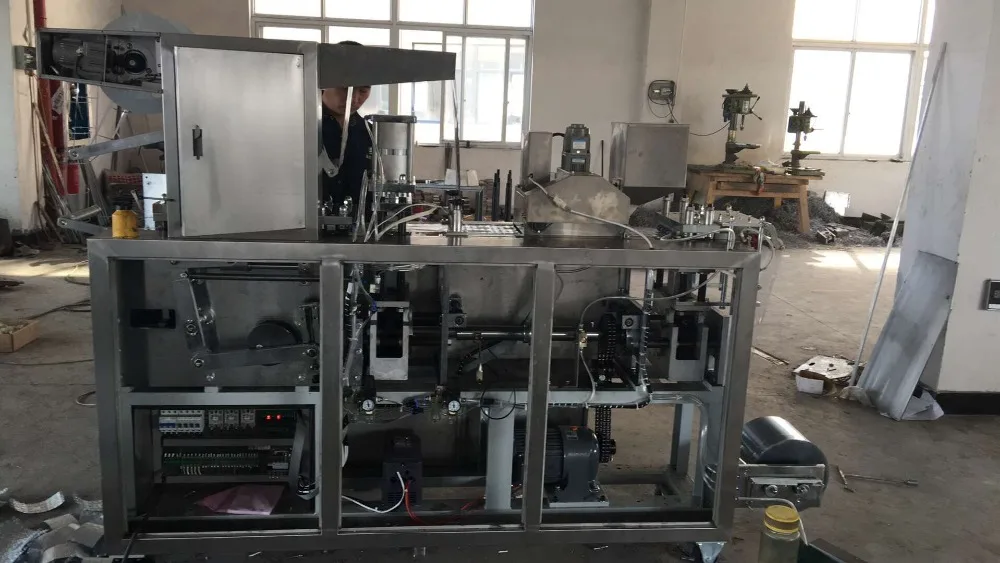

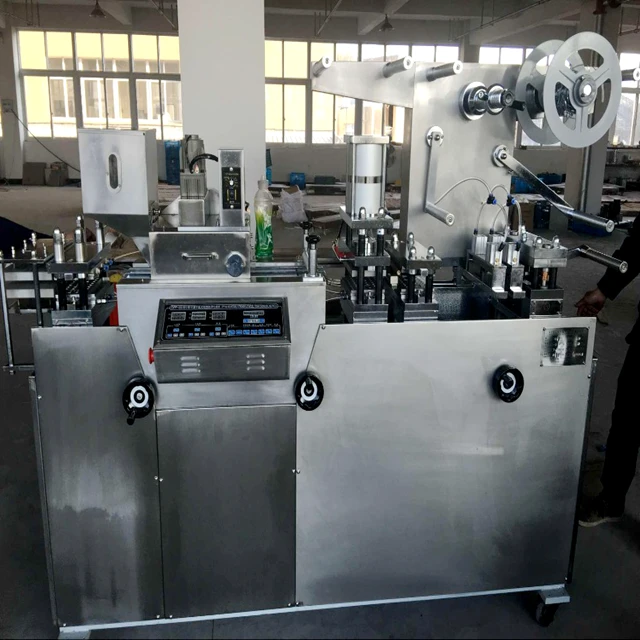

Фармацевтическая серия Высококачественная автоматическая машина для упаковки блистеров и БЛИСТЕРОВ

Pharmaceutical Process Series High quality automatic liquid blister packing machine and blister making machines

Features:

1.Adopted advanced highpower transmission device,main transmission shaft driven by chains.Avoid the noise and error by gear.
2.Imported electric parts for control system.Or install second feeder for lacking capsule and capsule inspecting device reject empty blister.
3.PVC forming,capsule feeding,heat sealing in one segment;
4.Adopted photoelectric system,PVC,PTP,ALU.automatically feeding,waste material collecting.ensure the multi units work steadily.
5. (Optional)-Use photoelectric inspecting system,equipped with advanced step motor for traveling.graphic version printing,optimise the packaging.
6.This machine is suitable for Capsule,Tablet,Sugar-coating pill,Gelatin capsule,injection,and other medical instrument,food,electronics.

Technical Specifications:

Cutting Frequency (times/min)                6-50
Capacity(pcs/h)                                          20,000-110,000
Max shaping areas and depth (mm)       130X130X26(standard depth is 4mm)
Stroke (mm)                                                 40-140(can be lengthened to 160mm according to user's requirements)
Standard Plate(mm)                                   80X57(can be manufactured as user's requirements)
Air Pressure(MPa)                                       0.4-0.6,≥0.2m3/min
Total power                                                  380V/220V 50Hz, 3.6kw
Main motor power(kw)                               0.75
PVC hard pieces (mm)                               0.15-0.5X140
PTP Aluminum Foil (mm)                          0.02-0.035X140
Dialysis Paper (mm)                                  50-100gX140
Mould Cooling                                            Tap water or recycle water
Overall Dimensions (mm)                        2300X560X1410(LXWXH)
Weight  (KG)                                               750
