Corrugated Hollow Sheet Production Line PP Corrugated Hollow Sheet Production Line PC Corrugated Hollow Sheet Production Line
Product Description

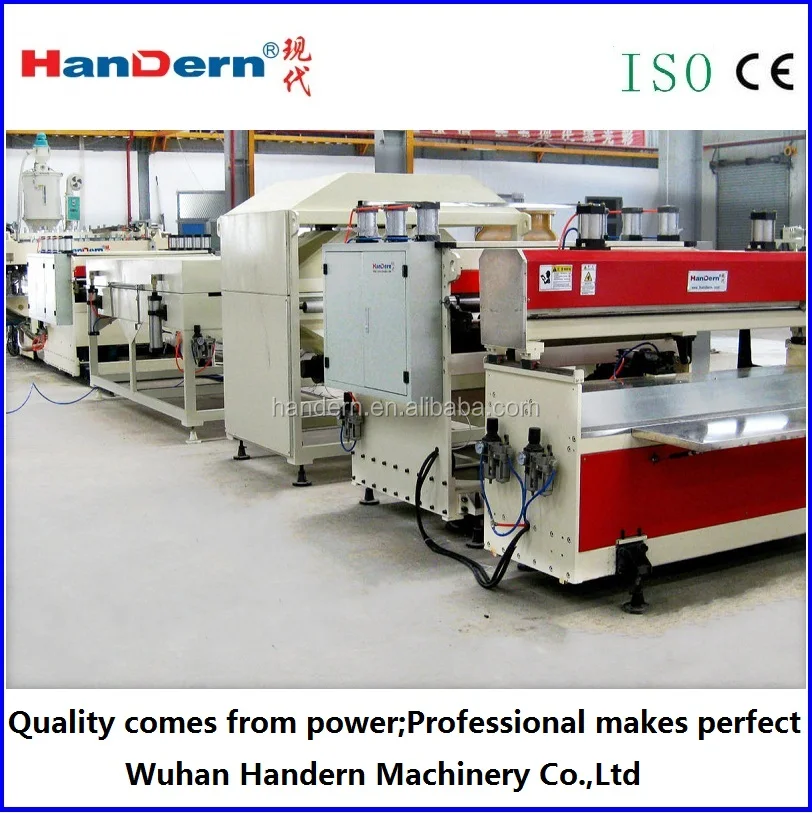

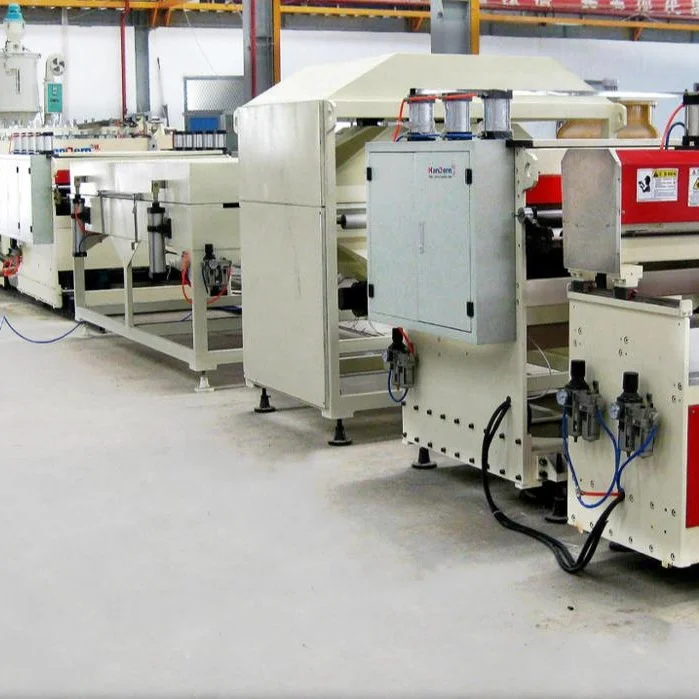

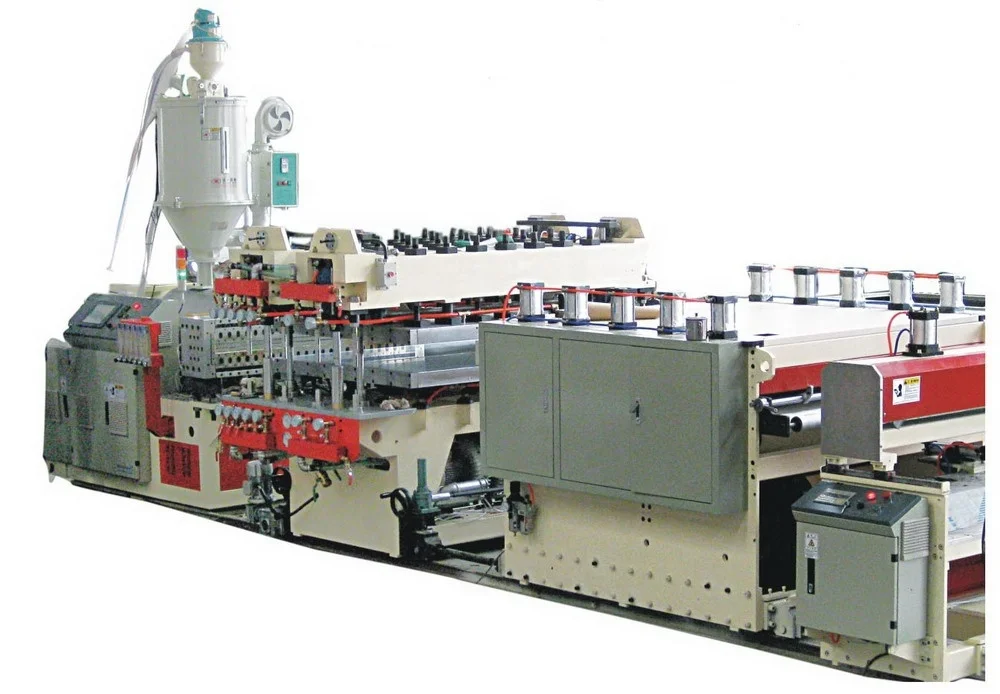

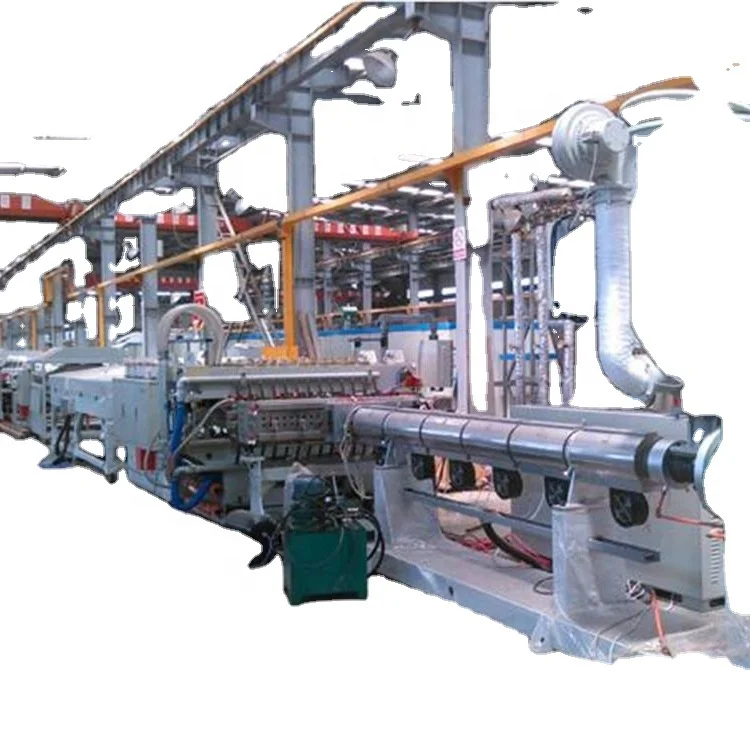

PC PP Corrugated Hollow Sheet Production Line
Polycarbonate hollow sheet plastic production machine is to produce PC hollow sheet;
It can be used in many fields such as decoration,advertisement, sunshine and noise insulation, roofing, packaging.
Applications of PC PP Corrugated Hollow Sheet Production Line
Specifications of PC PP Corrugated Hollow Sheet Production Line
Machine type | 1400 | 1800 | 2300 | 2700 |
Max sheet width(mm) | 1250 | 1650 | 2150 | 2550 |
Sheet thickness(mm) | 2-6 6-12 15-20 | 2-6 6-12 15-20 | 2-6 6-12 | 2-6 6-12 |
Line Speed(m/min) | 1-6 2-10 | 1-6 2-10 | 1-6 2-10 | 1-6 2-10 |
Max output(kg/h) | 180-260 | 220-350 | 320-450 | 360-500 |
Motor power(kw) | 55-90 | 75-110 | 90-132 | 110-160 |
Screw Model | SJ105/36 | SJ110/36 | SJ120/36 | SJ135/36 SJ150/36 |
Process Flow of PC PP Corrugated Hollow Sheet Production Line
Feeding→extrusion→exchange screen→Die→Calibrator→first haul off →heat treating oven →Cooling→second haul off →cutting→stacking
Parameters of PC Hollow Corrugated Roof Sheet Production Line
| Number | Item | Unit | Quantity |
| 1 | Extruder with single screw | set | 1 |
| 2 | Screen Changer | set | 1 |
| 3 | Die | set | 1 |
| 4 | Vaccum Calibrator | set | 1 |
| 5 | First haul-off unit | set | 1 |
| 6 | Drying oven | set | 1 |
| 7 | Cooling Device | set | 1 |
| 8 | Second haul-off unit | set | 1 |
| 9 | Cutting device | set | 1 |
| 10 | Electrical control Cabinet | set | 1 |
| 11 | Stacker Unit | set | 1 |
| 12 | Screw feeder | set | 1 |
Advantages of PC PP Corrugated Hollow Sheet Production Line
New design screw extruder: line with market demands and adapt to many kinds of raw materials, with the advantages of good plasticizing, uniform distribution and high output.
Hydraulic pressure screen exchange: short course of changing screen and stable operation of operators
Molding die: with high quality alloy steel lips and restrict bars to ensure even pressure and uniform thickness of the finished sheet.
Vacuum Calibrator: convective heat with array interleaved to ensure high precise calibration. the vacuum system composes two independent subsystem, equipped with several closed loop vacuum lines, which carries vacuum regulating system and vacuum displaying system, to ensure stable and even vacuum degree of sheet surface.
Haul off Device:
First haul off device is of high power, high reduction gear ratio, multi roll type, high traction, to draw the sheet up from calibrator evenly and synchronizedly.
Second haul off device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting.
Cutting Machine: Accurate imported automatic length indicator, adopts electric fly cutting and traversing cutting.
Electrical control system: adopt PLC to control precise parameters.
Benefits of PC PP Corrugated Hollow Sheet Production Line
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products
800mm PC Hollow Corrugated Roof Sheet Production Line
900mm PC Hollow Corrugated Roof Sheet Production Line
1200mm PC Hollow Corrugated Roof Sheet Production Line
PC Hollow Corrugated Roof Sheet Production Line
PC Hollow Corrugated Roof Sheet Production Line
Packaging & Shipping
Wooden case and PE film for PC PP Corrugated Hollow Sheet Production Line
Our Services
Service of PC PP Corrugated Hollow Sheet Production Line
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Quality Control System of PC PP Corrugated Hollow Sheet Production Line
Company Information
Wuhan Handen Machinery Co.Ltd
Polycarbonate hollow sheet plastic production machine
100#Corrugated Hollow Sheet Production Line PP Corrugated Hollow Sheet Production Line PC Corrugated Hollow Sheet Production Line
110#Corrugated Hollow Sheet Production Line PP Corrugated Hollow Sheet Production Line PC Corrugated Hollow Sheet Production Line
120#Corrugated Hollow Sheet Production Line PP Corrugated Hollow Sheet Production Line PC Corrugated Hollow Sheet Production Line
130#Corrugated Hollow Sheet Production Line PP Corrugated Hollow Sheet Production Line PC Corrugated Hollow Sheet Production Line
140#Corrugated Hollow Sheet Production Line PP Corrugated Hollow Sheet Production Line PC Corrugated Hollow Sheet Production Line
150#Corrugated Hollow Sheet Production Line PP Corrugated Hollow Sheet Production Line PC Corrugated Hollow Sheet Production Line
Похожие товары

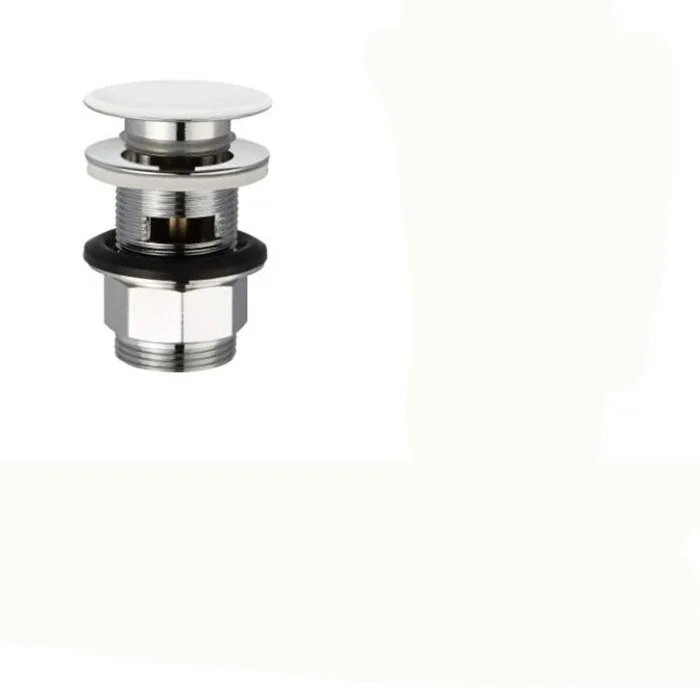

BOTO маска с дренажного клапана сточных вод бассейна с перелив слив, пуш-ап, всплывающее окно устройство для слива K716-P
Водонепроницаемая 420D нейлоновая саржевая Ткань Оксфорд с полиуретановым покрытием
3,50 $

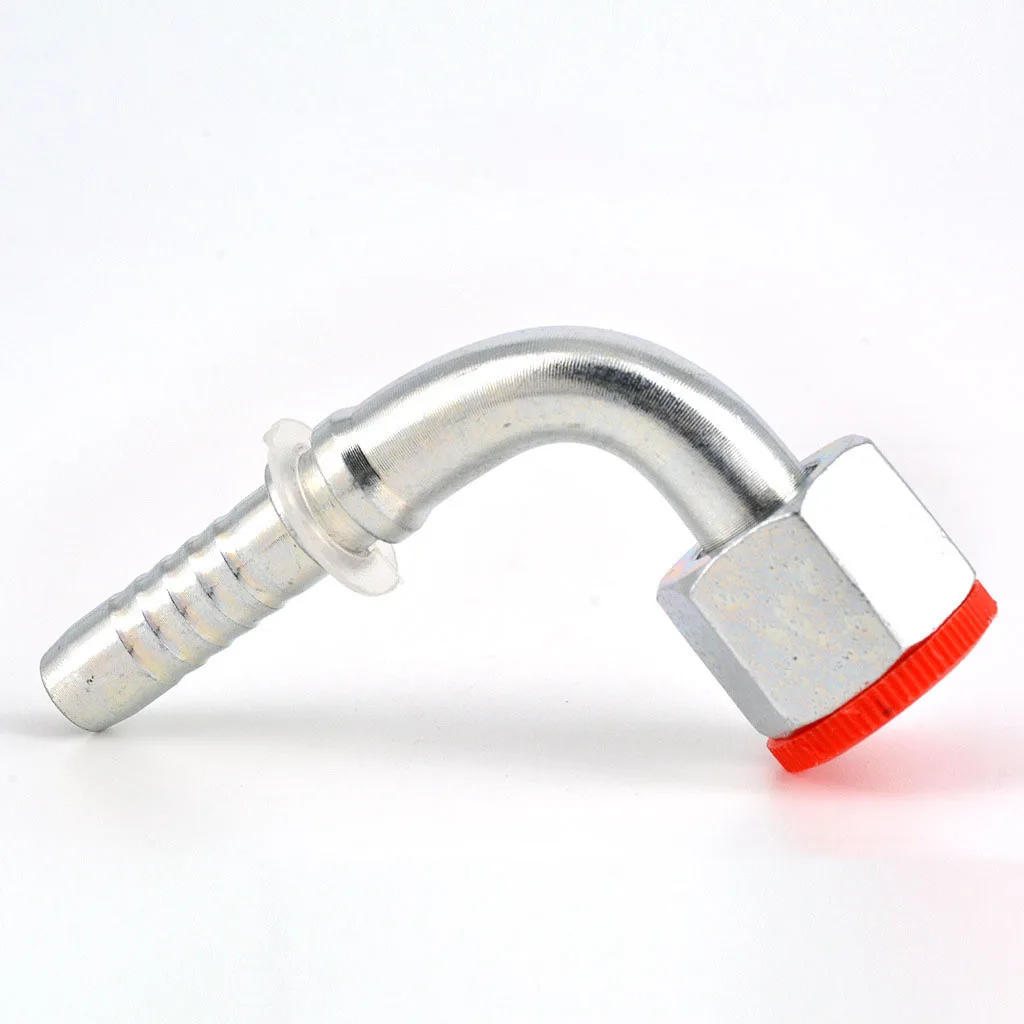

Фитинг для гидравлического шланга Eaton Yonghua метрический 205H Тип 90 градусов внутренняя резьба 24 градуса конус с уплотнительным кольцом
0,25 $ - 2,50 $

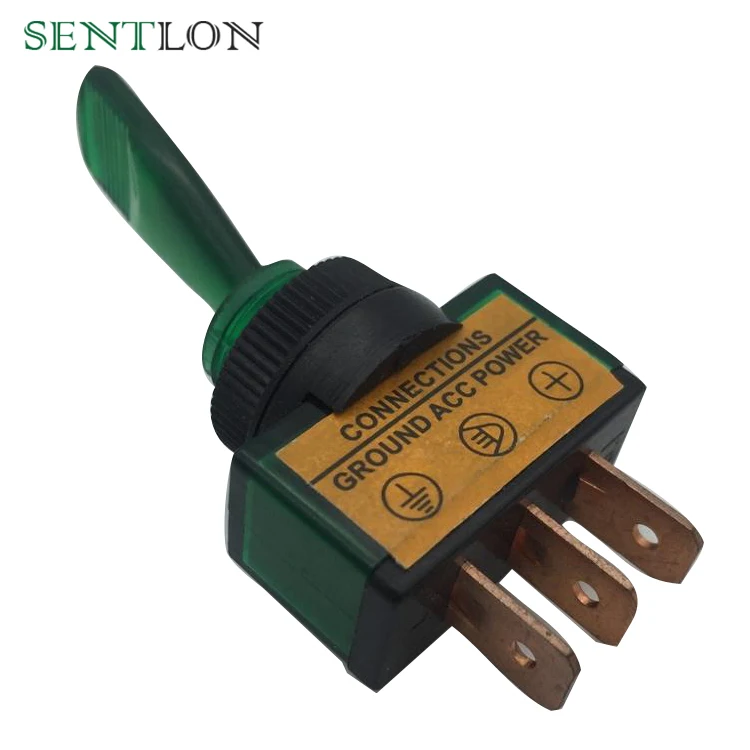

20A 12VDC 10A 125VAC 3-х Контактный Терминалы водонепроницаемый автоматического отключения Мини тумблер

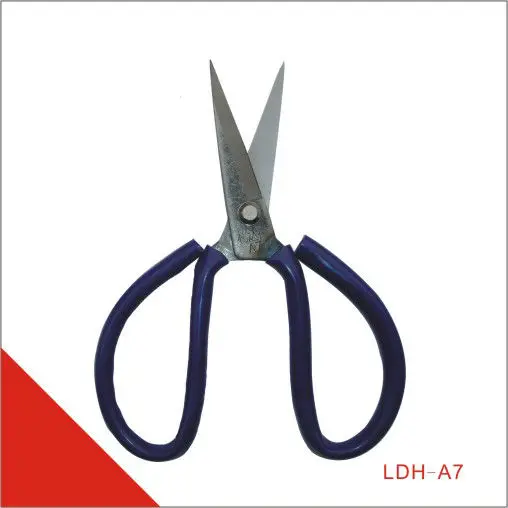

LDH промышленности ножницы брелок, вольфрамная сталь, LDH-A7 машин садовый инструмент ножницы
