Автоматический цилиндрический блок питания точечный сварочный аппарат для точечной сварки аккумулятор транзисторов
1 530 799,50 ₽ - 1 863 582,00 ₽

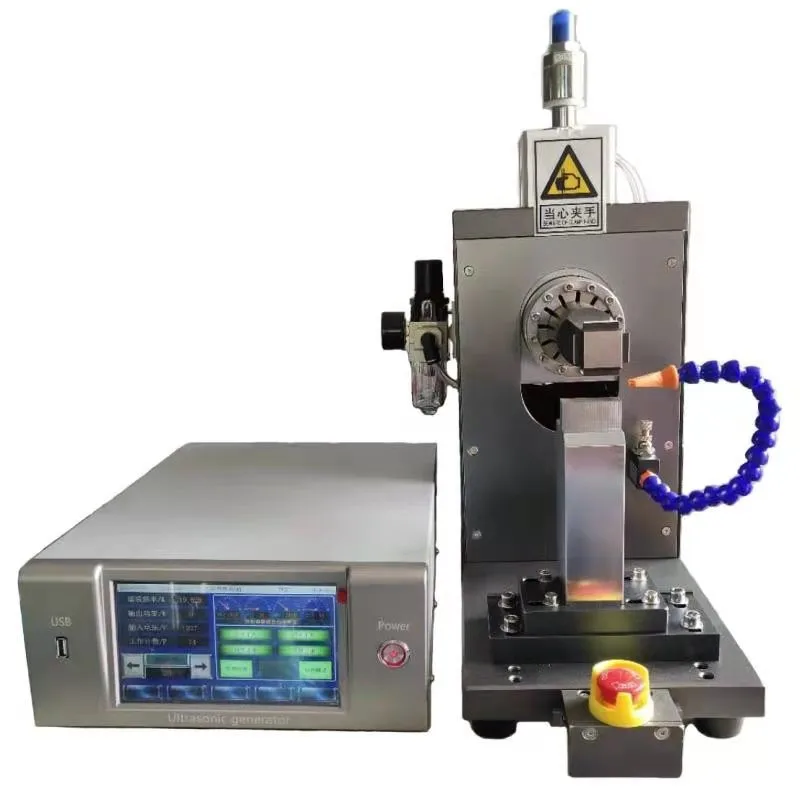

3000 Вт 20 кГц ультразвуковой сварочный аппарат для точечной сварки металла батареи
- Категория: >>>
- Поставщик: Guangzhou Minder-Hightech Co. Ltd.
Сохранить в закладки 60433225288:
Описание и отзывы
Характеристики
Product Description

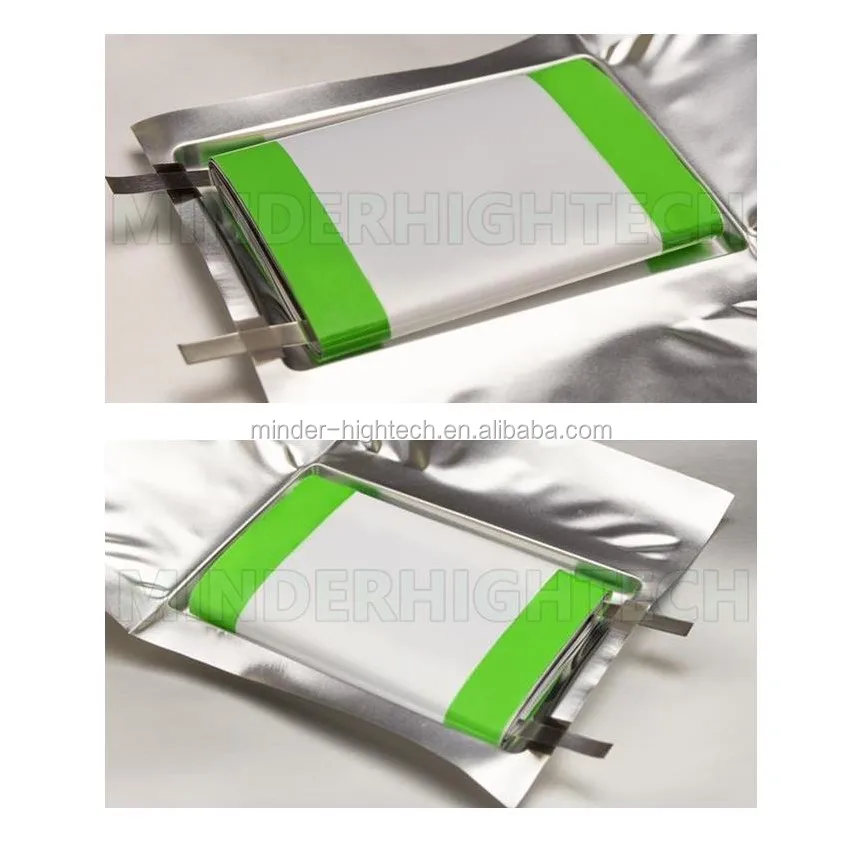

This ultrasonic spot welder is designed for welding stacked electrode sheets (Copper & Aluminum) and tabs onto current collectors to prepare Li-ion pouch cells in Li-ion pouch cells & cylindrical cells. The max layers of electrodes can reach 130.
Ultrasonic Welding Principle:
l Ultrasonic metal welding machine use ultrasonic frequency vibration principle to change ultrasonic vibration energy into friction energy and transfer to the metal surface to be welded ,while the friction produces heat under the pressure, the metal structure of molecules fully activation of the fusion between the molecular layer of the formation of the new equipment.
Features
l Microcomputer control, electronic tuning frequency.
l Power adjustable, operate simple, and run stable and reliable.
l LED display keeps the machine visible in operation and regulation.
l Imported components, good performance in energy output.
l Overcurrent protection and soft start can keep the machine safe.
l Easy installation and operation.
l Not only similar metal, but also dissimilar all can welding together. it can weld metal slice or sleave to thick metal. Usually used for transister or IC's leads welding.
Advantages
l High-quality ultrasonic transducer, strong power, good stability.
l Good conductivity and resistivity very low or almost near to zero.
l Oxidation or plating metal can be welded.
l Short weld time, no need additional flux, gas, solder.
l No welding sparks, environment protection and safety.
l Without the need for frequent replacement of amplifier due to stepless adjustment of the amplitude.
l Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation.
l Welding material does not melt non-fragile metal properties.
l Pairs of welding metal surfaces that require low, oxidation or plating can be welded.
Specification
Frequency | 20 kHz Nominal |
Power | Available in: 2000 W ~5000W |
Source Voltage | AC 110/220±10% V 50/60±10% Hz |
Welding Thickness | 0.03-5mm Al and Ni tab welding Aluminum/Copper foil |
Welding Size | Standard size is 5×5mm, can also customized according request |
Max. Welding Layers | 220 |
Pneumatic Pressure | 0.3-0.6Mpa |
Generator Type
| Digital automatic frequency tracking, generator can be adjusted the output amplitude from 5% to 100% |
Size | Controller: 420mm(L) * 380mm(W) *200mm(H) Welder: 510mm(L) *280mm(W) *210mm(H) |
Weight | Welder : 35~50kg, Controller : 10kg |
Warranty | One year warranty with lifetime support |
Application area
l Multi-layer positive and negative electrode welding for dynamic power battery
welding material does not melt, non-fragile metal properties.

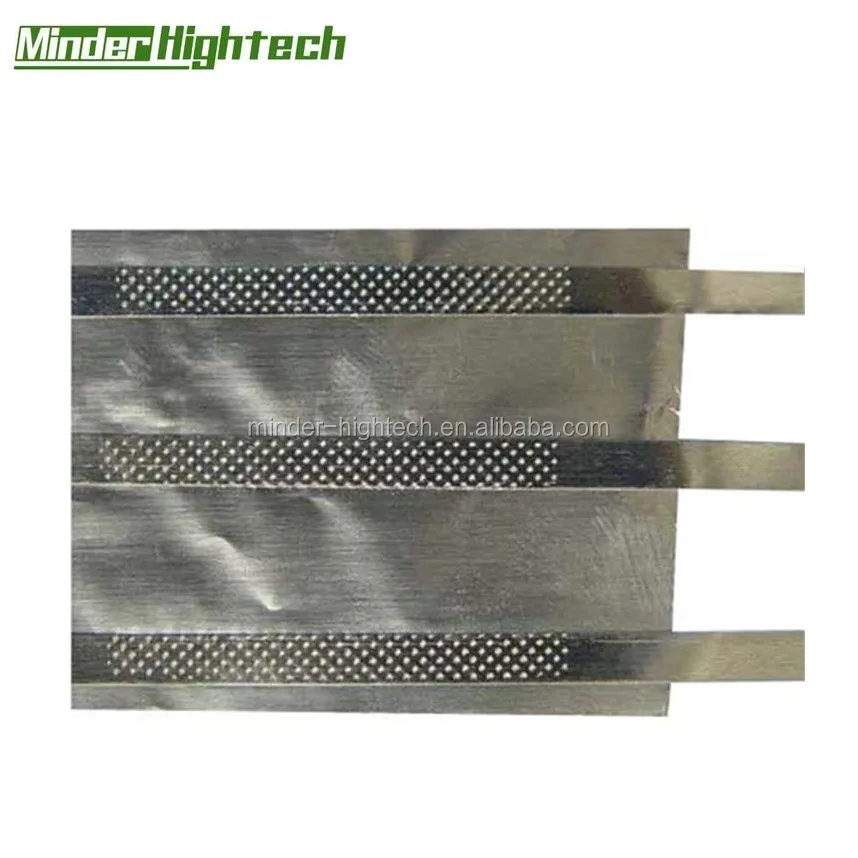

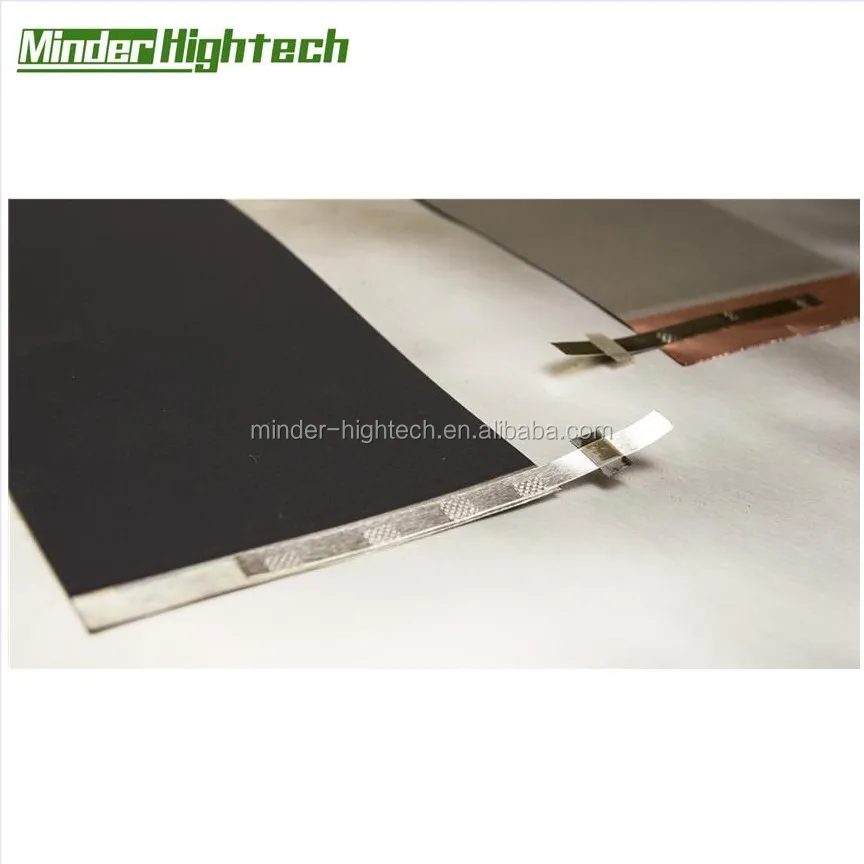

l Li-ion battery and polymer battery: Copper foil welds nickel sheet; Aluminum foil welds aluminum sheet; Aluminum foil welds Nickle sheet.
l Auto splice welding, Formation of electric wire end, Welding for electric wires; Multiple electric wires bond welding.
l Electric wire and cable welding, terminal , connector , electric parts welding .
l Solar panel battery, flat solar plate , copper and aluminum plate joints.
l Solenoid switch, fuseless switch: big currency joint point welding and dissimilar metal welding.
l Refrigerator and air conditioner copper tube sealing. Vacuum parts of copper tube and aluminum tube sealing.
In addition, advances in metals technology are producing thinner and lighter metal foils and wire for use in sensitive electronics and other products. Ultrasonic metal welding can satisfy the clean and delicate requirements of these applications, whereas traditional welding methods may be much too destructive.
Ultrasonic welding also meets the reliability demands of larger, heavy-duty applications such as charging systems for electric vehicles, wind power towers and solar energy systems.
Please Click on the Picture to See More Models
Packaging & Shipping
1 Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2 Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
3 Responsible for the damage during the shipping process will change the damage part for you for free.
4 Supply with the suitable voltage input and source plug according to your country requirements.
Our Services
1. Help customer analyze product project and provide welding solution.
2. Freely sample welding test.
3. Provide professional welding solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
7. 24 hours feedback speed by email of others.
Company Information
FAQ
| F.A.Q |
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 5-10 working days
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
Похожие товары

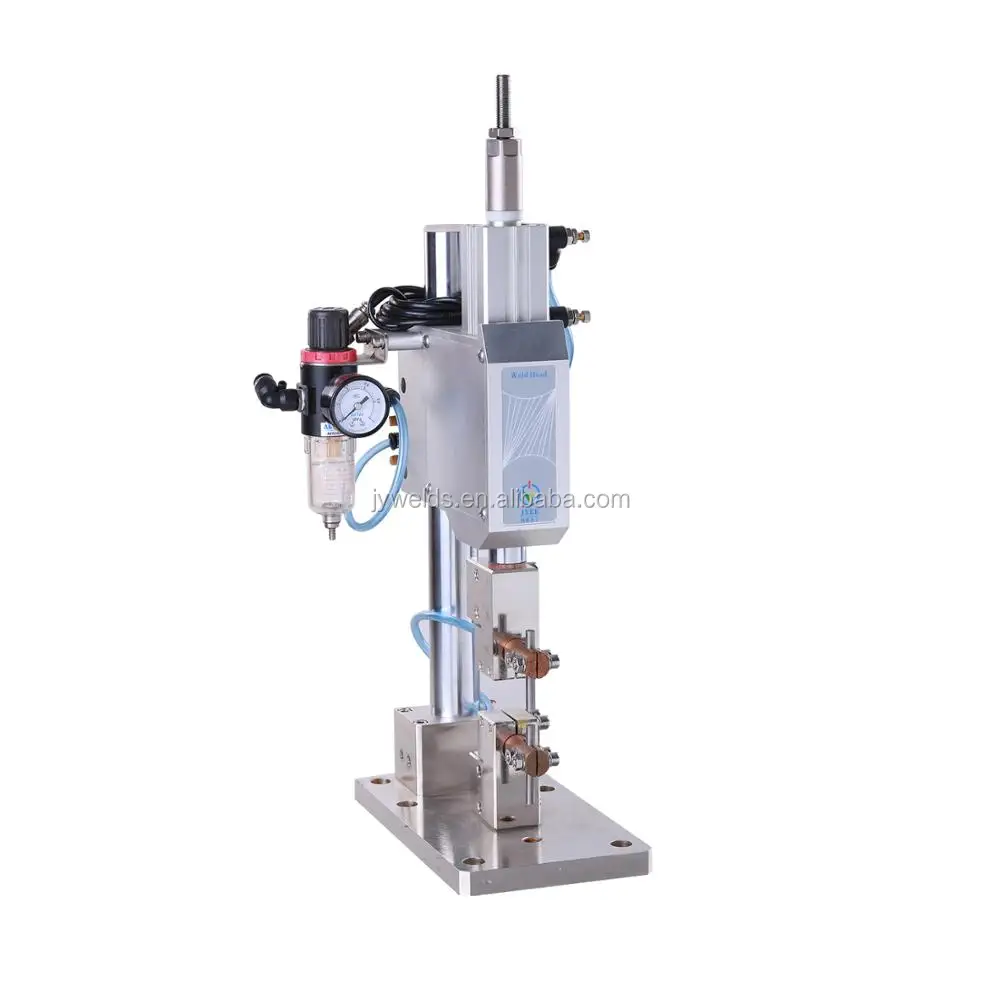

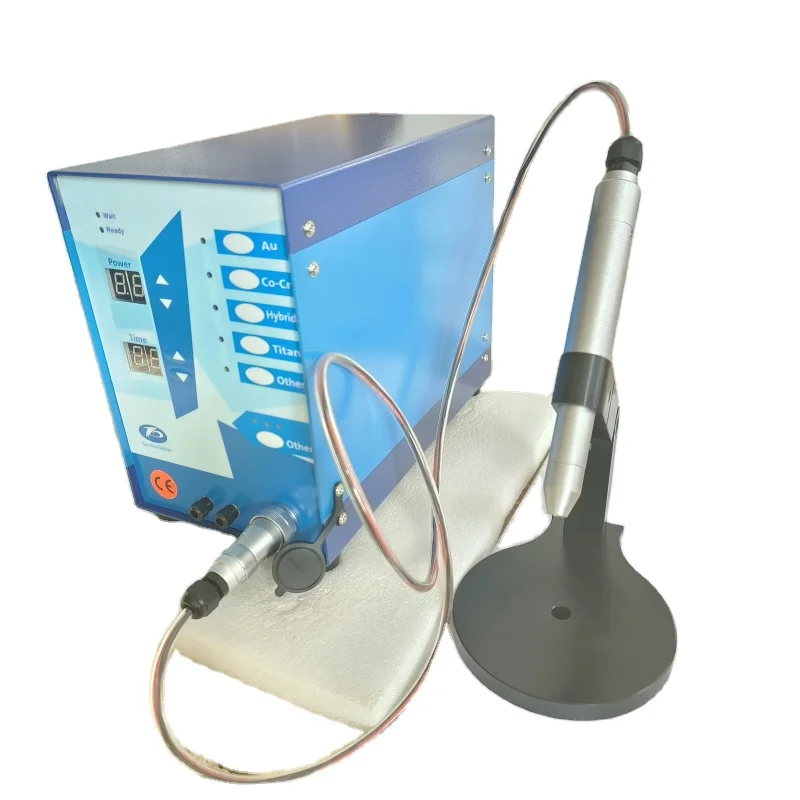

Перманентный комплект ручной автоматический аппарат для точечной сварки глаз ювелирный инструмент золотого аргона с микроскопом

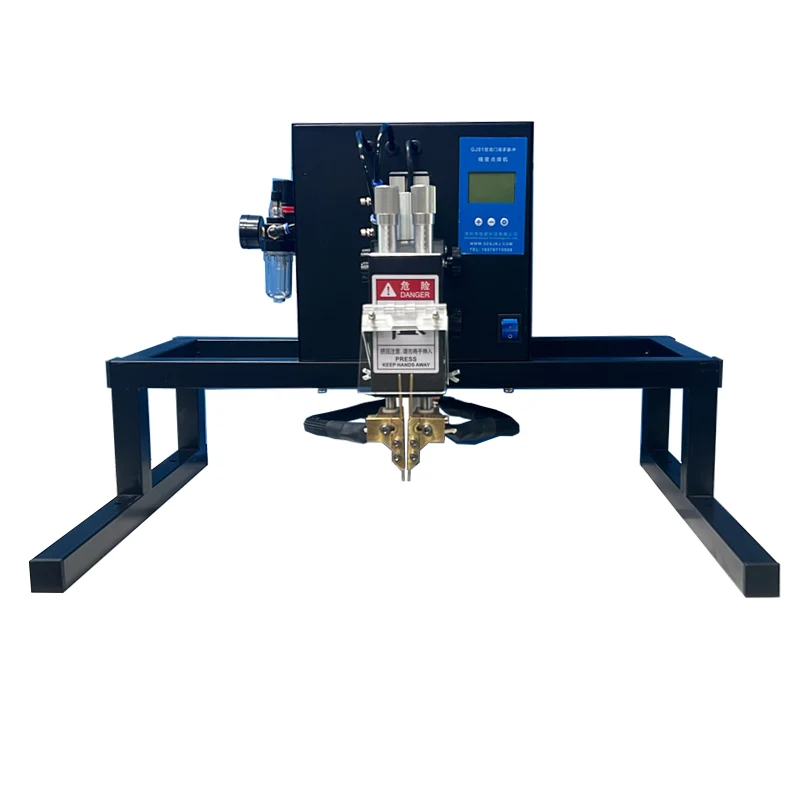

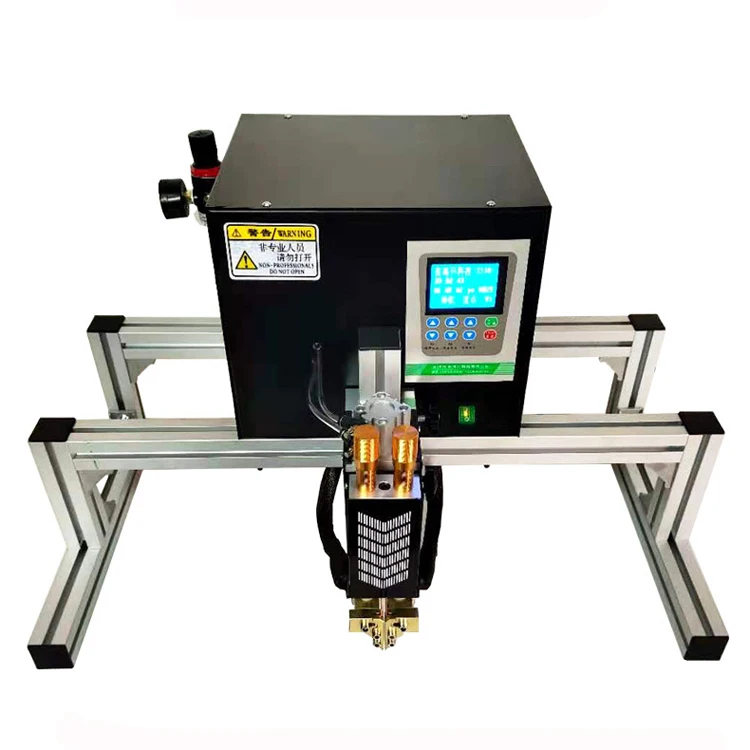

Ллитиевая аккумуляторная батарея сопротивление точечной сварки машина металлический никель средней частоты стыковой для 18650 батареи
Сварочный аппарат для точечной сварки аккумулятора
242 147,18 ₽

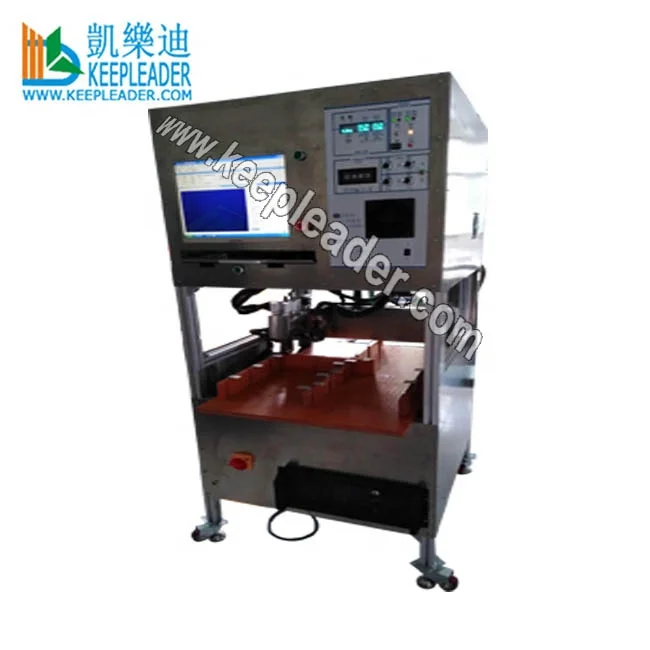

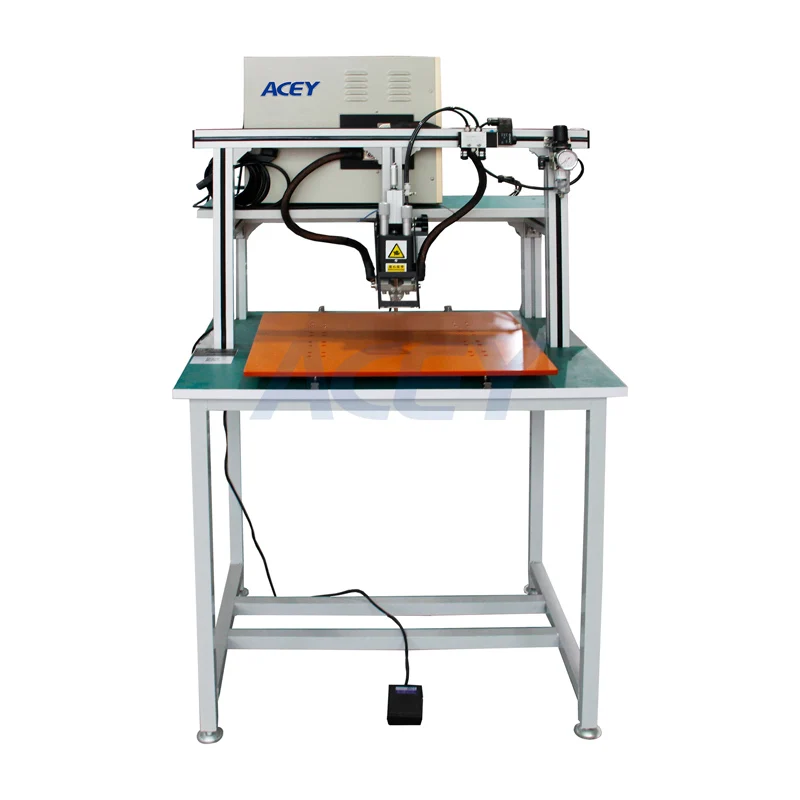

Изготовленный на заказ дешевый литий-ионный аккумулятор точечный сварщик лучший козловой ручной сварочный аппарат для литиевой батареи 18650 21700 26650 32700
Высокое качество AOT-ARP30 батареи сварочный аппарат для литий-ионный аккумулятор
87 943,46 ₽ - 109 956,84 ₽
Ручная точечная сварочная машина/сопротивление сварки

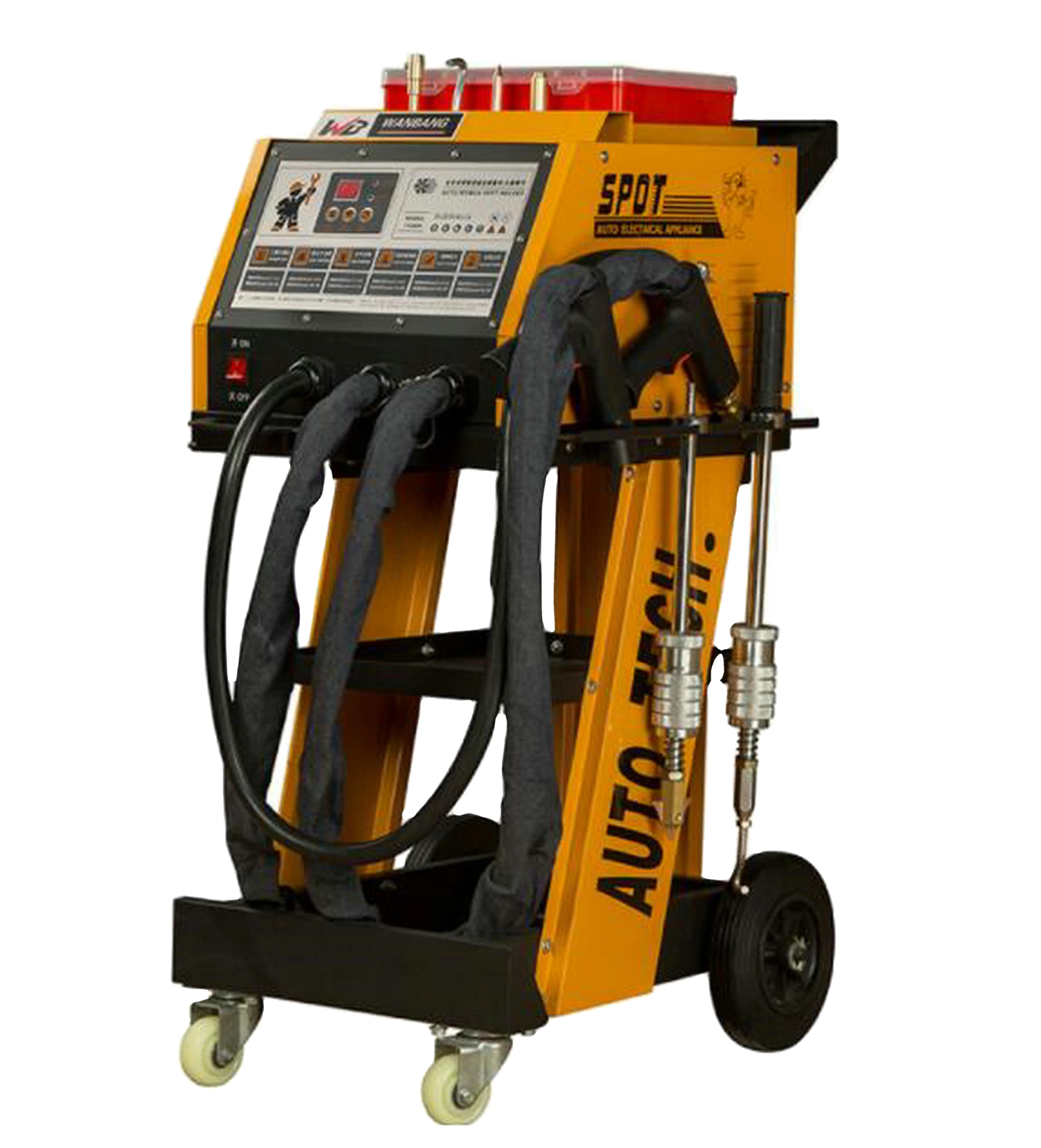

2022 горячая Распродажа автомобильных ковриков для починки кузова автоматическая сварочная машина продажи WX-15000
