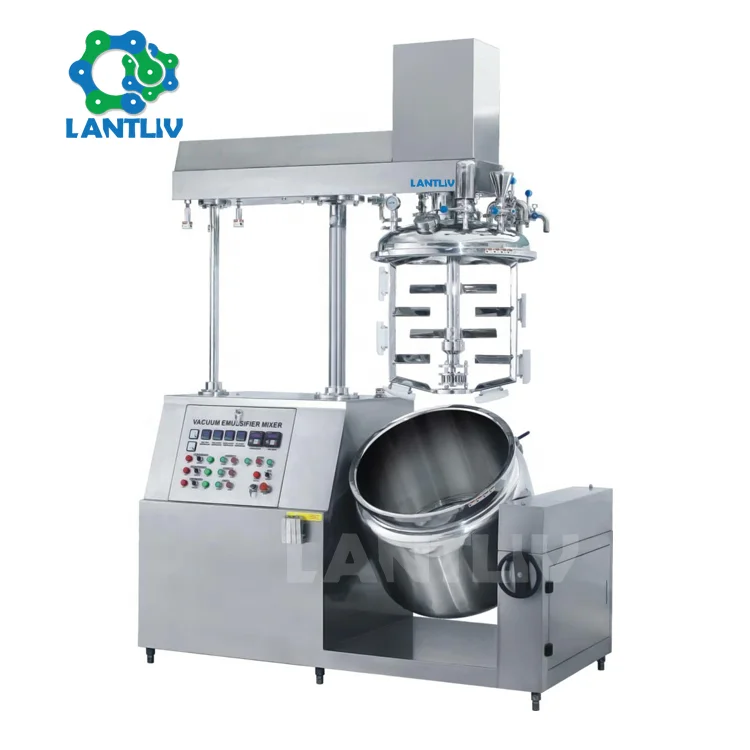

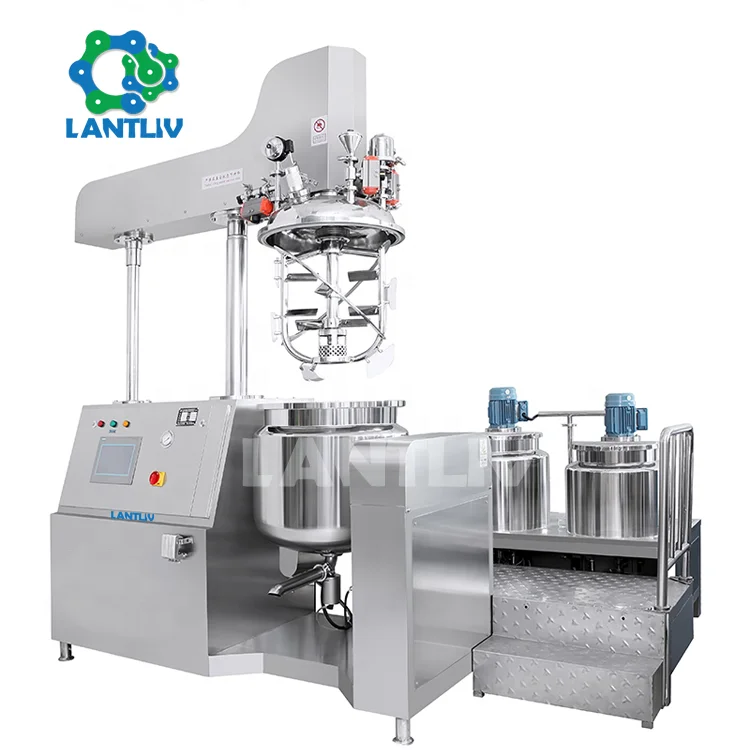

GMP Standard Stainless Steel Batch High Shear Dispersing Emulsifying Mixer Homogenizer for Cosmetics

Сохранить в закладки 60434436237:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Overview


Vacuum homogenizing emulsifier mixer means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be disperesed and emulsifed instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.

The product mainly applied in such industries as daily chemical care products, biopharmacutical industry, food industry, paint and ink, nanometer materials, petrochemical

Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, ferilizer, plastic & rubber, electronic and electronics, fine
chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.




Technical Parameters


Item
Mixer
Homogenizer
Main pot heater
Water pot heater
Oil pot heater
Water pot mixer
Oil pot mixer
50L
1.1kw
2.2kw
3kw
6kw
3kw
0.37kw
0.37kw
100L
2.2kw
4kw
6kw
6kw
6kw
0.55kw
0.55kw
200L
3kw
5.5kw
9kw
12kw
9kw
0.75kw
0.75kw
300L
4kw
5.5kw
9kw
12kw
12kw
1.1kw
1.1kw
500L
4kw
7.5kw
12kw
18kw
18kw
1.5kw
1.5kw
1Ton
5.5kw
11kw
18kw
18kw
18kw
2.2kw
2.2kw
2Ton
7.5kw
15kw
27kw
27kw
27kw
3kw
2.2kw
3Ton
11kw
18kw
36kw
36kw
36kw
4kw
3kw

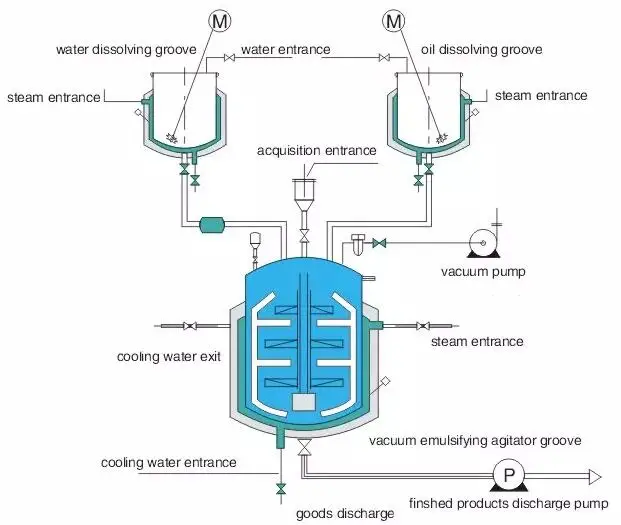

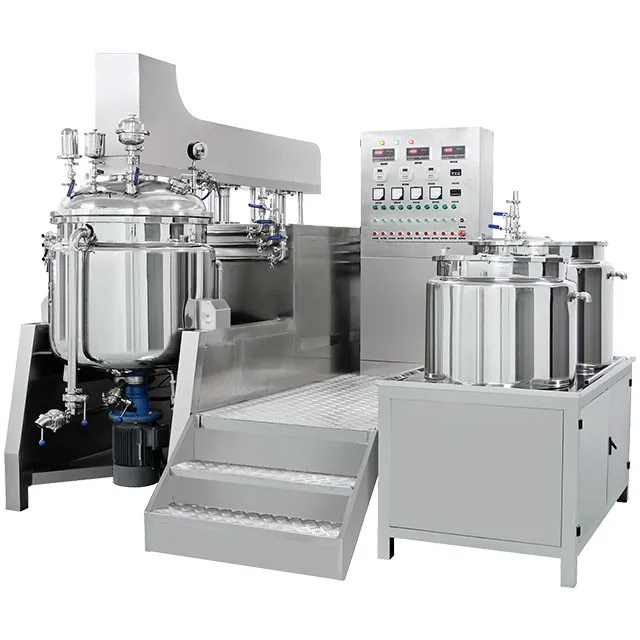

The Vacuum homogenizing emulsifier mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.




PRODUCT CONFIGURATION


Main pot body
1. Full stainless steel 304 and 316L material.
2. Mirror polishing.
3. Can be made 2 layers or 3 layers.

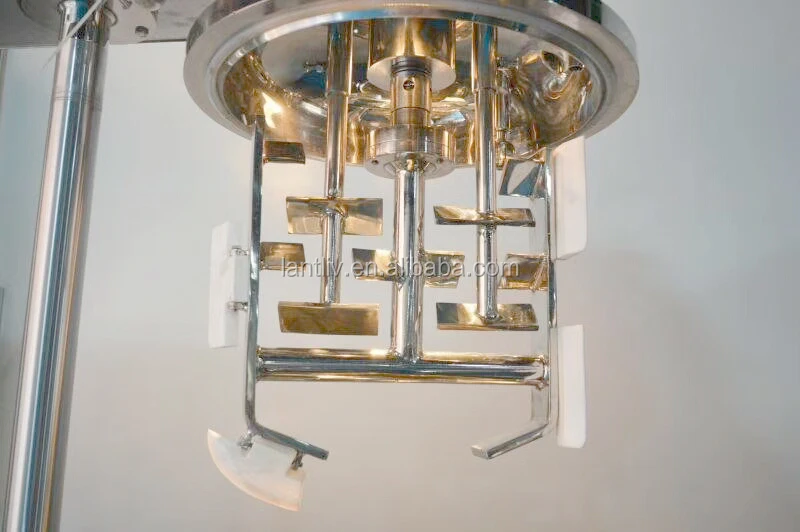

Frame Wall Scrapper Mixer
1. SUS316L wall scrapper mixer with PTFE scraper.
2. Fixed propeller.
3. 45 degree blades on opposite angles to make sure mixture complete.
4. Siemens motor drive.
5. 0-65 rpm with variable speed control.
6. TWO WAYS wall scrapper mixer.
7. HELIX scrape mixer(OPTION).

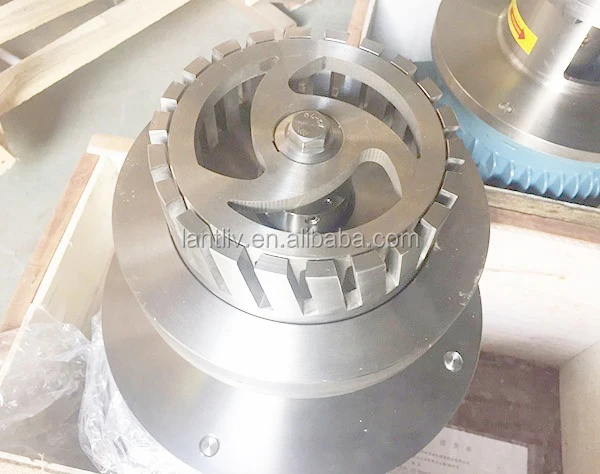

High shearing homogenizer
1. 0-3600 rpm variable speed control.2. Water cycle cooling mechanical seal, continous long time working.
3. High standard precision machining rotor and stator.
4. High shearing smooth ≤2um .
5. Bergman mechanical seal.

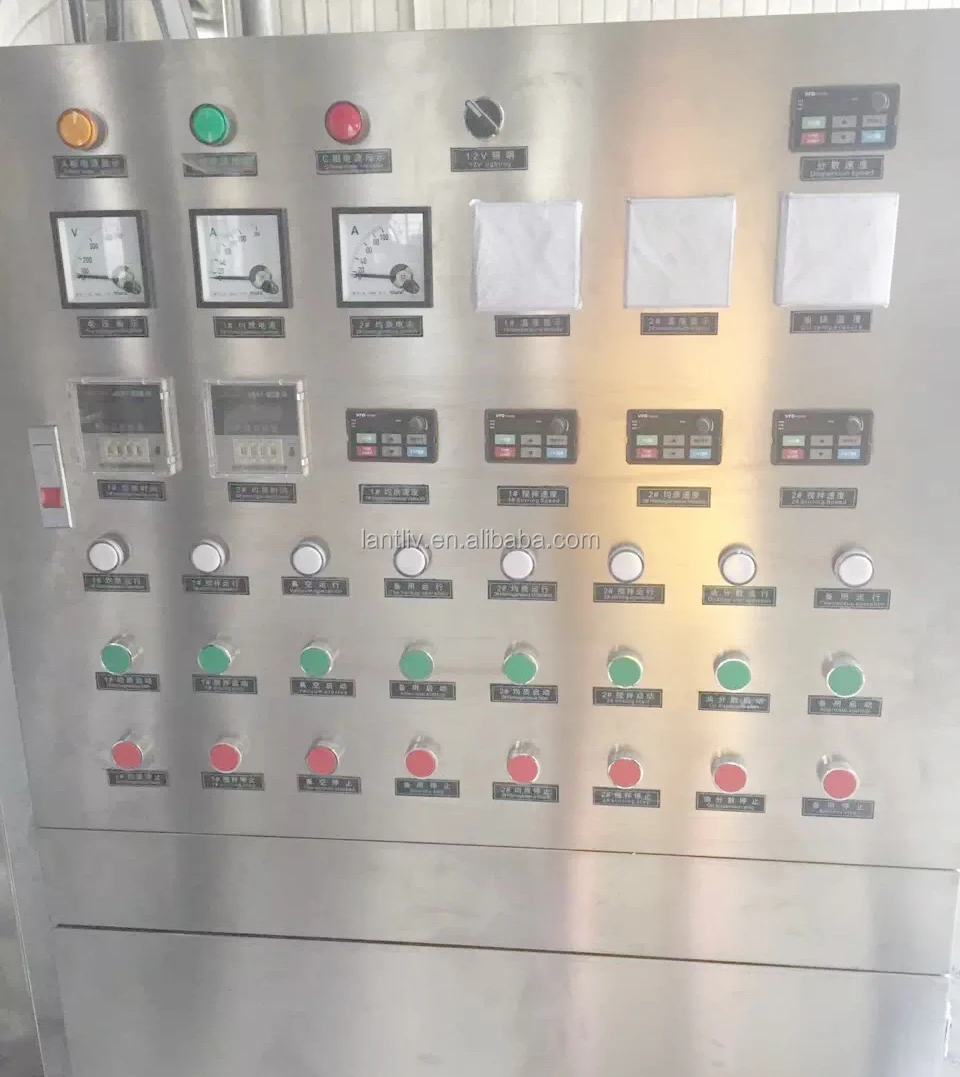

Control panel
1. Button control or PLC touch screen control.
2. Schneider electric.
3. Stainless steel 304 material.

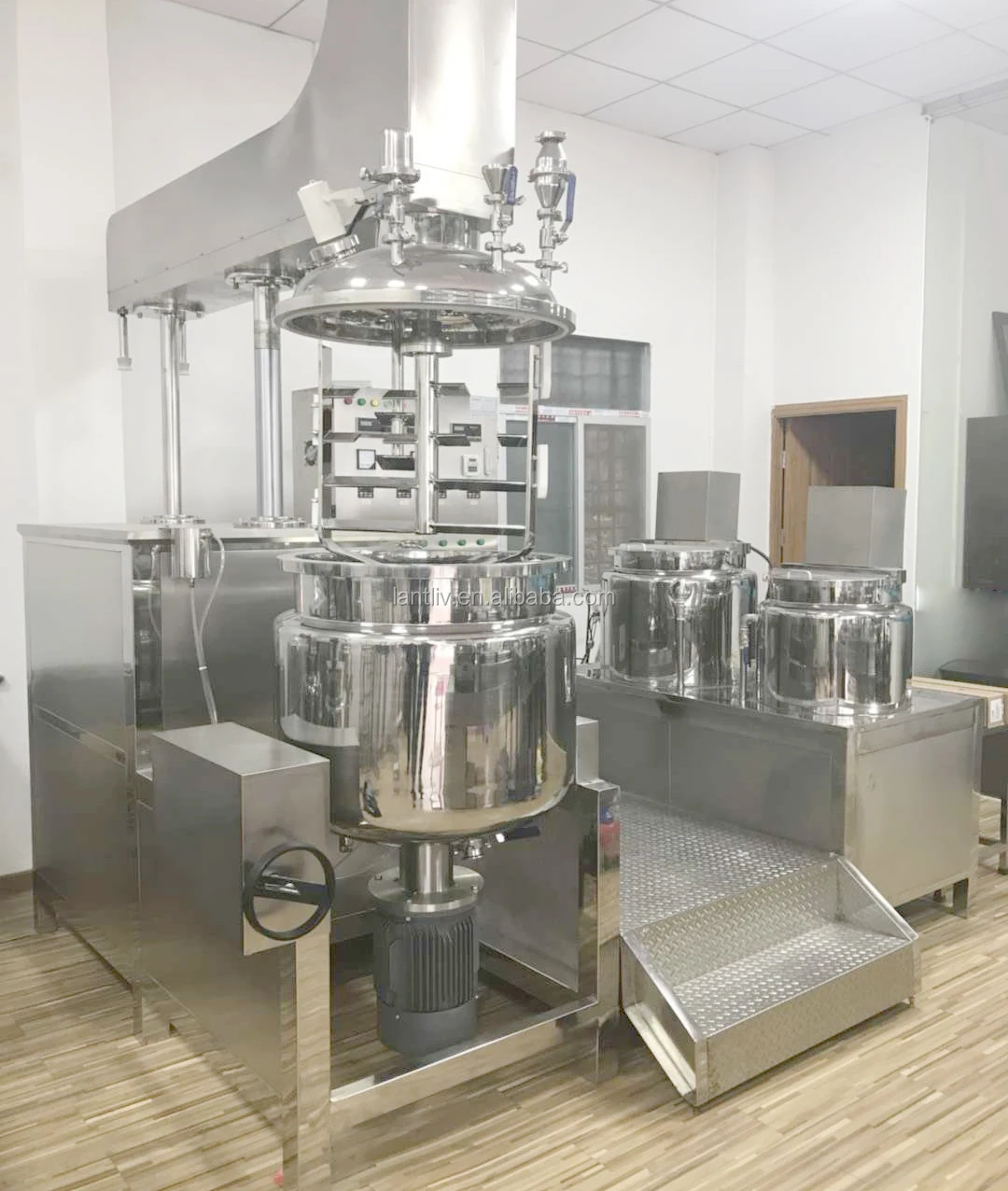

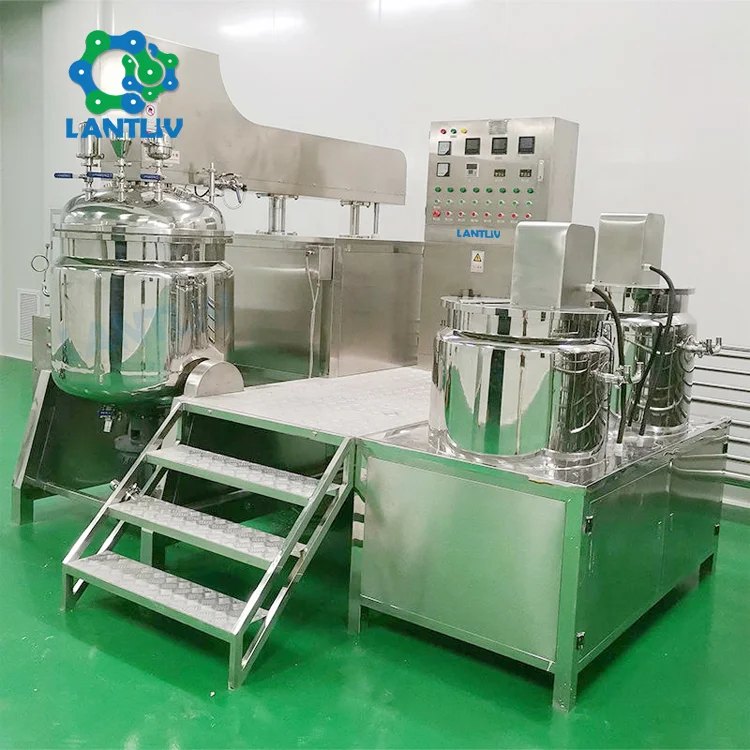

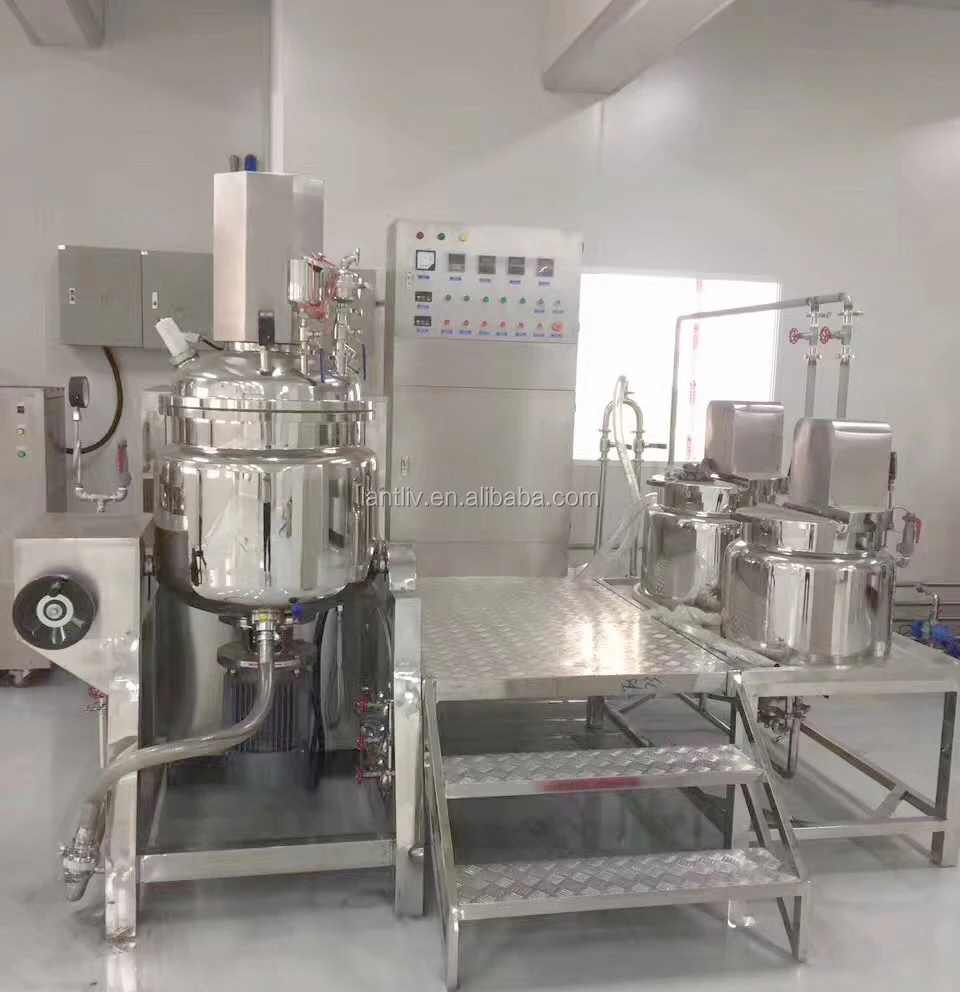

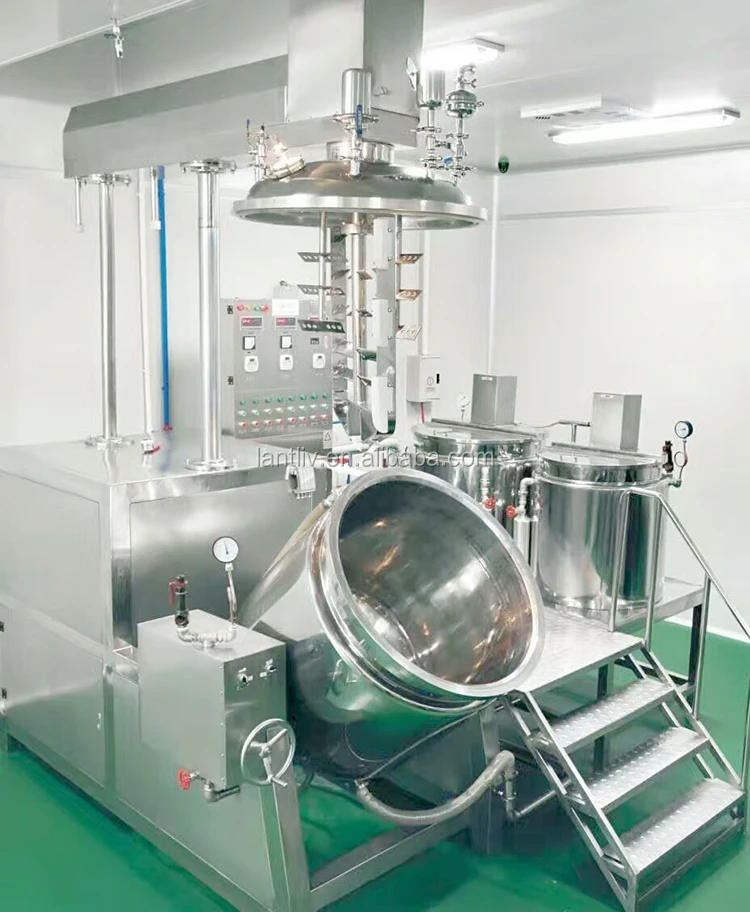

Successful Project


Main Features

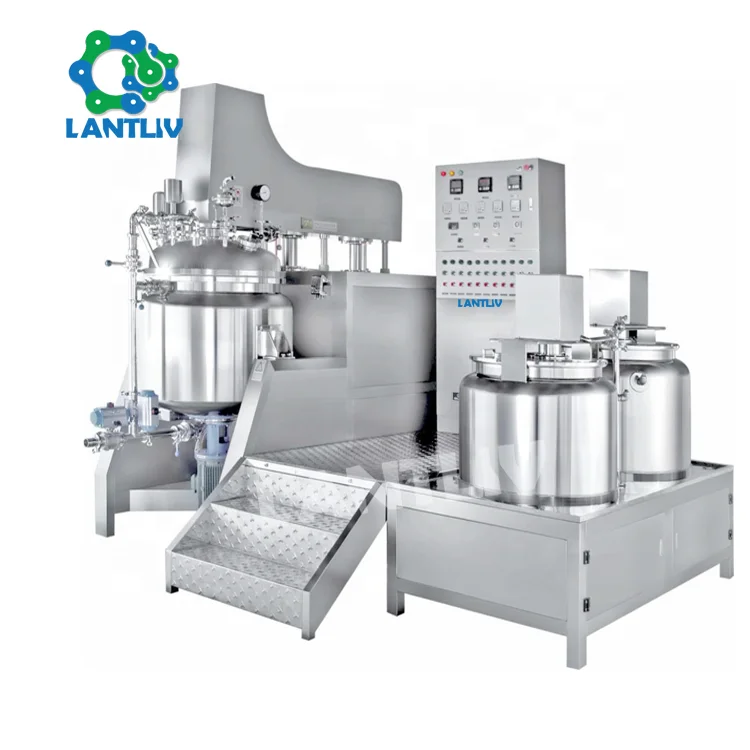

(1) Vacuum homogenizing emulsifier mixer consist of main emulsifying mixer, water pot, oil pot, vacuum pump etc.
(2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
(3) High quality SUS304 and 316L material, internal and external mirror polish.
(4) High effection homogenizer, 2μm smooth finish.
(5) Apply to cosmetics, pharmaceutical, food etc industries.




Certifications




Payment & Shipping

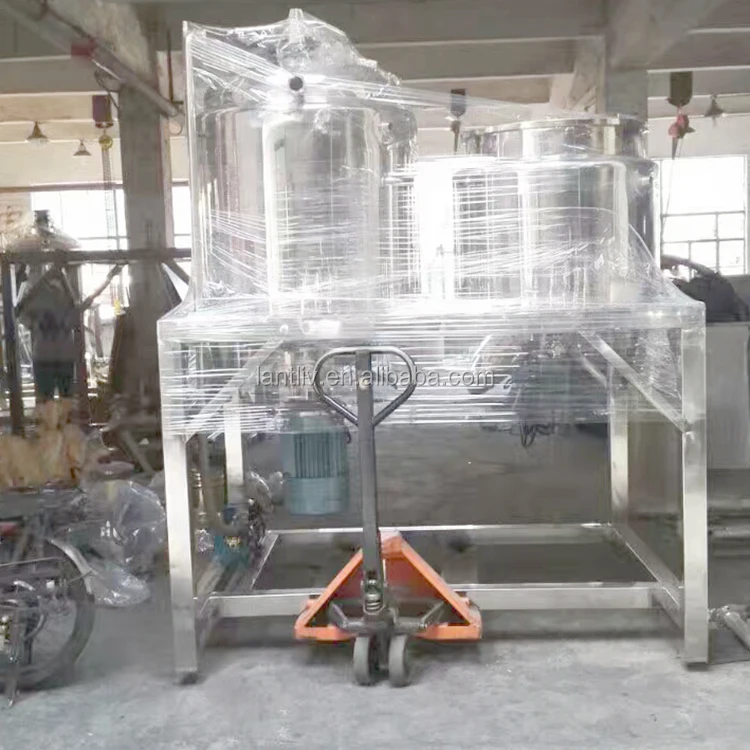

1. The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tight, we will use PE film for packing or pack it according to customers special request.
2. Delivery time: 15-20 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.


After Sales Service




After Sales Service:
1. Manual / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core temp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year guaranty for machine, During the warranty year if any of the parts broken not by man-made, we will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. We have an independent team for after-sale service. Any emergency please call the salesman or our after-sales manager.


Why Choose Us
