Одноцветный двухцветный светодиодный дисплей фотография меньший общий пиксель грузоподъемность 832*32 контроллер

LED display control card/led screen control card/control card TF-A6U/TF-A5U

Place of origin: Guangdong China (Mainland)

Brand name: TF

Model: TF-A5U/TF-A6U

Supply: Batch Supply

Usage: Indoor/outdoor

Tube chip color: Single color, dual color, full color

Display function: Support animation, images, hypertext ,timing,countdown,temperature,humidity,clock.

Pixels: Single color 832×32;416×64;  Double colour 416×32;208×64

Screen dimension: Customized size

Warranty time: 1 year

TF-A5U/TF-A6U

Batch supply

Function introduction: Multi-area displays,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.

Usage: indoor/outdoor

USB function: USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.

Pixel: Single colour832x32;416x64

Double colour: 416x32;208x64

Ports: Two 08 port;four 12 ports

Scanning mode: support 1/16,1/4,Scan the monochrome,double color module.

Storage: 2M

Program number: Support at most 200 programs,each program support 16 partitions simultaneous play,each program support 200 messages.(Quantity in storage space under the premise of memory)

Display rain,fountain,scroll and much more

Border: support many Color border,Picture border

Flash format: support GIF,SWF

Image format: support BMP,JPG,GIF,WMF,ICO

Brightness: Level 16 highlighted

Test button: On-board test button,Can switch over the

Extension function: Temperature sensor,Temperature&humidity sensor,Brightness sensor(Diagram for connection),Monochrome expand height,Through to 75 full-color interface.

Electrical parameters: +5V DC(4.5V~6V),Power consumption<0.5W

Working temperature: -30℃~70℃

Size: 85mm*55mm

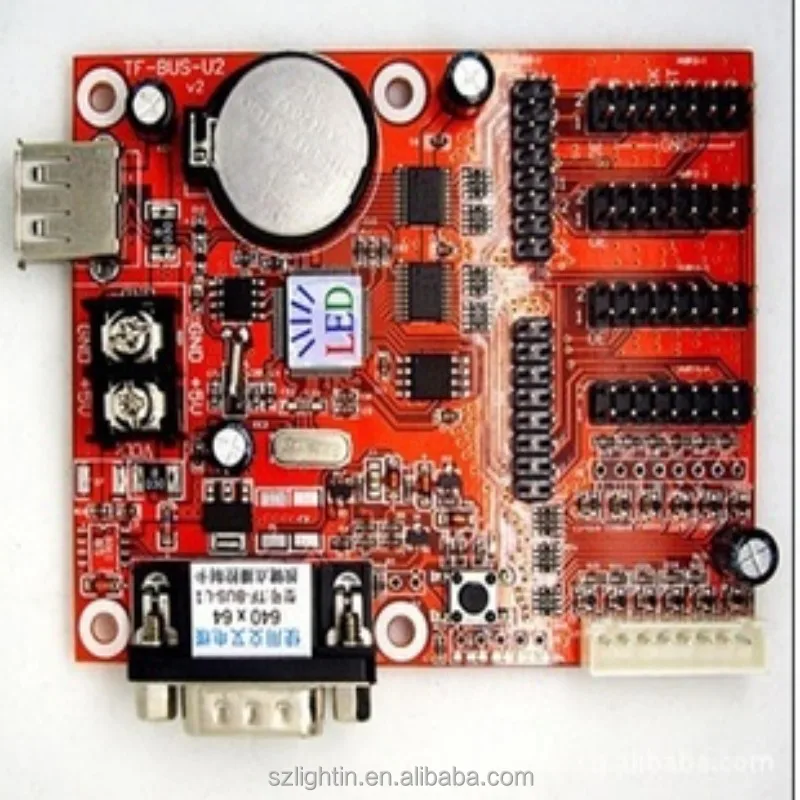

Picture:
