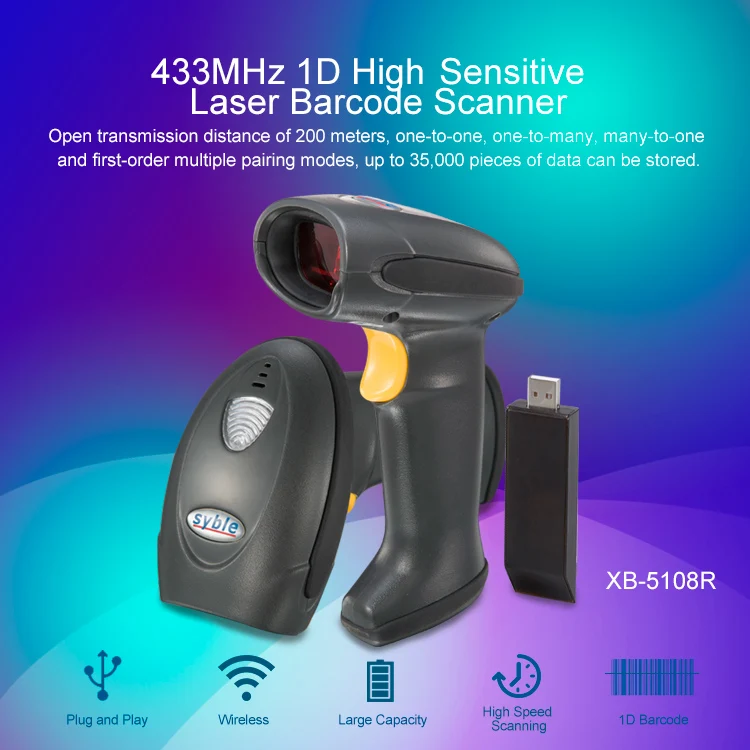

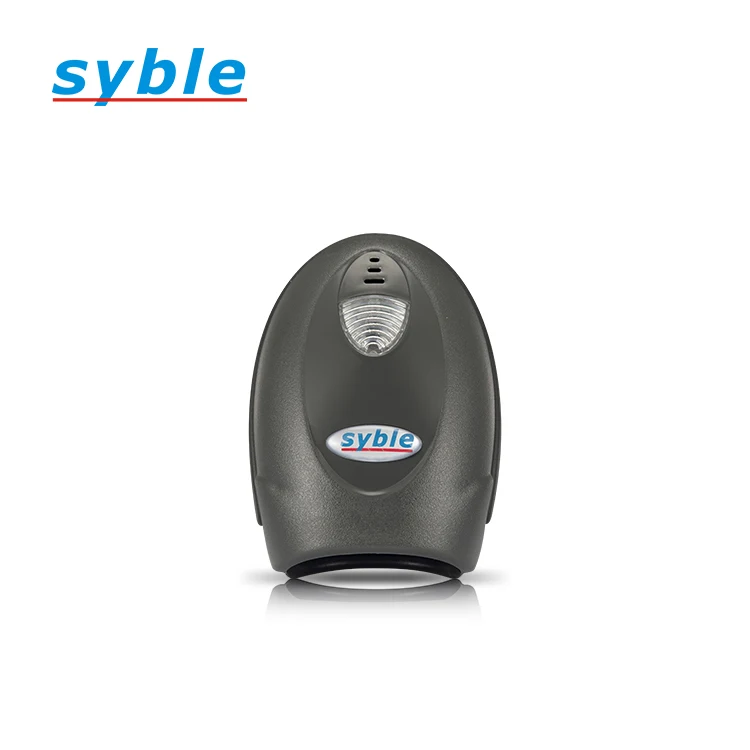

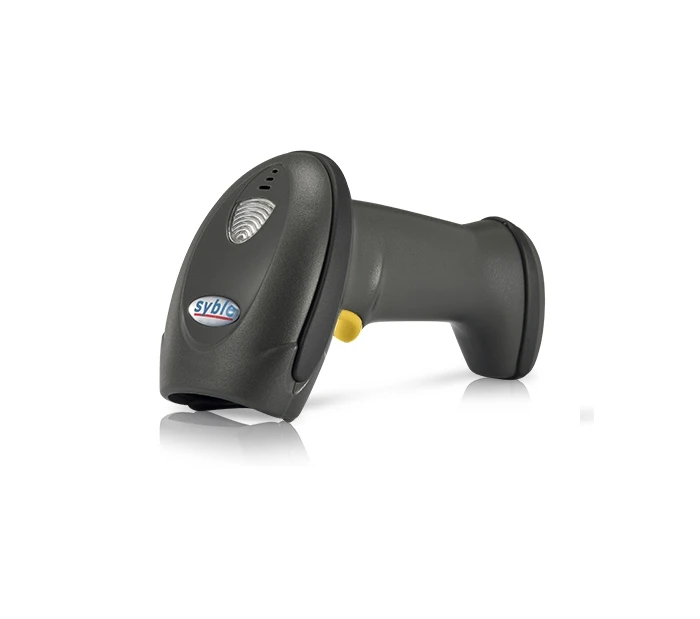

professional manufacturer Syble 1D wireless handheld barcode scanner with 433mhz frequency
Model:XB-5108R

The Wireless Laser Barcode Scanner features a high-precision scanning head for high sensitivity, accurate scanning, and the ability to scan general missing codes. It uses smart bar code sorting technology, different bar code guns in the same group, can input the results to different application software of the same computer.
Features
1.The Wireless Laser Barcode Scanner has two pairing modes, one-to-one mode, many-to-one mode. In the many-to-one mode, it allows more than one scanner to pair with the same receiver, up to seven scanners. This is ideal for warehouse inventory, and several staff members can operate simultaneously.
2.Compared to 2.4Ghz and wireless data transmission solutions, the 433mHz wireless laser bar code scanner with memory is more powerful and stable. In the case of obstacles, the transmission distance can reach 100 meters, and in open space, it can reach 400 meters.
3.It supports all standard 1D barcodes, such as UPC, Fedex barcodes.
4.Due to the reliability and high performance of the 433Mhz battery-powered barcode scanner, it is the best choice for warehouse inventory, logistics, healthcare and other environments that require large-scale work.
Specification | |
Performance Parameters | |
Light Sources | 617nm laser (Safe visible laser diode) |
Supported Symbologies | EAN-8, EAN-13, UPC- A, UPC-E, Code 39, Code 11, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Post and other international common 1D code. |
Scan Type | Single Laser |
Scan Speed | ≥100 times/s |
Scan Method | Manual/Continuous Scanning |
Scan Angle | Yaw 55°,Rotation 30°,Pitch 65° |
Precision | 4mil(0.1mm) |
Depth of scan field | 10-280mm (0.33mm, PCS90%) |
Error Rate | Less than 1/5million |
Interface | USB-HID,USB-COM |
Operating Frequency | 433HZ |
Transmission Distance | 100M (Open Yard) |
Storage Ability | ≤512000 codes |
Pairing Model | One to one,one to many,many to one. |
Physical Parameters | |
Dimensions | 102mm*71mm*177mm |
Weight | 248g |
Material | ABS+PC, flameresistant material |
Cable Length | 1m |
Environmental Parameters | |
Operating Temperature | -20℃~40℃ |
Storage Temperature | -40℃~70℃ |
Relative Humidity | 0%~85% RH (Non-condensing) |
Drop/Shock Resistance | Withstands multiple times 3 meters drops to concrete |
Electrical Parameters | |
Voltage | DC5V±10% |
Current | 85mA (Operating); 150uA (Quiescent Current) |
Lithium battery | 2200mA |
Battery Working Times | 25.5h |
Battery Standby Times | 5h |
Charging method | microUSB |
We are barcode scanner manfacturer in Guangzhou, which qualified by ISO9001:2008,all products passed CE,RoHS,and FCC etc.
| Safety Standards | |
| EMC | CE EN55022 B, FCC Part 15 Class B, SGS,IP54 Waterproof Test. |
| Laser safety | IEC 60825-1 Class 1 |

Technical support
Spare parts policy
Products service
Value-added services
1:Do your company is a trading agent or manufacturer?
We are professional manufacturer of all kinds of Barcode Scanner with own factory
2.What about the warranty of this Corded Barcode Scanner?
2 years warranty on the Barcode Reader, 6 month on the cable
3.What is the minimum order of this Barcode Reader?
The MOQ is 1pc with our logo
4.Do you have stock products to sell?
Yes,and we also work on OEM/ODM orders,like printing with your brand&label design
5.What's your products range?
--Laser barcode scanner
--Wireless barcode scanner
--Omni-directional barcode scanner
--CCD barcode scanner
--2D barcode scanner
