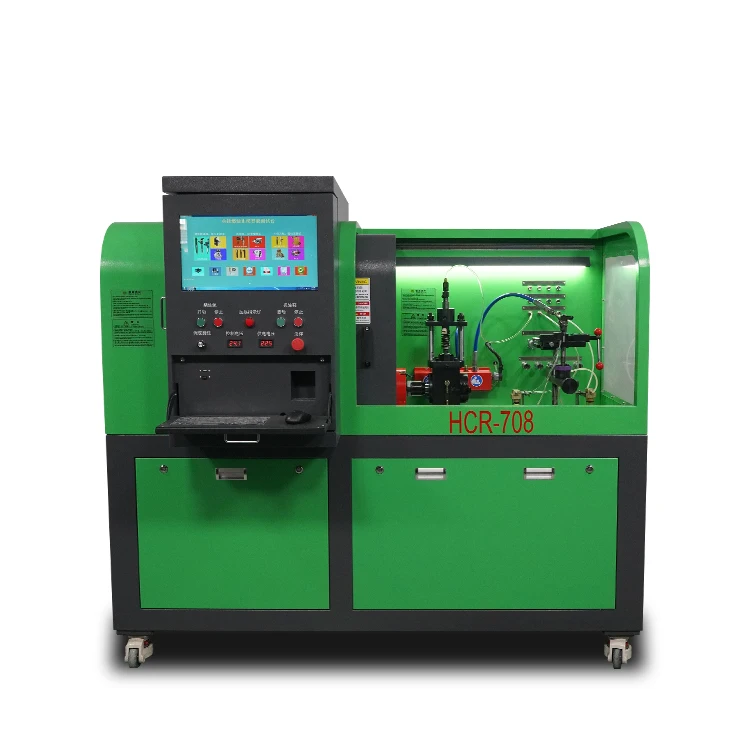

HCR-708 коллектора системы впрыска топлива ТНВД испытательном стенде CR708 дизельный испытательный стенд для форсунок Common Rail и женские туфли-лодочки
6 399,00 $ - 6 900,00 $

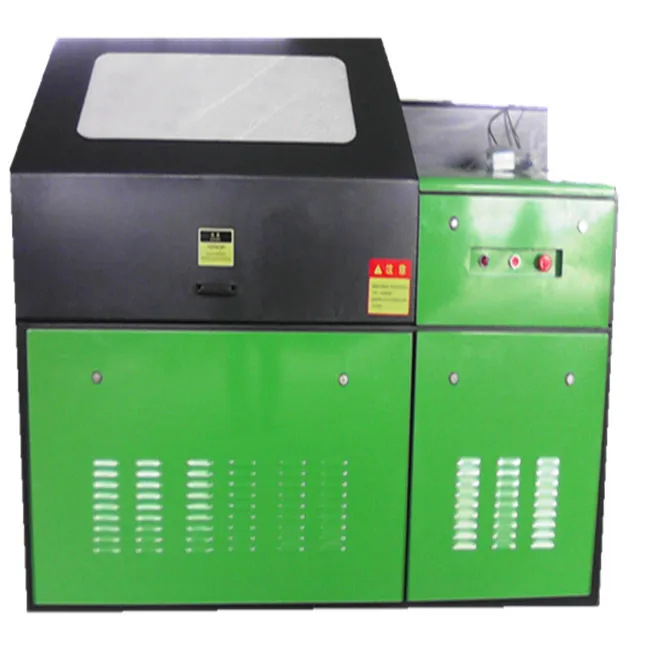

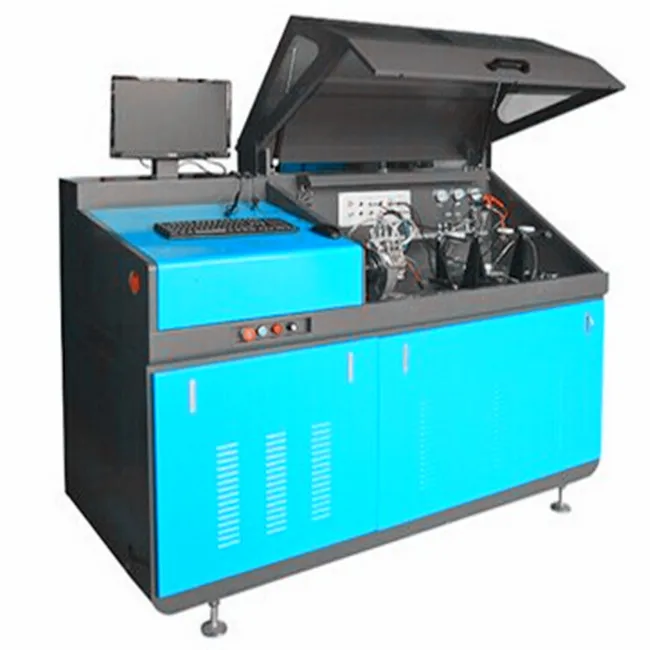

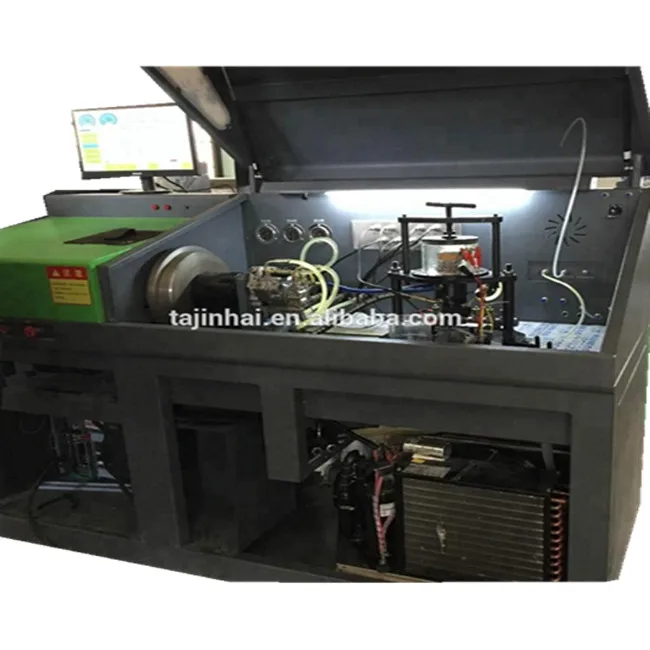

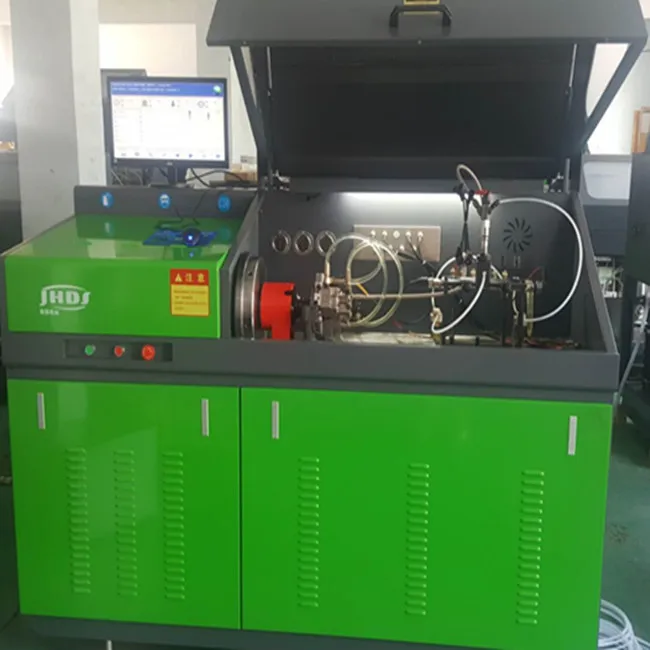

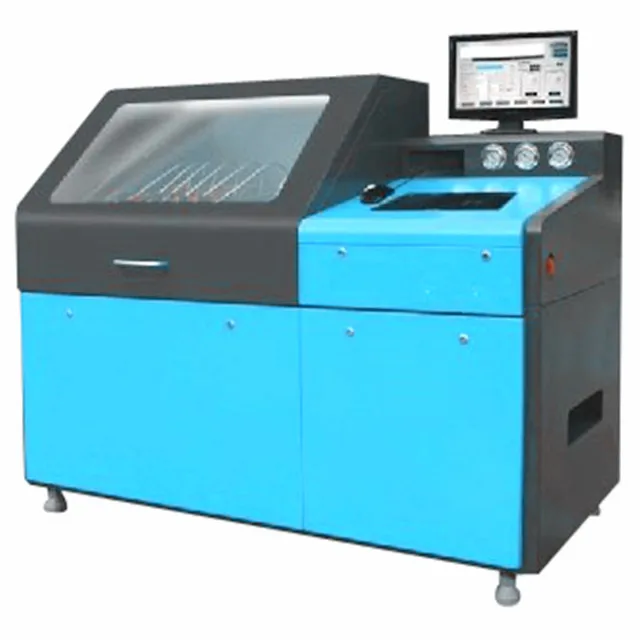

Испытательный инжектор CAT C7/C9 многофункциональный электрический насос для впрыска дизельного топлива с общей топливной магистралью
- Категория: >>>
- Поставщик: Taian Jinhai Dongshan Equipment Co. Ltd.
Сохранить в закладки 60439222776:
Описание и отзывы
Характеристики
CAT C7/C9,multifunctional diesel fuel injection pump and injector test bench
CR-815 test bench with CAT tester
Product Description
Full load flow, sealing, oil return flow , flow , flowing idling pre injection of various performance
curve - automatic detection of a variety of common rail injector .
The automatic detection of a variety of common rail pump starting performance curve ,
all kinds of inlet metering valve for common rail pump pressure .
By increasing the configuration can add VP37,VP44, single pump ,
pump nozzle and other additional kit .
The professional and industrial control system (safety, stability,low failure probability) .
Product Description:

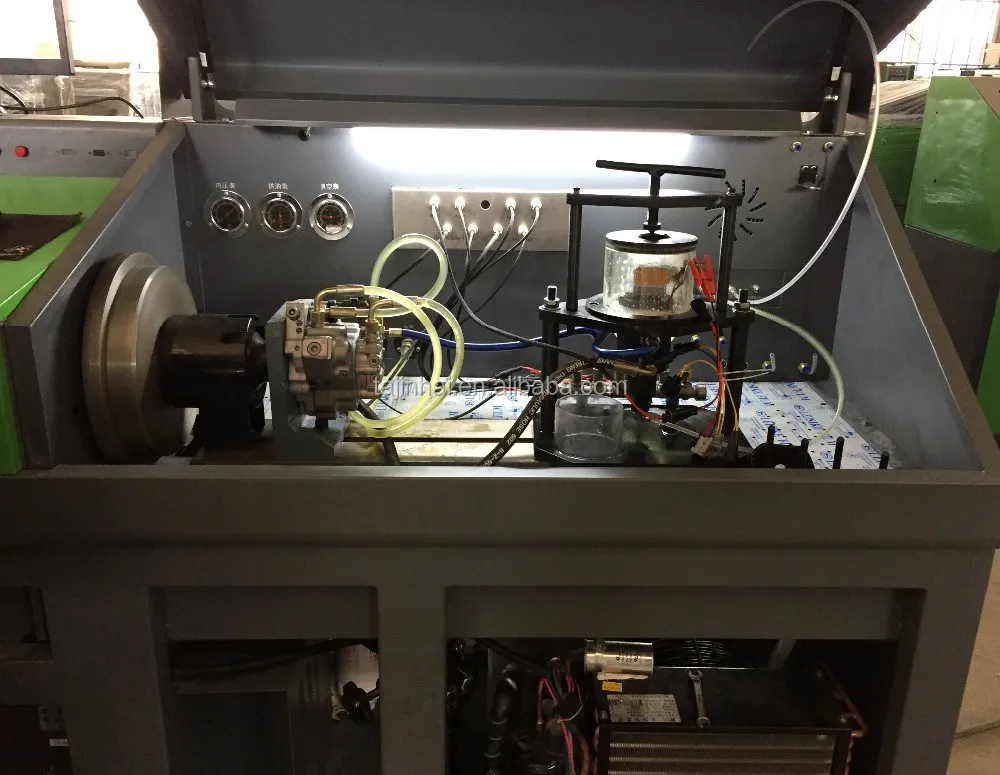

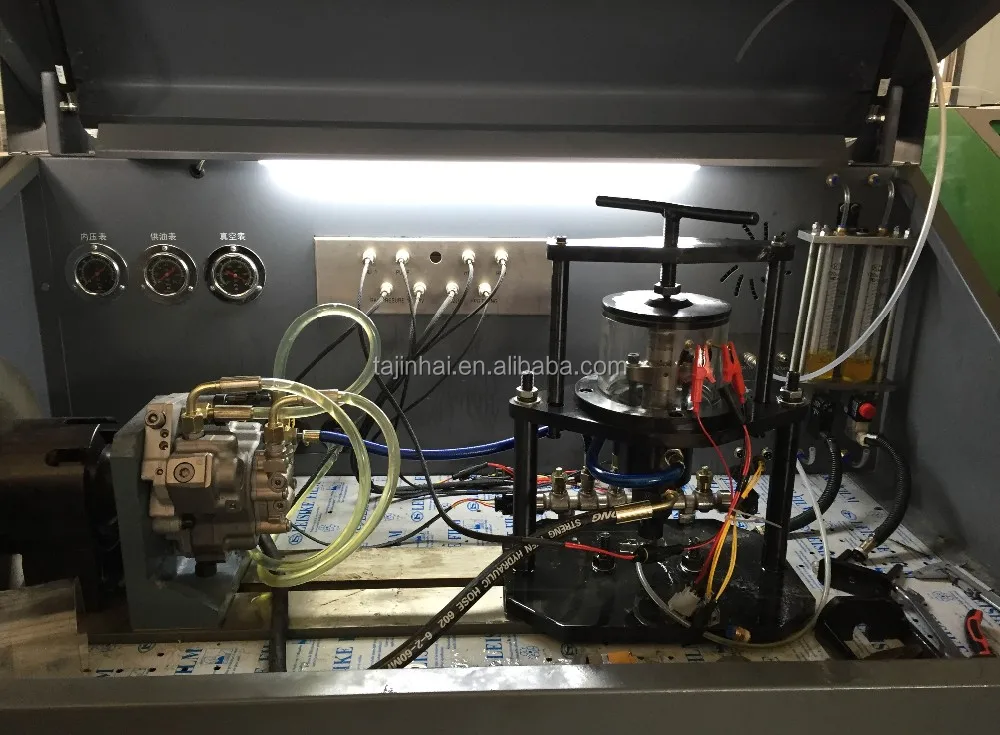

CR-815 high pressure common rail injection pump test bench is our latest independent researched special device to test the performance of high-pressure common rail pump and injector, it can test common rail pump and injector of BOSCH, SIEMENS, DELPHI and DENSO. It simulates the injection principle of common rail motor completely and the main drive adopts the most advanced speed change by frequency change. High output torque, ultra low noise, rail pressure stable. It tests the common rail pump by flow meter sensor with more precise and stable measurement. Pump speed, injection time, pulse frequency, injection pulse width, oil measurement and rail pressure are all controlled by industrial computer by real time. The data is also obtained by computer. LCD screen display makes the data more clear. The rail pressure adopts resist-vibration pressure gauge and it displays clear. Advanced technology, steady performance, precise measurement and convenient operation.
CR-815 can fulfill the remote assistance by internet and make the maintenance easy to operate.
Characteristics: ![30.jpg]()
1. Main drive adopts the speed change by frequency change.
2. Controlled by industrial computer in real time, Windows operating system. Fulfill the remote assistance by internet and make the maintenance easy to operate.
3. Oil quantity is measured by sensor and displayed on LCD .
4. Drive signal can be adjusted
5. Percentage of drive signal can be adjusted.
6. Rail pressure can be tested in real time and controlled automatically, it contains the high-pressure protection function.
7. Data can be searched, printed and made into database.
8. Pulse and frequency of the injector drive signal can be adjusted.
9. Injection time can be setted.
10. Protection function of short-circuit.
11. Oil temperature is controlled by forced-cooling system.
12. Plexiglass protective door, easy operation,safe protection.
13. Measure the flux of common rail pump by flow meter sensor.
14. Can test CAT C7/C9 and other CAT series.
Below model name this machine all can test:
Function:
Common Rail Injector | Common Rail Pump |
1. test brands:BOSCH, SIEMENS, DELPHI, DENSO. | 1. test brands:BOSCH, SIEMENS, DELPHI, DENSO. |
2. test 2 pieces of injectors at a time. | 2. test the sealing of common rail pump. |
3. test the max. oil quantity of high-pressure common rail injector. | 3. test the internal pressure of common rail pump. |
4. test the cranking oil quantity of high-pressure common rail injector. | 4. test the proportional electromagnetic valve of common rail pump. |
5. test the backflow oil quantity of high-pressure common rail injector. | 5. test the input pressure of common rail pump. |
6. test the average oil quantity of high-pressure common rail injector. | 6. test the flux of common rail pump. |
7. set the high-pressure common rail injector's injection state and oil quantity measurement. | 7. measure the rail pressure in real time. |
8. Data can be searched, printed and made into database. | 8. Data can be searched, printed and made into database. |
Technical parameter:
Injection testing frequency | 50~3000 rpm |
Pulse width | 0.1~200 ms |
Continuous injection times | 0~1000 |
Fuel temperature | 40±2℃ |
Supply oil quantity of common rail injector | 0~200cc/min 0.5% |
Rail high pressure | 0~2000 bar |
Test oil filtered precision | 5μ |
Input power | 380V/50hz/3phase or 220V/60hz/3phase |
Oil pump speed | 0~3000RPM |
the main oil tank capacity | 45L |
Flywheel inertia’s moment | 0.8KG.M2 |
Center height | 125MM |
Output power | 11KW, 15KW |
Overall dimension(MM) | 1900*830*1550 (mm) |
Gross Weight | 820KG |
Company Information
TAIAN JINHAI DONGSHAN EQUIPMENT CO.,LTD which at the foot of the Mountain Tai is the leader of the fuel injection pump test bench manufacturers in China, available for traditional diesel fuel injection pump test bench ( 12PSB ) , EDC ( Electronic Diesel Control simulator ), CRP ( Common Rail Pump simulator and test bench ) , CRI ( Common Rail Injector tester , simulator and test bench ), nozzle tester, and spares parts of Pumps and injectors.
Похожие товары

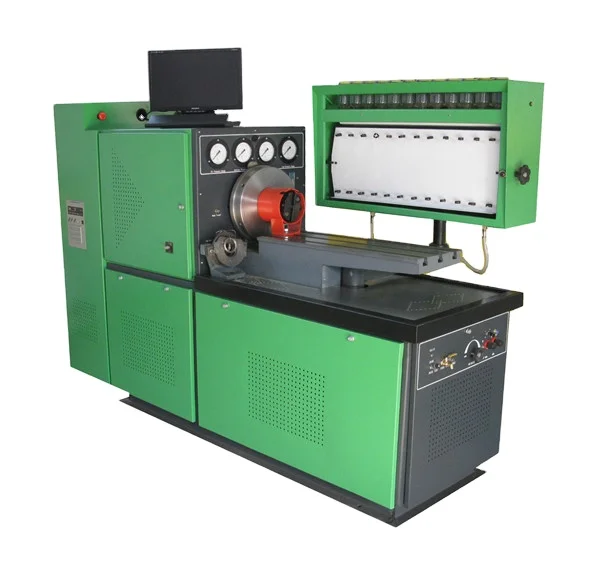

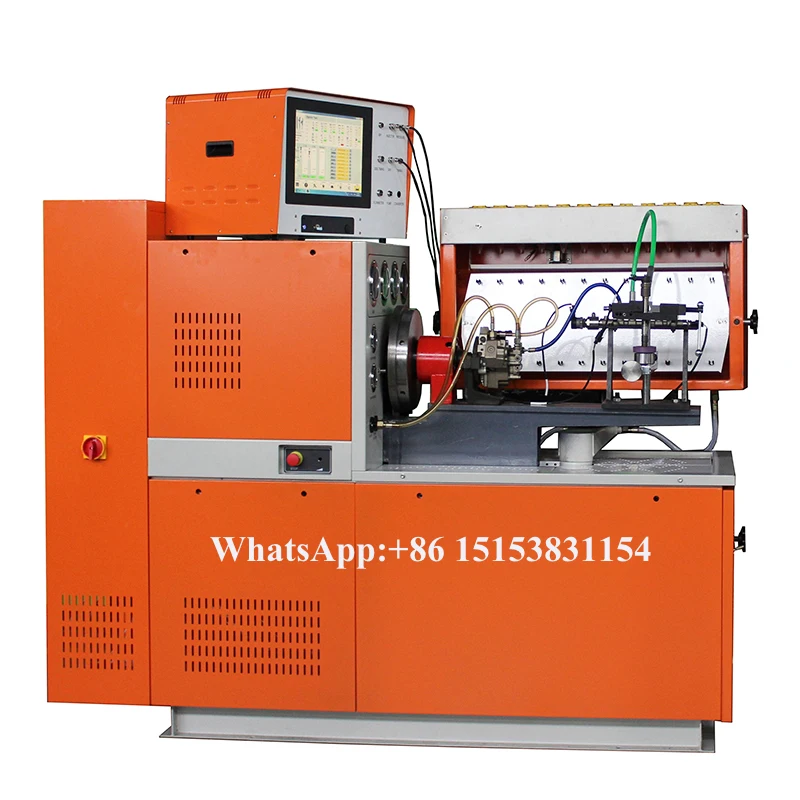

Новая модель! 12PCR дизельный Инжекционный насос, испытательный стенд с общей топливной магистралью
Лидер продаж, тележка SonoScape S50, цветная допплерография, ультразвуковой гидрограф 4D Wi-Fi, беспроводная
Элегантное мусульманское арабское длинное вечернее платье Дубай абайя
SonoScape S9 цена от производителя ультразвуковой эхо ультразвуковая машина с ЖК-экраном
12 000,00 $ - 14 999,00 $
200w melservo j4 ac mrj4 усилитель серводвигателя mr-j4-20b-rj020
100,00 $

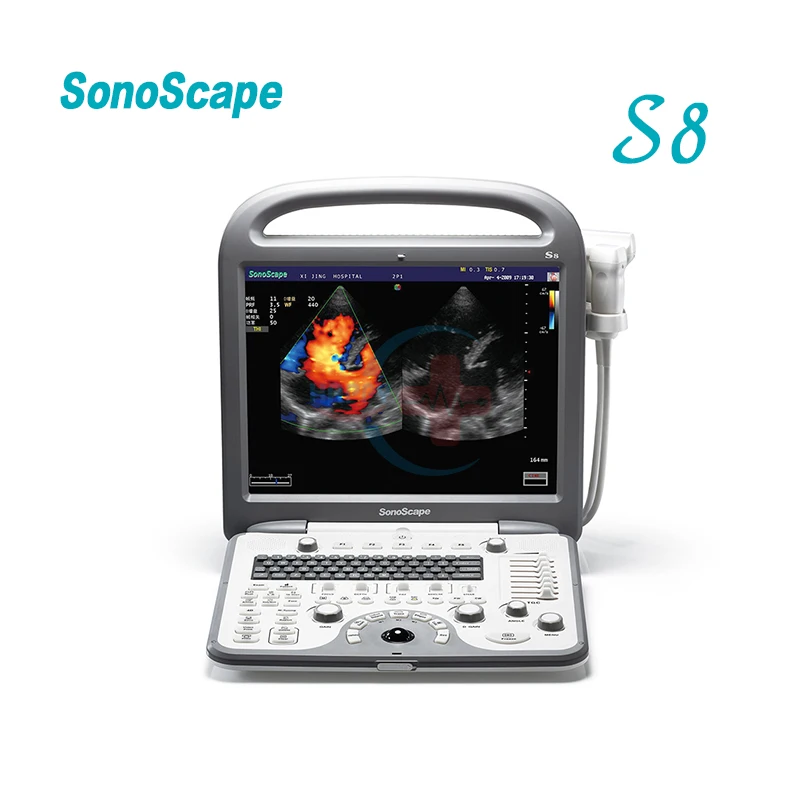

Sonoscape S8 ультразвук с 1 преобразователем doppler 2d/4d sonoscape портативный ультразвуковой эхо машина
