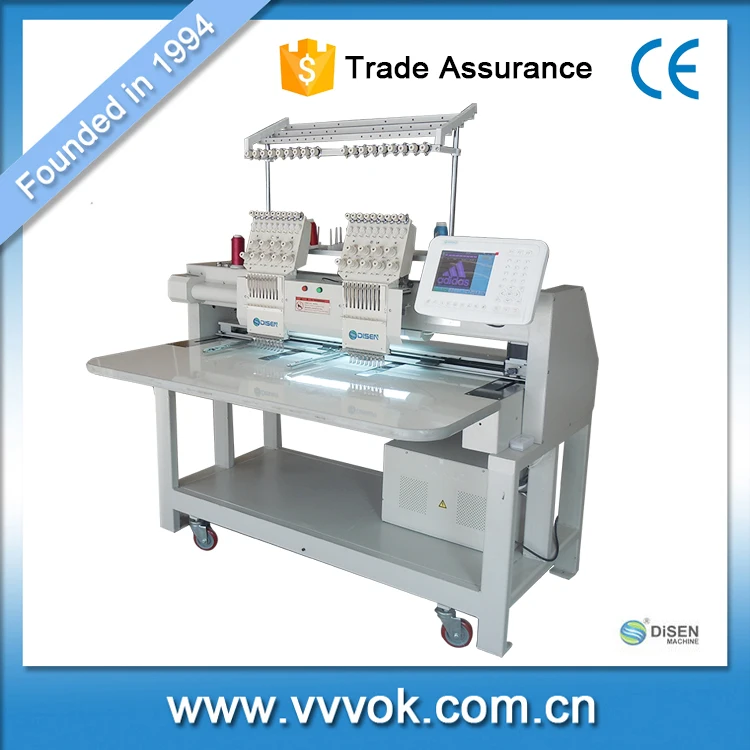

Детали для электронной вышивальной машины Dahao вышивальная машина с цифровым управлением две головки 9

Сохранить в закладки 60439711889:


Цена:438 593,60 ₽ - 513 154,52 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


.jpg



Product Description









  Disen Machinery Product DescriptionWWW.VVVOK.COM.CN




















































































Product Name



Two head Computer Embroidery machine



Head



Two head



Needles



9 needles (Optional 12 needles or 15 needles)



Embroidery Size



400*450 mm



Embroidery Speed



100 to 800 stitches / min



Format Patterns



DST, DSB. Automatic Identification



Memory



1 million needles, can be expanded to 2 million needles



Spindle Motor



Brushless DC servo. XY-phase stepper motor



Power



50 ~ 60HZ, 100 ~ 240V adaptive


Power; 500W



Control screen



8 inches color touch screen. DaHao  Electronic Control



Design Input

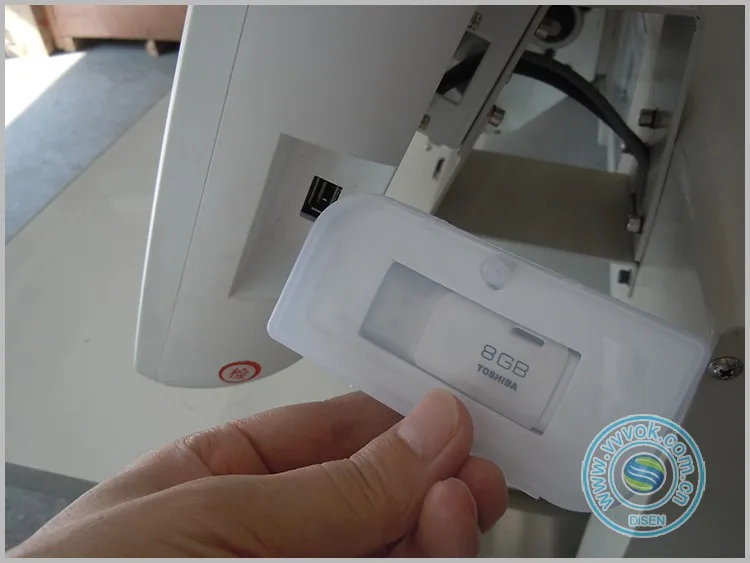

By U disk, USB and Transmission from PC to Control System



Feature



Automatic color change, real-time tracking patterns



Optional



Automatic cut line, Sequin embroidery, chain embroidery, towel embroidery



Weight



400kg



Package Size



1650*1200*1450mm (Standard export wooden case or as customer requirements)



Warranty



12 Months for whole machine,24 months' free upgrade for control system,lifetime maintaining,2-3 days' training for customers/operators



Embroidery Purpose



Suitable for Cap, T-shirt, Finished Garments, Shoes, Socks, Pocket and Cloth embroidery



After-sale service



Engineers available serve overseas



Languages



The default setting English ,Multi languages available






The new fully automatic Computer Embroidery machine electric control or Thai Chi electrically controlled. High-speed handpiece, linear guides. All using genuine spare parts and high quality.


Automatic Computer Embroidery machine technical parameters:


Down a system: with bottom side line detection device


Spindle motor: servo motor / inverter motor × 1 Ge


Computer Systems: 5.7 inches automatic computer control system


Rotational speed: 250-800rpm rev / min


Storage capacity: over 200,000 needles, 200 patterns


X, Y motor: stepping motor × 2 Ge


Input: U disk, USB interface input


X, Y drive: Enhanced FN linear rail design


Storage Format: Tajima DST, Barudan, ZSK, binary, ternary and can be compatible


Input voltage: single-phase 220V (50 / 60HZ)


Stitch length: 0.1mm ~ 12.7mm


Rated power: 0.5KW


Beads institutions: the front or side of the fork sequin agencies


Machine Head: Suspended Free high-speed handpiece leveling design


Rack Color: White


Rack Style: gantry frame


Color Change: Automatic color changer


Head Rail: Free Hanging leveling guide plate design


Protection: crash boxes and other intelligent error System malfunction

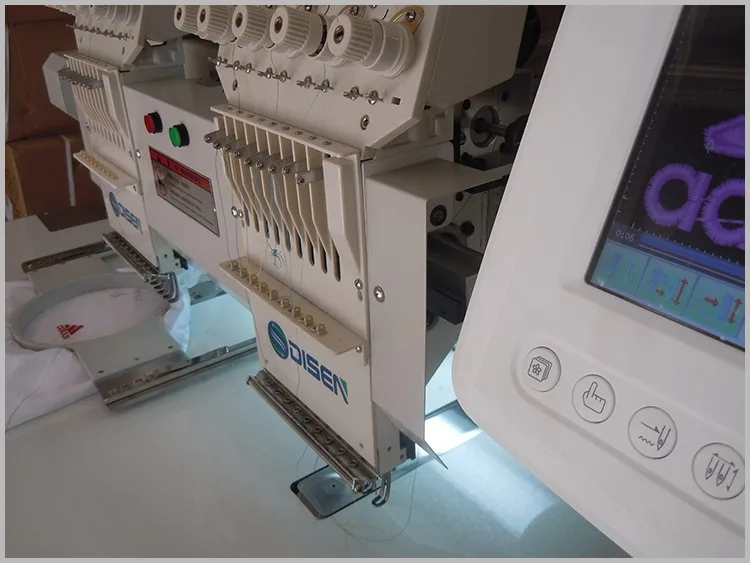

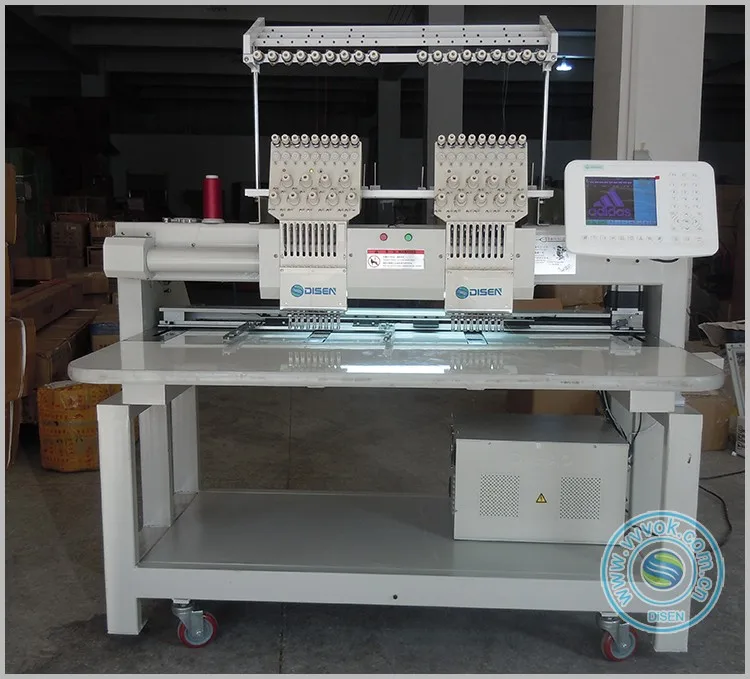

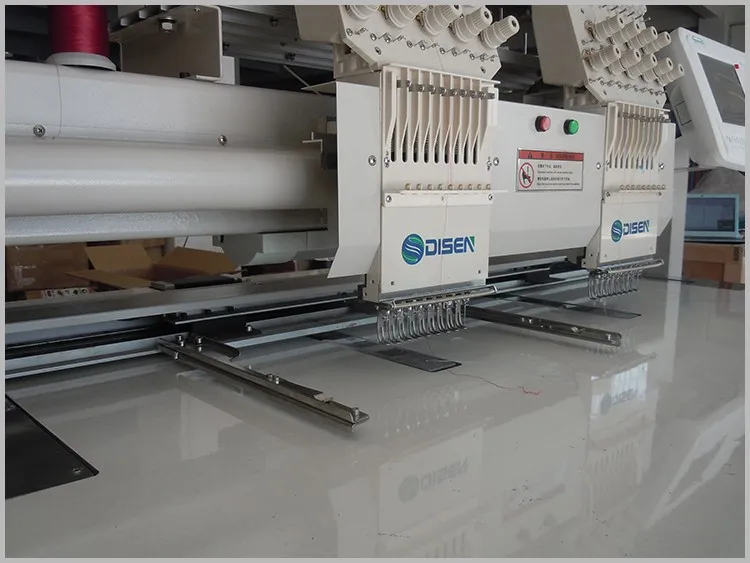

Detailed Images









  Disen Machinery Product Detailed ImagesWWW.VVVOK.COM.CN

Embroidery machine digital control two head 9 needlesEmbroidery machine digital control two head 9 needlesEmbroidery machine digital control two head 9 needlesEmbroidery machine digital control two head 9 needlesEmbroidery machine digital control two head 9 needlesEmbroidery machine digital control two head 9 needlesEmbroidery machine digital control two head 9 needles





Related Products









  Related Products RecommendationWWW.VVVOK.COM.CN

Embroidery machine digital control two head 9 needlesEmbroidery machine digital control two head 9 needles














  Product Related description WWW.VVVOK.COM.CN











Embroidery Category


Embroidery


Commonly known as "embroidery", is already processed fabric, needle wire, in accordance with the design requirements puncture, the needle through the tissue into a craft embroider various patterns and colors.





Colorized embroidery


It refers to a variety of colored embroidery thread embroidery art control patterns, embroidery with a flat face clothes, needle rich, fine stitching, bright features in more than a costume jewelry applications. Caixiu color change is also very rich, it lines were written, through a variety of overlapping color embroider, juxtaposed, staggered produce China and impressive color effects. Particularly in the trocar needle to show a pattern of subtle color changes in the most distinctive color shades blend with renderings of traditional Chinese painting.





Package Terrier embroidery


The main features is to use thicker backing or cotton bottom line, so that uplift pattern, then use the embroidery thread embroidery did not, generally flat embroidery needle use. Beautiful elegant package Terrier embroidery patterns, rich three-dimensional, highly decorated, also known as high-embroidery, embroidery in claimed in raised embroidery. Package Terrier embroidery embroidered block surface suitable for smaller flower petal pattern and narrow, such as chrysanthemum, plum, etc., usually embroidered with color lines.





Cutwork embroidery


Also known as hollow embroidery, there is a certain difficulty, the effect is very chic embroidery. Its biggest feature is in the sewing process, according to the hole pattern trimmed and cut holes in a variety of different ways embroidery pattern combinations, so that the surface of both free and easy and generous embroidery field flowers, there Ling beautiful floor space flower show, the actual situation contrast, interesting. Embroidery elegant, refined.





Embroidered patch


Cutwork, also known as complement, is a clip the other embroidery fabric sewn embroidery on the dress form. Chinese embroidery The embroidery also is posted continued into this category. Its embroidery applique method is to cut the cloth according to the requirements of good design, attached to the embroidery surface, can also be cotton pad and other objects in between the fabric and the embroidery paste, so that uplift pattern and three-dimensional. After the paste is good, then all kinds of needle catcher. Simple appliqué embroidery pattern in order to block the main surface, chic and elegant.





Nail thread embroidery


Also known as disk Terrier embroidery embroidered or attached, is to all kinds of ribbon, rope nailed by a certain pattern of embroidery textiles in the clothing or a method of embroidery. There are methods commonly used nail line and dark nail nails out two, the former exposure to online stalk stitch, while the latter stems in hidden line. Simple Nail embroidered embroidery has a long history, its elegant decor, in recent years in kimono more often. Embroidered beads, also known as beaded, it is hollow beads, beads, artificial stones, beads and other materials for flash, embroidery decorated on the dress, to produce jewelry, dazzling effects, generally used in the stage performance clothing to add beauty and attractiveness of clothing, but also widely used in shoe, bags, jewelry boxes above.Embroidery machine digital control two head 9 needles





Cross Stitch


Also known as cross peach, traditional folk embroidery method in widespread. Its needle method is very simple, that is, according to the fabric warp and weft orientation oblique cross stitch line of the same size arranged in a pattern of design requirements. Due to its characteristics stitch, cross-stitch patterns generally form concise, well-structured, often symmetrical layout pattern style. Figurative style patterns, subjects of natural plants. Stitch is rich in folk style.





Adorned with embroidery


Also known as sling embroidery, embroidery is a ribbon to embroider directly on fabric. Adorned with embroidery shiny soft, rich colors, patterns and eye-catching three-dimensional, is a novel and unique form of kimono decoration. Artex embroidery, embroidery is a very unique category, the embroidery is, according to the site designs, first removing a certain number of warp and weft yarns in the fabric, then use left Busi fabric surface, with embroidery line regular series around the tie knot, made out of yarn through the eye holes, combined into a variety of design patterns. Artex embroidering with the mesh surface has a unique effect, beautiful slim, Ling classes carved, highly decorative. Since the lens is formed with a certain degree of difficulty, drawn mostly embroidery patterns simple geometric lines and block surface, as a delicate embroidery in delicate embellishment in.





Stamp yarn embroidery


Also known as Na Jin, it is a traditional form of embroidery. It is on the grid yarn base material in strict accordance with the number of cells in the eye embroidery. Stamp yarn embroidery pattern is not only beautiful, but also with the lines cross, straight, oblique different arrangements for the rich change, but the space between the eye pattern must be aligned.Embroidery machine digital control two head 9 needles





Towel embroidery


With different products require towels embroidery embroidery method after another. Models include towel embroidery embroidery chain embroidery towels and embroidery method, and towels flat embroidery mixer can be added in the article, to make embroidery more diversified.





Laser embroidery


With superb technology to create the first laser cutting mixing in the embroidery, as long as the data adjustment embroidery machine, embroidery machine will be the right amount of laser output. General application method for the engraving, cutting surface and cut entirely. Others are: chain embroidery (chain embroidery), taping embroidery, strand embroidery, embroidered birds and other volumes.
