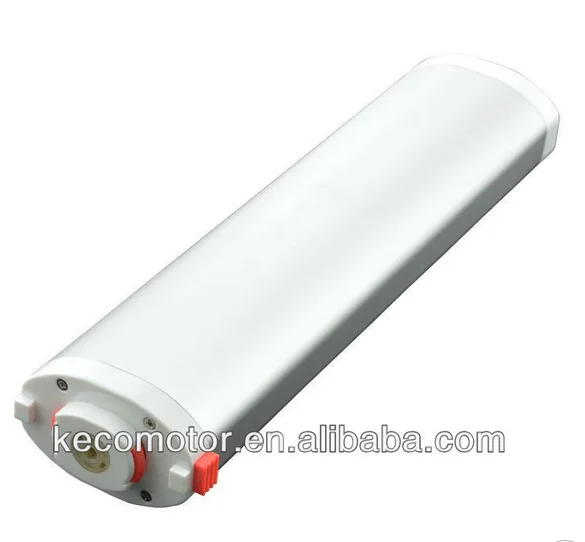

KECO Сверхмощный электрический занавес мотор KA75C с супер тихий дизайн AC100 240V моторизованный карниз для штор системы

Описание и отзывы

Характеристики

Model Number: KA75C

Specifications of motor:

Voltage: AC100-240V/ 50/60HZ;

Torque: 1.6Nm;

Speed: 10CM/S;

Protection Index: IP41;

Power: 50W;

RF: 433MHZ

Features:
1, DC MOTOR, Low noise moving as 33dB, and free of lubrication.
2. Pull force not less than 8Kg and weight capacity 65kg, applicable to medium-scale and heavy duty curtain

3  Manual operating in case of power failure, and start the motor automatically by drawing the textiles slightly.

4, Switch mode Power supply AC100-240V

5, Bounce to the rigth position automatically without extrusion of fabric.

6, Set the stop limit by manual pull , which adjusts the shading of light and tidy the fabric itself.
7,  Built-in stop sensitive components, it finds limits and stops by counting automatically
8, No noise caused by clutch on and off by completely new EM clutch.

9. AVR industry  excellent performance processor.

Manual Operating

Product wiring(High Voltage Switch Controlling)

Accessories of KA75C

Weight Capacity

Dimension

Curve tracks Dimension

Packaging

Certificate

Trade Term
1. Inco Term: EXW GUANGZHOU;
2. OEM Accepted;

Shipping
