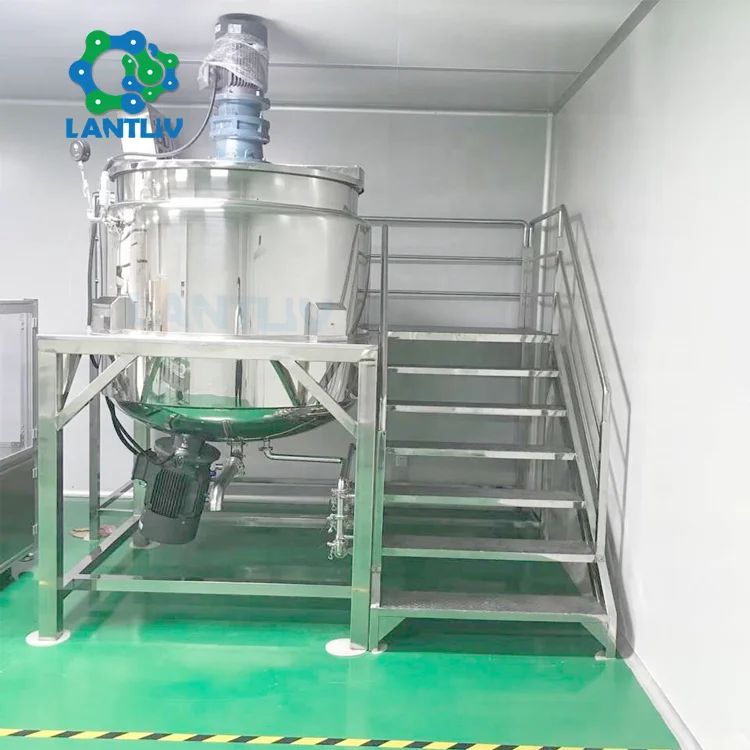

500л высокоскоростной гомогенизационный миксер из нержавеющей стали лавандовое эфирное масло тонер парфюм Кельн смешивающая машина для продажи
- Категория: >>>
- Поставщик: Guangzhou Lantliv Machinery Co. Ltd.
Сохранить в закладки 60451638525:
Описание и отзывы
Характеристики
Product Description
This unit is available for manufacturing liquid products(such as detergent, shampoo, shower gel, etc.) it integrates mixing,
homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the idea equipment for liquid products in domestic and international factories.
homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the idea equipment for liquid products in domestic and international factories.
Features:
1. The mixing system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement.
2. Frequency conversion speed adjustment.
3. Material can be heated or cooled according to your formula (technological requirements).
4. Electric heating or steam heating.
5. Various forms of blending vanes are suitable for production of different types of products.
6. Made of imported sus304 or sus316L, the tank body and pipe are subjected to mirror polishing.
7. Bottom installation type dispersing head and fluko pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed etc.
9. High-speed disperse (Homogenizer) strongly mixed decentralized thick, solid, liquid.
Technical Parameters
Effective capacity | Agitator power and speed | Homogenizer power and speed | Heating power | |||||||||
Capcity | KW | R/MIN | KW | R/MIN | Electric heating | Steam heating | ||||||
50 | 0.75 | 0-65 | 3 | 3600 | 6 KW | Steam heating energy conservation and environmental protection, selected according to need | ||||||
100 | 1.5 | 0-65 | 1.5 | 3600 | 12 KW | |||||||
150 | 1.5 | 0-65 | 1.5 | 3600 | 12 KW | |||||||
200 | 1.5 | 0-65 | 3 | 3600 | 18 KW | |||||||
300 | 1.5 | 0-65 | 3 | 3600 | 18 KW | |||||||
500 | 2.2 | 0-65 | 4 | 3600 | 27 KW | |||||||
1000 | 4 | 0-65 | 7.5 | 3600 | 36 KW | |||||||
1500 | 4 | 0-65 | 11 | 3600 | 45 KW | |||||||
2000 | 5.5 | 0-65 | 11 | 3600 | recommed steam heating | |||||||
3000 | 7.5 | 0-55 | 15 | 3600 | ||||||||
5000 | 11 | 0-55 | 22 | 3600 | ||||||||
Remark: 1. For electronic heating, you can add water or conduct oil inside jeckets. However if you heating with conduct oil, there is no cooling. 2. Normally the products can be poured out from bottom outlet, but if you want it not cost too much time, you can connect a rotor pump to pump it out. 3. We provide some spare parts based on experience, and one year warranty for this machine, and provide service for the whole life of the machine in 24 hours. Working video and manual operating will be provided with machine also. | ||||||||||||
Application:
Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
Daily Chemicals: Laundry Liquid Soap, Liquid Soap, Liquid Detergent, Hand Wash, Dishwashing Liquid, Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmetics etc.
Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
Other Industry: Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.
Daily Chemicals: Laundry Liquid Soap, Liquid Soap, Liquid Detergent, Hand Wash, Dishwashing Liquid, Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmetics etc.
Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
Other Industry: Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.
Detailed Images

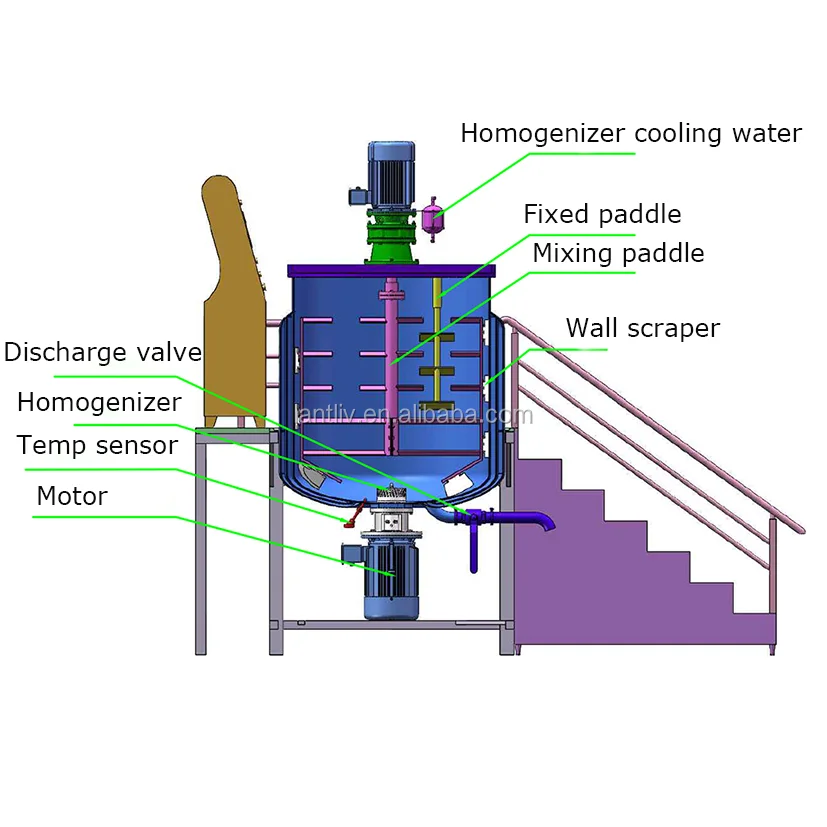

Agitator pot
1. The working pot is made of 3 layers stainless steel , the contact part is SUS316L, other parts are SUS304 . The thickness of the pot can be customized .
2. The cover fix , the sight glass can be installed to observe the work in the pot , cleaning the pot with universal cleaning ball , from the bottom discharge outlet directly .
2. The cover fix , the sight glass can be installed to observe the work in the pot , cleaning the pot with universal cleaning ball , from the bottom discharge outlet directly .
3. Jacketed heating, electric heating or steam heating optional . cold water circulate cooling.
4. Homogenizer and temperature sensor install at the tank bottom .
Top Mixer
1. Double direction stirring , the mixing direction of frame mixer with Teflon wall scraper and central paddle are reversed , so the products will be mixed more evenly .
2. Mixing speed is adjustable 0-65rpm , frequency speed control .
Homogenizer
1. Bottom homogenizer is more powerful than tan top homogenizer .
2. Mixing speed can be adjusted 0-2880rpm .
3. All products contact parts are SUS316L, which meet GMP standards .
4. Temperature probe can detect the temperature of products when heating or cooling the jacket .
Operating electric box
Each function can be controlled separately:
1. The working time of homogenize can be set ( suggest 10 minutes ) .
1. The working time of homogenize can be set ( suggest 10 minutes ) .
2. Heating temperature can be set according to different formula .
3. Mixing speed of frame mixer and homogenizer mixer is adjustable .
4. Touch screen HMI control panel is optional .
Outlet of finished products
1. Butterfly valve delivery or pump delivery , non residual, Angle of outlet suitable for products discharge easily , fast connection with pipes and pumps .
2. Material: SUS316L .
2. Material: SUS316L .

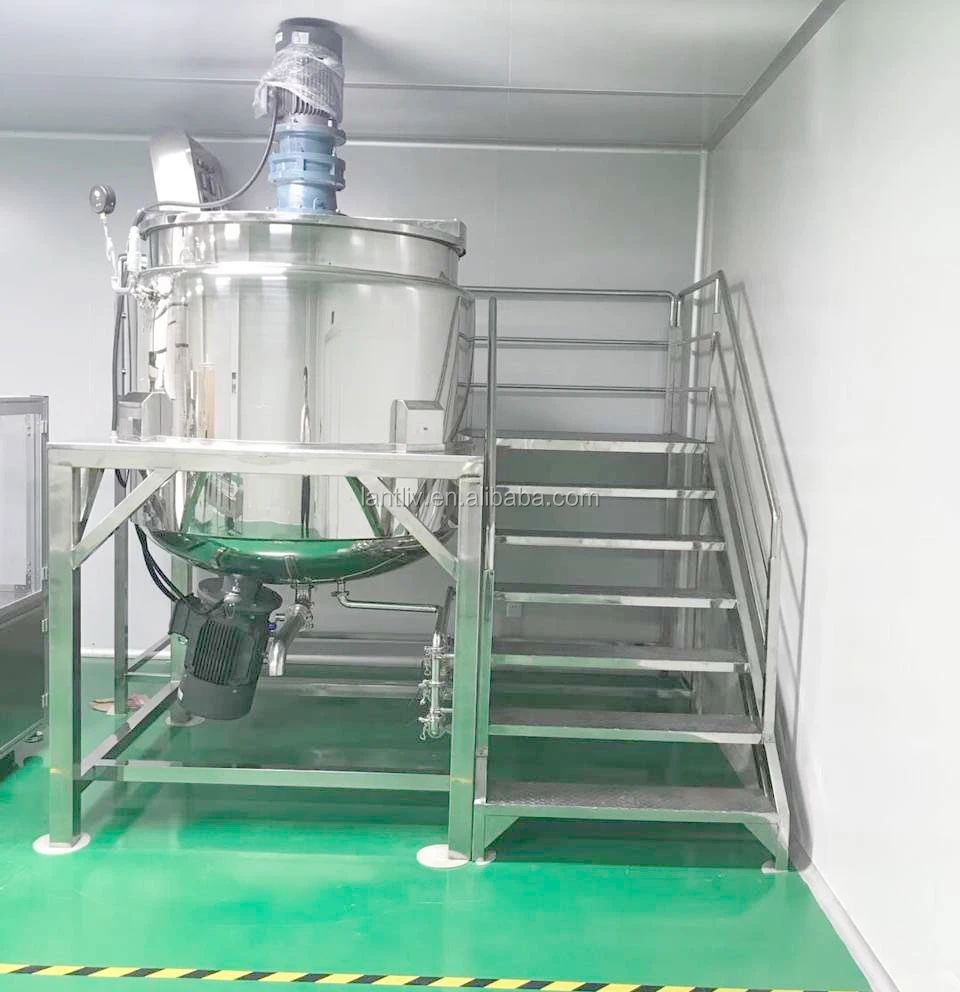

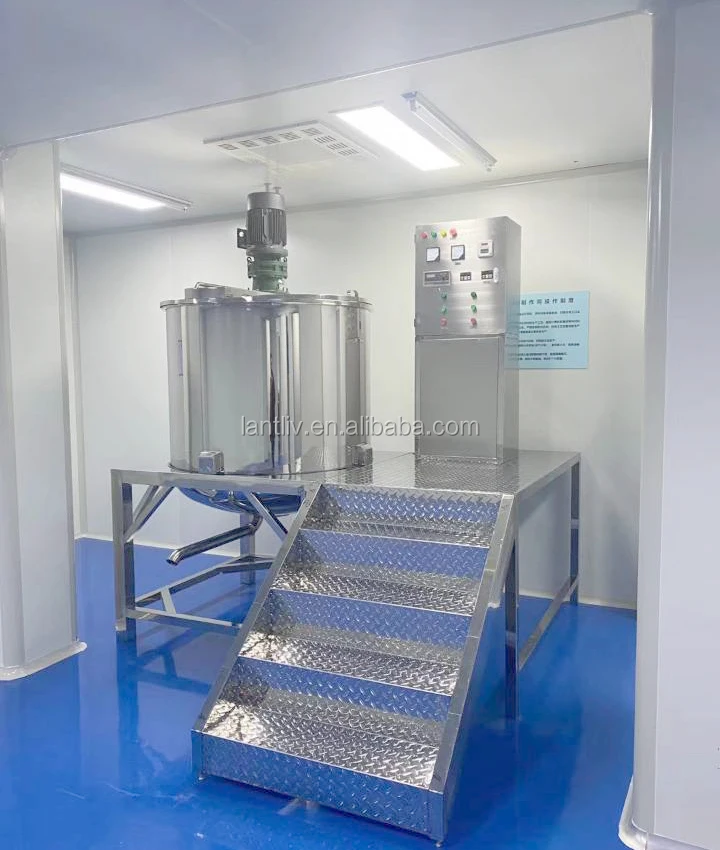

Workshop production
Packing & Delivery
1. Wrapped with plastic film inside and strong carton case or non-fumigated plywood box outside, it is moisture-proof and suitable for long-distance sea, land and air transportation.
2. Delivery time: 10-20 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
3. For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
Construction Project
Advantages we have:
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
C. Alibaba golden supplier, factory recognized by 'CE/FSC/ISO9001' and so on .
D. 7/24 service for you, all the question will be dealed within 24hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service —— Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
D. 7/24 service for you, all the question will be dealed within 24hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service —— Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
Our Service
Pre-treat Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
2. Sample testing support.
3. View our Factory.
After-sales Service
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provide.
4. Spare parts replacement and repair service provided.
5. Engineers available to service machinery overseas.
2. Technical files service provided.
3. On-site training service provide.
4. Spare parts replacement and repair service provided.
5. Engineers available to service machinery overseas.
Maintenance Guidence
1. Keep the equipment looks clean, no watermarks, smooth.
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible.
3. Check on the homogeneous blade usually, Are there loose screws.
4. Homogenizer into the water whether the flow, the water solenoid valve is working properly.
5. Check the mixing gear regularly adequacy of the grease, any abnormal sound.
6. We can supply the whole production line.
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible.
3. Check on the homogeneous blade usually, Are there loose screws.
4. Homogenizer into the water whether the flow, the water solenoid valve is working properly.
5. Check the mixing gear regularly adequacy of the grease, any abnormal sound.
6. We can supply the whole production line.
Exhibition
Похожие товары

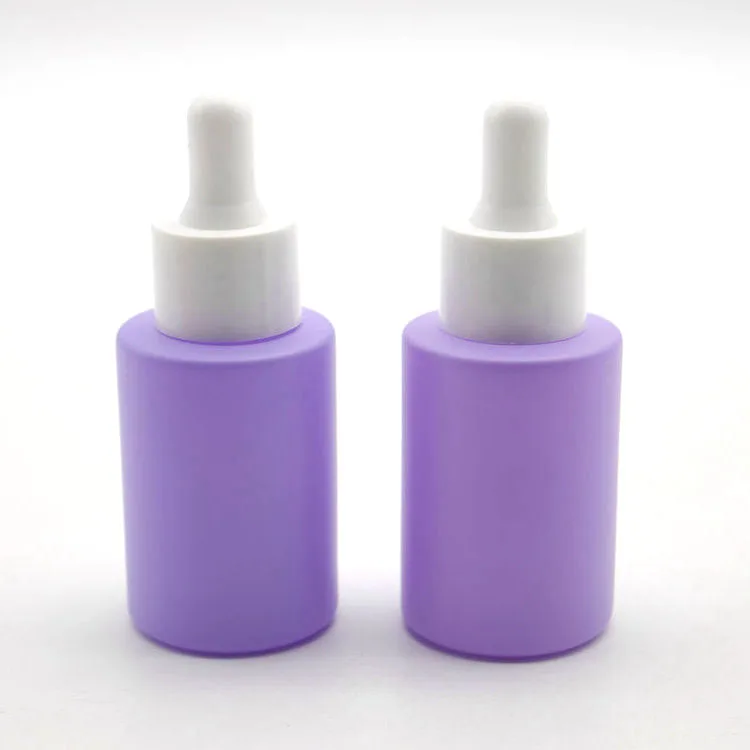

20 мл 30 мл 50 мл 100 мл эфирное масло сыворотка спущенное плечо с матовой поверхностью; Цвет Фиолетовый, бледно-лиловый, стеклянный флакон-капельница бутылка с пипеткой
0,12 $ - 1,00 $

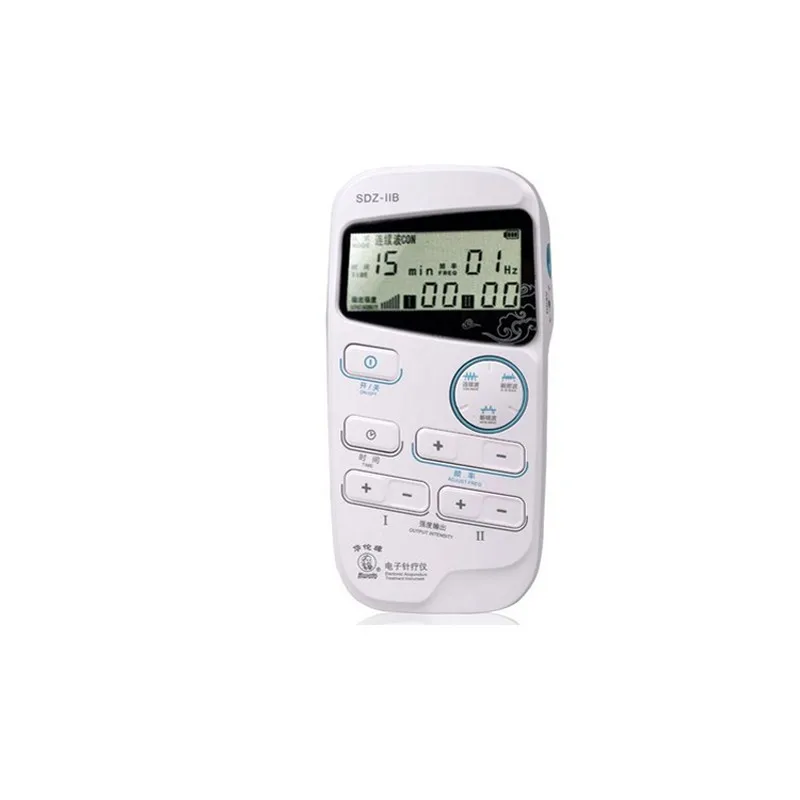

Портативный Импульсный синхронизатор Sdz-IIB, электроакупунктурный аппарат, физиотерапевтический аппарат
Стеклянный китайский медицинский дистиллятор, бытовой аппарат для чистоты росы, миниатюрное оборудование для переработки эфирного масла, электрическая пивоварка с подогревом

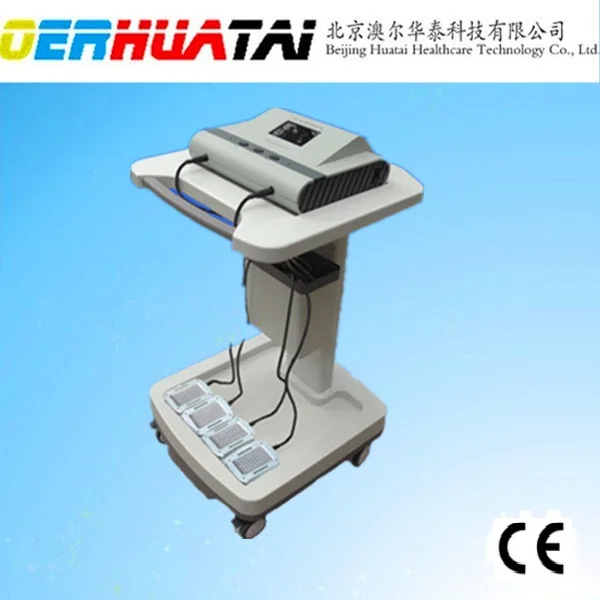

Аппарат для физиотерапии, аппарат для лечения диабета
Лидер продаж, эфирное масло agarwood oud, приспосабливающееся ко всему для ароматических лекарств
100% чистое натуральное ароматическое масло лаванды для свечи, мыло, освежитель воздуха, ароматерапия, диффузор, масло
19,50 $ - 25,00 $

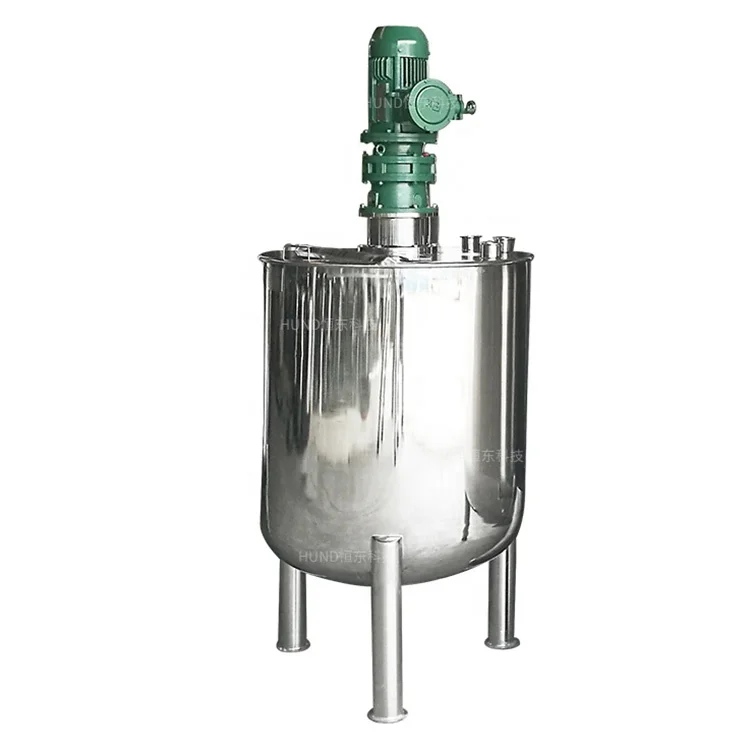

Высокоскоростной гомогенизирующий смеситель HONE на 500 л из нержавеющей стали, лаванда, эфирное масло, тонер, парфюм, одеколон, смешивающая машина для продажи
