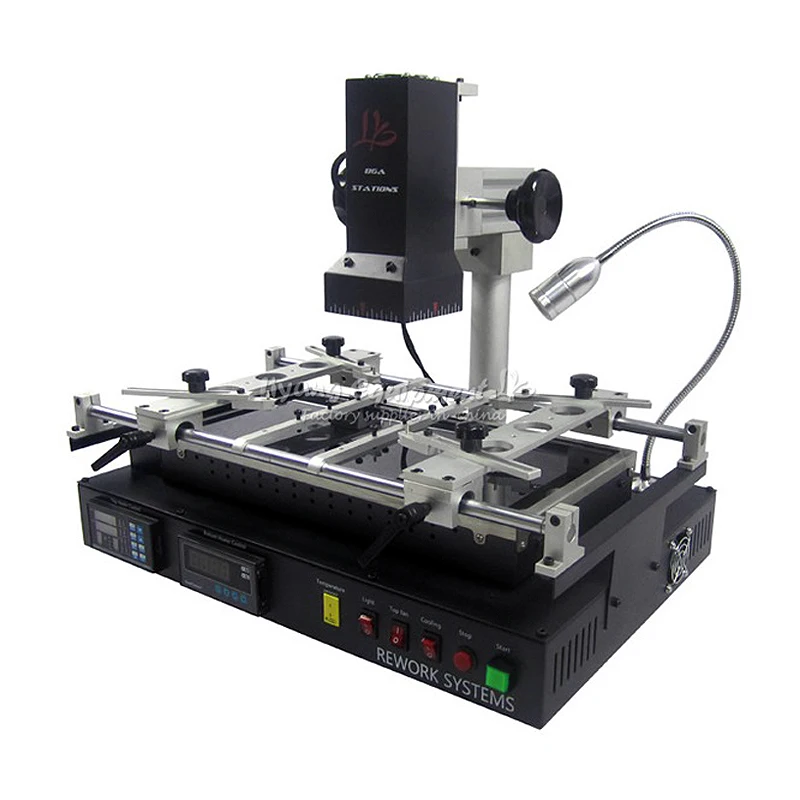

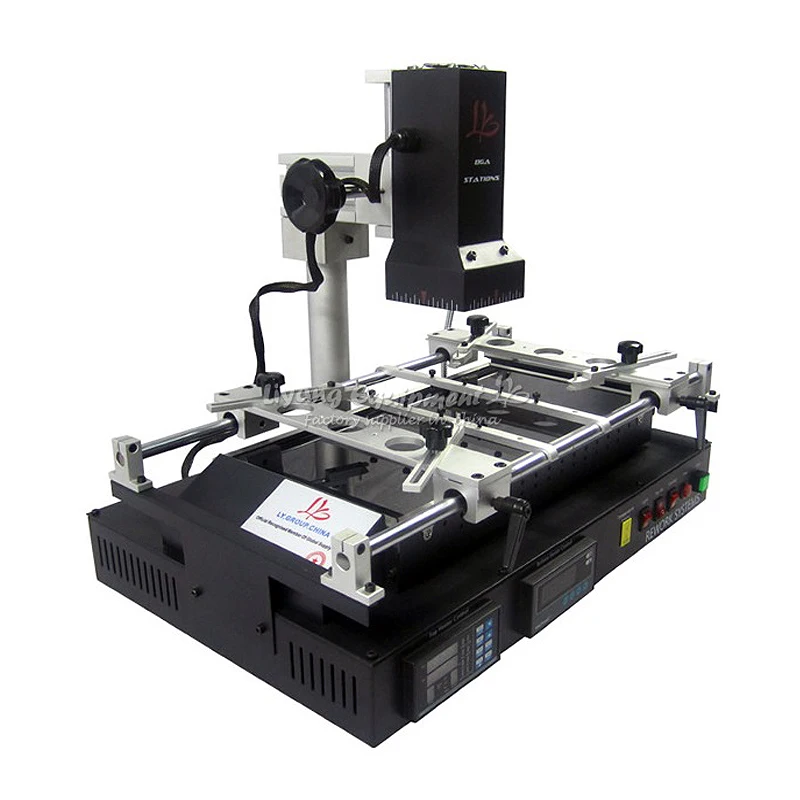

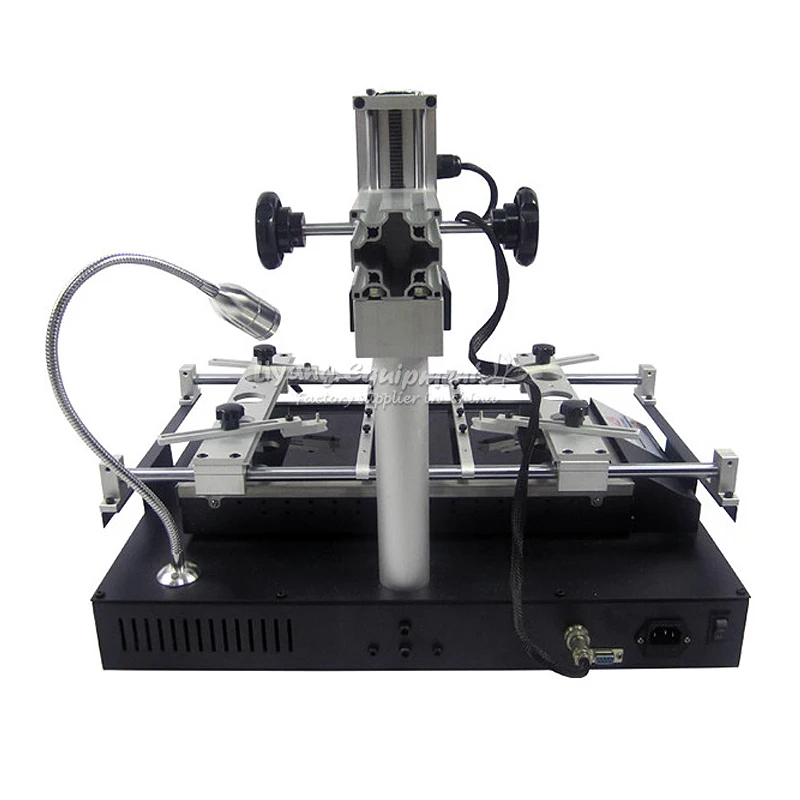

LY IR8500

BGA Rework Station

upgraded from IR6500

CE Certification
can be connected to a computer
8 constant temperature segments
It can easily rework the variety of CPU's seat

Video:

https://www.youtube.com/watch?v=8wTTk9LEnf8&feature=youtu.be

Feature:

This is economic BGA model,substitute of IR-PRO-SC,if do small motherboard,can choose IR6500,if do big board,can choose IR8500.

Introduction

LY IR8500 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.

LY IR8500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.

Technical Parameters

Packing list:

1× IR8500 BGA rework station

1x LY IR cover set

1× power cable

1× usb to rs232 port cable (with CD)

1× thermocouple

6x pcb jig with screw

1× CD of manual and software (if not get, may be lost in customs, please contact us)

1x tape

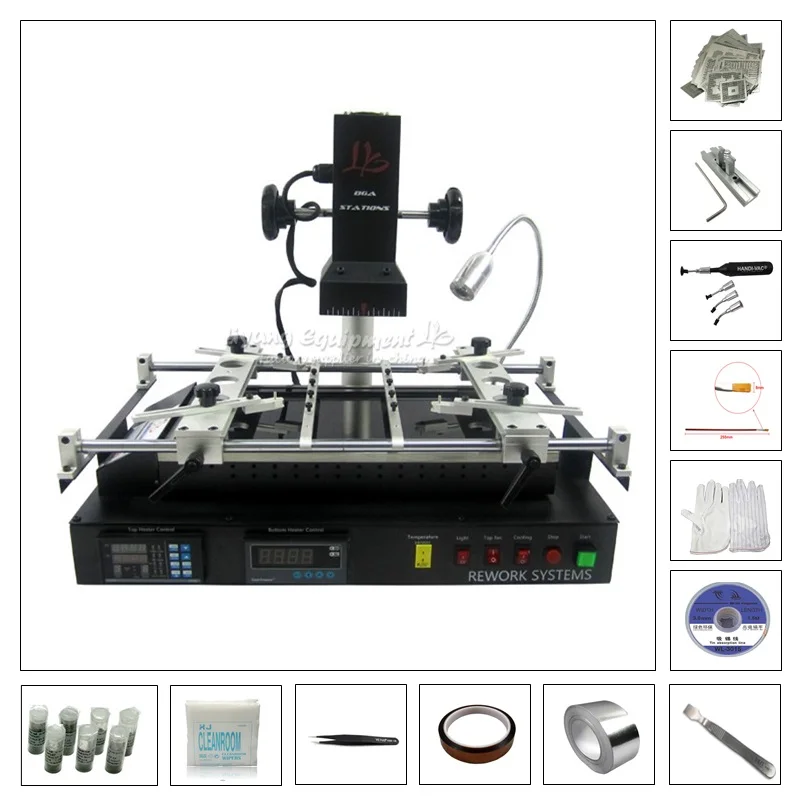

If you choose the machine kit, the package will add these part:

LY IR8500 X 1

Direct heat jig x 1

810 pcs Direct heat stencil x 1 ( 810 pcs)

25K lead solder ball 0.3,.35.40.45.50.60.76mm size each x 1

50mm silver tape  x 1

20mm kapton tape x 1

9x9mm 300pcs Non-dust cloth x 1

WL-3015 desolder remover x 1

Handi-vac vacuum pen x 1

Glove x 1

Scraper x 1

Flux brush x 1

Tweezer ESD-10 x 1

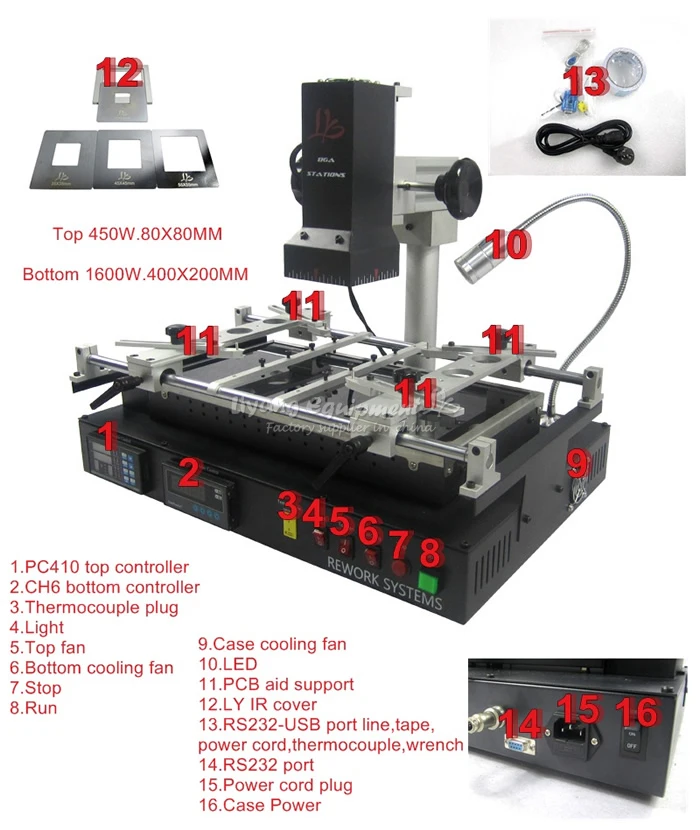

Item Units and Pictures

Feature

1.CE Certification

2.LY IR8500 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.

3.LY IR8500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.

4.It can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time.

5.It sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.

6.The BGA rework station the technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.

7.Machine overall system integration Design, Rework station more integrated workbench area occupied by smaller, Didn't mixed and disorderly of cables.

How to use

Please refer to the CD of USER MANUAL and to see how to use

Please refer to the SETTING OF THE TEMPEATURE PARAMETERS MANUAL HERE and to see how to set temperature

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.

5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
