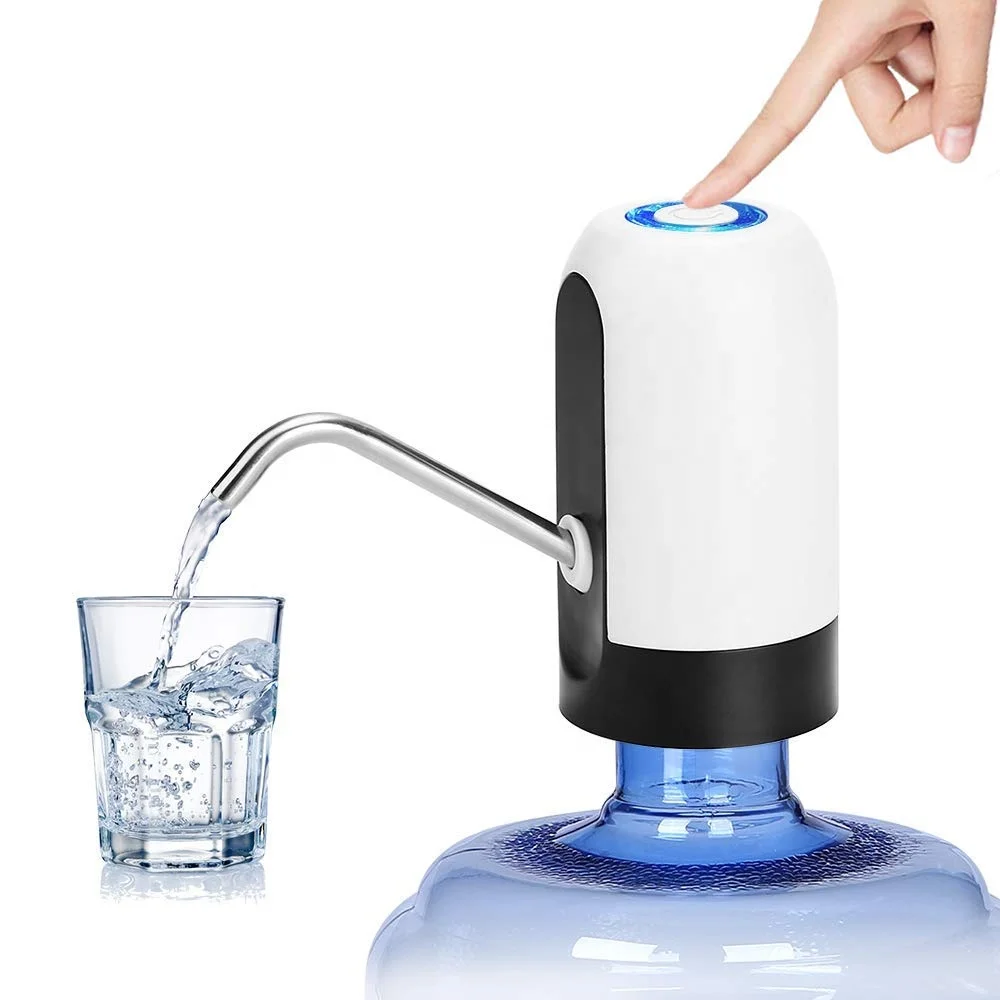

USB-зарядка, Электрический диспенсер для питьевой воды, портативный универсальный диспенсер для бутылок с водой, насос
1,70 $ - 2,00 $

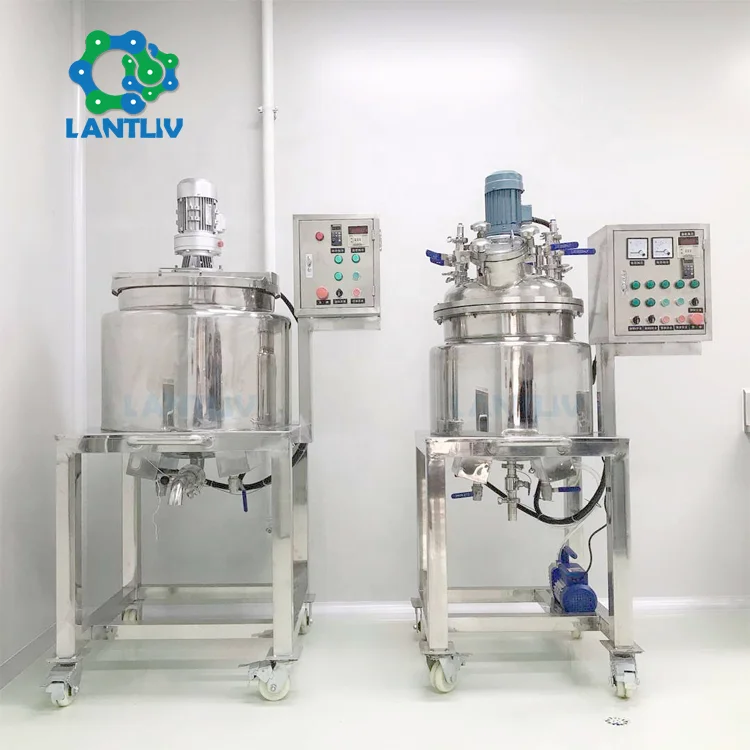

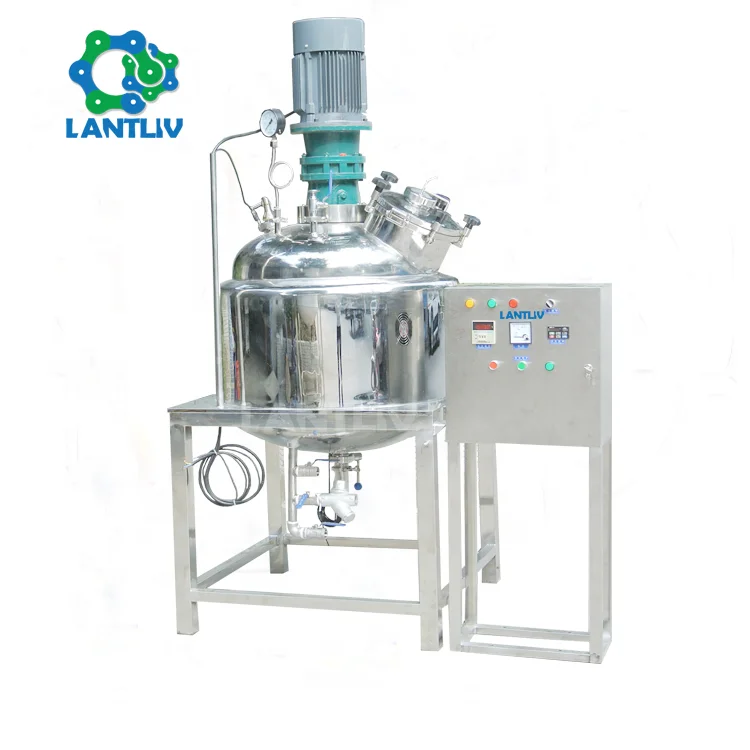

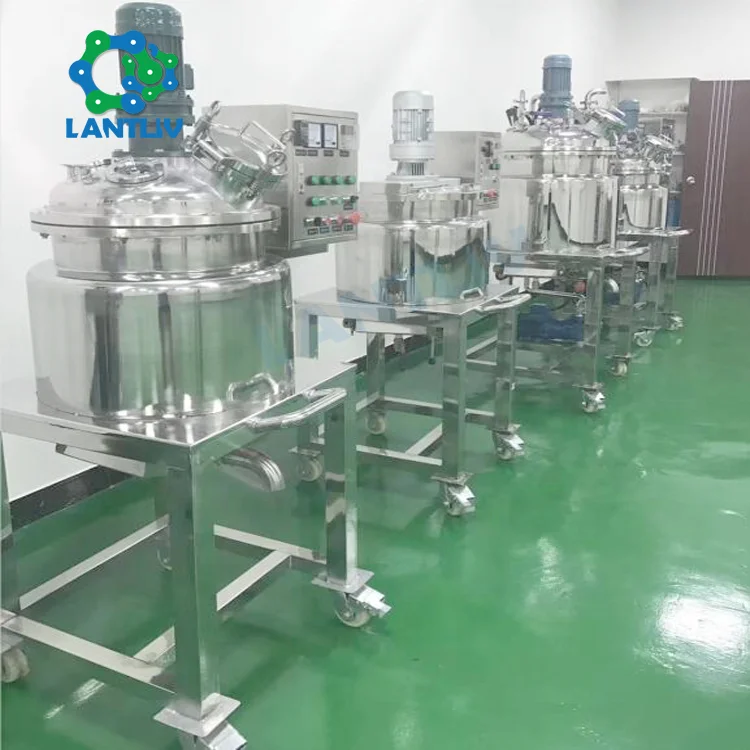

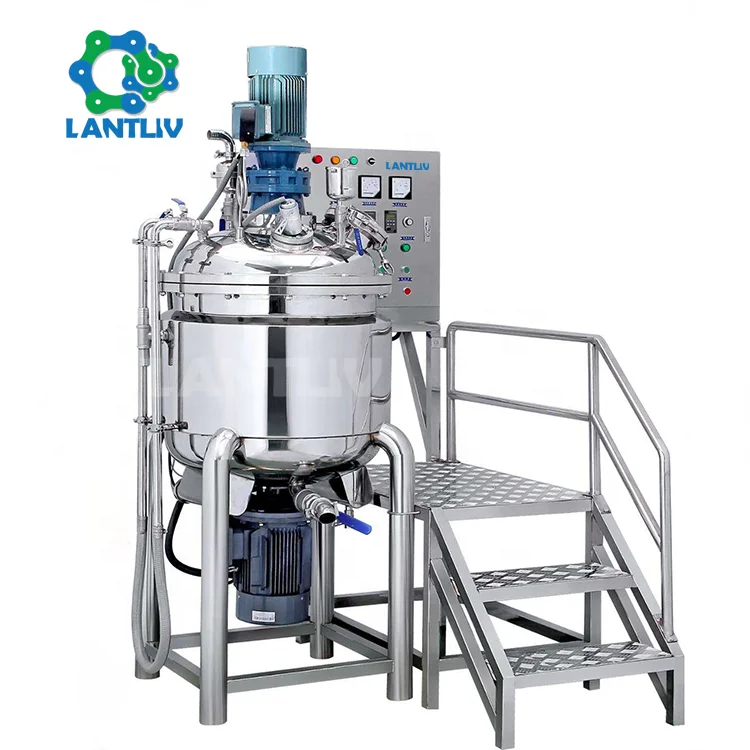

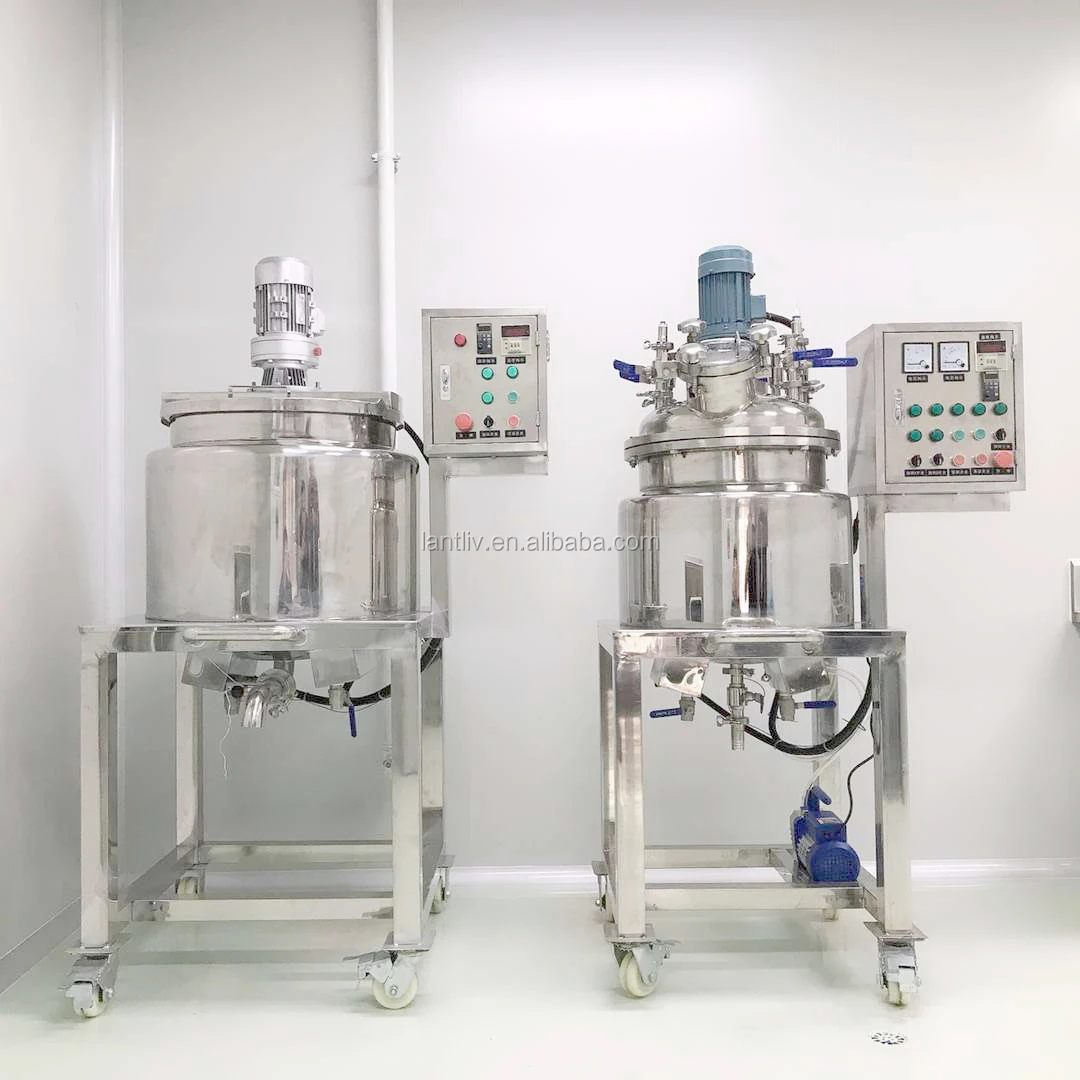

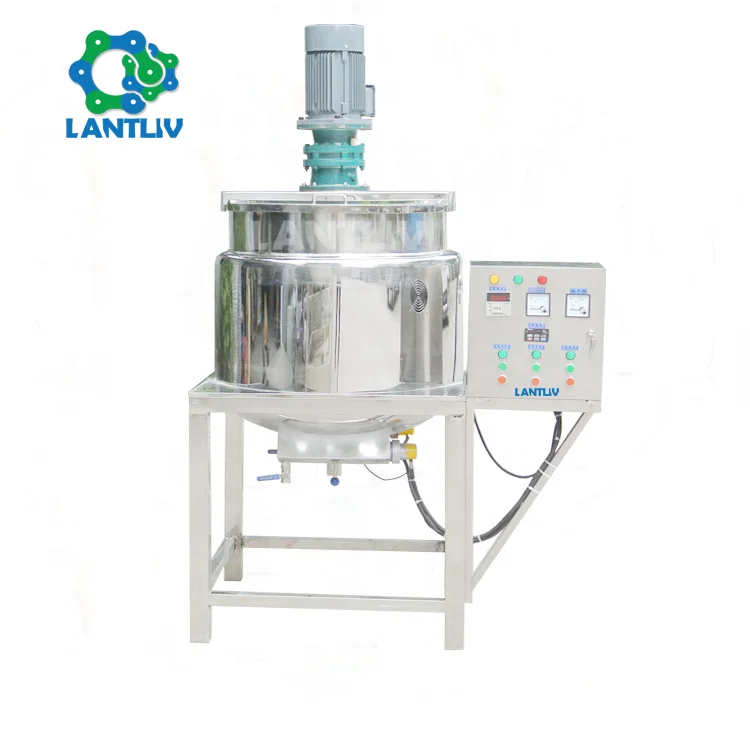

Гуанчжоу 50л подвижный гомогенизатор высокого сдвига жидкое моющее средство мешалка мини маленький косметический Миксер для изготовления продуктов по уходу за кожей
- Категория: >>>
- Поставщик: Guangzhou Lantliv Machinery Co. Ltd.
Сохранить в закладки 60464821294:
Описание и отзывы
Характеристики
Product Description
1. The mini small cosmetic mixer adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy different technological requirements.
2. Materials can be heated or cooled according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer requirements.
3. Various forms of blending vanes are suitable for production of different types of products.
3. Various forms of blending vanes are suitable for production of different types of products.
4. Made of imported SUS304 or SUS316L stainless steel. The mixing tank body and pipe are subjected to mirror polishing.
5. Bottom installation type disperser and pipeline type emulsifier are optional to speed up dissolution and emulsification of
materials.
materials.
6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed etc.
Technical Parameters
Working capacity | 50L | |||||||
Three layers design,double jackets Inner layer & thinckness : SUS316L, 3mm Middle layer & thinckness : SUS304, 3mm Outter layer & thinckness : SUS304, 2mm | ||||||||
Electronic parts brand | DELTA, OMRON, Custom made | |||||||
Bottom outlet | Stainless steel butterfly valve | |||||||
Cover design | Can be moved , open or closed | |||||||
Motor power | Top Blending power : 1.1kw, 0-65rpm Bottom Homogenizer power : 1.5kw, 0-3000rpm | |||||||
Motor brand | Siemens Joint venture | |||||||
Jacket temperature | ≤100℃ | |||||||
Heating way | Electronic heating Power : 6kw, running water cooling | |||||||
Polish | 300MESH (sanitary level) | |||||||
Sealing form of homogenizer | mechanical seal | |||||||
Electric Box | SUS304-2B | |||||||
Temperature sensor | Pt100 thermometer | |||||||
Pot body stents | Stainless steel | |||||||
Welding form | Automatic welding, no dead ends | |||||||
Remark: 1. For electronic heating, you can add water or conduct oil inside jeckets. However if you heating with conduct oil, there is no cooling. 2. Normally the products can be poured out from bottom outlet, but if you want it not cost too much time, you can connect a rotor pump to pump it out. 3. We provide some spare parts based on experience,and one year warranty for this machine, and provide service for the whole life of the machine in 24 hours. Working video and manual operating will be provided with machine also. | ||||||||
Application:
Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
Daily Chemicals: Laundry Liquid Soap, Liquid Soap, Liquid Detergent, Hand Wash, Dishwashing Liquid, Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmetics etc.
Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
Other Industry: Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.
Daily Chemicals: Laundry Liquid Soap, Liquid Soap, Liquid Detergent, Hand Wash, Dishwashing Liquid, Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmetics etc.
Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
Other Industry: Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.

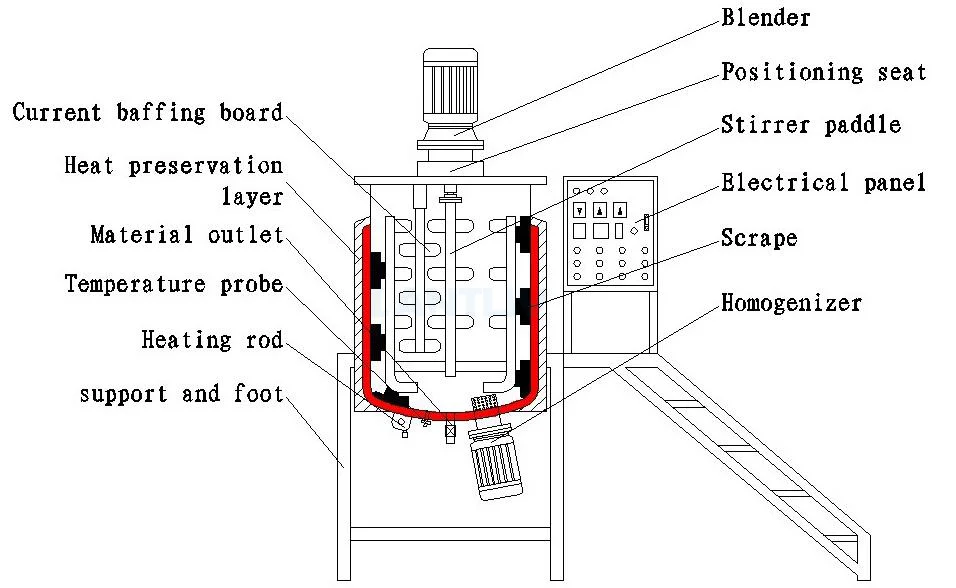

Detailed Images
Mixing Tank
1. Contact products are made of 316L stainless steel.
2. 3 layers with heating system.
3. Electric heating or Steam Heating.
4. Cold water circulating cooling.
5. Mirror polishing.
Agitator
1. Structure: Anchor type mixer with PTFE wall scraper.
2. Material: SUS316L
3. Power: 1.1kw or custom made.
4. Stirring Method: One-way stirring or Doube-way stirring.
5. Motor Brand: Siemens, ABB.
6. Running Speed: 0-65RPM, Frequency control.
7. ABB motor with reducer provide strong and stable power for mixer, Panasonic brand frequency inverter, PTFE material scrape blade, Flange shaft coupling.

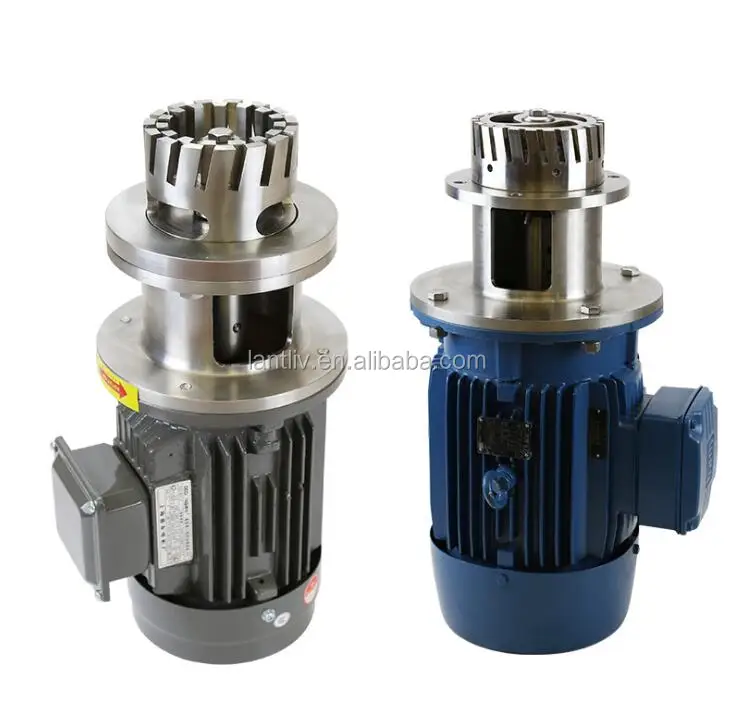

Homogenizer

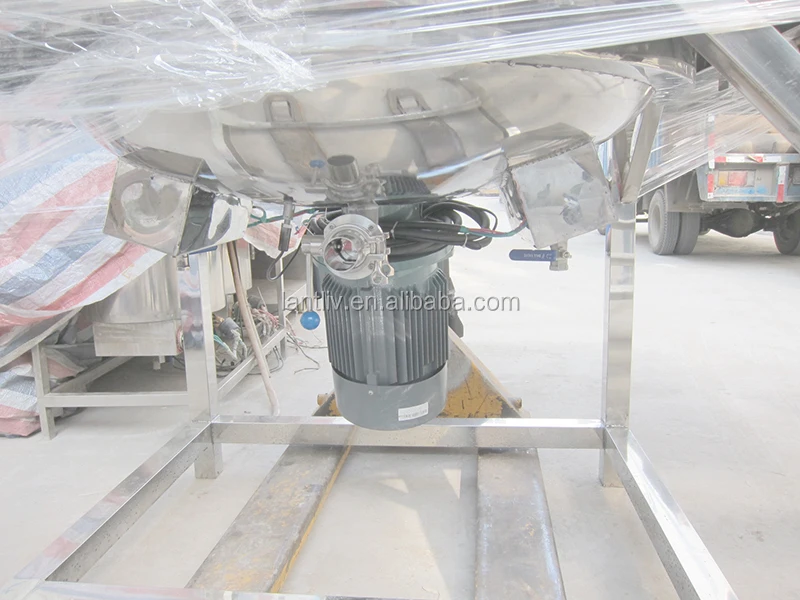

1. Structure: Top Homogenizer or bottom Homogenizer.
2. Material: SUS316L
3. Power: 1.5kw or custom made.
4. Motor Brand: Siemens, ABB.
5. Running Speed: 0-3000RPM, Frequency control.
6. Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, equipped Burgmann seal two sides tungsten seal. NSK bearing. water circulation cooling homogenizer.

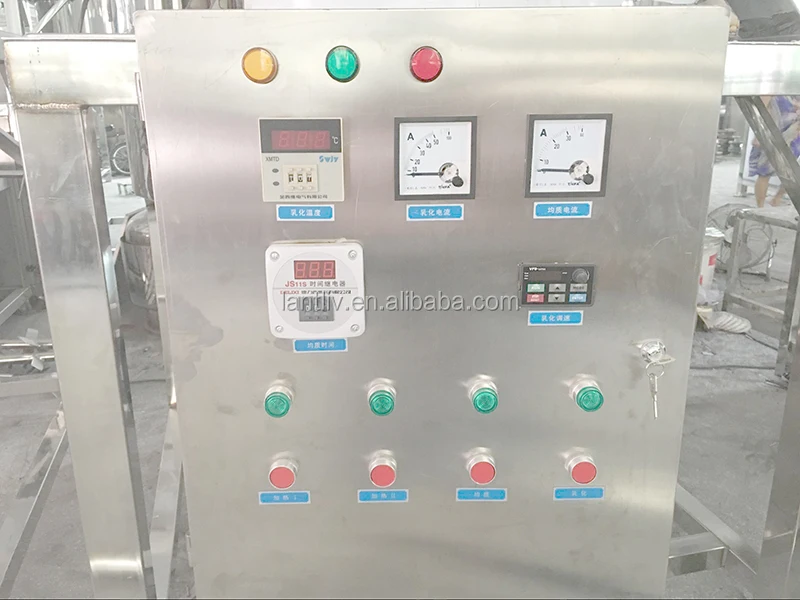

Operating electric box
1. Material: SUS304
2. Structure: Button or PLC touch screen.
2. Structure: Button or PLC touch screen.
3. Famous domestic electrical components or custom made.
Outlet of finished products
1. Discharge Pump: Rotor pump or pneumatic diaphragm pump.
2. Material: SUS316L
3. New designed cam rotor pump for bottom discharge. Non residual, Angle of outlet suitable for products discharge easily. fast
connection with pipes and pumps.
2. Material: SUS316L
3. New designed cam rotor pump for bottom discharge. Non residual, Angle of outlet suitable for products discharge easily. fast
connection with pipes and pumps.

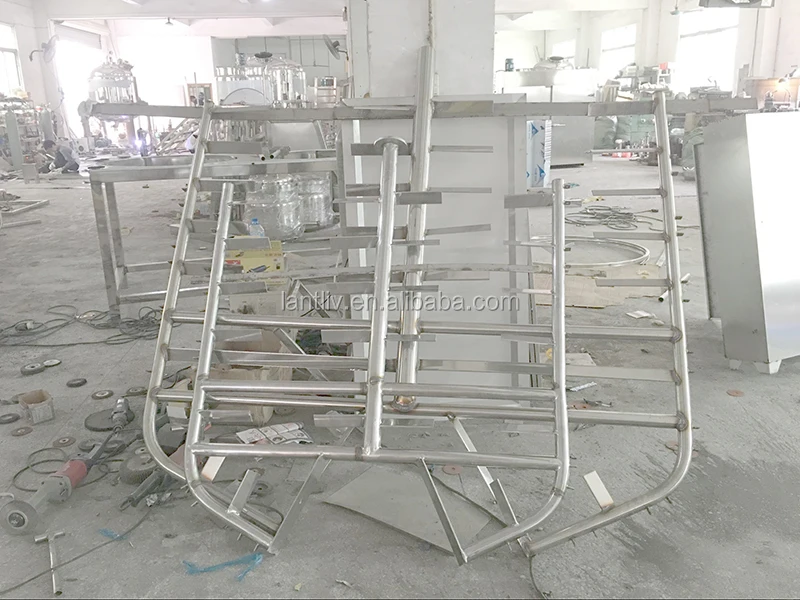

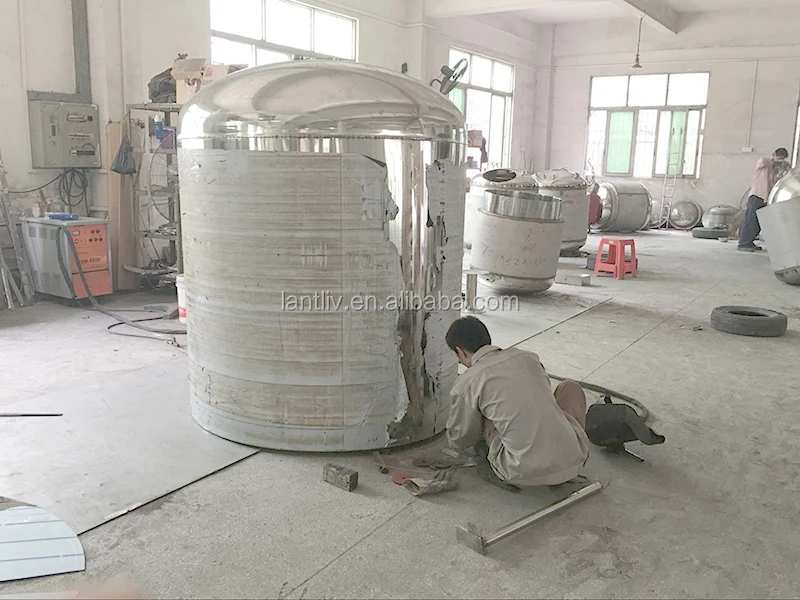

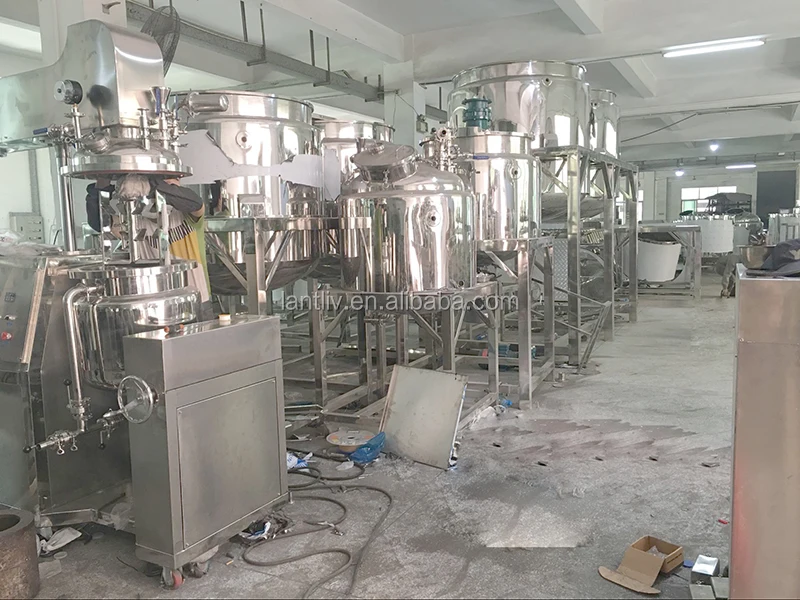

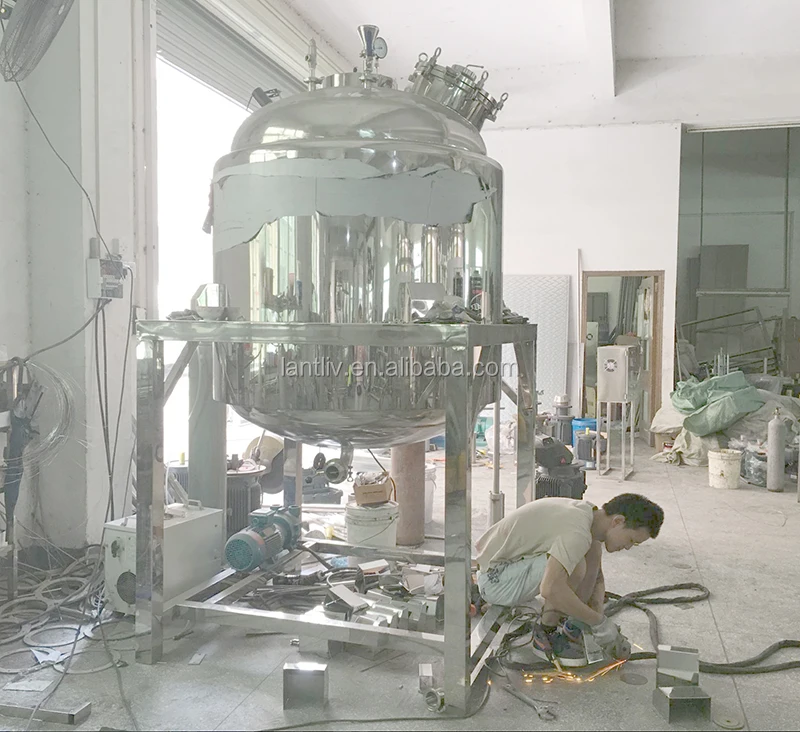

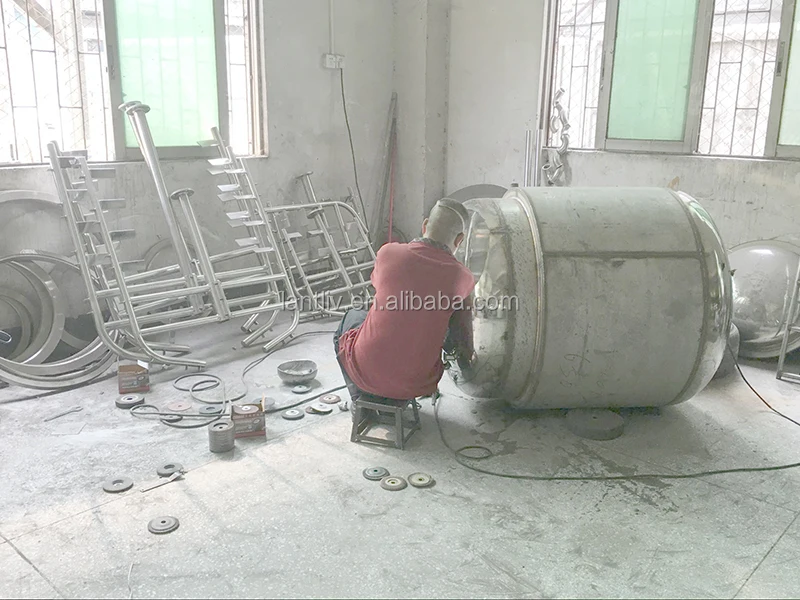

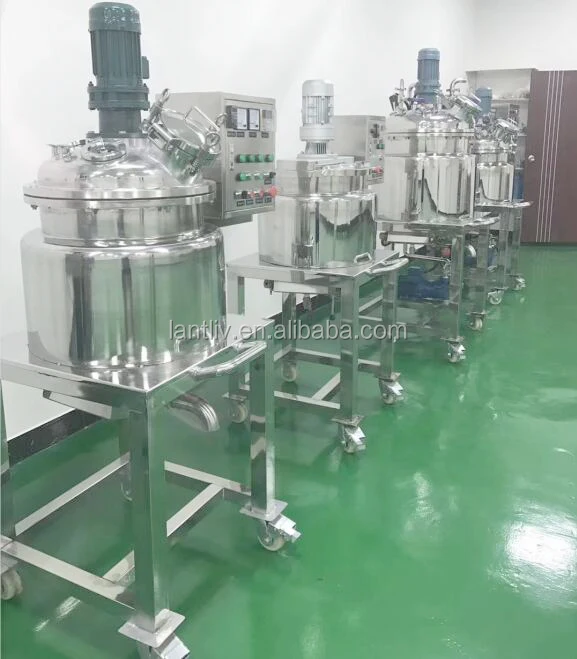

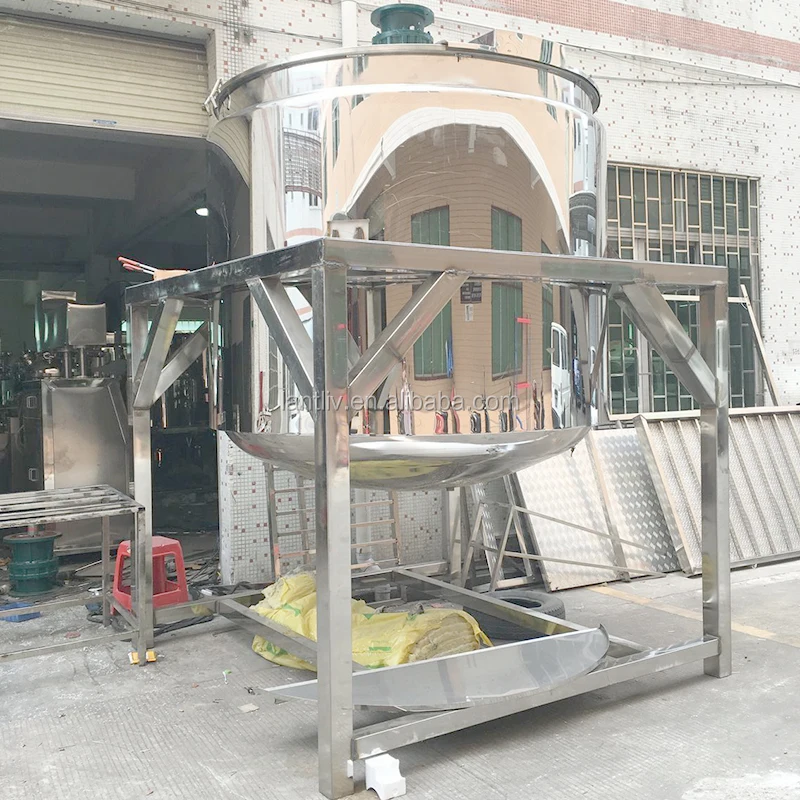

Workshop production
Our Service
Pre-treat Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
2. Sample testing support.
3. View our Factory.
After-sales Service
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provide.
4. Spare parts replacement and repair service provided.
5. Engineers available to service machinery overseas.
2. Technical files service provided.
3. On-site training service provide.
4. Spare parts replacement and repair service provided.
5. Engineers available to service machinery overseas.
Maintenance Guidence
1. Keep the equipment looks clean, no watermarks, smooth.
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible.
3. Check on the homogeneous blade usually, Are there loose screws.
4. Homogenizer into the water whether the flow, the water solenoid valve is working properly.
5. Check the mixing gear regularly adequacy of the grease, any abnormal sound.
6. We can supply the whole production line.
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible.
3. Check on the homogeneous blade usually, Are there loose screws.
4. Homogenizer into the water whether the flow, the water solenoid valve is working properly.
5. Check the mixing gear regularly adequacy of the grease, any abnormal sound.
6. We can supply the whole production line.

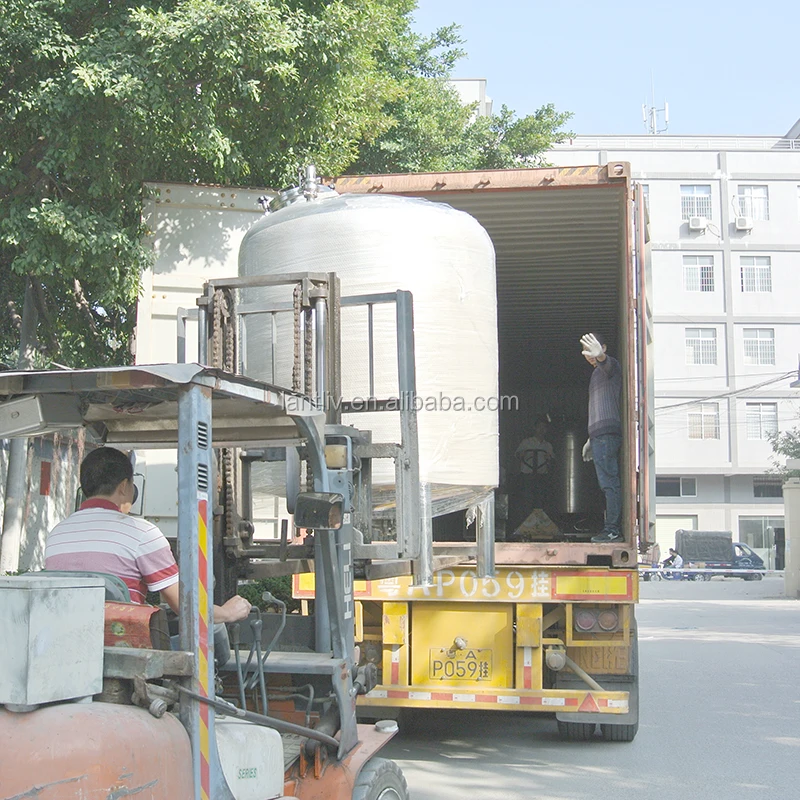

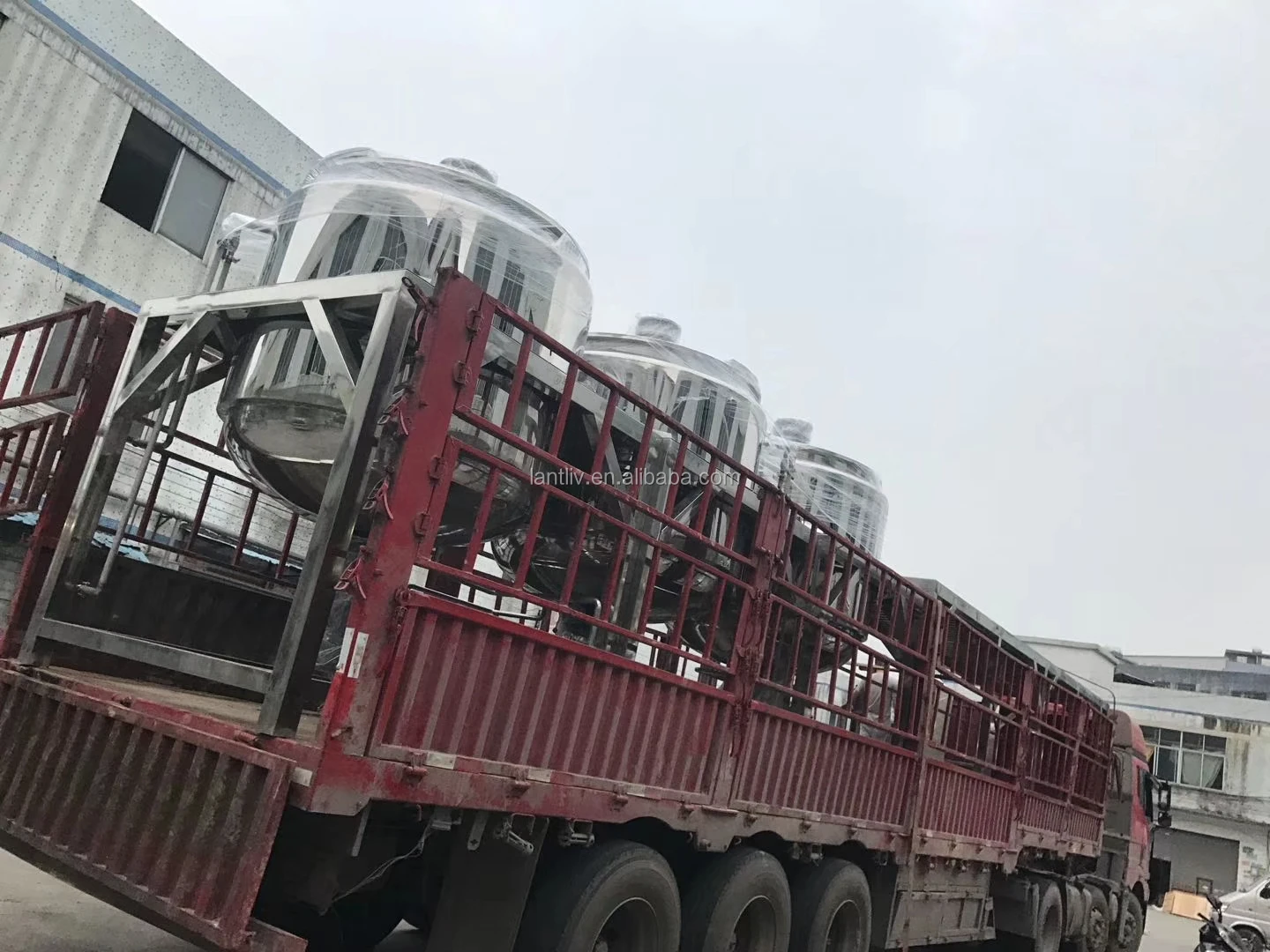

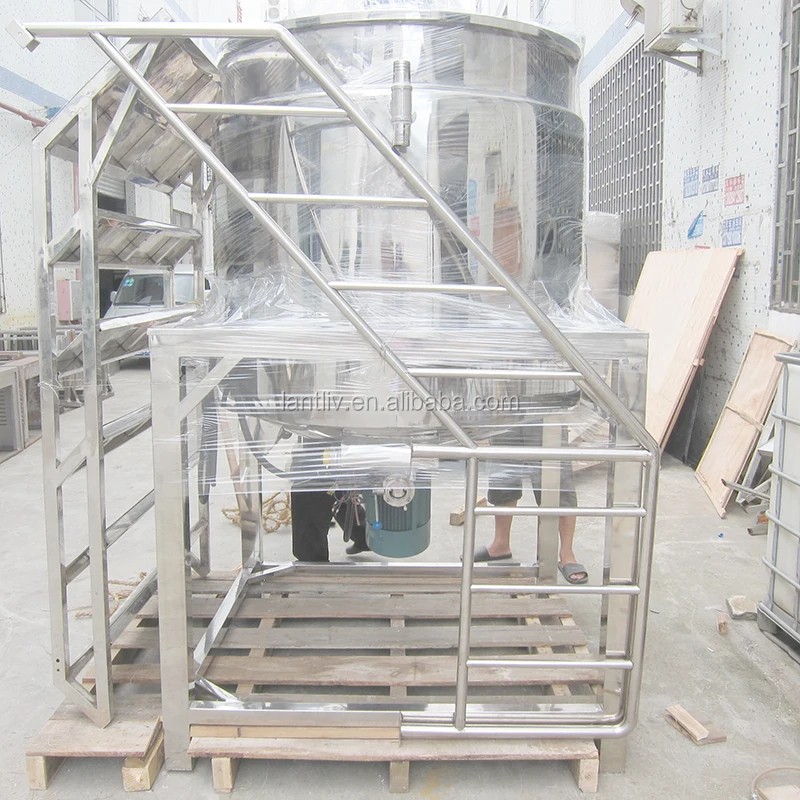

Packing & Delivery
1. Wrapped with plastic film inside and strong carton case or non-fumigated plywood box outside, it is moisture-proof and suitable for long-distance sea, land and air transportation.
2. Delivery time: 10-20 days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
3. For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
Exhibition

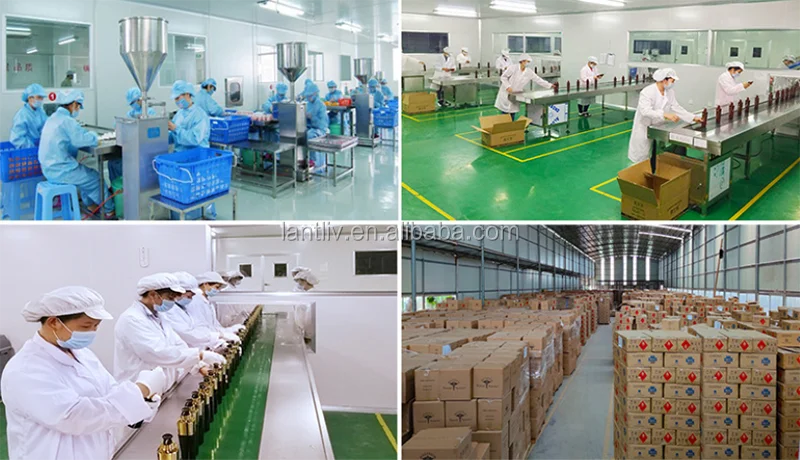

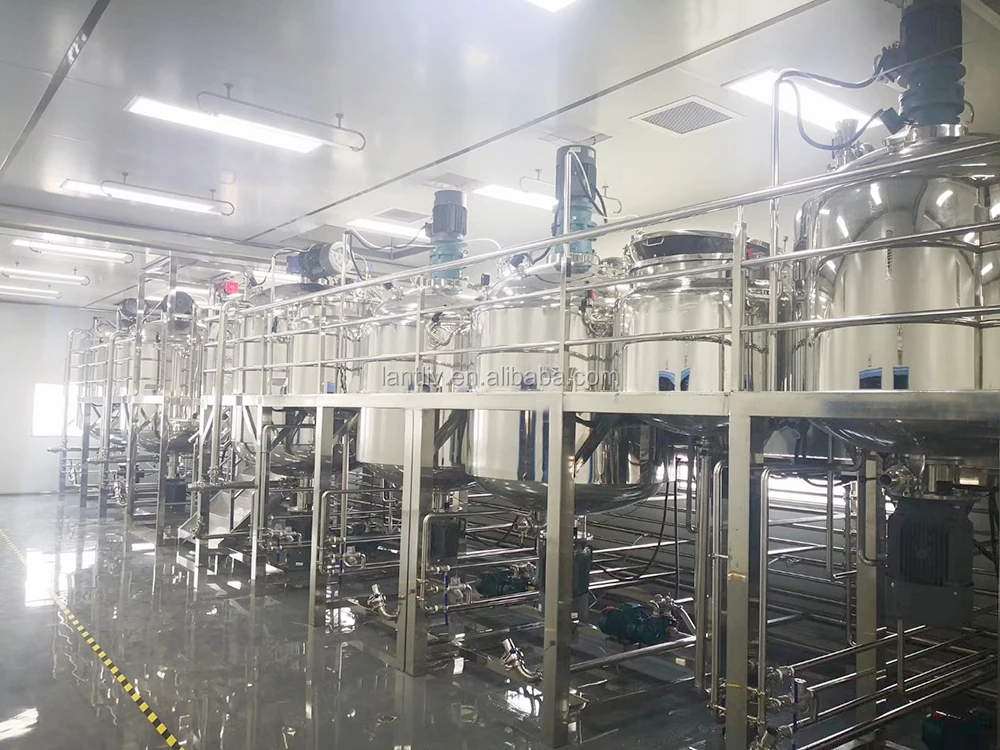

Construction Project
Advantages we have:
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
A. Experienced stainless steel products supplier .
B. Professional design team and sales department for your service .
C. Alibaba golden supplier, factory recognized by 'CE/FSC/ISO9001' and so on .
D. 7/24 service for you, all the question will be dealed within 24hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service —— Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
D. 7/24 service for you, all the question will be dealed within 24hours .
Benefit you get:
A. Stable quality — Coming from good materials and technic .
B. Lower price — Not cheapest but the lowest at the same quality .
C. Good service —— Satisfactory service before and after sale .
D. Delivery time — 15-30 days for mass production .
Похожие товары
Полиэтиленовая труба pe100 polietilene hdpe, 250 мм, 280 мм, 315 мм
0,24 $ - 0,27 $
Новое поступление от производителя, розовое золото, стеклянная соевая свеча с деревянным фитилем, ароматическая свеча на заказ
1,99 $ - 2,99 $
Заводская розетка Модуль дисплей экран P10 открытый полноцветный светодио дный видео стена CHIPSHOW
299,00 $ - 958,00 $

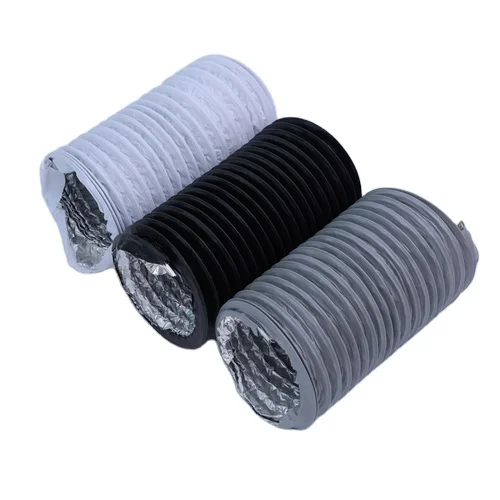

5 дюймов алюминий акустической изоляции шланг ПВХ складной воздуховодов алюминиевый воздуховод труб гибкий воздуховод стальной проволоки
0,25 $ - 0,47 $

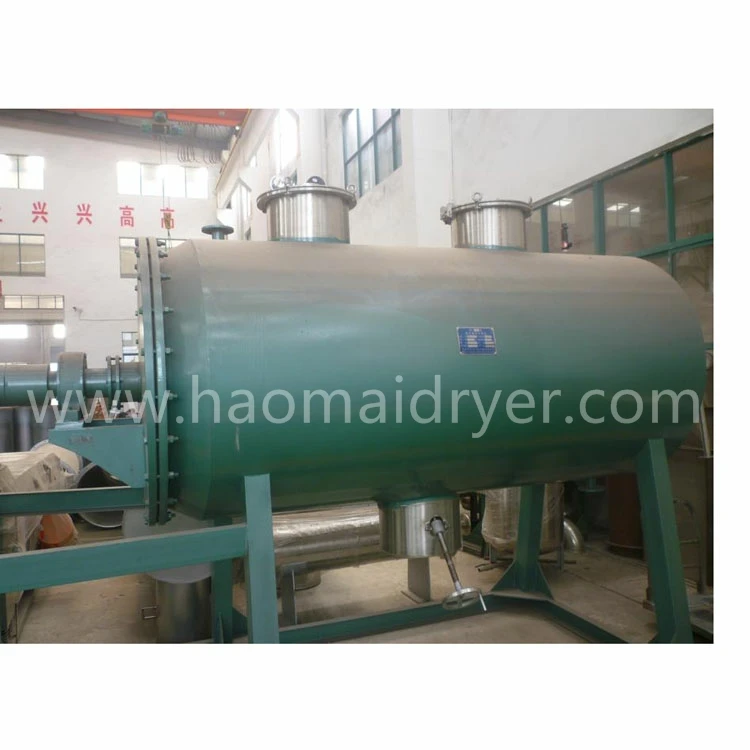

Лидер продаж, Вакуумная сушилка серии zb, индивидуальное сушильное Обо
8 500,00 $ - 8 800,00 $

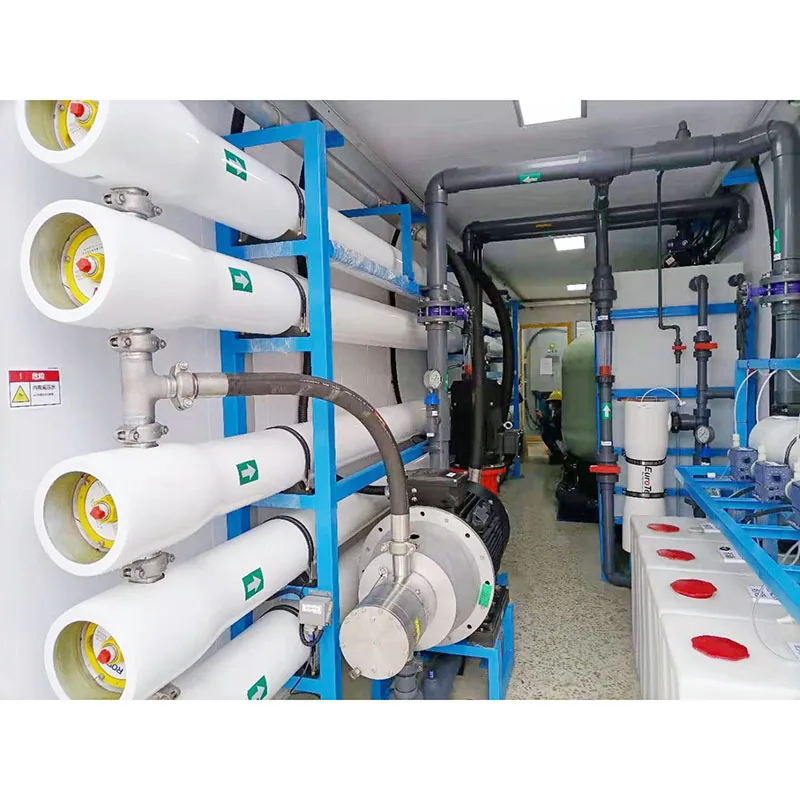

Система очистки контейнера для опреснения морской воды/машина/установка/Цена за единицу

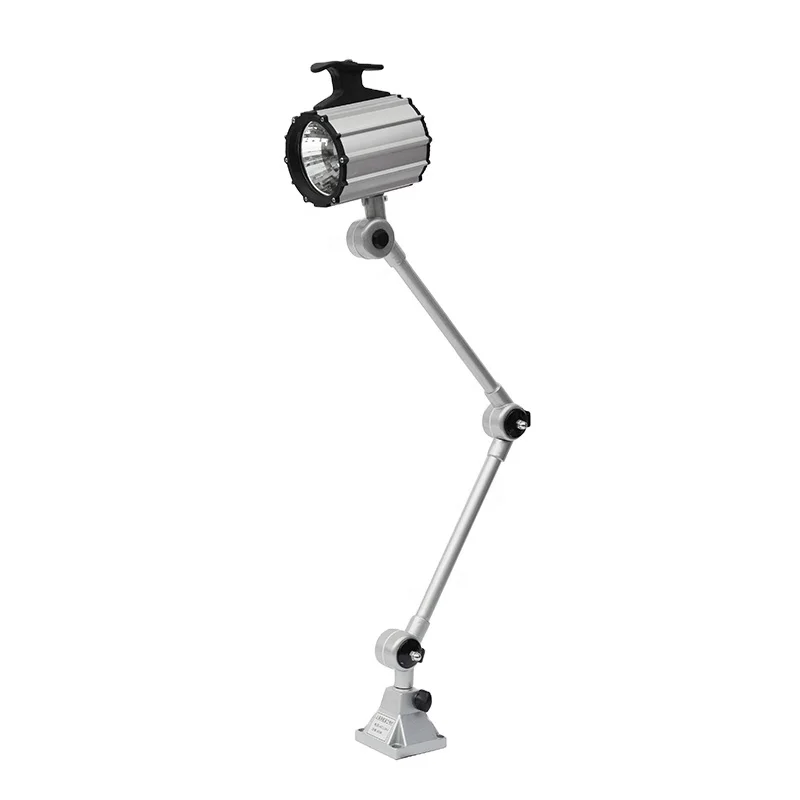

Светодиодный рабочий светильник DONGJUNJX, гибкая трубка с длинной рукояткой, 900 люмен, 7 Вт, 24 В, токарный станок, водонепроницаемая лампа
