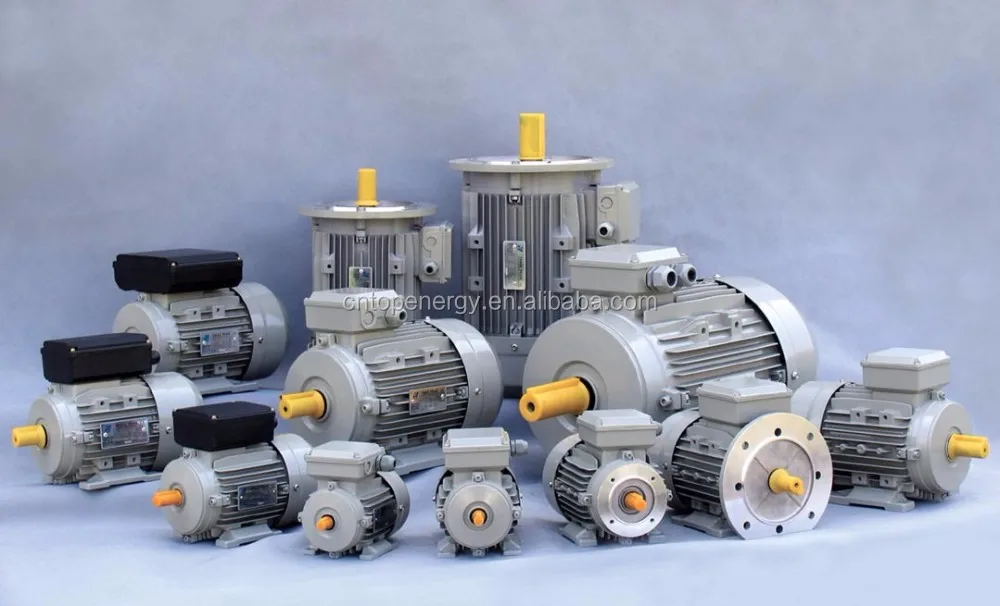

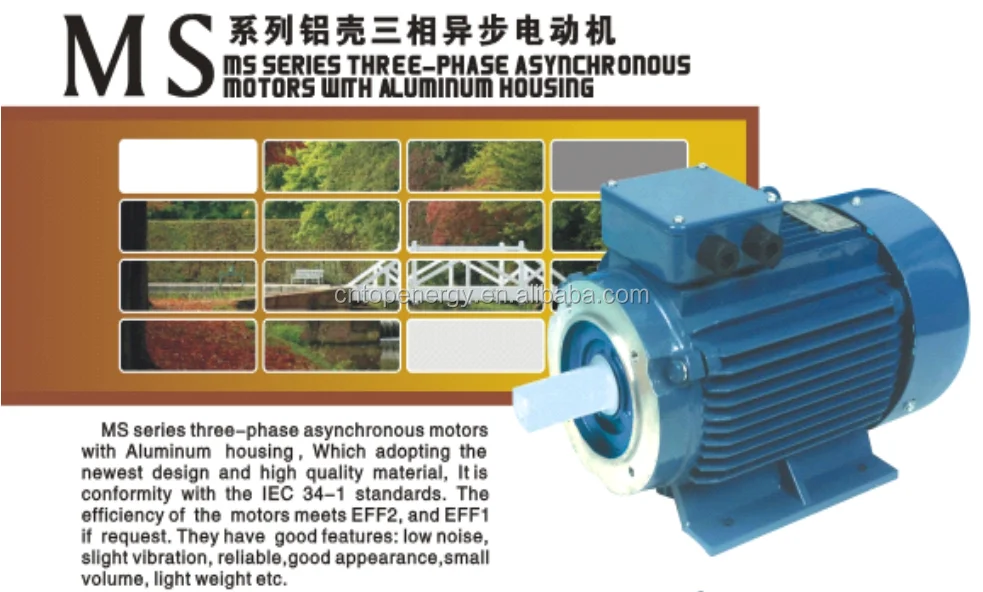

Electric Motor Features:

1. Type: three phase asynchronous high torque lor rpm electric motor with aluminu housing

2. Construction: totally enclosed, fan cooled, squirrel cage type

3. Insulation: B/F/H class

4. Frame and housing is aluminum.

5. Advantage: perfect performance, low noise, slight vibration, reliable running, good appearance, small volume and light weight

Electric Motor Operating Conditions:

1. Ambient temperature: -15°C<0 < 40 °C

2. Altitude: not exceed 1000m

3. Duty/Rating: Continuous (S1)

4. Insulation class: B/F

5. Protection class: IP54/IP54

6. Cooling Method: ICO411

Use:

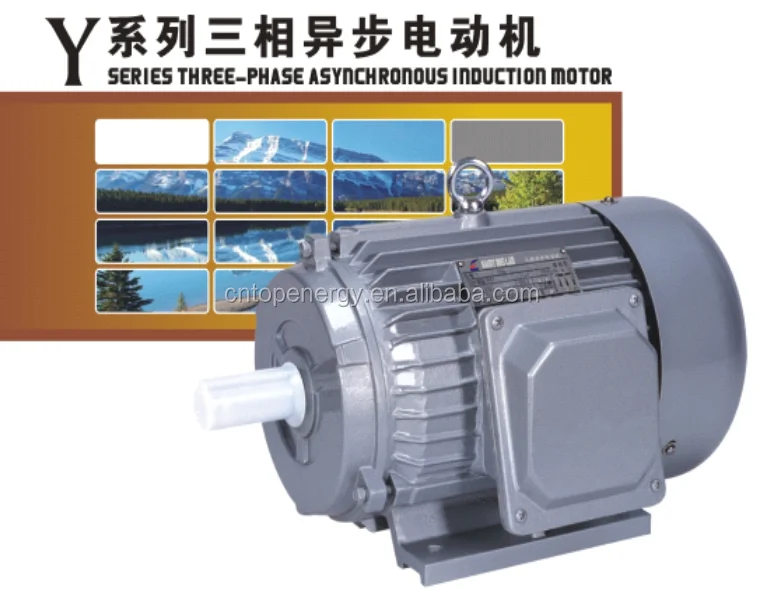

Y Y2 MS Series motors are widely applicable to food machine, blower and other machinery and equipment.

1.       B5 Flange                    11.  Name Plate                   21.  Brass Net
 2.       Shaft Cover                 12.  Wave Form                  22.  Brass Lug
 3.       Bolt                               13.  Rear Endshield           23.  Terminal Board
 4.       Spring Washer            14.  Oil Seal                         24.  Terminal Box Base
 5.       Front Endshield          15.  Fan                                25.  Gasket
 6.       Bearing                        16.  Fan Clamp                    26.  Terminal Box Lid
 7.       Key                               17.  Fan Cowl                       27.  Screw
 8.       Rotor                            18.  Washer                         28.  Earth Mark
 9.       Stator                           19.  Fan Cowl Screw           29.  Jacket
10.      Frame                           20.  Brass Washer              30.  Leather Washer

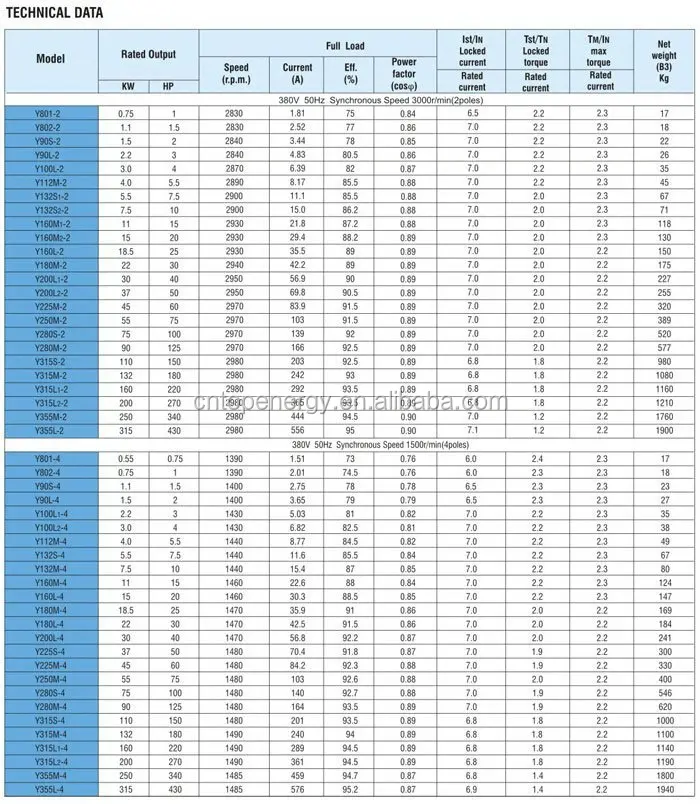

MS Series Three-Phase Asynchronous Motor Technical Data:

YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps, specially for family workshops where only single-phase current supply is available. Motors of the series are integrated with up-to-date design, built with the best quality materials and possess the features of pleasant-looking appearance, outstanding performance, easy maintenance and reliable running. The designations, signs and nominal values are all in conformity with I. E. C. Standards.

YC series protected motors are of IP44 totally enclosed fan-cooling type. Rated output is 3HP or below with capacitor starting. Under rated voltage and 50Hz, the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times. Motors for 4HP over are of capacitor start and run type. They all concentrate the advantages of high starting torque, smooth running, low temperature rise, low noise and greater overload performance

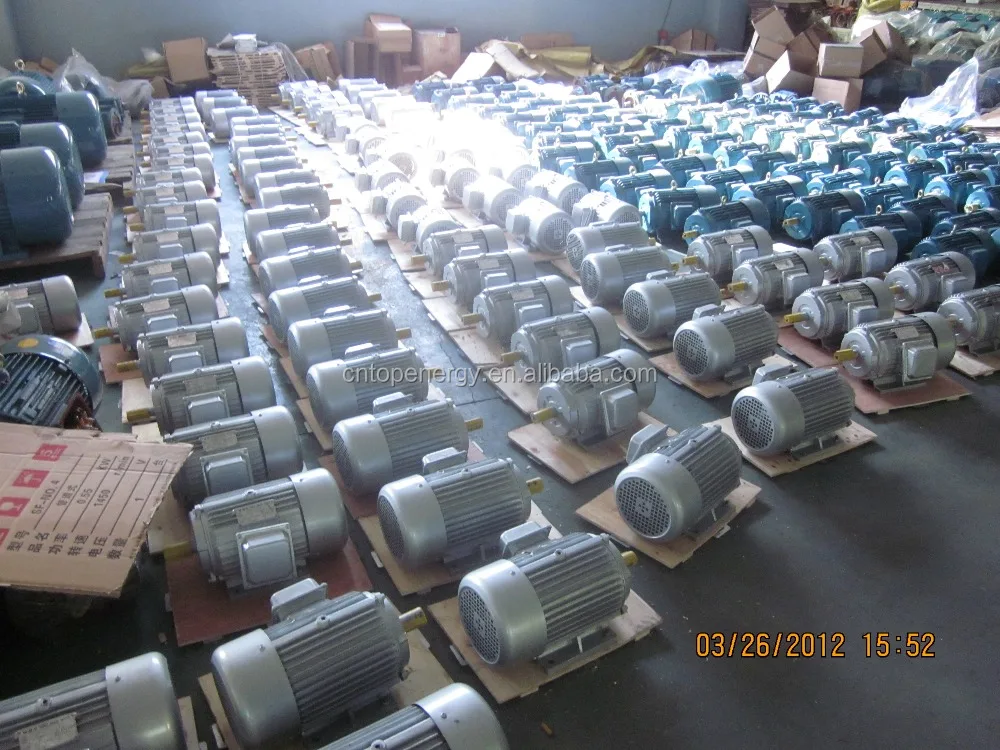

Our Production Line

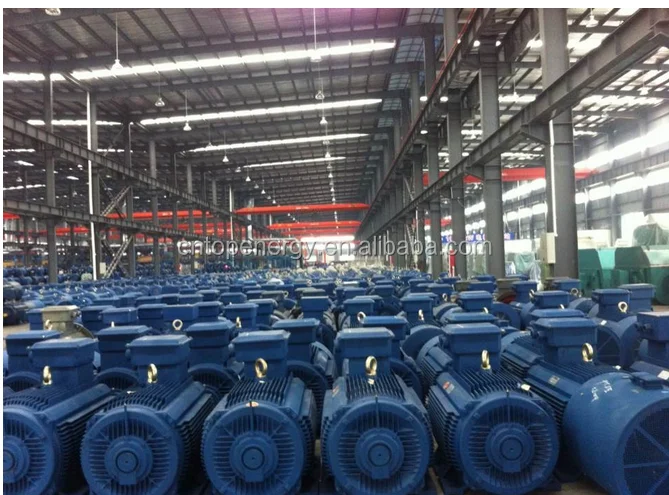

Our Electric Motor Production Line

4. FAQ

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T as deposit in advance, 70% balance receipt of the copy of B/L or before shipment.

Q: What is your lead time?

A: About 25 days after receipt the deposit or original irrevocable L/C.

Q: What certifiicate do you have?

A: We have CE, ISO,SONCAP. And we can apply for specific certificate for different country such as COI for Iran, SASO for Saudi Arabia, etc.
