Грузовик цистерна для перевозки сжиженного углеводородного газа 5 м3 со стандартом выброса европейского стандарта 3 грузовик Dongfeng с сжиженным пропаном на 5500 л

Сохранить в закладки 60465973336:


Цена:973 491,87 ₽ - 1 411 174,86 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description

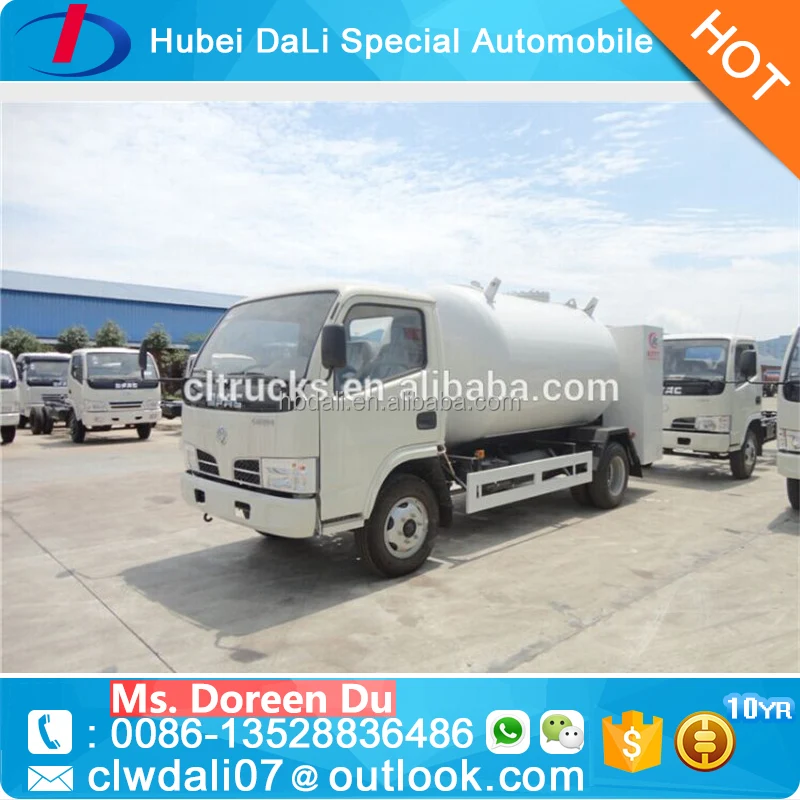

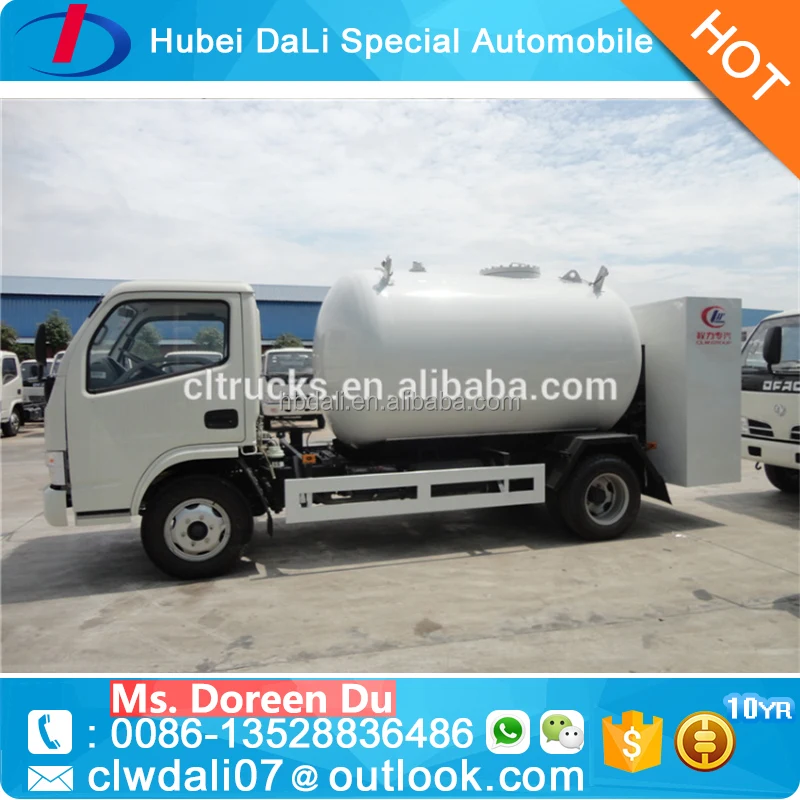

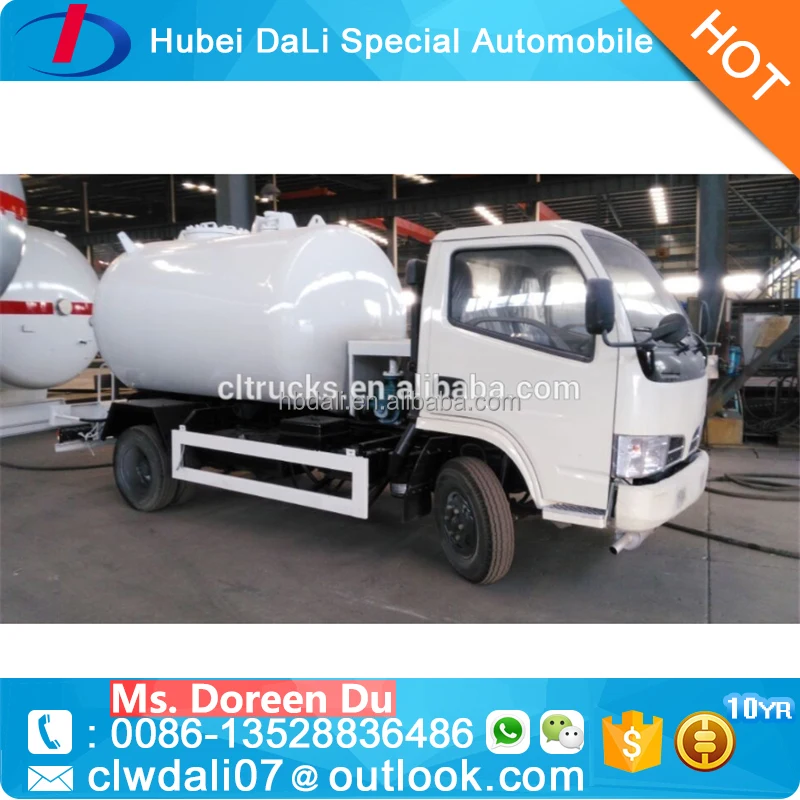

EURO 3 Emission Standard LPG Transport Truck 5.5 m3 Liquid Propane Gas Tanker 5500 L Dongfeng LPG Truck



We can produce all kinds of LPG equipments, eg: LPG horizontal storage tank, LPG tank container, LPG tank semi trailer, LPG tank truck, LPG pressure vessel, LPG Propane tank semi trailer.





General Description
Overall Dimension(mm)5995*19700*2300Driving type4*2, left hand drive
Gross weight (kg)7300Number of Leaf Springs 11/9+7,8/10+7
Curb weight (kg)3600Rated loading capacity kg3570
Wheel  base (mm)3300Axle number2
Approaching/Departure Angle(°)19/15(°)F/R Axle load(kg)3400/8550
Passengers in cab’2-3Maximum speed(km/h)80(Km/h)
Number of Tyres6 (1 spare piece)Tyre type8.25-20
Front/Rear suspension(mm)1320/1940(mm)  Front/Rear track base (mm)1750 1810/ 1650,1586,1800
Transmission5speed forward with 1 reverse, manualFuel typeDiesel oil
Engine parameters
BrandChaochaiModel4102-C3F
Displacement (L)3.856LEmission StandardEURO 3
Maximum power output70KWMaximum horsepower95HP
Number of cylinders4Cylinder spread patternIn-line
Intake typeSupercharged and mid-coolingRated rotation(rpm)3200
Up-parts Description
Storage mediumPropanefilling capacity0.42ton/m3
Tanker capacity5500LTank material Q345R carbon steel
Remark1. Manufacturing standards:GB150-1998,
2.Design pressure:1.77Mpa, Design temperature: 50℃,

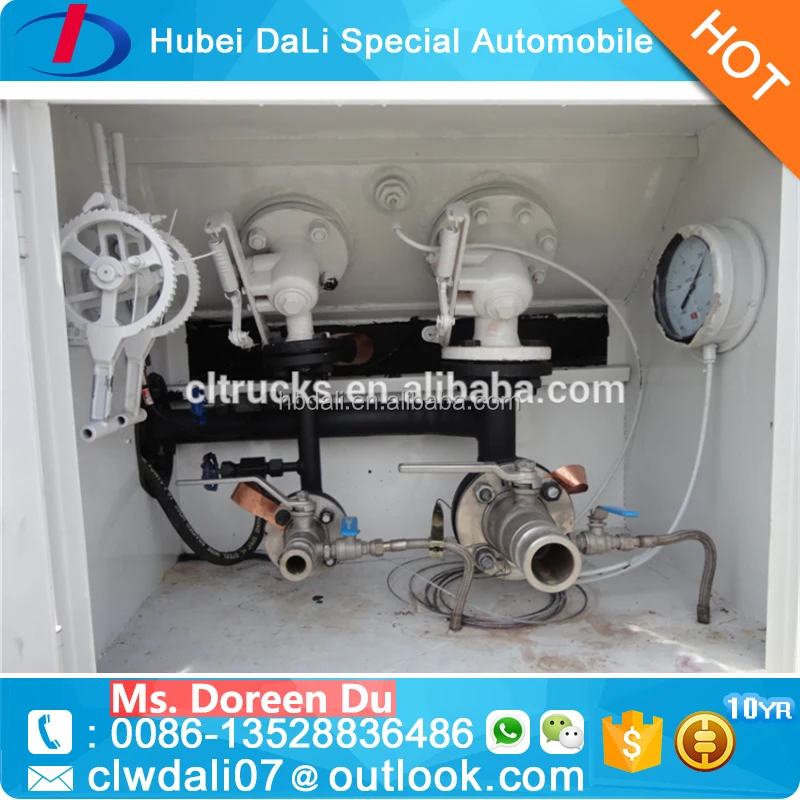

3.Equipped with safety valve, Level Meter, Thermometer, pressure gauge, emergency shut-off valve, Valve Box,,fire extinguisher, anti-static ground tape ,etc





Product Overviews


Company information

Hubei Dali Special Automobile Manufacturing Co., Ltd.  is appointed by the Ministry of Industry and Information Technology of China, The company covers an area of 166000 square meters, which is the first domestic private enterprise entering the special automobile industry. The company has focused on all kinds of special automobile R&D, manufacturing, sales and service, two special automobile production lines of the company are five series and 300 products, which are municipal engineering truck series, oil field chemical truck series, multi-function rescue fire truck series, sanitation special automobile series, semi-trailer trucks. The company is also the first pressure tank vehicle manufacturing private enterprise which has got the quarantine license from General administration of quality supervision of China.Our trucks have popular in more than 30 countries. And has many years of manufacturing experience and passed the certification of  ISO9001, ISO16949, GJB9001 ,CCC, ISO and BV factory audit.


With high quality, wonderful package, perfect service and fame. Our products has been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan, Sir Lanka, Philippine, Indonesia, , Argentina, Chili, Paraguay, Egypt, Morocco, Botswana, Algeria, South Africa, Kenya, Tunisia, Mozambique, Yemen, Ethiopia, Nigeria, Ghana, etc, more than thirty countries. Our company has established good and long term relationships with many foreign customers in Africa, Asia, South America, Middle East, Etc.

Also, we are willing to provide the high quality reasonable price and perfect service to you.
So, we hope to hear good news from you soon. Please do not hesitate to contact with Doreen directly if you have any questons on our products.That will be my honor to assist you in future.


Our Main Products

 We can produce 300kinds of different special vehicals as follow
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer

    / low bed trailer / van container trailer / warehouse trailer, etc. )



Related Products


Certifications


Packaging & Shipping


Welcome to contact



The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.Should you have any other questions or need any other information, pls feel free to contact Doreen. It would be my great pleasure to be on your service. Pls check my contact information as following:
