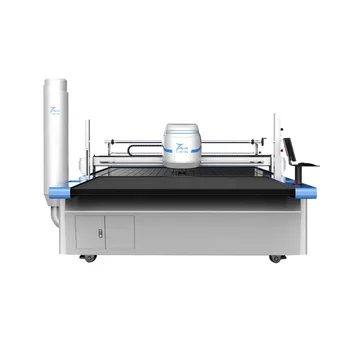

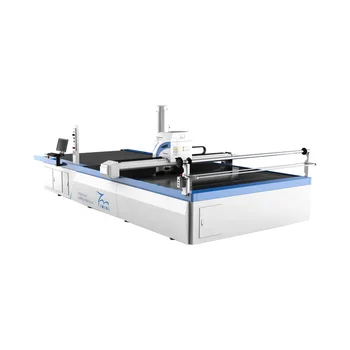

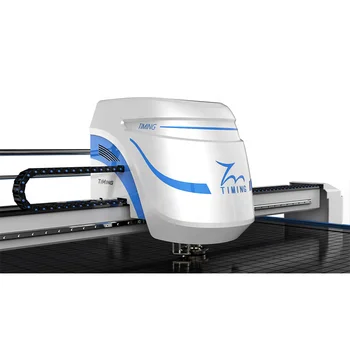

Компьютеризированная система высокослойной резки для швейной промышленности/машина тканевых слоев/машина ножей

Компьютеризированная система высокослойной резки для швейной промышленности/машина тканевых слоев/машина ножей

Категория: >>>
Поставщик: Wuhan Tianming Photoelectric Technology Co. Ltd.

Цена:52 000,00 $ - 55 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Product Application

Cutter markets suitable for widely industly ,for instance : leisure fashional suits,children's garments,suits,knitting casual/

leisure suits,underware,swimsuit,corsage,seat cushion,massage chair,yacht/houseboat seat,shoes,cat,cold protective

clothing,golf bag,handbag,home textiles,cow-bag,sleeping bag,tent, apparel,automotive, and furniture and soft fabric as

well as other industries.

Type	TMCC-1725/M	TMCC-2025/M	TMCC-2225/M
Cutting area	1700*2500	2000*2500	2500*2500
Weight	2100KG	2200KG	2400KG
Size(length,width,height)	576026101500	576029101500	576031001500

Cutting speed:	0-50000mm/min	Cutting style:	straight knife up-down
Cutting accuracy:	≤±1mm	Cutting thickness: (after vacuum suction)	max50/70/90mm (according to the cloth)
Deceleration system	Planetary Gear	Max speed of blade working	4000rpm/min
Power supplier:	AC380V/50HZ	Softerware:	automatic cutting system copyright

SPECIFICATIONS FOR MOTORS
MOTORS	X AXIS	1000	Watt
		Y AXIS	750	Watt
		Z AXIS	400	Watt
MOTORS	T AXIS	200	Watt
		Conveyor	750	Watt
		Pick up	400	Watt
Vacuum	Power	18.5	Watt
		frequency	7	Level
		Average consumption	12KW - 18KW	KW

MEN SUIT MATERIAL

FASHION WARE MATERIAL

CAR CUSHION MATERIAL

Main Features

1) Computer design, automatic typesetting, save original materials.

2) Computer controlled and automatic cutting, save the human resource, mass production.

3)Support many kinds of formats, direct open general dress design format, typesetting software.

4)High cutting accuracy, self-design of automatic sharpen cutter, high quality of cutter makes life longer.

5) No need print out, save the typesetting, with high repeated utilization, plate marking management is convenient.

5)Easy to change the spare part, and lower cost;

6)Nice automation, easy to operate.

Certifications

Detailed Images

Machine Parts

Name: Vacuum Drive
Original: JAPAN OR TAIWAN

Machine Parts

Name: Vacuum motor
Original: TAIWAN

Machine Parts

Name: cables
Original: Germany

Machine parts

Name: Inverter
Original: JAPAN OR TAIWAN

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	20' FR
Weight	2.4 T
Packaging Details	The standard package is plywood packages Plywood #1: Dimension:338029501800mm (LengthWidthHeight) Gross weight:1600KG Plywood #2: Dimension:280026001300mm(LengthWidthHeight) Gross weight:800KG We will use tarpaulin to protect the packing for waterproof purpose.
