Hcvac Exceptional Quality Kitchen Faucet Plating Equipment
Product Description
| DETAILED DESCRIPTION |
The machine can get all kinds of vacuum color coating on jewelry.The jewelry material can be Stainless steel Jewelry,brass Jewelry and other alloy Metal jewelry. The machine use Physical deposition technology(PVD). Titanium material reaction with 4 types of gas to get different color coating(TiN,TiAlN,TiC,TiO and other Titanium coating), the machine also adopt Middle frequency Magnetron sputtering,Radio frequency Magnetron sputtering System. It can get IPG,IPR,IPS,IPB,real gold,real rosegold,Platinum coating on jewelry surface. Most of customers in Jewelry field belong to World jewelry supply Chain. The machine also can coat other hardward,glass and ceramic products.
Films classified with colors:
Real gold an real rosegold coating
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
| BRIEF INTRODUCTION |
Usually for jewelry plating is using MF sputtering coating machine. Middle frequency sputtering vacuum coating machine mainly integrate the technology of MF magnetron sputtering and electric arc ion evaporation coating, combining the ion source and the pulse bias voltage. It is fully automatic control when coating films.
| FEATURES |
1. The principle of magnetron sputtering cathode glow discharge is based on theory, the expansion of the cathode surface magnetic field close to the surface, sputtering atoms from the increased rate. Magnetron sputtering is to retain and enhance the delicate surface gloss.
2. The plasma arc evaporation source of reliable performance, optimization of cathode in the magnetic field structure and the coating can work under the current 30 A, and the coating film substrate interface produce atomic proliferation, but also has the ion beam assisted deposition characteristics
HCVAC decorative PVD films are routinely used as a replacement for electroplating. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.
| TECHNICAL DATA |
| Mode | JTL-900 | JTL-1100 | JTL-1312 |
| Dimension | 900*1000mm | 1100*1000mm | 1350*1200mm |
| Coating mode and main confirguration | Six arc targets + one set of column targets+ one set of plane rectangle magnetron sputtering targets | Six arc targets + a pair of twin (MF)magnetron sputtering targets | Eight arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets |
| Power source | Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source. | ||
| Process gas control | Quality flowmeter + electromagnetism ceramic valve | ||
| Vacuum chamber structure | Vertical single(side) door, pump system postposition, double water-cooling | ||
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) | ||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | ||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | ||
| COATING MACHINE PHOTOS |

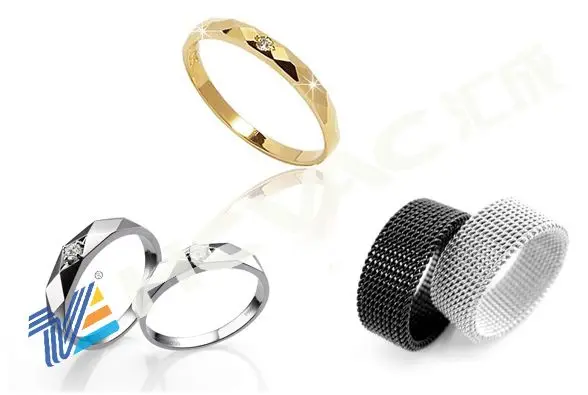

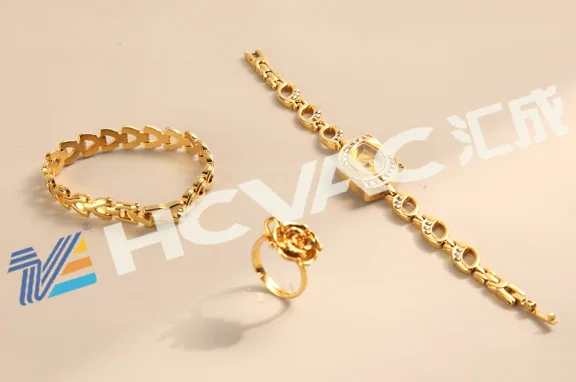

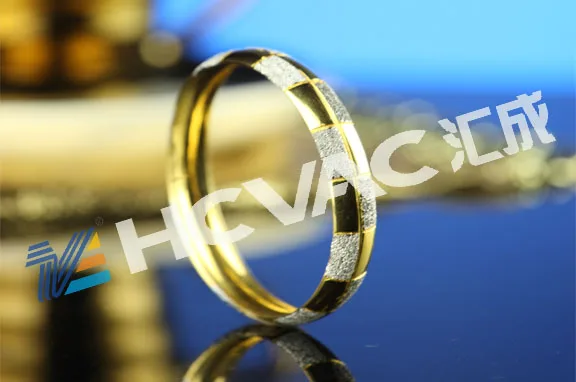

| SAMPLE PHOTOS | |
Company Information
| ABOUT HUICHENG |
|
Dongguan Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D, production, and marketing kinds of Vacuum coating machine and related products. We start in this field in1997,and already install machines more than 65 countries.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.Easy to implement:To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
Certifications
| HUICHENG HONOR |
Successful Case
| PHOTO WITH CLIENTS & SUCCESSFUL CASE |
We developed a complete after-sales system and effective service measures. Company now
owns a professional after-sales service team with more than ten experienced engineers.
ISO 9001 standard to ensure the quality can meet the customer’s requirements.
Please feel free to contact us for further information!
pls visit our website: www.hcvacuum.com
Похожие товары
Небольшая анодирующая машина, машина для анодирования алюминия, титановый анодирующий выпрямитель

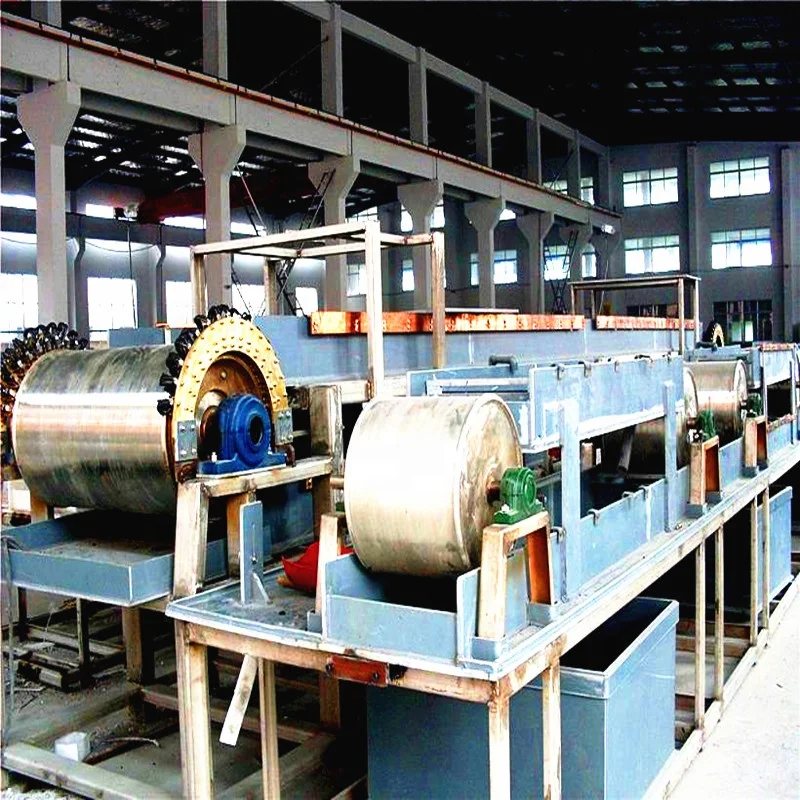

Китайский поставщик, машина для отжига проволоки с покрытием
25 000,00 $

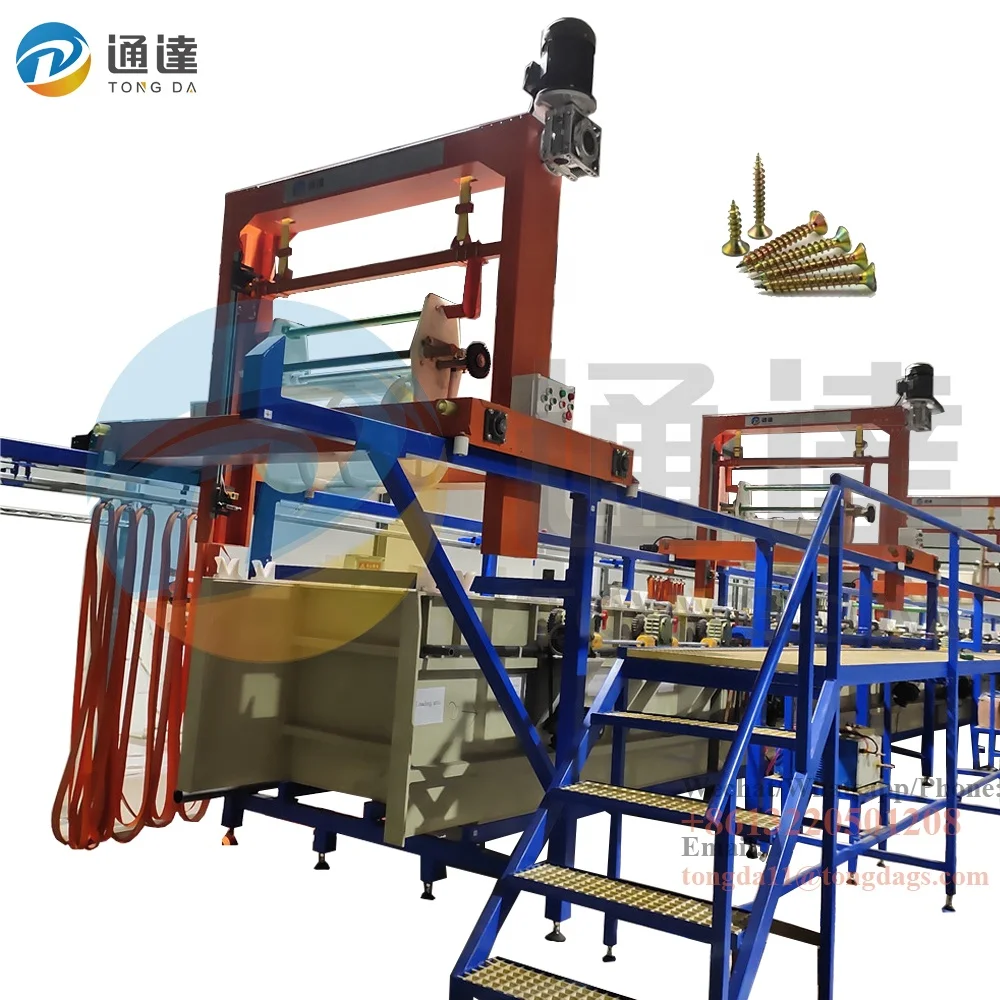

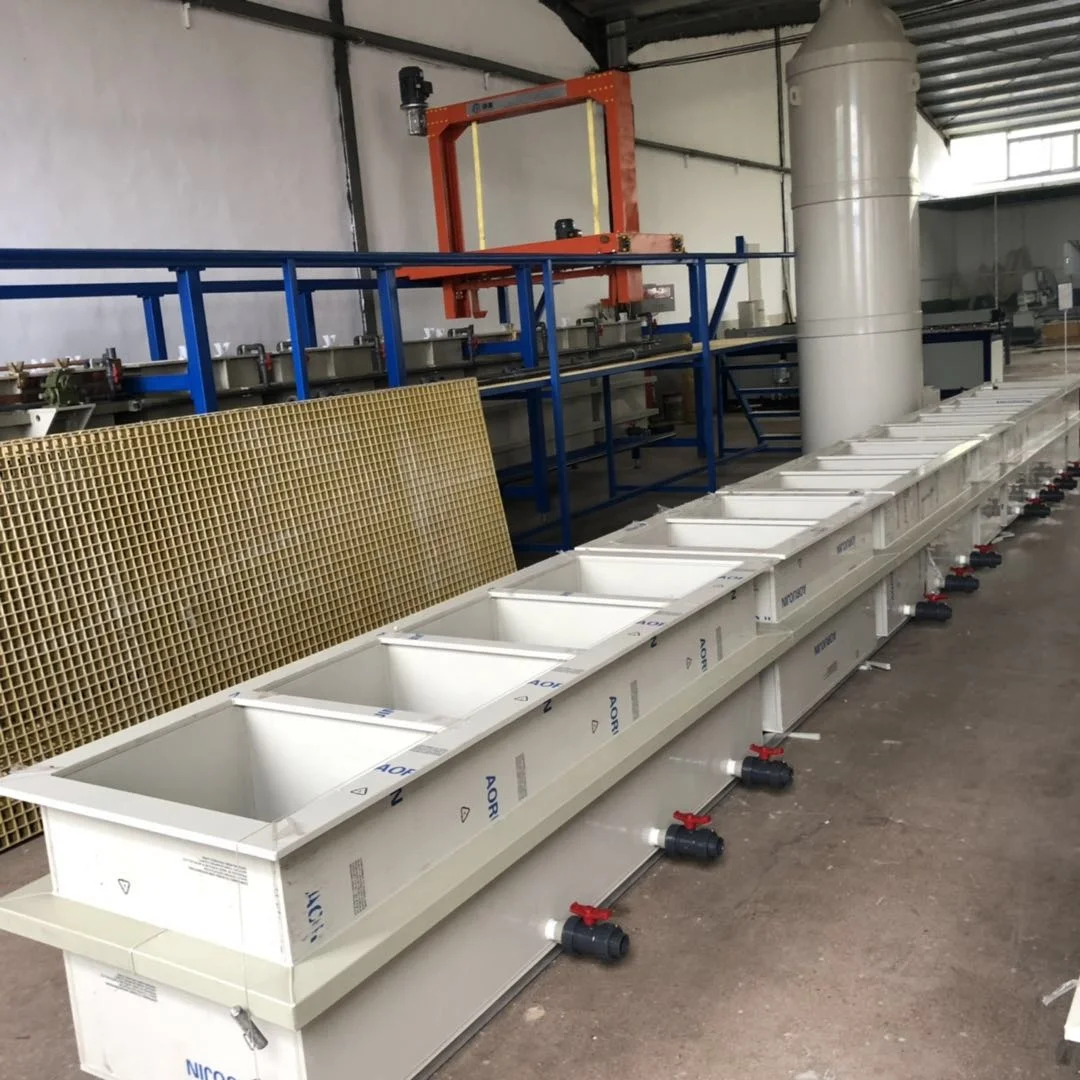

Линия по производству Медного покрытия и латуни
54 700,00 $
Электролитическое никелирование, оборудование для твердого хромирования, никелирование анодом

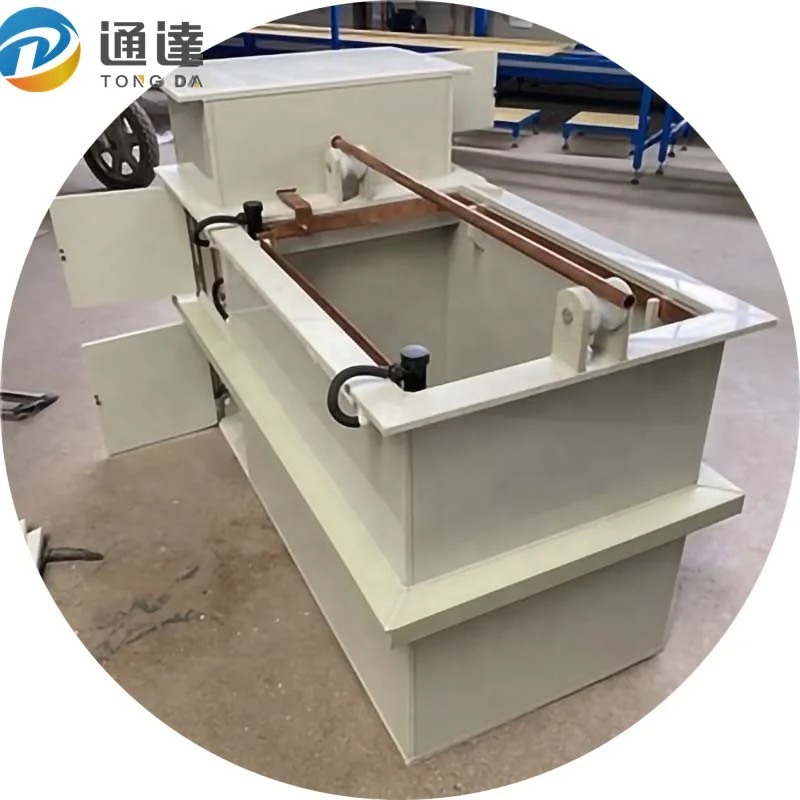

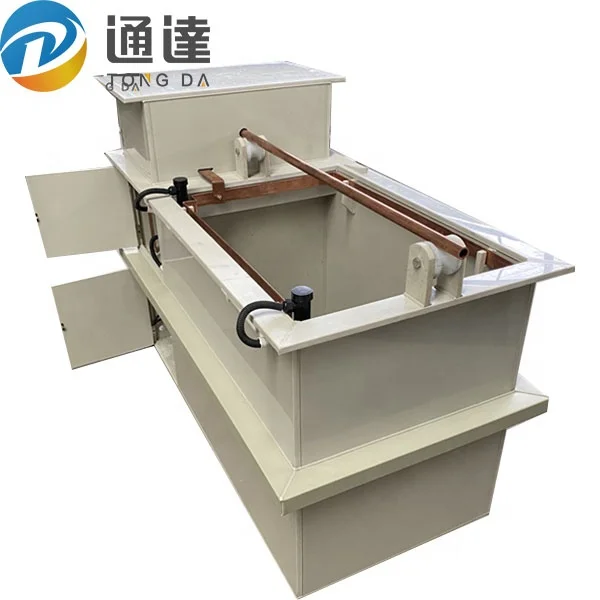

Бак для никелирования Tongda11/анодирующая машина/гальваническая машина для металла
