5XZ Cassia seed Hemp linseed flax seed gravity separator for Seed conditioning machinery

5XZ Gravity Separator for Imperfect Seeds Grains Removing

1) Function: fine cleaning, sorting, separating to remove bad, immature, insect damaged, moldy and germinated seeds, impurities, and admixtures such as same-size stones but with different specific weight.
2) Application: granular grains and seeds.
3) Capacity: 3t/h, 5t/h, 10t/h, 15~20t/h (wheat).

Gravity Separator, also known as gravity separation table, specific gravity separator, or density separator, is key processing machines for the perfect separation of products which are already treated by air screen cleaner and indented cylinder.

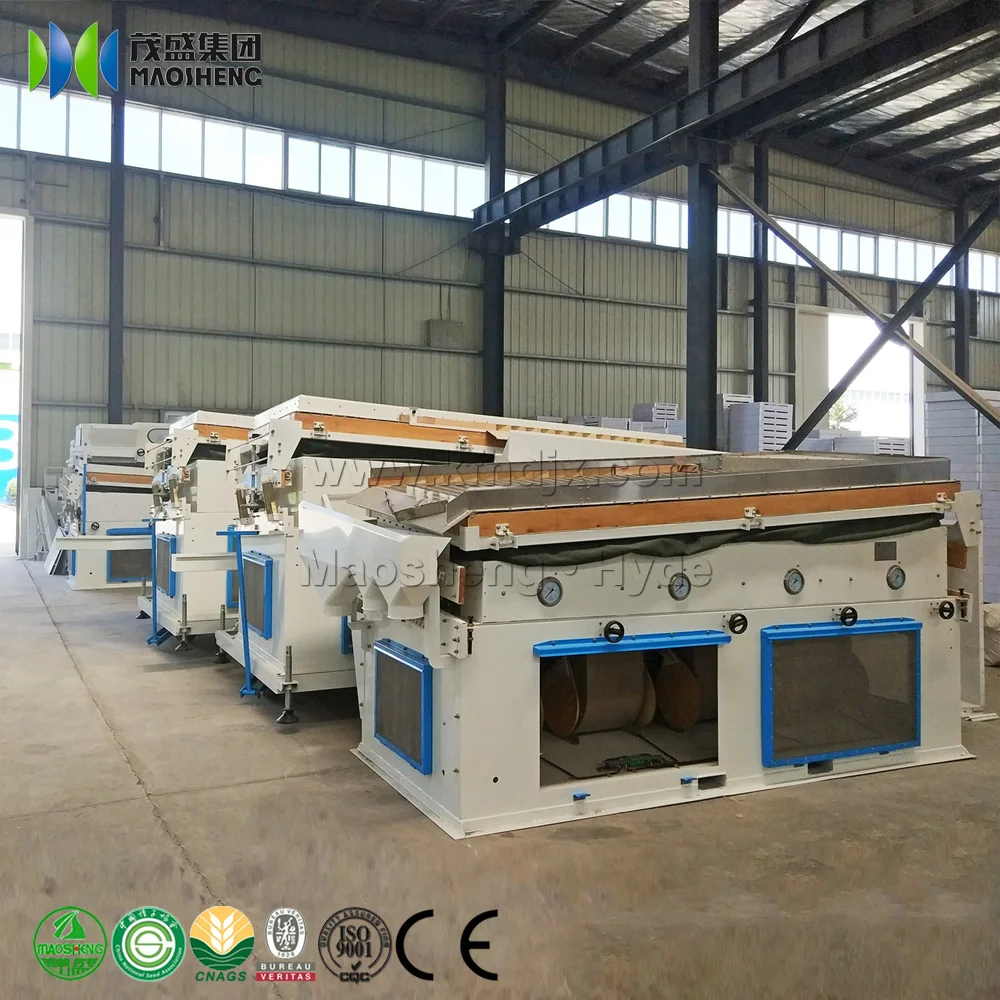

New gravity separator we manufactured in 2021

Wide Application of 5XZ Seed Gravity Separator

5XZ series gravity separator is widely used to remove impurities, admixture, insect damage and immature kernels from cereal grains such as wheat, barley, oilseed rape, peas, beans, cocoa beans, hazelnuts, linseed.

Variable screen configuration:

5XZ Seed Gravity Separator in Seed Cleaning Plants

Working Principle of 5XZ Specific Gravity Separator

Seeds and grains can be separated and graded by the suspension and friction characteristics.

Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.

Rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.

Advantages of 5XZ Gravity Separator

Hyde 5XZ seed gravity separators are designed with accuracy in separation of as slight as 0.5% difference in specific density.

Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and air volume.

Structural features:

1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
3) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
4) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
5) Variable feed speed, deck inclination, vibration speed and air volume by individual control units.
6) Safe guards to all moving parts ensure the safe operation.
7) Environmentally friendly with screen dedusting cover, low noise.

Special features:

1) Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
2) Larger motor for heavy seed.
3) Self-lubrication system can be added.
4) Stainless steel available for edible products.

5) Modular screen deck, with aluminum frame, clamped on, light and easy to replce.

Technical Specification of 5XZ Seed Gravity Separator, Density Separators

Grain and seed cleaning machines:

Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.

     Air Screen Fine Cleaner                    Seed Gravity Separator                    Indented Cylinder Separator

           Stone Separator                 Vibration Screen Cleaner Separator                Rotary Cleaner
