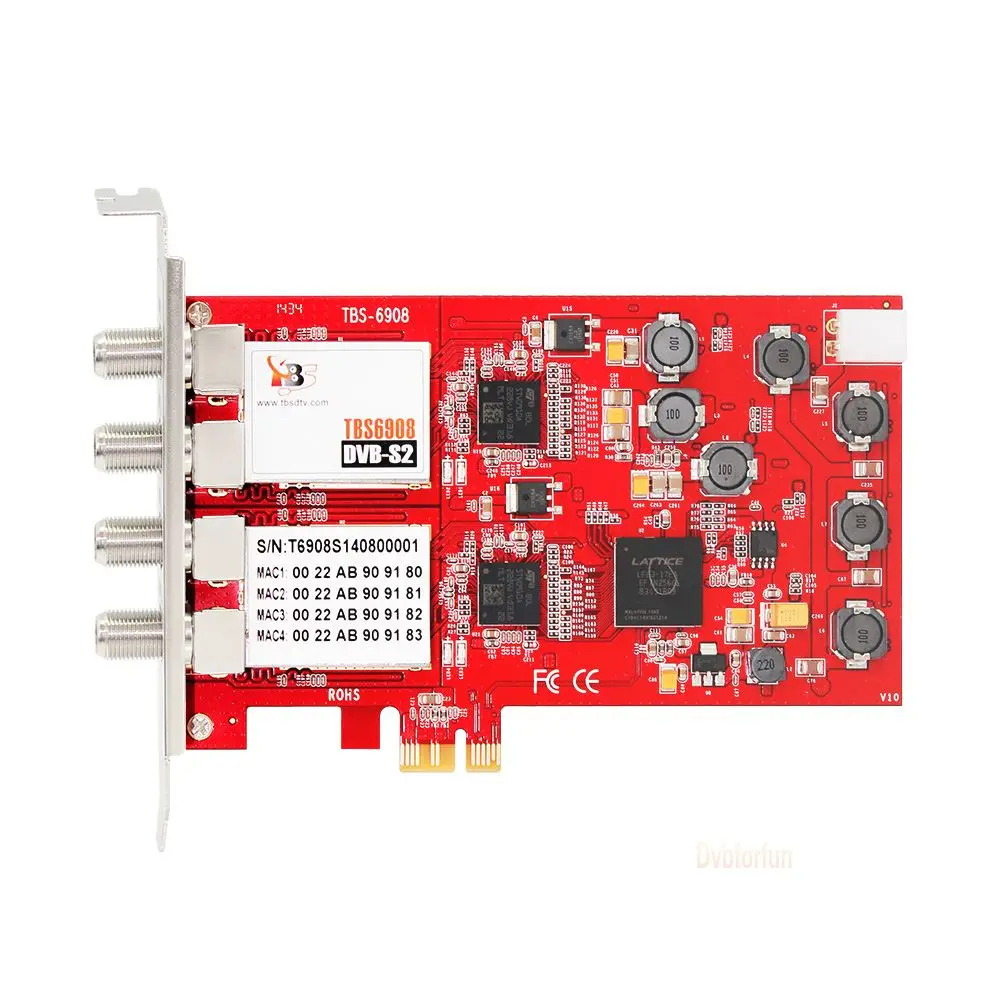

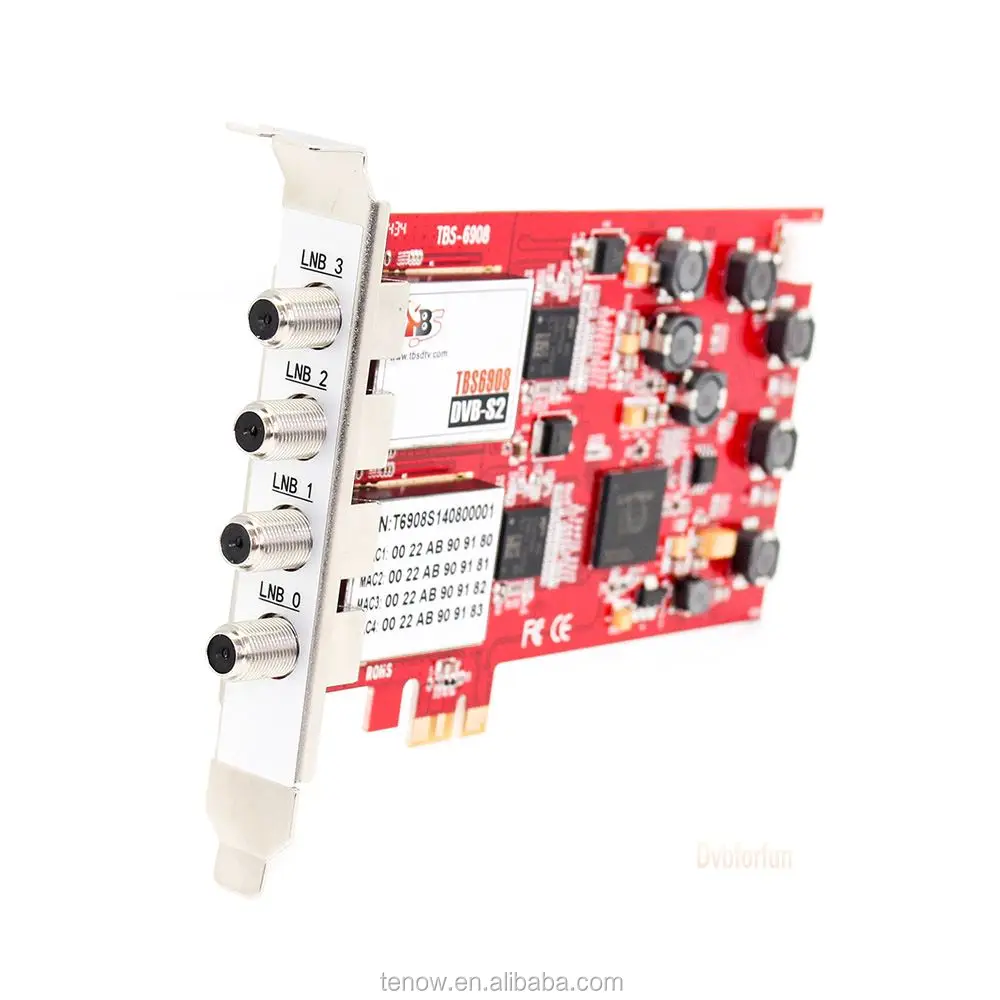

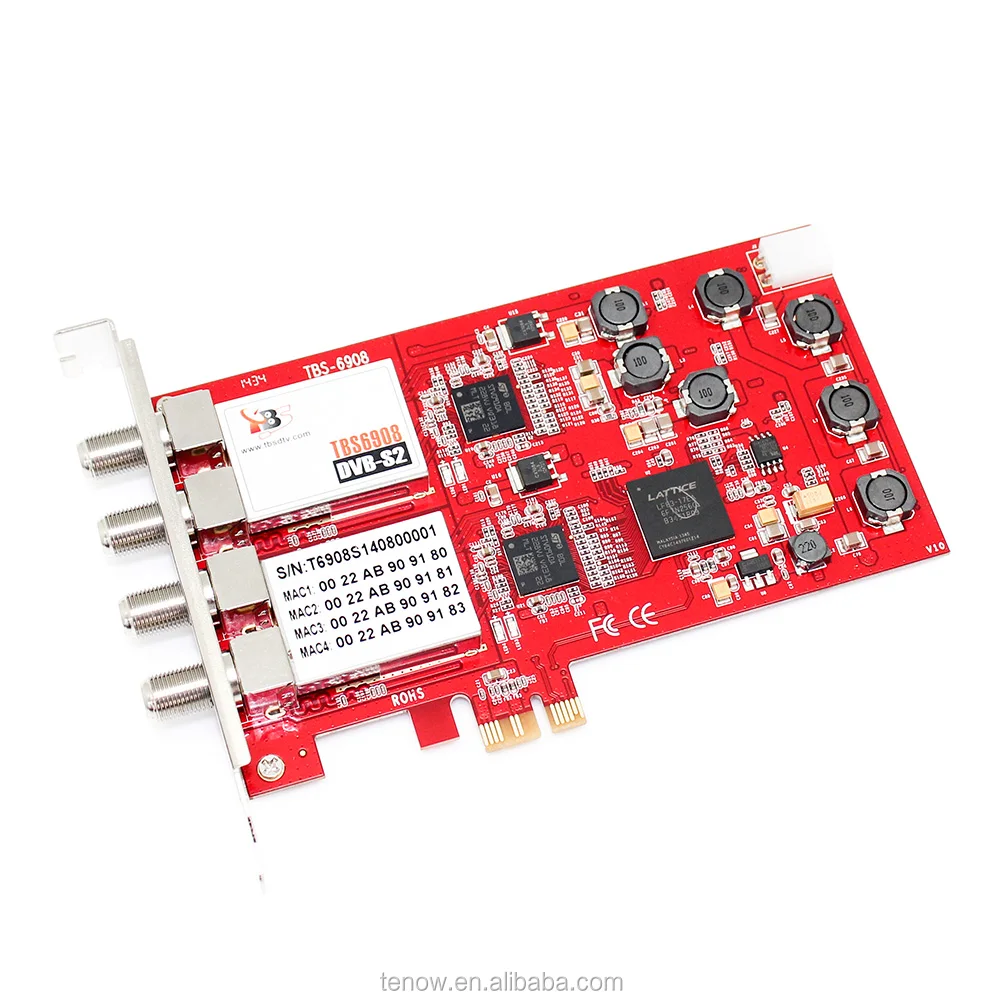

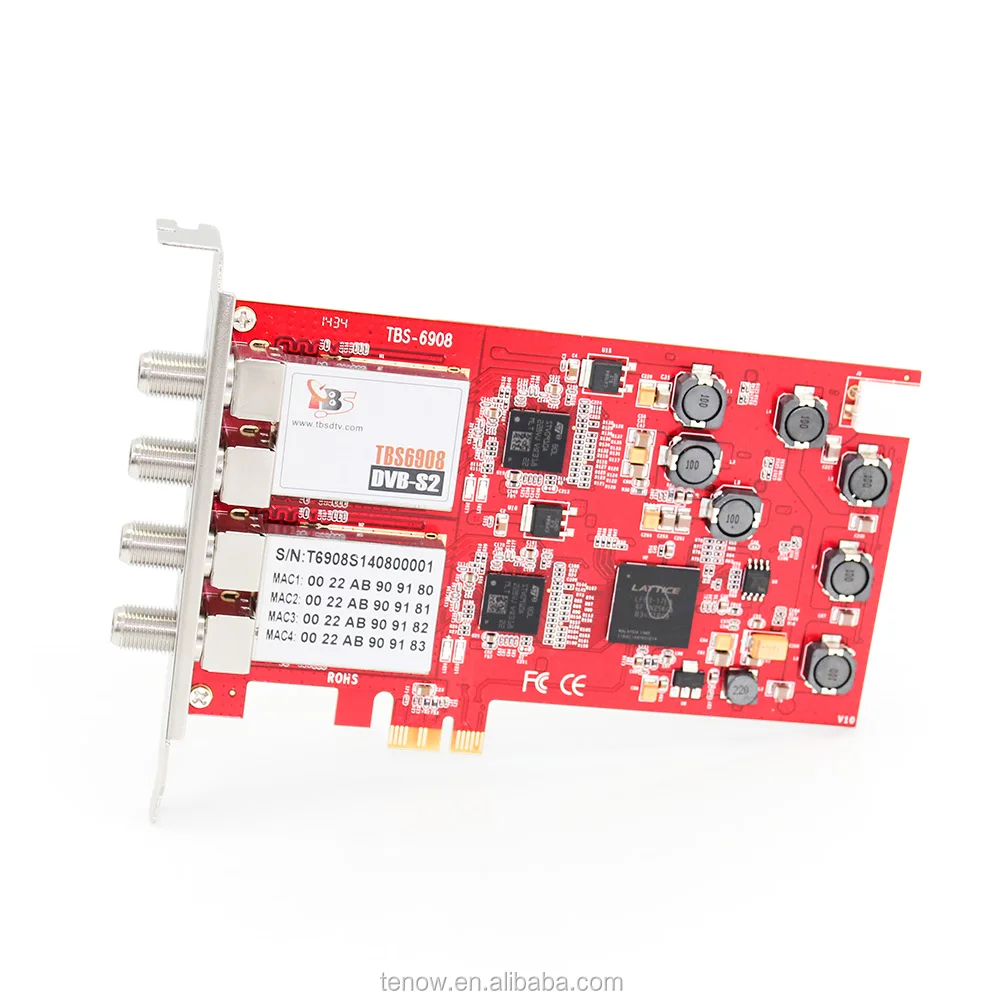

Профессиональный цифровой спутниковый четырехъядерный ТВ тюнер TBS6908 DVB S2 Quad тюнер карта PCIe

    TBS6908 DVB-S2 Quad Tuner, compatible with EUMETCast, is a Professional level digital satellite TV Tuner card with PCI Express interface.

    TBS6908 Quad Tuner Card supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also CCM, ACM, VCM, Multi Input Stream, 16APSK,32APSK,Generic Stream Mode, which most satellite receiving devices can’t support. With use of dedicated TBS tools, those special streams can be captured.

    Both  BDA driver and Linux driver up to the latest kernel 3.X are ready.

   TBS6908 Professional DVB-S2 Quad Tuner PCIe Card, built with the highest industry standard, with its rock reliability is the device that any personal enthusiasts or engineers in digital satellite TV industry dream to have. The applying of an unique DVB-S2 demodulator chipset makes it possible to receive special streams broadcasted with ACM, VCM, Multi Input Stream, 16APSK,32APSK or Generic Stream Mode.

Features:

EUMETCast Compatibility

Quad tuner DVB-S2/S transponders receiving

CCM, VCM, ACM and Multi Input Stream support

Generic stream mode Support

Up to 190 Mbit/s channel bit rate capture

Wide range symbol rates support from 1Msps to 45Msps

High-speed data download via satellite

Unicable/one cable compatible

Blindscan

High reliability

Applications:

Satellite feed hunt

Satellite data download

Lock of special transponders

Specifications:

Receiving frequency: 950~2150 MHz tuning range

Input level: -69~-23dBm

Quad channels DVB-S2/DVB-S 8PSK QPSK 16APSK 32APSK ACM/VCM Demodulator

Symbol rate:

-Maximum symbol DVB-S2 rate limitations (Msymb/s)

-DVB-S

QPSK+1/2, 2/3, 3/4, 5/6, 7/8

Support Data Burst & Tone Burst

Support DiSEqC2.X and Motor

Power consumption: 0.66W ~ 33.13W

TV tuner card size: 145mm*92mm (Length x Height)

System Requirements:

Windows XP / Vista/7/8/10, Linux

Pentium 4 2.0 GHz, Pentium M 1.3 GHz

For HDTV: 2.6 GHz multi core processor

Hard disk with min. 1 GB free capacity

Sound and graphics card with support for DirectX 9 or higher

Available PCI Express x1, x4, x8 or x16 slot

CD/DVD drive for software installation

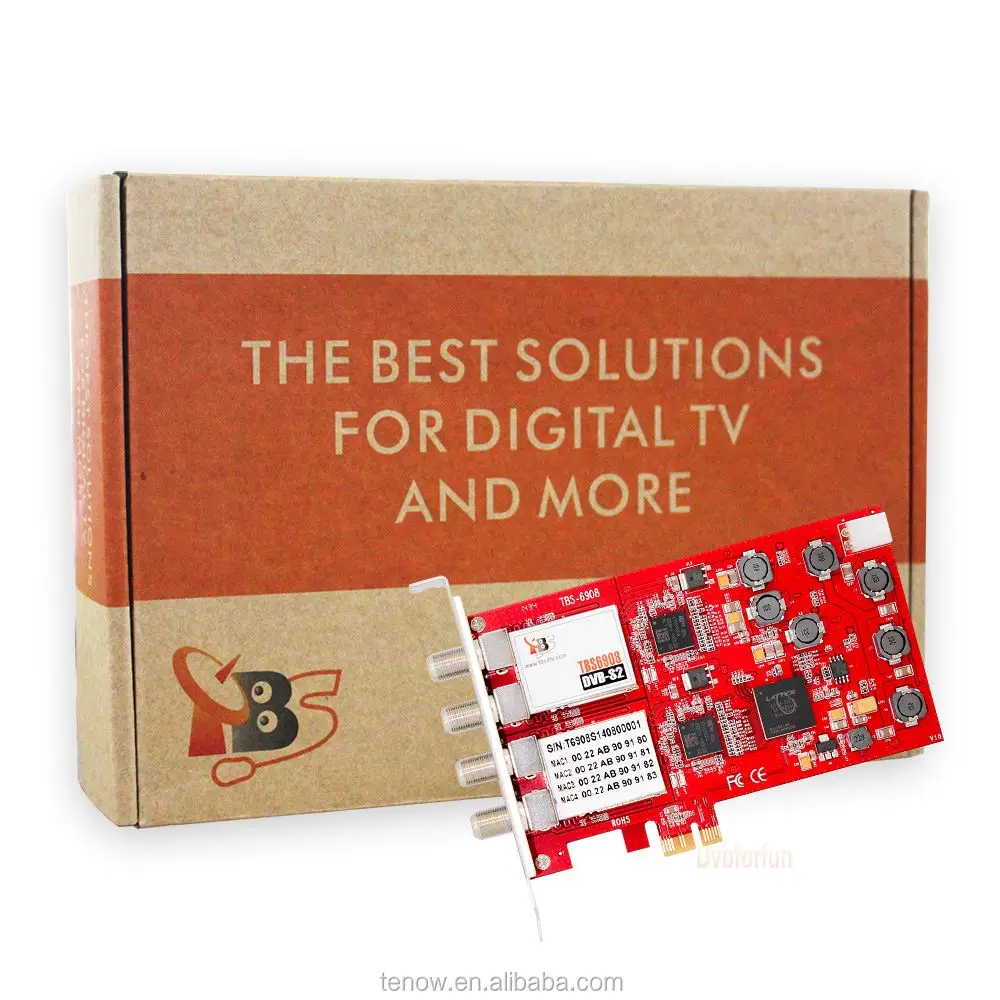

Package Contents:

1 x TBS6908 DVB-S2 Quad Tuner PCIe Card

1 x DC line
