Горячая Распродажа цветная наклейка флексографская печатная машина для резки этикеток
1 578 936,96 ₽ - 1 776 304,08 ₽
RY 330 горячая Распродажа ярлык стикера флексографическая печатная машина
- Категория: >>>
- Поставщик: Zhejiang Zhongte Machinery Technology Co. Ltd.
Сохранить в закладки 60480618441:
Описание и отзывы
Характеристики
Products Description
Details Images
Product Paramenters
MACHINE VIDEO:
----1). Printing Machines:
1. ZTJ-330/520 intermittent offset label printing machine: https://youtu.be/LAKyvQ9HiPg.
2. Super-320 intermittent letterpress label printing machine: https://youtu.be/4Tc-reNyngQ.
3. LRY 330/450 stack flexo label printing machine: https://youtu.be/CD4SB5Lk9To.
4. RY-330/450 flexographic label printing machine: https://youtu.be/ksr9OxenLK4.
5. flexo plate making machine: https://youtu.be/cNNZZlKWKsY.
----2). Die Cutting Machines:
1. MQ-320 die cutting machine: //youtu.be/63abqFREC58.
2. FQ-330/450R rotary die cutting and slitting machine for blank label: https://youtu.be/n0-Z77_6LLk.
3. ZMQ-320 semi rotary die cutting machine: https://youtu.be/sgYOmfpyCPE.
----3). Slitting Machines
1. FQ-320/450 label slitting and rewinding machine: https://youtu.be/75z0rzozqkw.
----4). inspecting machines
1. ZJP inspecting machine: https://youtu.be/9H751zeIT5o.
----1). Printing Machines:
1. ZTJ-330/520 intermittent offset label printing machine: https://youtu.be/LAKyvQ9HiPg.
2. Super-320 intermittent letterpress label printing machine: https://youtu.be/4Tc-reNyngQ.
3. LRY 330/450 stack flexo label printing machine: https://youtu.be/CD4SB5Lk9To.
4. RY-330/450 flexographic label printing machine: https://youtu.be/ksr9OxenLK4.
5. flexo plate making machine: https://youtu.be/cNNZZlKWKsY.
----2). Die Cutting Machines:
1. MQ-320 die cutting machine: //youtu.be/63abqFREC58.
2. FQ-330/450R rotary die cutting and slitting machine for blank label: https://youtu.be/n0-Z77_6LLk.
3. ZMQ-320 semi rotary die cutting machine: https://youtu.be/sgYOmfpyCPE.
----3). Slitting Machines
1. FQ-320/450 label slitting and rewinding machine: https://youtu.be/75z0rzozqkw.
----4). inspecting machines
1. ZJP inspecting machine: https://youtu.be/9H751zeIT5o.
High quality multi-color self-adhesive car sticker printing machine
Performance and Characteristics:
1. The main motor adopts imported inverter to govern a stepples speed adjustment.
2. Feeding and rewinding are controlled through magnetic particle brake and clutch(Japanese Mitsubishi auto tension controller).
3. Un winder system is controlled by edge guide sensor.
4. Adopt ceramic anliox roller which offers durability, wear resistance and corrosionresistance, also is more efficient on
production by reducing the times of changing rollers.
5. The printing units are all equipped with a group of infrared dryers respectively.
6. Each IR dryer device of printing unit is interchangeable to UV dryer.
7. Un winder and re winder adopt air core holder.
8. The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units
continue to printing.
9. The roll feeding, printing, UV vanish, auto infrared drying, laminating and rewinding can be processed in one pass. It has
characterized by wide application, fast printing speed and high economic efficiency Ink will not contaminate environment. So it is
an idea printing machine for the business form, Tag and high end pressure sensitive label.
10. The inking roller will be automatically off impression when press stop and rotate at lower speed in order to keep the ink from
being drying.
1. The main motor adopts imported inverter to govern a stepples speed adjustment.
2. Feeding and rewinding are controlled through magnetic particle brake and clutch(Japanese Mitsubishi auto tension controller).
3. Un winder system is controlled by edge guide sensor.
4. Adopt ceramic anliox roller which offers durability, wear resistance and corrosionresistance, also is more efficient on
production by reducing the times of changing rollers.
5. The printing units are all equipped with a group of infrared dryers respectively.
6. Each IR dryer device of printing unit is interchangeable to UV dryer.
7. Un winder and re winder adopt air core holder.
8. The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units
continue to printing.
9. The roll feeding, printing, UV vanish, auto infrared drying, laminating and rewinding can be processed in one pass. It has
characterized by wide application, fast printing speed and high economic efficiency Ink will not contaminate environment. So it is
an idea printing machine for the business form, Tag and high end pressure sensitive label.
10. The inking roller will be automatically off impression when press stop and rotate at lower speed in order to keep the ink from
being drying.
Model | RY-320 | RY-470 | RY-650 |
Max. Web Width | 320mm | 450mm | 650mm |
Max. Printing width | 310mm | 440mm | 640mm |
Printing repeat | 180-380mm | 180-380mm | 180-380mm |
Color | 1-8 | 1-8 | 1-8 |
Thickness of substrate | 0.1mm-0.3mm | 0.1mm-0.3mm | 0.1mm-0.3mm |
Machine speed | 10-80m/min | 10-80m/min | 10-80m/min |
Max. unwind diameter | 600mm | 600mm | 600mm |
Max. rewind diameter | 550mm | 550mm | 550mm |
Main Motor capacity | 2.2kw | 2.2kw | 3kw |
Main power | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Overall dimension(around) | 2600*1500*3000MM | 2600*1600*3000MM | 2600*1700*3000MM |
Machine weight(around) | 2000kg | 2300kg | 3500kg |
Product packaging
Recommend Products
Exhibition
Company Profile
Zhejiang Zhongte Machinery Technology Co.,Ltd. is an enterprise who specialized in developing, producing and sales label, packaging printing machines.
We are recognized as national high-tech enterprise through new government standard, the enterprise for State Torch Projects, Zhejiang Province High-tech SMEs. Company emphasis on the recruit of the international top-notch people and has abundant technical power. Based upon global sales and marketing network, relying on the strength of high-tech and adhere to the development strategy of "Be a science and technology Ieader, to create the national brand", ZONTEN became a well-known Chinese enterprise in printing machinery industry.
We are recognized as national high-tech enterprise through new government standard, the enterprise for State Torch Projects, Zhejiang Province High-tech SMEs. Company emphasis on the recruit of the international top-notch people and has abundant technical power. Based upon global sales and marketing network, relying on the strength of high-tech and adhere to the development strategy of "Be a science and technology Ieader, to create the national brand", ZONTEN became a well-known Chinese enterprise in printing machinery industry.
FAQ
Q：Are you factory or trading company?
A: We are a factory in this field nearly 20 years.
Q: How does your factory control quality?
A: Quality is priority. We have strictly quality controlling system to control machine details from the beginning.
Q: How long is machine warranty period and service?
A: one year guarantee. And provide customers with full time online sales and after-sales network.
Q: How many operator for operate machine?
A: one person can handle it well.
Q: Why choose zonten Machinery?
A: We are one of leader in label machinery field in China. we holds the managing philosophy of 'Win with quality and success by
professionalism". Our products are sold well in domestic market and exported to more than 100 countries.
Warmly Welcome to visit us and contact us freely.
A: We are a factory in this field nearly 20 years.
Q: How does your factory control quality?
A: Quality is priority. We have strictly quality controlling system to control machine details from the beginning.
Q: How long is machine warranty period and service?
A: one year guarantee. And provide customers with full time online sales and after-sales network.
Q: How many operator for operate machine?
A: one person can handle it well.
Q: Why choose zonten Machinery?
A: We are one of leader in label machinery field in China. we holds the managing philosophy of 'Win with quality and success by
professionalism". Our products are sold well in domestic market and exported to more than 100 countries.
Warmly Welcome to visit us and contact us freely.
Похожие товары

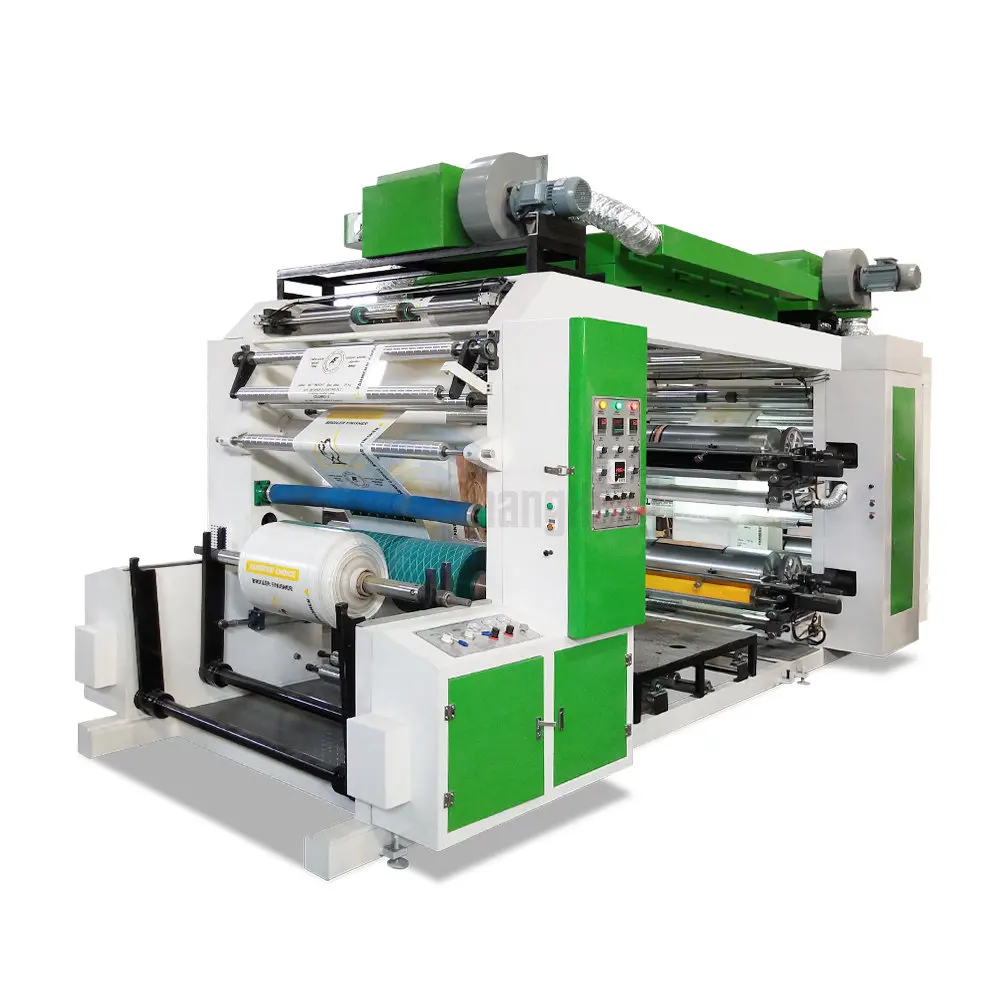

Автоматическая флексографическая 4-цветная печатная машина с гибким прессом, Нетканая пластиковая флексографская печатная машина для продажи
657 890,40 ₽ - 712 714,60 ₽
2024 новая экономичная Нетканая 4-цветная флексографская печатная машина 200 м/мин флексографская печатная машина для продажи
4 473 654,72 ₽ - 4 484 619,56 ₽

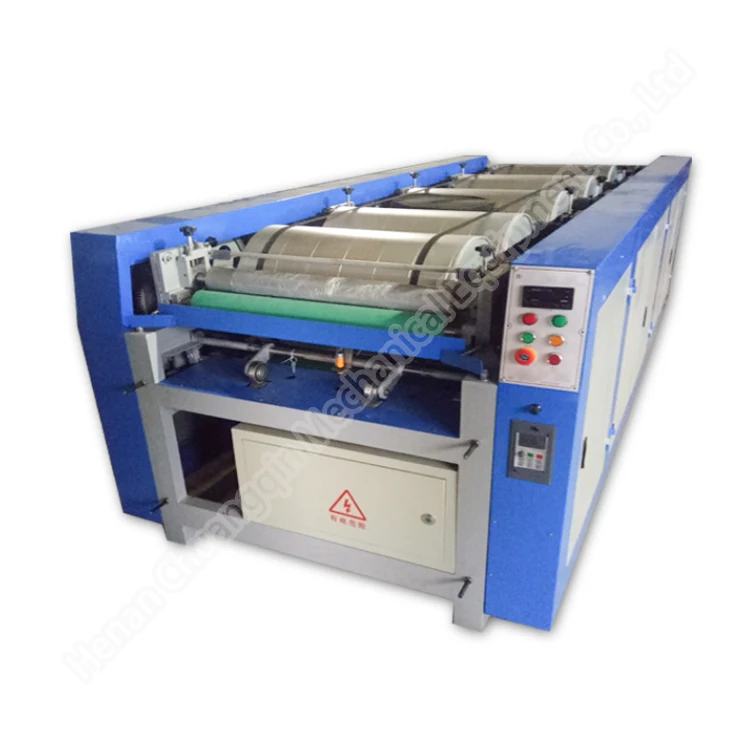

Печатная машина для тканых мешков
217 103,84 ₽ - 260 963,20 ₽

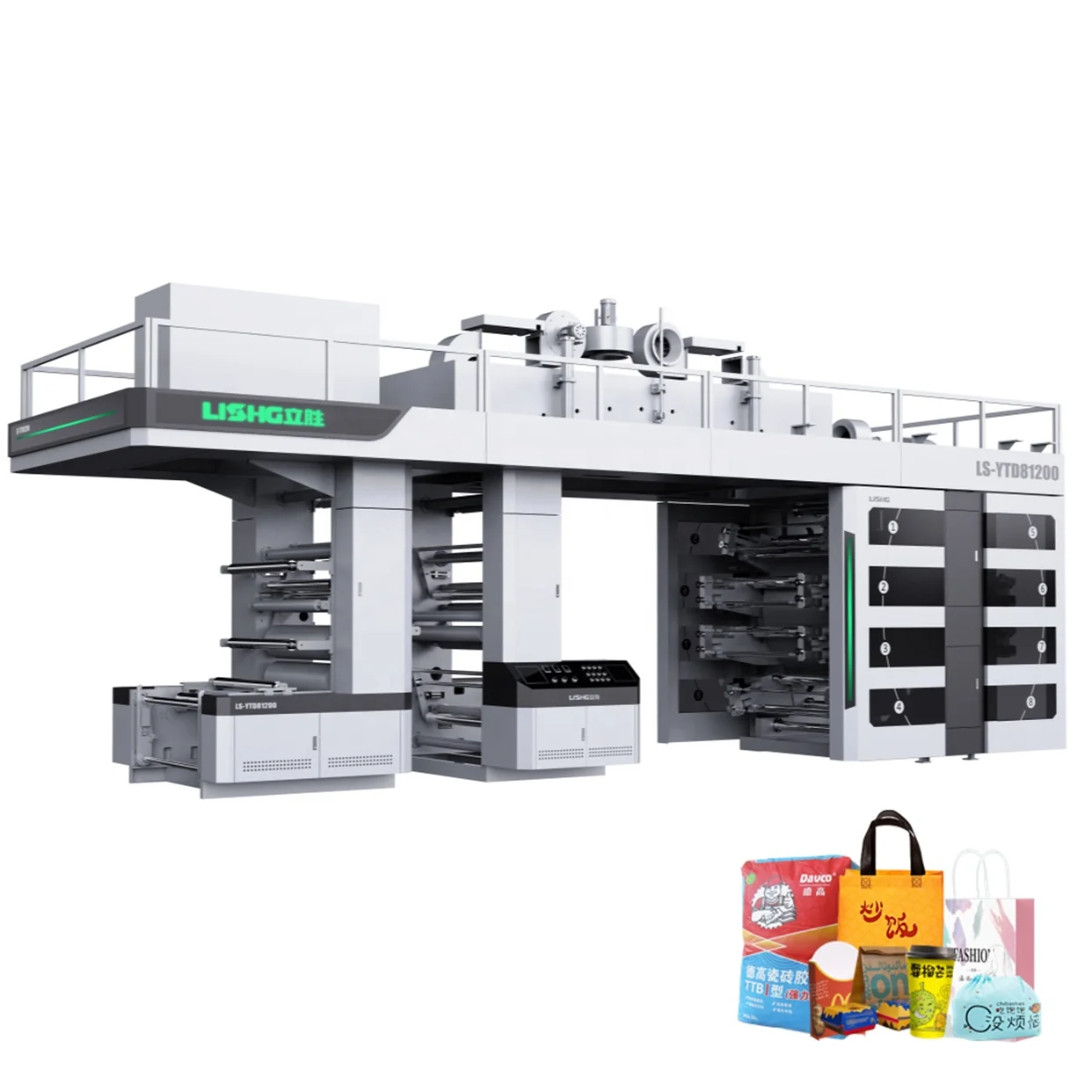

Lisheng, нижний крафт-бумажный пакет, упаковка, 8 цветов, сервопривод, тип ci, флексографская печатная машина
