     Multilevel boiler feed pump  High temperature water pump

    Multi-stage single suction pumps

Product Description

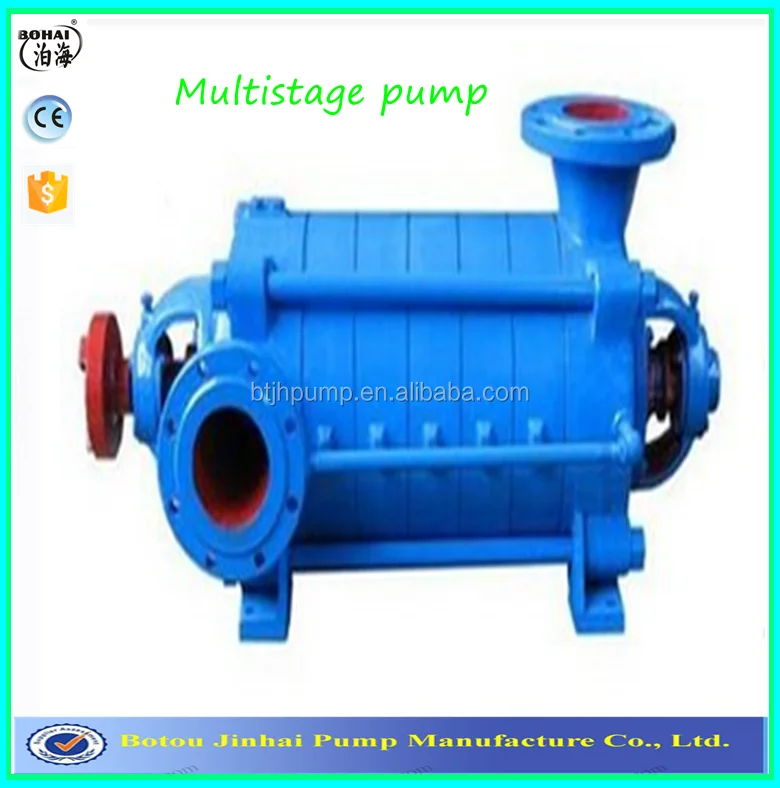

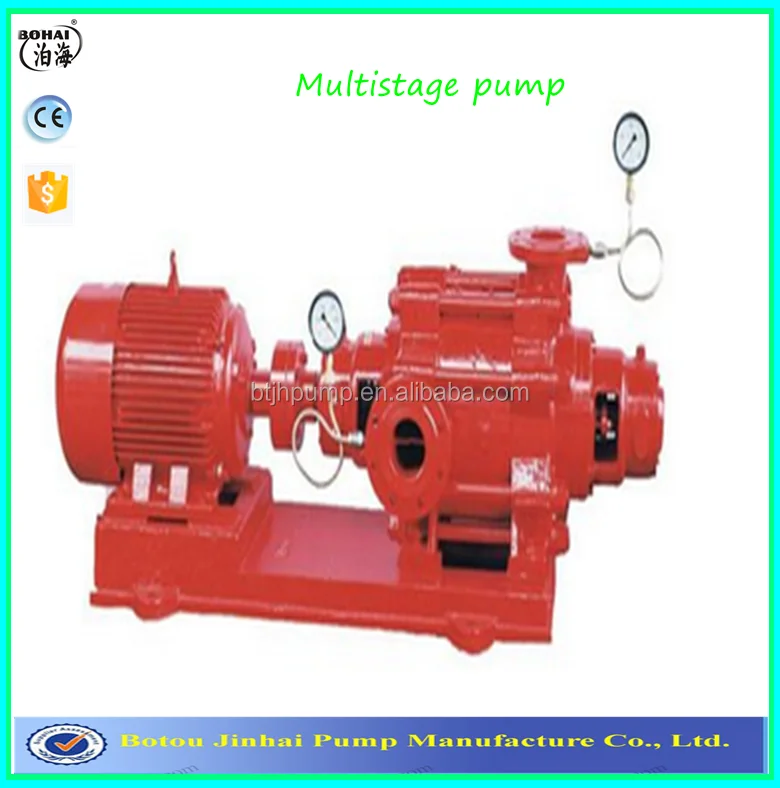

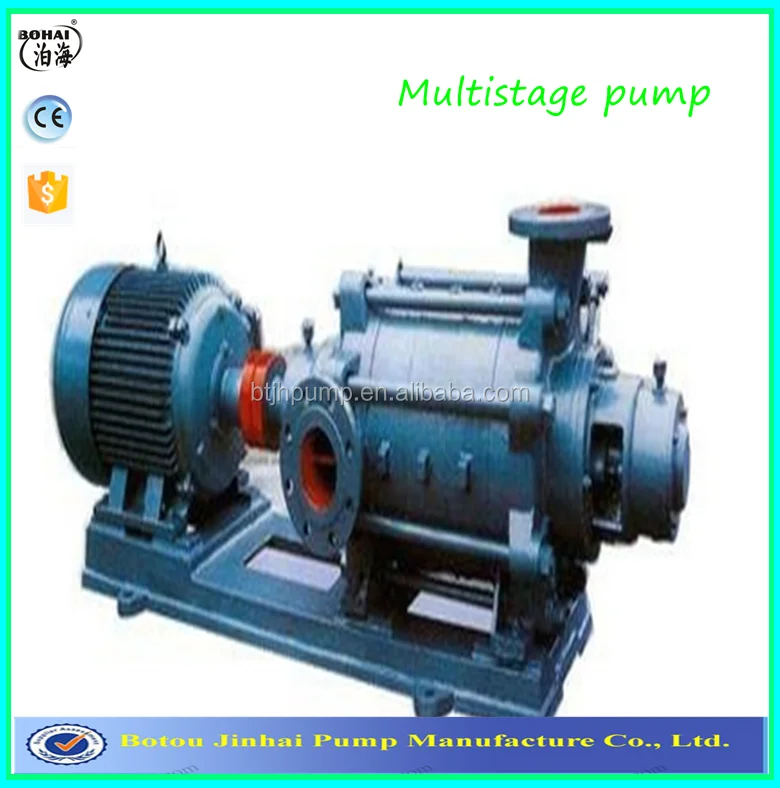

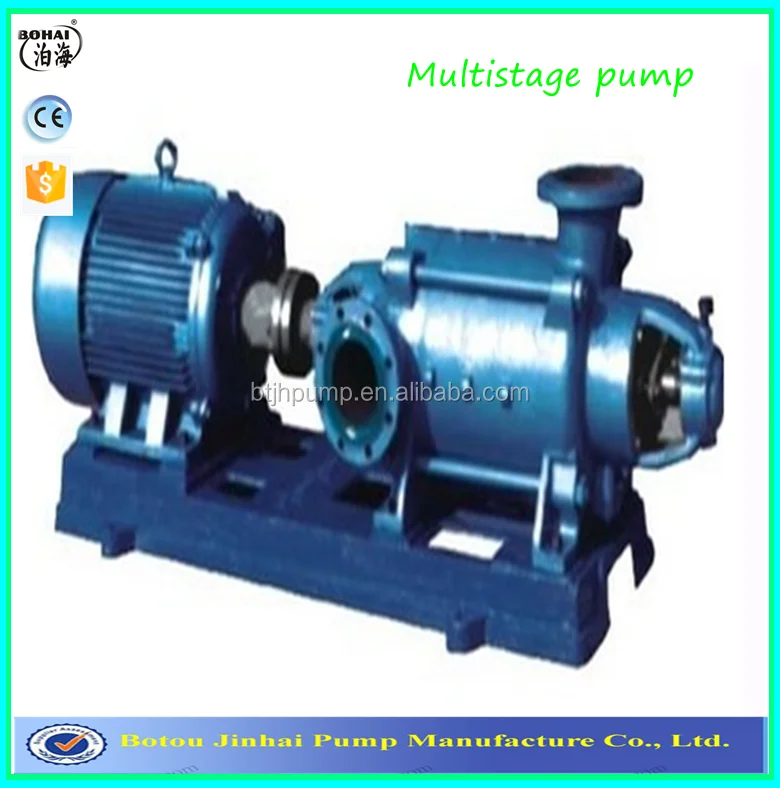

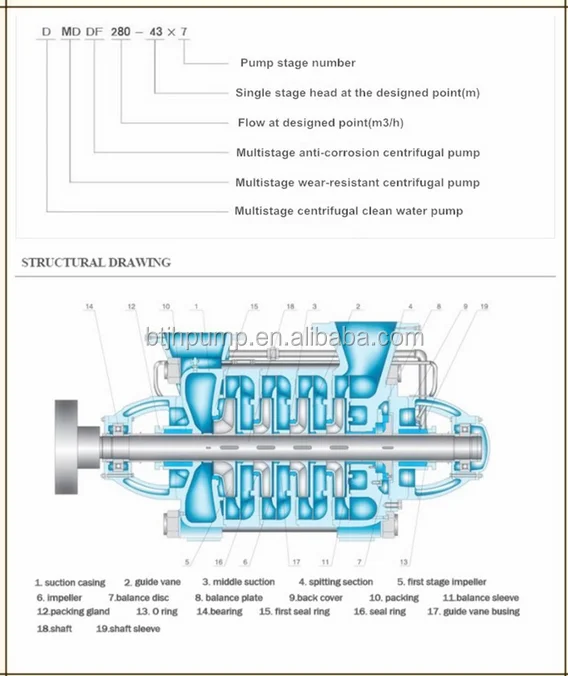

Type D/ MD/ DF/ DY multistage horizontal centrifugal pump consists of stator, rotator, bearing and shaft seal:

1) Stator: main parts is suction casing, stage casing, discharge casing and diffusor, they are screw up by poles to become a working house. The suction direction of D pump is horizontal, its discharge direction is upword; the discharge direction of MD/DF/DY pumps are upward, the suction direction is horizontal, they can be made upword according to user requirement.

2) Rotor: it is consist of shaft, impeller, balance disc, and shafe sleeve etc. Shaft supplied power to impeller. The axial force is balanced by disc. The shaft sleeve is mounted on shaft to protect shaft.

3) Shaft seal: it is usually adopted soft packing seal, consist of sealing house on suction casing, packing, blocking water ring, the seal house have some pressure water to cool. Lubricate and seal pump. Type D pump pressure water come from pump itself; type MD/DF/DY pump pressure water is come from pump itself or outer water, type MD/DF/DY pump usually adopt mechanical seal.

4) Drive: The pump is driver directly by motor through coupling.

Horizontal multi-stage centrifugal pump the material parameter tabale

 More Details

Capacity Q:6.3~600m3/h

Head H:22.8~650m

D(MD,DF,DY) 85-67×3

D —Multi-stage horizontal centrifugal pump

MD —Multi-stage wearable centrifugal pump

DF —Multi-stage anti-corrosive centrifugal pump

DY —Multi-stage centrifugal oil pump

85 — The capacity is 85m3/h at design point

67 — The single stage head is 67m at design point

3 —The stage number is 3 stage

Our factory

Botou Jinhai Pump Manufacture Co., Ltd is a leading and professional company with many years' experience in pump manufacturing. We specialize in products for many kinds of liquids (such as water, gasoline, lubricant, diesel, acid liquid etc.) Such as Oil Pump, Gear Oil Pump, Lubricant Pump,Stainless Steel Gear Oil Pump, Bitumen Pump, Self Priming Pump, Hot-transfer Oil Pump, Centrifugal Pump etc. Our company can also produce qualified products according to customer's customization.

We are supported by experienced technical team, machining workers and strict inspection to offer various products with competitive price and reliable quality. Our products have a good market in countries and regions of USA, India, Middle East, Europe, Africa etc. The advanced craft, the strong technology, completed examination, and ceaseless innovation provide a speedy development for Jinhai. We always serve our customers at a low price but with excellent quality and excellent after-sales service. We are in line with "All for Customers". With a view to create a global, and a brand product, we welcome every customer to develop with us together.

We welcome customers, business associations and friends from all parts of the world to contact with us and seek cooperation for mutual benefits.

Your visit to us is deeply welcomed!

FAQ

1. How do you find the most suitable pump?

Please inform us details of the product you require.

1) Medium,medium temperature,viscosity, corrosivity;

2) Pump capacity;

3) Pump pressure(head);

4) Outlet and inlet diameter.

If possible,please also provide the model you are using now.

If not,we will recommend revelant product for reference.

2. Are you a manufacture or a trade company?

We have our factory and we also cooperate with other companies.

3. How do you sure your after-sale services?

Produce refund and replacements are guaranteed for all the products within 3000 hours after purchace(Under normal use,except special medium and environment).

4. How long would it take to receive your orders?

We will arrange shipment within a week after payment.

(According to order QTY)

5. How do we deal with clients’ quality complaints?

All complaints will be recorded into documents immediately.

Our service engineer will contact you once we find out the problems and help you deal with it finally.
