Износостойкая стальная пластина толщиной 6 мм 10 12 25
450,00 $ - 742,50 $
S460NL 16 мм толщиной Горячекатаная Конструкционная стальная пластина цена за
- Категория: Carbon Steel >>>
- Поставщик: Shanghai Hengtie Steel Trading Co. Ltd.
Сохранить в закладки 60482629469:
Описание и отзывы
Характеристики
S460NL 16mm thick hot rolled structural steel plate price per kg
Product Description
Supply S460NL (1.8903) EN10025-3 steel plate
steel Grade : | S460NL (1.8903) |
Specification: | Thickness 8mm-300mm, Width: 1500-4020mm, Length: 3000-27000mm |
Standard: | EN10025-3 : 2004 Technical delivery conditions for normalized/normalized rolled weldable fine grain structural steels |
Approval By Third Party | ABS, DNV, GL, CCS, LR , RINA, KR, TUV, CE |
Classification: | Normalized rolled weldable fine grain structural steels |
Equivalent grades: | S460ML |
Chemical composition % of the Product analysis of grade S460N (1.8901)
Nominal thickness =< 63(mm) CEV max = 0.53
Nominal thickness from 63 to 100 (mm) CEV max = 0.54
For long products the P and S content can be 0.005% higher
For railway application a maximum S content of 0.01% may be agreed at the time of enquiry and order
If sufficient other N-binding elements are present the minimum total Al content does not applay
Cu content above 0.4% may cause hot shortness during hot forming
Nominal thickness from 63 to 100 (mm) CEV max = 0.54
For long products the P and S content can be 0.005% higher
For railway application a maximum S content of 0.01% may be agreed at the time of enquiry and order
If sufficient other N-binding elements are present the minimum total Al content does not applay
Cu content above 0.4% may cause hot shortness during hot forming
C | Si | Mn | Ni | P | S | Cr | Mo | V | Nb | Ti |
max 0.22 | max 0.65 | 0.95 - 1.8 | max 0.85 | ma 0.035 | max 0.03 | max 0.35 | max 0.13 | Max 0.22 | max 0.06 | max 0.06 |
Mechanical properties of grade S460NL (1.8903)
Temperature | -10 | 0 | 20 |
Notch impact test. Min. absorbed energy | 51 | 55 | 63 |
Nominal thickness (mm) | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 |
ReH - Minimum yield strength (MPa) | 460 | 440 | 430 | 410 | 400 | 380 | 370 |
Nominal thickness (mm) | to 100 | 100 - 200 |
Rm -Tensile strength (MPa) | 540 to 720 | 530 to 710 |
Nominal thickness (mm) | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 200 |
A - Minimum elongation Lo = 5,65 √ So (%) | 17 | 17 | 17 | 17 | 17 |
Equivalent grades of grade S460NL(1.8903)
Germany DIN,WNr | France AFNOR | England BS | Italy UNI | China GB | Russia GOST |
TStE460 | E 460 FP | 55EE | Fe E 460 KT N |

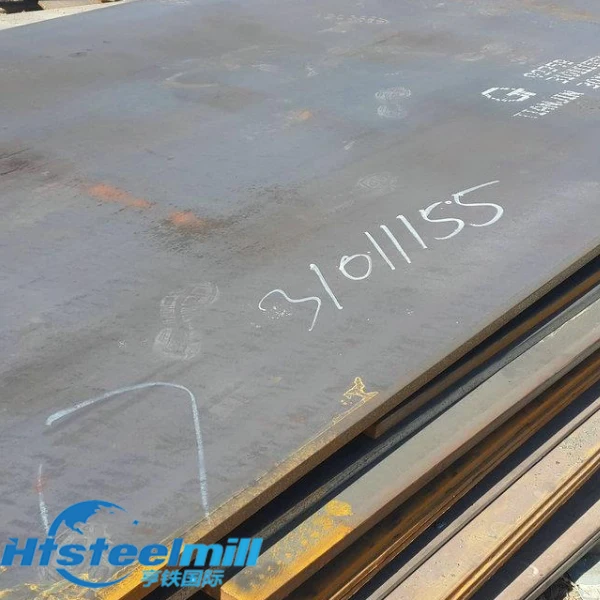

Material Photo:
Application

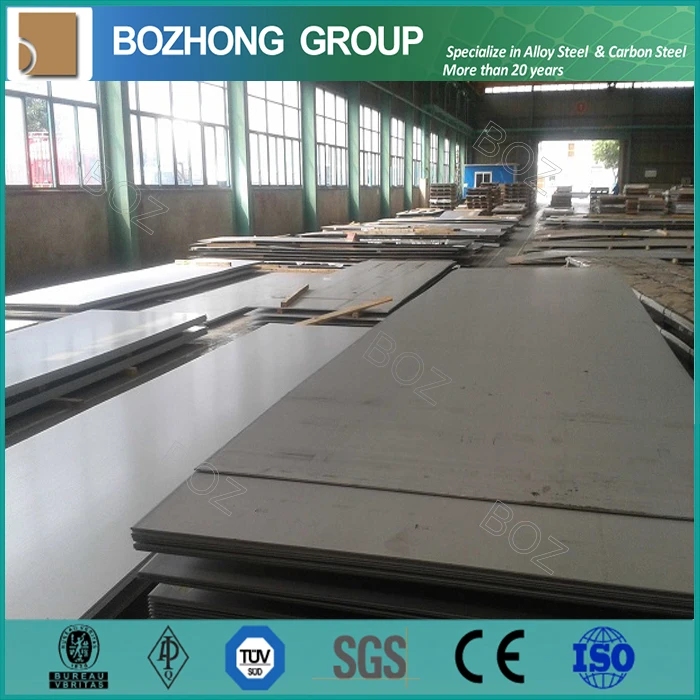

Wrkshp&Wrhse&Shppg
company information
Bozhong Group Mainly supply in forms of coil, sheet, plate, rod, bar, tube, pipe, beam, angle, flange, wire, strip, channel, etc., with various varieties, wide range of dimensions, high purity, stable chemical composition, high dimensional accuracy and excellent surface quality. The products are mainly used in the fields of industries such as automobile engineering, railway transportation, aviation, aerospace, machinery, petrochemical, energy, environmental protection, offshore, chemical, oil & gas, ilitary, power plant, nuclear power, pressure vessel, boiler equipment, mold manufacture, etc.
l steel coil
l steel plate
l steel sheet
l steel bar/rod
steel round bar
steel flat bar
steel square bar
l steel pipe/tube ( welded or seamless )
steel round pipes
steel square pipes
steel welded tubes
steel seamless tubes
l steel strip
l steel beam
l steel angle
l steel channel
l steel flange
l Steel wire
Bozhong Group can supply a variety of structural steel, high-strength steel, wear-resistant steel plate, boiler and pressure vessel steel, marine engineering and stainless steel plate in the thick steel and various European standard bars and pipes and profiles.Our global sales and service network throughout all around the world to ensure that the goods reach the customer in the shortest time.
We can follow your drawings and requirements, to provide you with oxygen cutting, plasma cutting and laser cutting and other processing services. You can also perform ultrasonic testing in accordance with EN10160 standard, EN10164 standard test Z15, Z25, Z35, weld bending detection, PWHT detection,etc.
We have ISO9001: 2000 quality management system certification, and obtain the quality certification from all the well-known certification company, including TuV / LRS / GL / CE and so on.
Special steel includes as below:
Boiler and pressure vessel steel
Pipeline steel
Bridge steel
Nuclear power steel
Structural steel
Die steel
High strength steel
Abrasion resistant steel
Weathering, corrosion resistant and fire resistant steel
High rise building steel
Shipbuilding and offshore engineering steel
FAQ
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don’t have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
Customer Visiting
Warmly welcome! Pick up your phone and Call us!
Send us the inquiry here!
We will reply you at the first time.
Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
