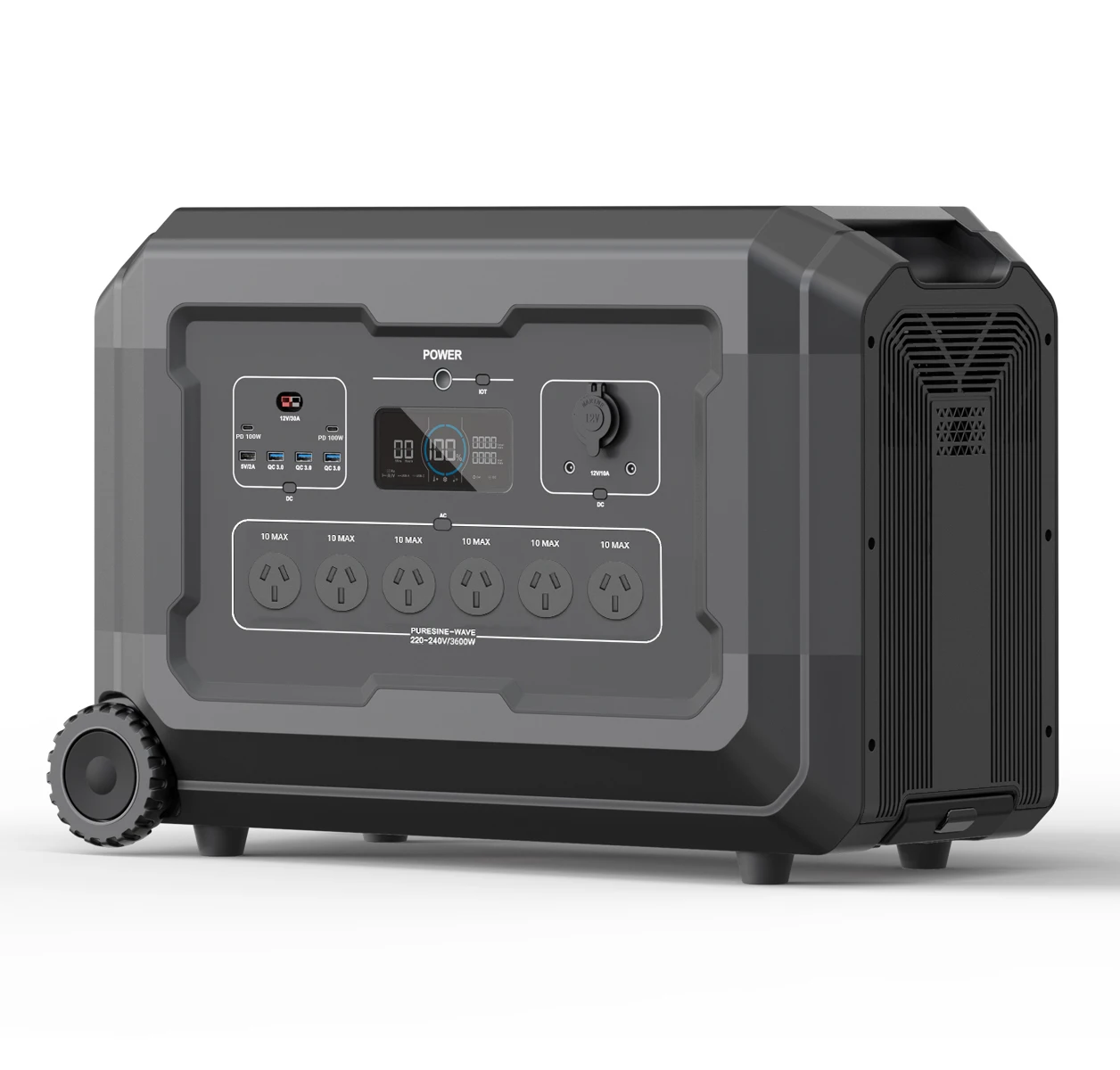

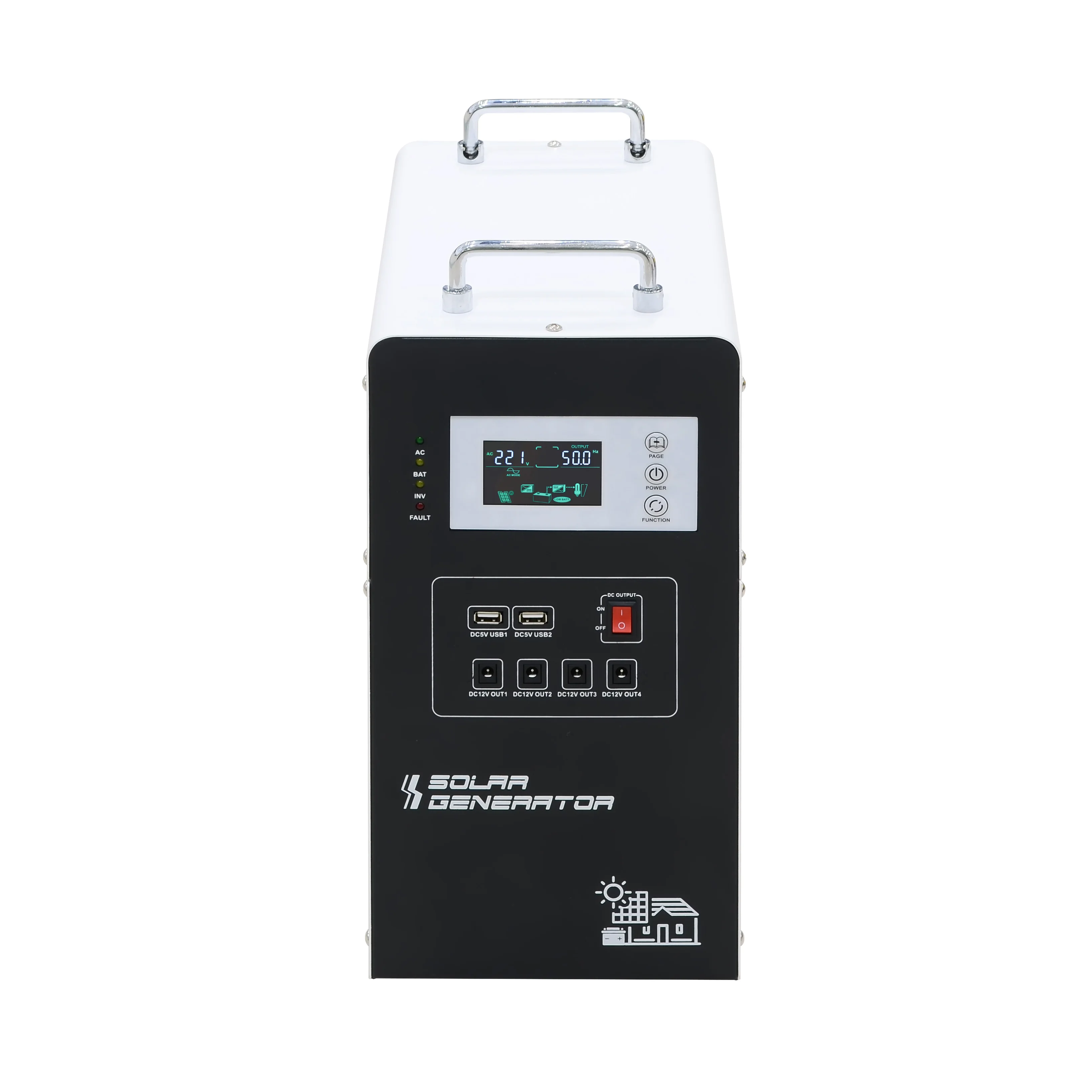

Домашняя энергетическая батарея lifepo4 электростанция 7000 Вт генератор 3000 портативная станция 3600 Солнечная энергосистема
121 600,08 ₽ - 134 757,89 ₽
Xindun Power ECO Off grid Solar Panel Kit 12V 10W DC портативная солнечная система для кемпинга и домашнего использования
- Категория: >>>
- Поставщик: Guangdong Xindun Power Technology Co. Ltd.
Сохранить в закладки 60483231623:
Описание и отзывы
Характеристики
Solar Kit
Feature
1. Portable mini solar kit power 1000W 200W 300W 500W.
2. Integrated Chassis: 5V/12V output.
3. Suitable for charging all types of mobile phones
4. Solar independent power supply.
5. High photoelectric conversion efficiency.
6. Built-in maintenance-free battery, safe and reliable.
7. Optional AC adapter for charging battery.
8. Multi-protections(charging/discharging and etc).

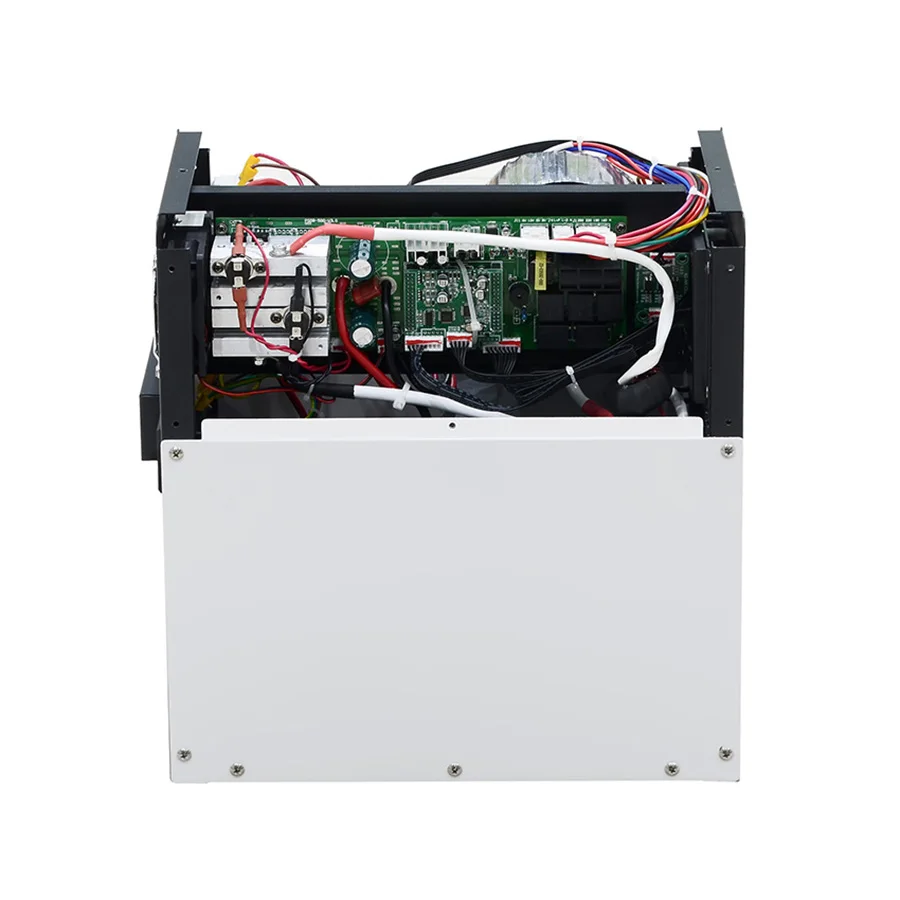

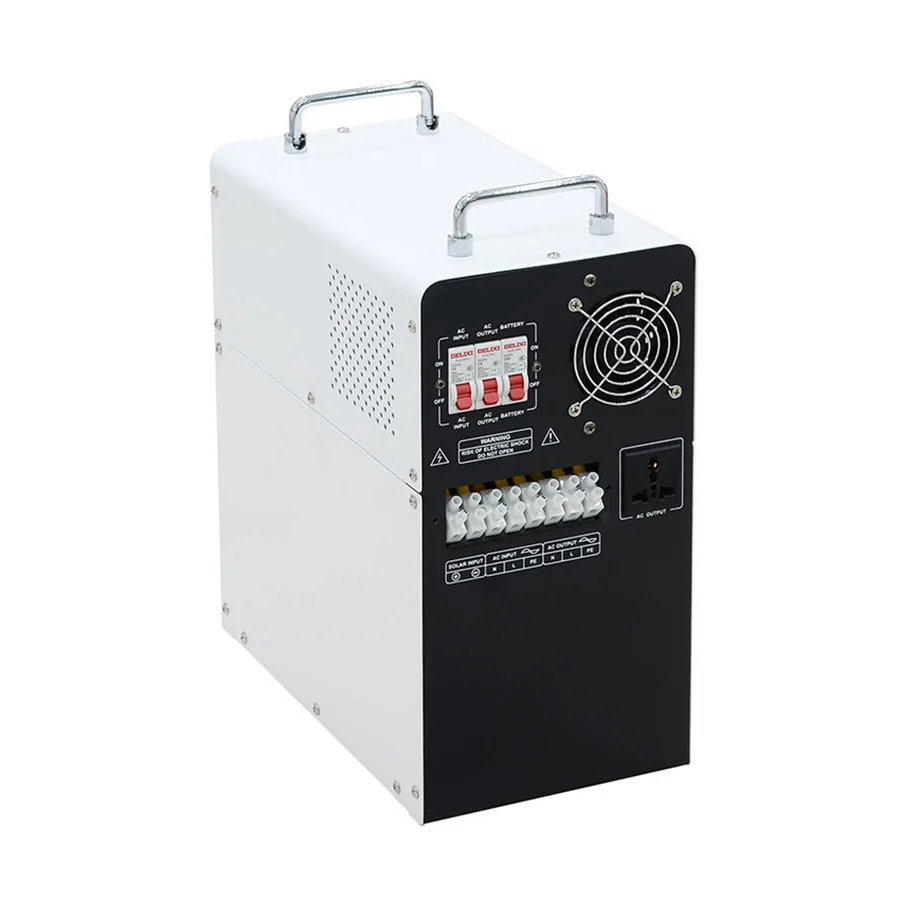

Product Details
Parameters
| Specification | ||||
| Model : ESS | 301P | 501P | 102P | |
| Capacity | Rated power | 300W | 500W | 1000W |
| Peak power(20ms) | 900VA | 1500VA | 3000VA | |
| Input | Stardard battery voltage | 12VDC | ||
| AC input voltage range | 73~138VAC(110VAC)/83~148VAC(120VAC)/145~275VAC(220VAC)/ 155~285VAC(230VAC)/165~295VAC(240VAC) | |||
| AC input frequency range | 45Hz~55Hz(50Hz);55Hz~65Hz(60Hz) | |||
| Output | Conversion efficiency | ≥85%(Battery mode); >99%(AC mode) | ||
| AC Output voltage | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode) | |||
| AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |||
| AC Output waveform | Pure Sine Wave | |||
| THD | ≤3%(Linear load) | |||
| DC Output voltage | 4*DC 12V; 2*USB(5V) | |||
| AC charger | AC charging current | 0~30A(Depends on model) | ||
| AC charging method | Three-stage(constant current, constant voltage, floating charge) | |||
| solar charger (Optional) | Charging mode | PWM | ||
| Max PV input voltage(Voc) (At the lowest temperature) | 50V | |||
| PV input voltage range | 15V~44V | |||
| Charge & discharge current | 20A | 40A | ||
| Max PV input power | 280W | 560W | ||
| Inbuilt battery | Capacity | 1*50AH | 1*100AH | |
| Battery size(LxWxH)/pcs | 229*138*210(228) | 407*174*210(240) | ||
| Other | Transfer time | ≤4ms | ||
| Protection | with over-voltage, low-voltage, overload, short circuit, high tempreature protections | |||
| Display | LCD & LED | |||
| Cooling way | Cooling fan in intelligent control | |||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported) | |||
| Working mode (selectable) | d1 | AC priority mode | ||
| d2 | ECO mode | |||
| d3 | Solar priority mode | |||
| Work environment | Operating temperature | -10℃~40℃ | ||
| Storage temperature | -15℃~60℃ | |||
| Elevation | 2000m(More than derating) | |||
| Humidity | 0%~95% ,No condensation | |||
| Physical | Dimention L x W x H(mm) | 358*192*390 | 488*232*450 | |
| Net weight(kg)(without battery) | 8 | 10 | 16 | |
| Packing | Dimention L x W x H(mm) | 400*252*500 | 550*295*625 | |
| Gross weight(kg)(without battery) | 11 | 13 | 21 | |
| Quantity/CTN | 1pcs per wooden case | |||
Accessories
Application
Packaging & Shipping
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment | ||
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
Related Products
 |  |
 |  |
Company Information
Why choose us
About us
| Guangdong Xindun Power Technology Co.,Ltd | |
Factory Location | Foshan,Guangdong,China |
| Industry Experience | 15-year manufacturer, 17-year trading, 7-year alibaba gold supplier |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system |
| Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) |
| Factory | 7000 Square Meters, 100+ workers |
| Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department |
| Certificate | ISO9001:2015, CE, IEC, etc. |
| Patent | Software Paten, Design Patent, Project Pantent |
Workshop
Process
Exhibitions
Certificates
Our team
FAQ
Q1: Are you a factory?
A: Yes, we are ISO9001:2015 manufacturing with qualifications of TUV, CE, ROHS & CCC. main products including inverter, solar controller and solar energy system solution.
Q2: Are you inverter pure sine wave output?
A: Yes, all of our inverter are pure sine wave output.
Q3: What kind of output you can do?
A: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Our inverter can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
Q5: How long is your factory?
It's over 10 years. at the beginning our factory focused on domestic market.
From 2012, we set up our oversea sales department.
Q6: What' s the difference between low frequency and high frequency inverter?
A: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
Q7: What's the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
Q8: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solveeasily.
Q9: What to do if the product is broken?
A: Usually we do standard exporting package and insurance in case of broken. If any product is faulty, please send us the picture or video, we will study it and supply the spare parts of PCB board free for after sale service.
Похожие товары

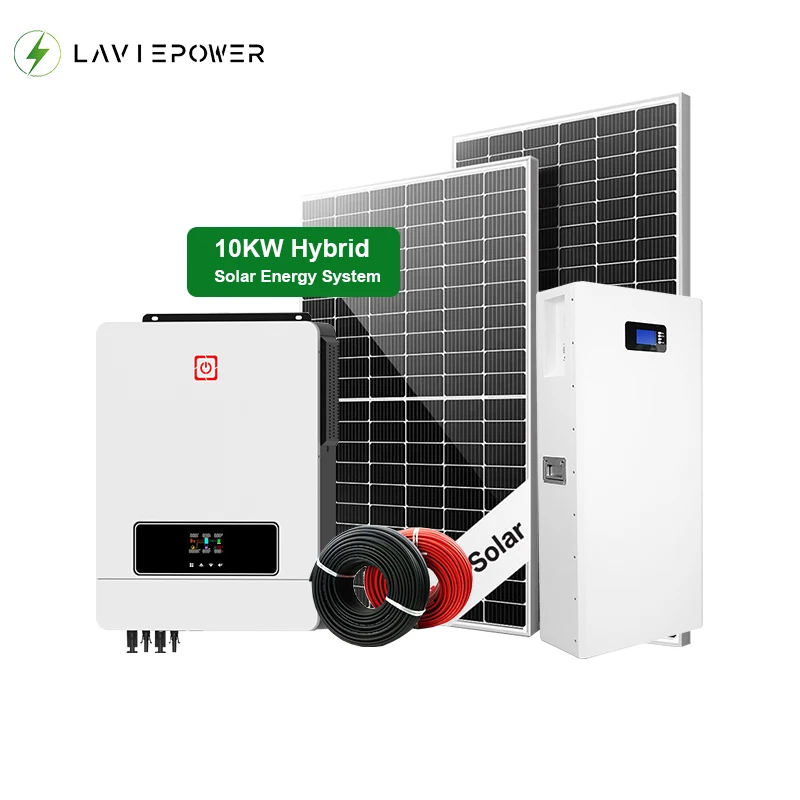

Солнечная энергетическая система 10 кВт полная для дома
87 609,08 ₽ - 169 406,78 ₽
Солнечная черепица фотоэлектрическая 5 кВт 10 солнечные панели с батареей и инверторной для хранения энергии
7,68 ₽ - 13,16 ₽

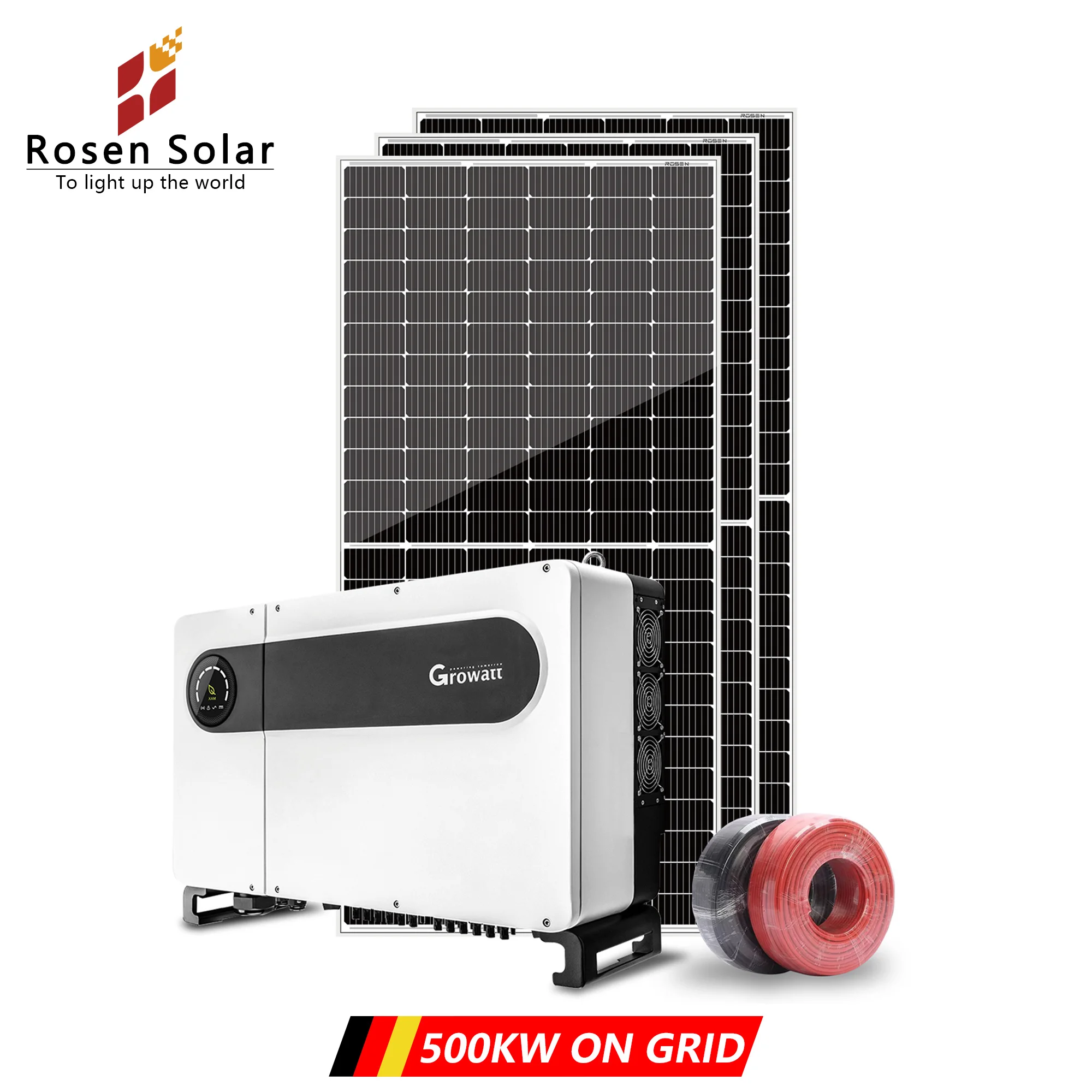

200kw 300kw 500kw 800kw на сетке солнечной энергетической системы проекта
32,90 ₽ - 49,35 ₽
Система для фотоэлектрической солнечной панели 30 кВт
153,51 ₽ - 197,37 ₽

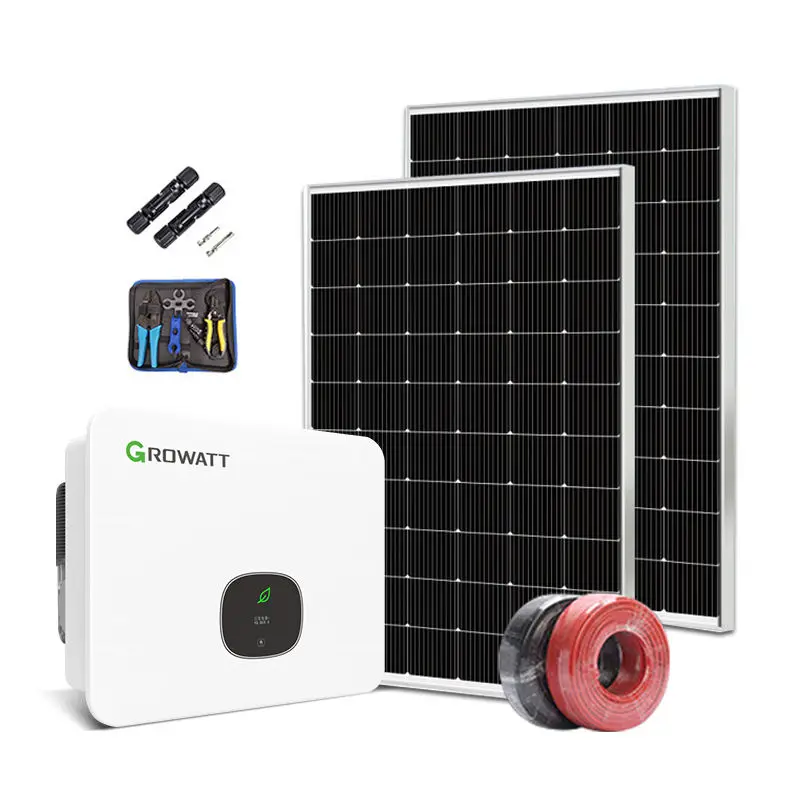

Установка на крыше 50 кВт солнечная энергетическая система Growatt инверторы PV панель 100 200 300 500 сетке
