T-962 Infrared IC Heater Reflow Solder Oven Machine intelligent reflow oven machine

T962 Reflow oven Features;

1. Big infrared soldering area
Effective soldering area: 180 x 235 mm

2. Multi temperature wave selectable
8 kinds of temperature parameter waves selectable; with manual heating function, forced cooling function, etc.

3. Unique design of temperature rise and homoeothermy
The cooperation of fast infrared heating with output work 800 W and homoeothermic fan makes the temperature accurate and even and the whole process automatic and accurate in accordance with the preset temperature wave. No need of extra control.

4. Comprehensive functions
With functions of reflow soldering, drying, heat preservation, finalizing the design, fast cooling, etc.
Can solder single and double PCB panels with all kinds of encapsulation form such as CHIP, SOP, PLCC, QFP, BGA, etc;
Can be used for the glue solidifying, circuit board thermal aging, PCB maintenance, etc;


T962 Reflow oven Specification;

Model T-962

Power Supply AC 220 V / 110 V; 50 - 60 Hz

Heat Style infrared radiation + circulating wind

Rated Power 800 W

Cycle Time 1 - 8 min

Control Mode 8 IC temperature waves

Temperature Range (°C ) 0-280

Drawer Size (mm) 180 x 235

Size (mm) 310 x 290 x 170

Dimensions (mm) 375 x 240 x 375

Gross Weight (kg) 7

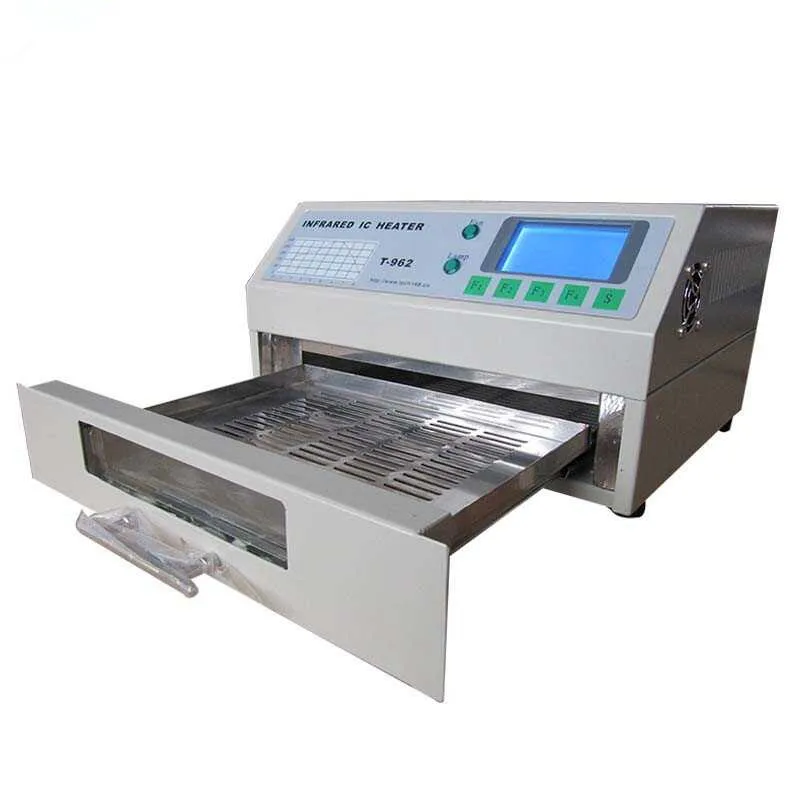

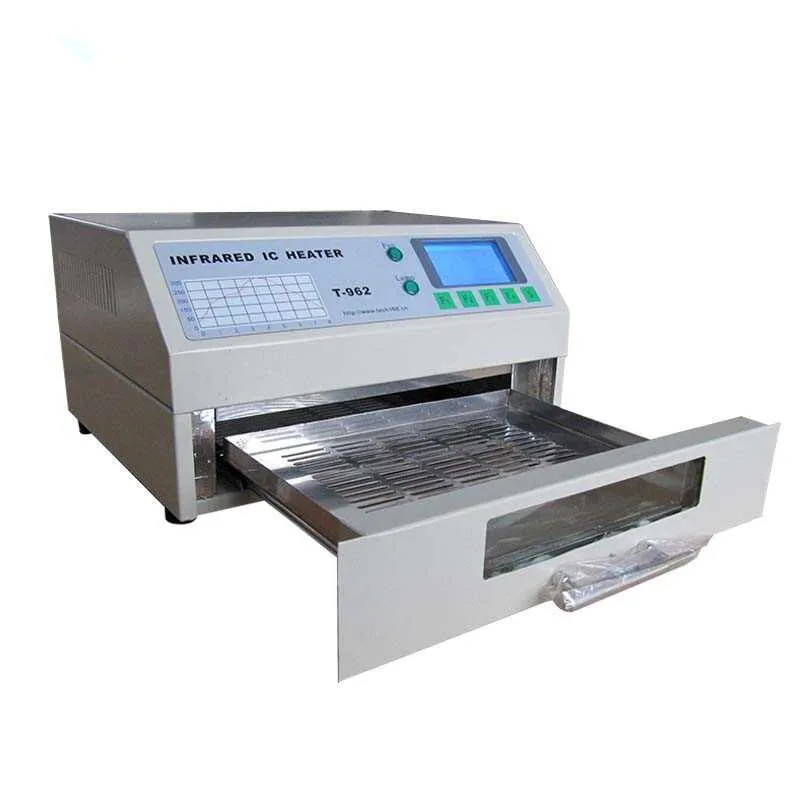

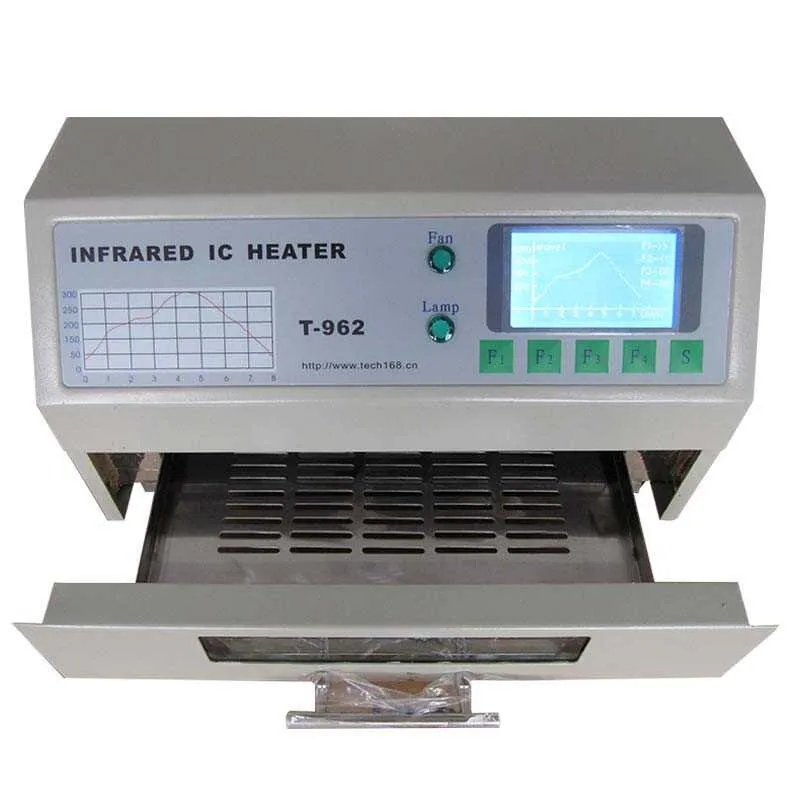

T962 Reflow oven Pictures;
