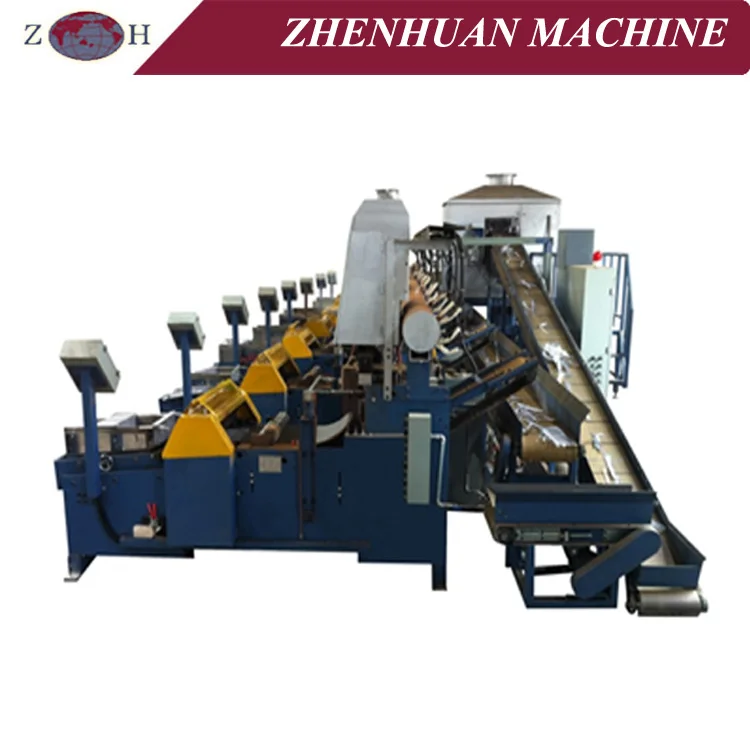

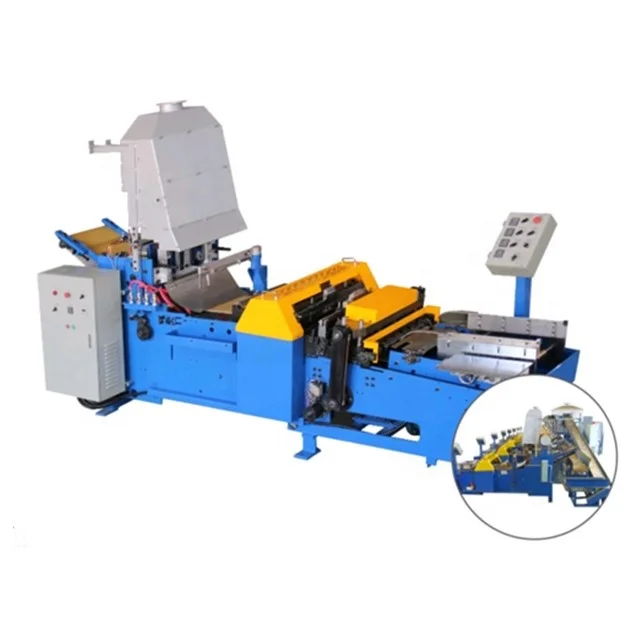

Lead acid battery grid casting machine (one pot two machine)

I General indroduction of Lead acid battery grid casting machine (one pot many machine):

ZDX40S casting machine is fit for the casting of varied kinds of alloy grids of lead-acid accumulators and can carry out the melting of alloy lead, keeping constant temperature of the moulds, the rational lead feeding, the casting of grids, the cutting and collection of grids with more automatic and intelligent production procedures fitting for varied alloy lead. It is the most advanced domestic equipment of casting grid at present.

II Range of supply of Lead acid battery grid casting machine (one pot two machine):

ZDX40S casting machine(Two main machine one pot):

Main casting machine   many sets

Lead melting Furnace   1 set

Circulating tank         1 set

Lead feeding system     2 set

Electric control system   2 set

Grid mould           many sets

Trim die               many sets

(according to the customers' requirements)

III Main technical parameters of Lead acid battery grid casting machine (one pot many machine):

1. Production efficiency: 6-17 large/ min

2. Casting range: 400 × (100-165) × (1.2-4.0) mm

3. Total power: 43kw; Actual power: 26kw

4. The application of grid alloy: lead-antimony alloy: 1.6-4.5%, Pb-Ca alloy: 0.08-0.14%,

5. Mold grid: According to grid drawings design provided by users

6. Lead-melting furnace temperature control: Temperature control adjustable: 430-550 °C, the working range of ± 10 °C.

7. Grid mold temperature control: on the mode: 150-170 °C, under the mode: 170-190 °C.

8. Lost lead tube temperature control: temperature control: 450-520 °C, heat for short-circuit heating, heating power 6KW.

9. Lead spoon temperature control: temperature control: 450-550 °C

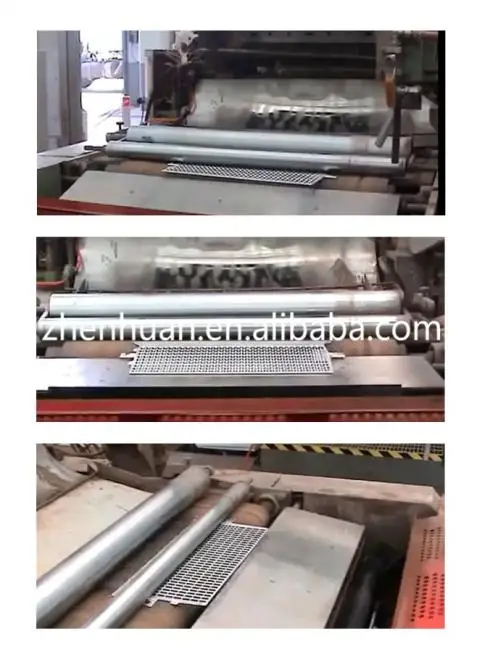

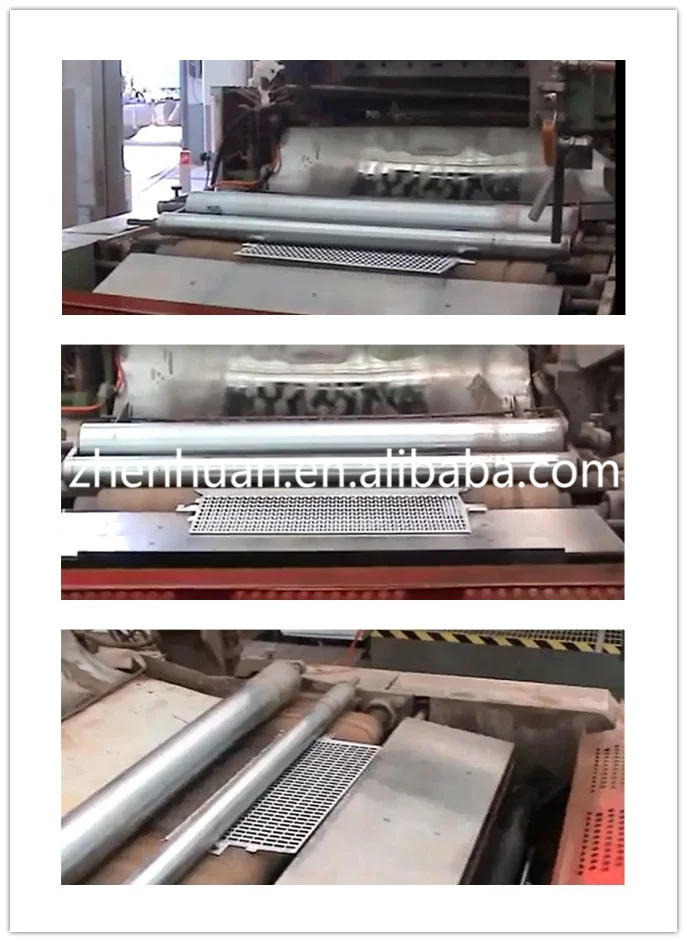

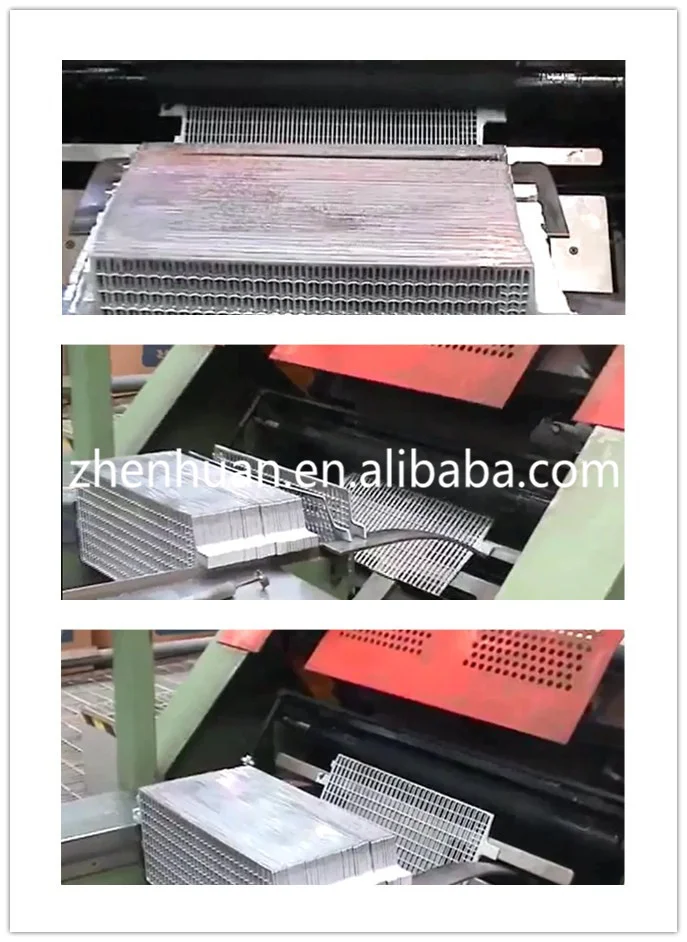

IV Photos of  Lead acid battery grid casting machine (one pot two machine):

V Guarantee:within one year since the date of B/L

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in machines for more than 15 years. We can provide you good quality Lead acid battery grid casting machine (one pot two machine)  as well as good service.

Pls contact us for more service and information of Lead acid battery grid casting machine (one pot two machine)
