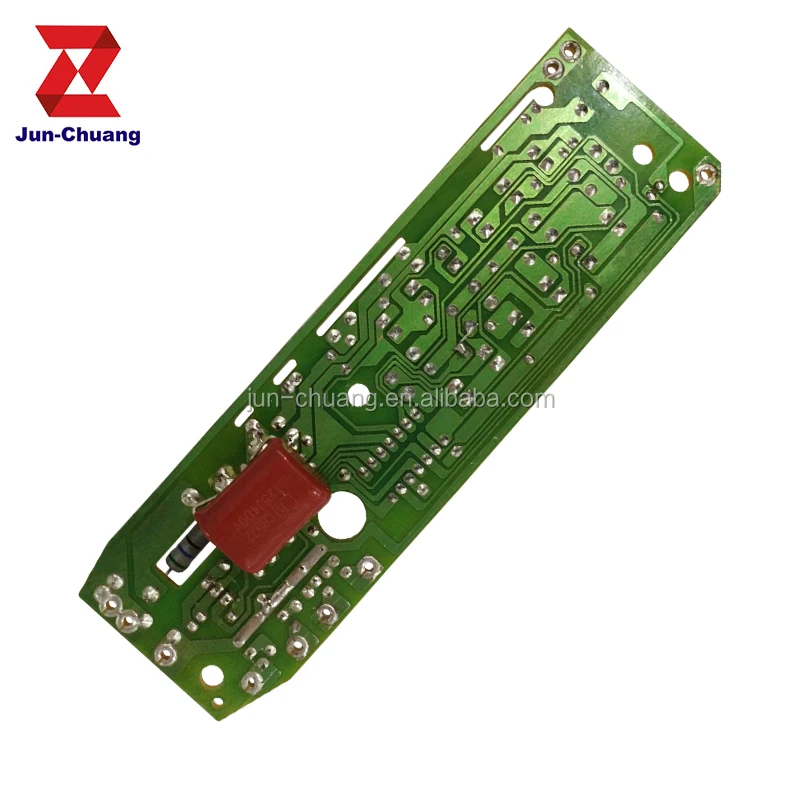

Недорогая печатная плата вентилятора pcb

Сохранить в закладки 60497729200:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description

****Brief description:

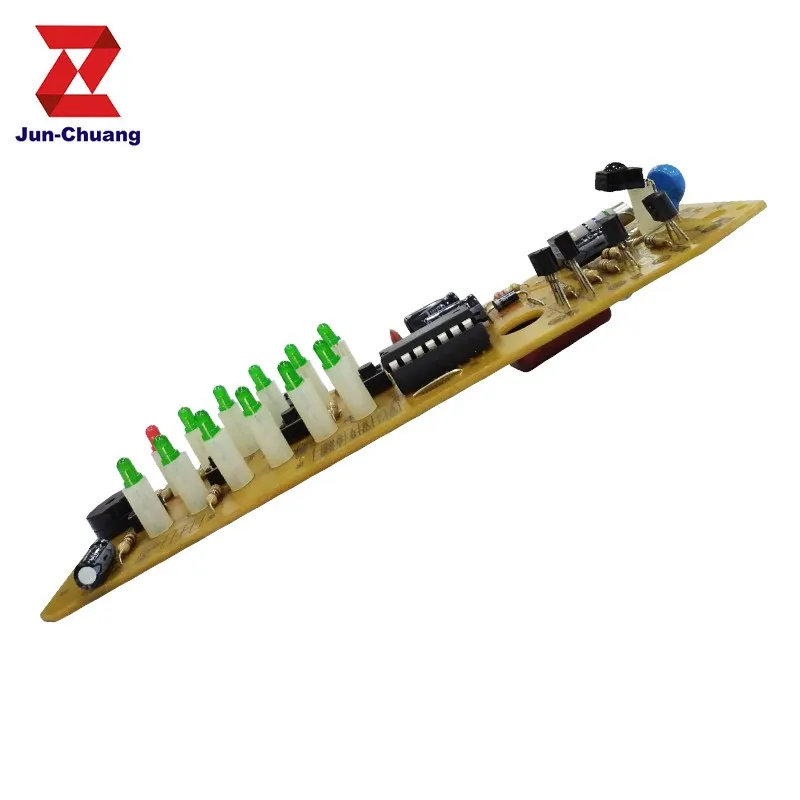

PCB Controller for fan
1)fan control board
2)Safety device
3)Energy saving

****Functions details:
1) 110V/50HZ for North America market; 220-240V/50/60HZ for Asia and European market

2) RC Voltage-reducing resolution for pcb circuit ; Or Switching power supply circuit resolution, both are available. Customized fan pcba design are welcome

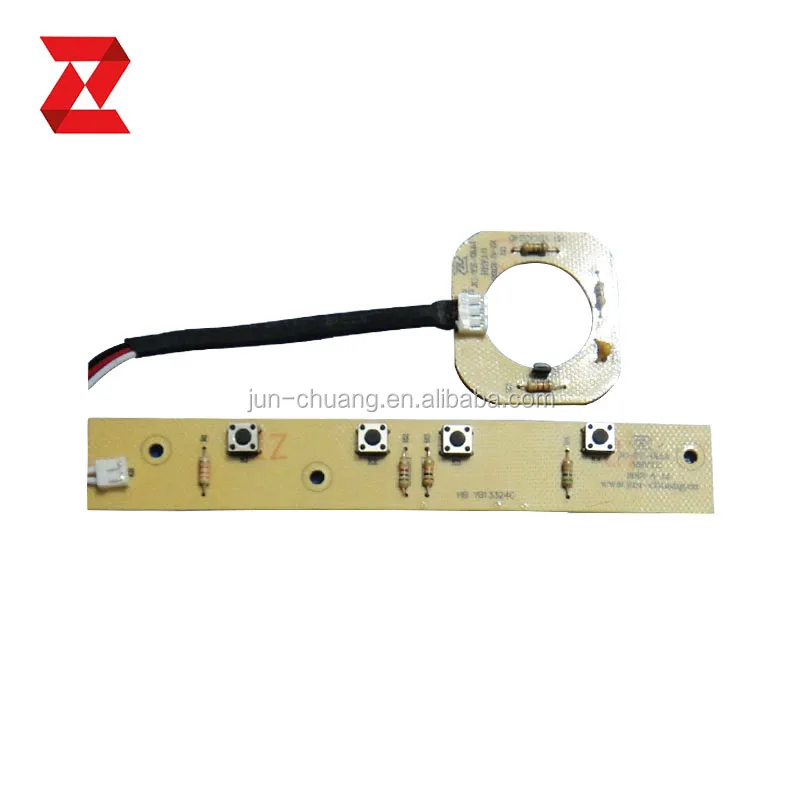

3) Pushing button control/touch switch control

4) LED display,red,green color for your option;


 Two‘Eight’seven segment display is also available

5) Buzzer alarm for safety.

6) Competitive price with three-year quality guarantee.


****PCBA datails:
\t
Surface Coating
\t
HASL/ plating gold /immersion gold/ Ni/Au plating gold finger/OSP processing/immersion Tin (Sn)
\t
Layers
\t
Single-sided,double-sided
\t
PCB Color
\t
White, yellow, black and red available
\t
Copper Thickness
\t
1 OZ; 2.0OZ available
\t
Board Thickness
\t
1.2 mm-1.6mm
\t
Min Hole Size
\t
0.2mm-0.7mm
\t
Min Line Width
\t
0.1mm-0.3mm
\t
Min Line Spacing
\t
0.1mm-0.3mm
\t
Max board size
\t
flexiable,depends on the water heater plastic panel design
\t
Solder mask type
\t
Green/yellow/black/red/white/blue or transparent photosensitive solder mask and peel off blue glue.
\t
Silk legend color
\t
White/ yellow /black
\t
Data file format for OEM
\t
GERBER file and corresponding drilling file,PROTEL series,PADS2000,POWERPCB series,
\t
Data file format for ODM
\t
Need product specification or datasheet,
\t
Electricity performance & Reliability tests
\t
EMC(Voltage dip test, EFT test, Withstand high voltage test, Current leakage test, Surge test), High & Low chamber test, Humidity test,Salt spray test,and life test.
\t
Various types base material
\t
High TG board, high frequency board(ROGERS,TEFLON) halogen-free board (FR-4,CEM-1,CEM-3)
\t
Certifications
\t
ISO9001:2008,ISO14001,SGS,ROHS; Products comply with REACH & RoHs.
