Полностью нержавеющая сталь 304/316/316L/2205/2507 корпус центробежный насос трех типов фланец
22 771,54 ₽ - 26 024,62 ₽
Центробежный водяной насос KYSB с разделенным корпусом
- Категория: >>>
- Поставщик: Shanghai Kaiyuan Pump Industrial Co. Ltd.
Сохранить в закладки 60499742572:
Описание и отзывы
Характеристики

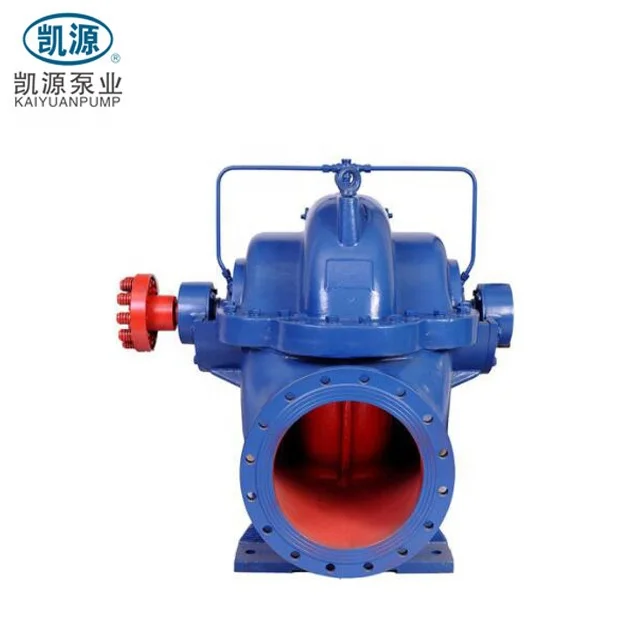

KYSB Split Casing Centrifugal Water Pump
Product Description
KYSB Split Casing Centrifugal Water Pump
>>> Product Overview
According to market needs, KYSB Split Casing Centrifugal Water Pump is developed in the broad absorption of advanced technology. Its remarkable characters are as follows: perfect, excellent general model, novel structure, convenient repair. KYSB type water pumps currently produced by our company have fall into more than 40 categories, nearly 400 specification products. We had improved pump impeller and impeller diameter to lead to its impact framework and increasing efficiency. In the spectrum performance range, we can provide any water pump that meets users’ need for pump head and flow.
Sophisticated products and complete quality control, reach domestic advanced standard. We have IS09001 certificate so we can ensure its quality.
This series of water pumps are in accordance with lS02548C, GB321 6C, GB/T5657 standard.
>>> Applications:
This pump is widely used in city water supply and drainage, urban water supply; water supply and drainage of central heating system; iron and steel metallurgy, petrochemical refineries, paper mills, oil fields, power plant, airport construction, chemical plants, textile mills, sugar refinery, chemical plant, power plant water supply and drainage, the factory, mine fire water supply system, air conditioning system of water supply, farmland irrigation and drainage, and all other kinds of water engineering.
- Split Case Water Pump
- Widely used in many scopes
- High quality and best prices
- KYSB Agricultural Irrigation Diesel Water Pumps
>>> Working Conditions of KYSB Water Pump:
- Rotation speed: 990, 1480 or 2960rpm
- Voltage: 380,6kv or 10kv
- Inlet and outlet diameter: 150-600mm (in accordance with GB/T17241.66-1998 flange standard)
- Flow: 68-3975m3/h
- Head: 6-230m
- Temperature: fluid temperature ≤80, ambient temperature≤40
- Working pressure: 1.0Mpa (G) (Hsp≤75m) or 1.6MPa (Hsp>75)
- Medium permitted: clean water, contact to us for special requirement
- Pipe parts for seal: can’t be installed under condition of above 0.03MPa (G)

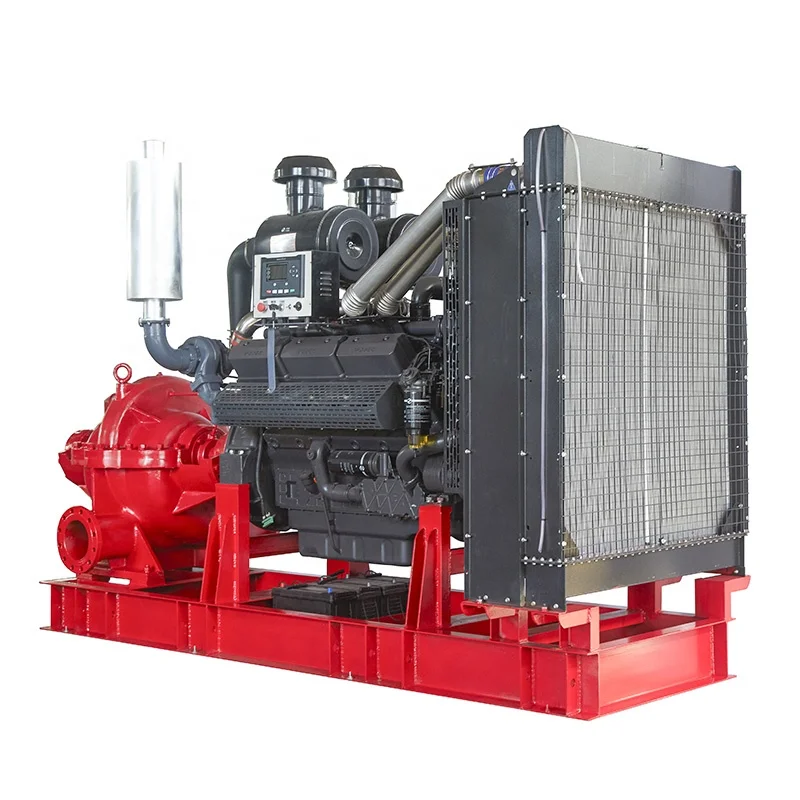

>>> Photo on Site (Diesel Engine Can Be Available):
>>> Model Meaning
KYS B 200 - K 6 / 258 - F
| KYS | Kaiyuan single-stage double-suction pump |
| B | New Model split centrifugal pump |
| 200 | Inlet Diameter (mm) |
| - | - |
| K | Impeller model K-Original impeller Z-Modification of impeller |
| 6 | 1/10 of impeller specific speed |
| / | / |
| 258 | Specification code |
| - | - |
| F | Special type: Rotation direction of pump is anticlockwise.(Standard type:No marks) |
>>> Rotation Direction
>>> Structure
| Impeller |
|
| Pump body |
|
| Bearing |
|
| Shaft |
|
| Base |
|
| Shaft Sealing |
|
>>> Curve
>>> Performance Parameter of KYSB200-K(Z)4:
Packaging & Shipping
KYSB Split Casing Centrifugal Water Pump
Our Services
KYSB Split Casing Centrifugal Water Pump
1. Punctual delivery time:
- We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.
- Shipping notice/ insurance to you as soon as your order is shipped.
2. After sales service:
- After receiving the goods, We accept ur feedback at first time.
- We could provide installation guide, if you have need, we could give you global service.
- Our Sales are 24-hours online for ur request.
3. Professional sales:
- We value every inquiry sent to us and ensure quick competitive offer.
- We cooperate with customer to bid tenders, and provide all necessory document.
- We are a sales team, with all techinical support from engineer team.
Shanghai Kaiyuan Pump have many global clients, we offer professional service to them. With the aim of "to establish a close strategic partnership and develop together with customers". we will work whole heartedly to improve our products and service. We will also pledge to work jointly with business partners to elevate our cooperation to a higher level and share success together with our customers. We are looking forward to establishing relationships with you in the near future.
We Supply You With Custom-Made Pump, Any Inquiry Will Be Highly Welcome!
Company Information
KYSB Split Casing Centrifugal Water Pump
We only provide best quality products and best service for our customers. Renewed and Defective goods is forbidden in our factory! Please be relieved to choose our products! Together, we make it better!
Factory Show
Cert Show
FAQ
KYSB Split Casing Centrifugal Water Pump
1, Are you a trade company or a manufacturer?
A: We are a professional manufacturer of centrifugal pump, such as sewage pump, fire-fighting water pump, multi-stage vertical (horizontal) water pump, diesel engine water pump, water supply equipment, water pump control panel, EDJ fire fighting water pump sets and other pumps.
2, How to control quality?
A: We have always placed great emphasis on quality control to ensure excellent quality level is maintained. We check every process very carefully. After finishing production, the product will be tested one by one to control quality. Morever the price we always maintained is strickly quality control. We have CE, ISO9001 certificate.
3, What is your trade terms, payment terms and delivery time?
A: FOB, CIF, CFR, EXW etc.30% before production, 70% before shipment. 100% T/T is the best way for us, but we also accept L/C. Usually 10-25 days for production (according your quantity). If you are in a hurry, the delivery time will be shorter.
4, If i want a quotation?
A: What's the model you want? (or provide detailed requirements)
What's the spare parts, standard or required?
What's the quantity of order, large quantity of order will get more discounts.
5, Can you provide your price list?
A: we do not have price list for many of our customers have other requirements and our price list is not satisfying them. Therefore, it will be better if you inform us your parameters, such as flow, head, power, medium, etc.
Похожие товары
Лабораторный безмасляный вакуумный насос 24 В для отбора проб газа
11 700,24 ₽

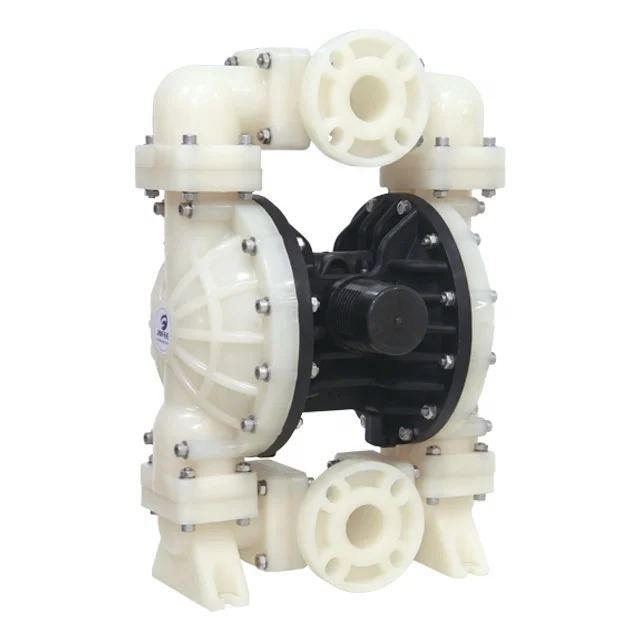

PP пластиковая химическая кислота доказательство пневматический двойной мембранный насос с воздушным управлением
23 855,90 ₽ - 28 193,34 ₽
MK06/10 15/20 1/4 1/2 дюймов небольшой химический насос сильная кислота Щелочная КОРРОЗИОННАЯ ЖИДКОСТЬ передача промышленный мембранный воздушный насос
30 362,06 ₽ - 32 530,77 ₽
Резиновая диафрагма 04-1020-51, используется для пневматического диафрагменного насоса Wilden, Неопреновая диафрагма для насоса Wilden 1,5 дюйма
1 518,11 ₽ - 1 734,98 ₽

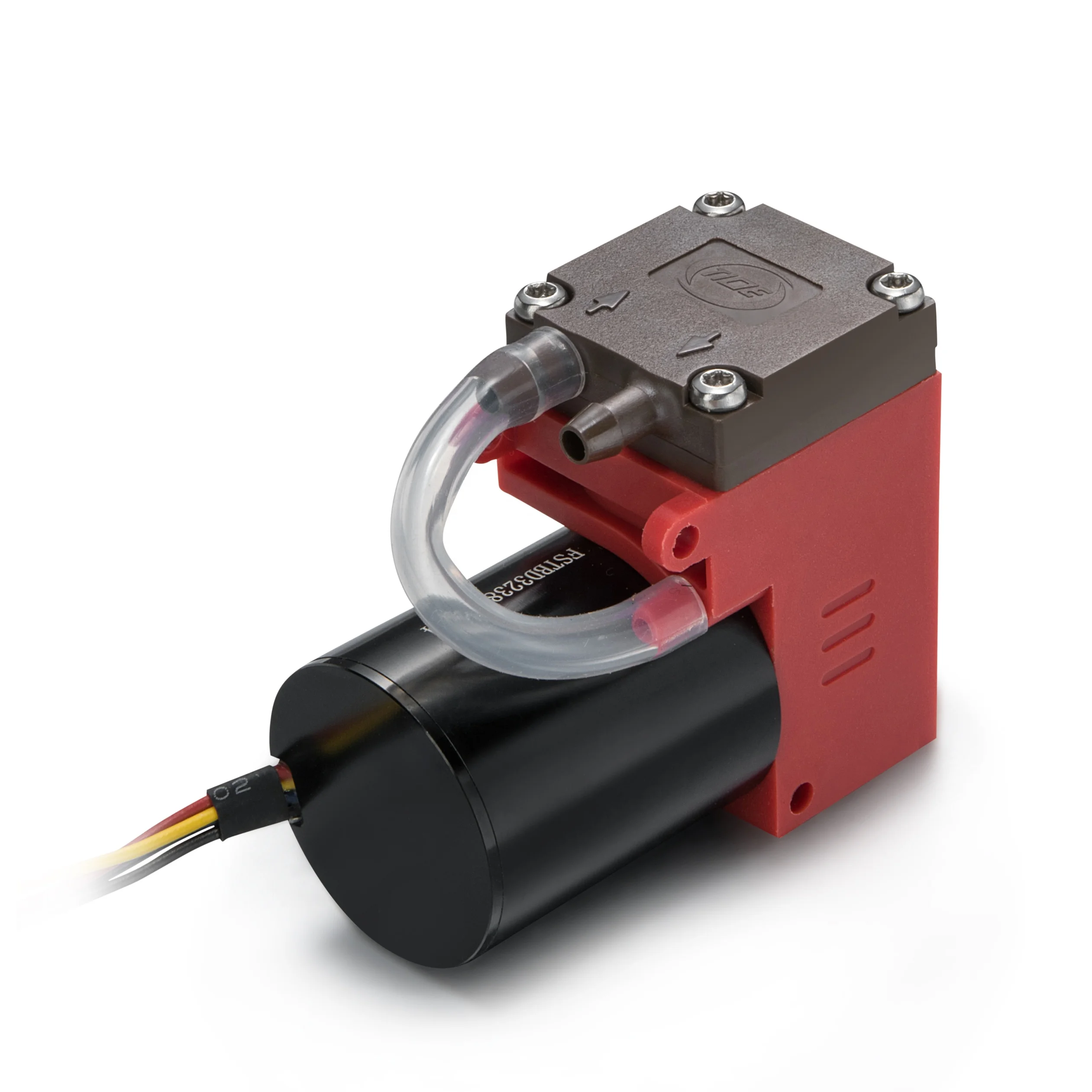

Микро-воздушный насос высокого давления 12 В
5 854,46 ₽ - 7 264,13 ₽
Химическая стойкость пневматический эластомер EPDM Hytrel PTFE станопреновый мембранный насос
26 024,62 ₽ - 31 446,42 ₽

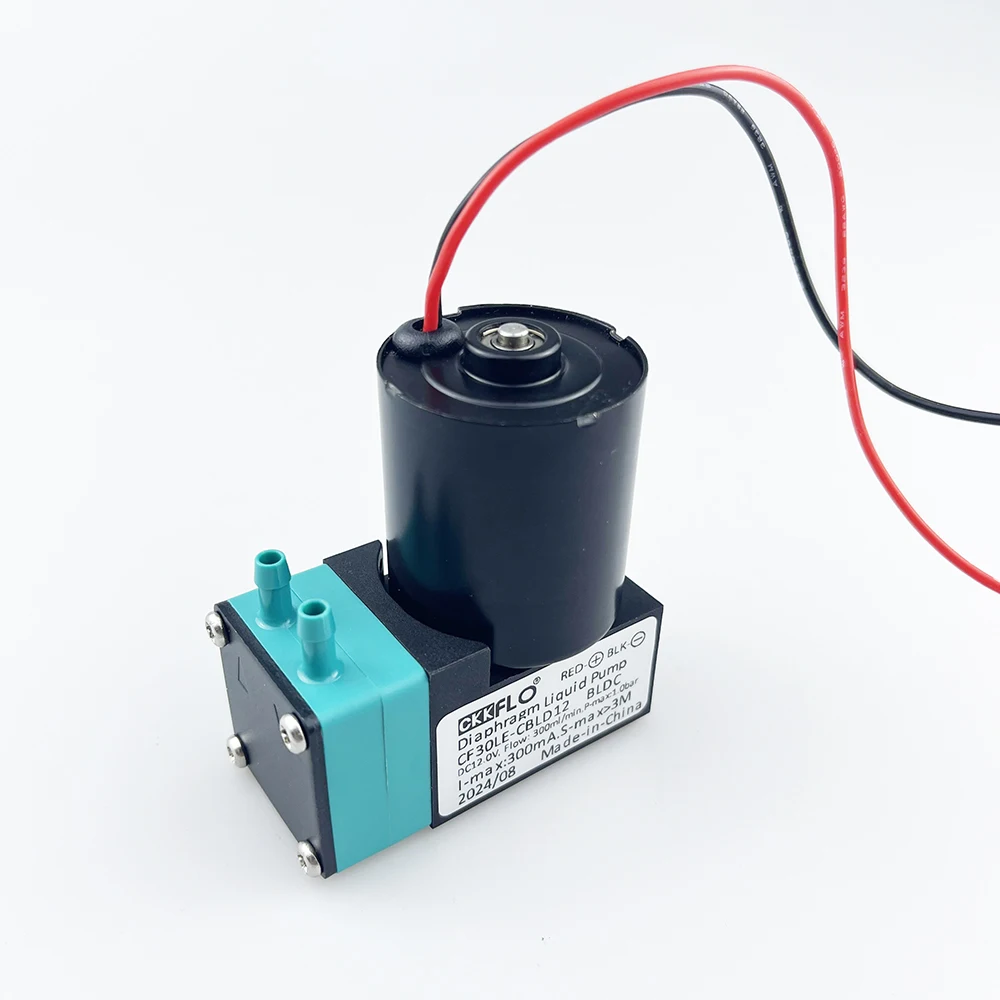

2024 Новая Энергия EPDM CF30LE микромембранный воздушный и жидкостный насос DC12V 24V
