80000btu тепловой насос 25 кВт многозонный однофазный водонагреватель и Кондиционер
1 388,00-1 430,00 $
Отличная производительность воздушный источник нагреватель для бассейна открытый спа r32 маленький тепловой насос
- Категория: >>>
- Поставщик: Shenzhen Power World New Energy Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 60502574288:
Описание и отзывы
Характеристики
Products Description

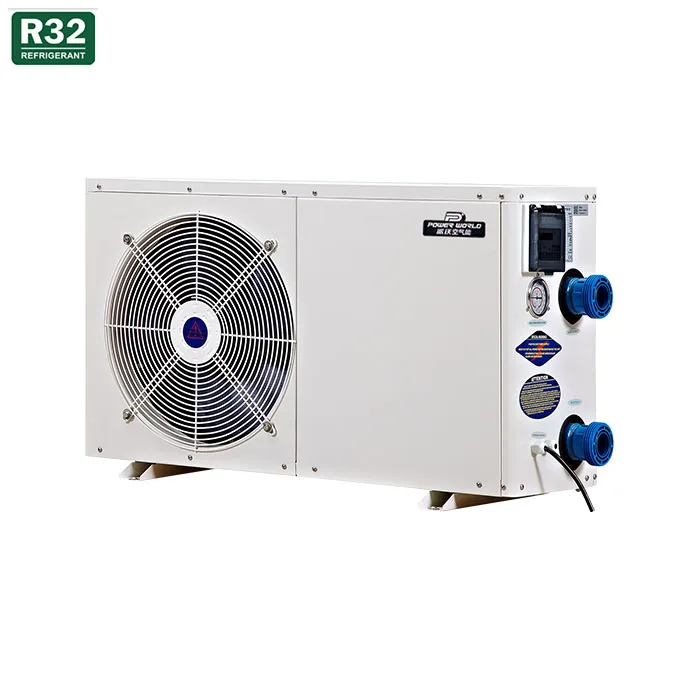

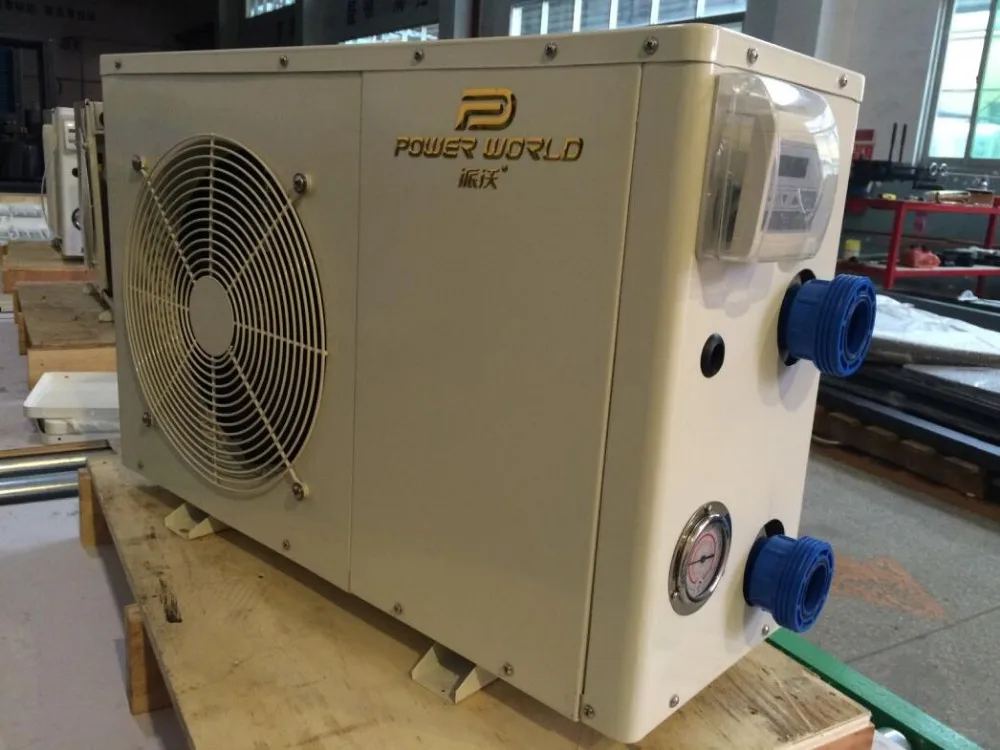

Power World Swimming Pool Heat Pump
Power World Wi-Fi control offers more than being able to simply preheat or precool before you arrive home.Wi-Fi control opens up a new world of truly personalised comfort.Effectively replace your traditional heat pump controller,Wi-Fi control gives you the freedom to manage your Pool environment regardless of where you are.
1.Free app ready to domnload the heat pump via wifi.
2.Heat and cold regulation to keep temperature steady.
3.Reverse cycle defrosing.
4.Wifi control.
5.R410A refrigerant with F-gas quota.
6.Smart customised control and Monitoring
7Ultra Efficiency
With enlarged evaporator and premium titanium heat exchanger, POWERWORLD pool heat pump provides superior hydraulic flow for excellent efficiency and maximum energy savings.
8. Reliability
2.Heat and cold regulation to keep temperature steady.
3.Reverse cycle defrosing.
4.Wifi control.
5.R410A refrigerant with F-gas quota.
6.Smart customised control and Monitoring
7Ultra Efficiency
With enlarged evaporator and premium titanium heat exchanger, POWERWORLD pool heat pump provides superior hydraulic flow for excellent efficiency and maximum energy savings.
8. Reliability
High quality Titanium heat exchanger guaranties the heat pump can heat the pool water after chlorine, salts, and bromine
treatments.
9.Season fuction
POWERWORLD pool heat pump can work under wide ambient temperature ranges, from -70C to 430C, and provide all year-round warm water supplies, even the unit is installed in cold outdoor area.
10.Intelligent defrosting system
Adopt high quality Danfoss 4-way valve, and combined with POWERWORLD intelligent auto-defrosting system, it assures the heat pump unit can work smoothly under severe cold environment.
11.Quiet operation
With the superior low-noise 6# fan motor, plus the inner sound-absorbing foam, which keeps you far away from the neighborhood and children complains of too high running noisy.
12.Security and stability
Well selected top-brand components to provide you the most stable performance; totally isolated electricity and water system to guaranty a security daily use.
13. Environmental friendly
With the green refrigerant R407c/R410a, no harm to the ozone, and leaves more blue sky to our posterity.
treatments.
9.Season fuction
POWERWORLD pool heat pump can work under wide ambient temperature ranges, from -70C to 430C, and provide all year-round warm water supplies, even the unit is installed in cold outdoor area.
10.Intelligent defrosting system
Adopt high quality Danfoss 4-way valve, and combined with POWERWORLD intelligent auto-defrosting system, it assures the heat pump unit can work smoothly under severe cold environment.
11.Quiet operation
With the superior low-noise 6# fan motor, plus the inner sound-absorbing foam, which keeps you far away from the neighborhood and children complains of too high running noisy.
12.Security and stability
Well selected top-brand components to provide you the most stable performance; totally isolated electricity and water system to guaranty a security daily use.
13. Environmental friendly
With the green refrigerant R407c/R410a, no harm to the ozone, and leaves more blue sky to our posterity.
Product model | PHP03Hs/ PHP03Hs-W | PHP06Hs /PHP06Hs-W | PHP09Hs/PHP09Hs-W | PHP12Hs/PHP12Hs-W | ||||||||
without wifi function | CP-RG0150003-08 | CP-RW0200003 | CP-RW0250002-1 | |||||||||
with wifi function | CP-RG0150003-09 | CP-RW0200004 | CP-RW0250002-2 | |||||||||
Advised pool volume(m3) (with cover) | 10-20 | 15-25 | 25-35 | 35-65 | ||||||||
Parameters | heating* | Heating capacity (kW) | 3.9 | 6.0 | 8.7 | 12.0 | ||||||
Heating capacity (BTU/h) | 13300 | 20500 | 29700 | 41000 | ||||||||
Input power (kW) | 0.75 | 1.05 | 1.50 | 2.05 | ||||||||
COP | 5.20 | 5.71 | 5.80 | 5.85 | ||||||||
heating** | Heating capacity (kW) | 3.0 | 4.5 | 6.5 | 8.9 | |||||||
Heating capacity (BTU/h) | 10300 | 15400 | 22000 | 30400 | ||||||||
Input power (kW) | 0.7 | 1.02 | 1.45 | 1.98 | ||||||||
COP | 4.29 | 4.41 | 4.48 | 4.49 | ||||||||
Rated current(A) | 3.4 | 4.6 | 6.5 | 9.1 | ||||||||
Advised water flux(m³/H) | 1.7 | 2.6 | 3.7 | 5.2 | ||||||||
IP Grade (Level of protection) | IPX4 | IPX4 | IPX4 | IPX4 | ||||||||
Anti-electric shock Rate | I | I | I | I | ||||||||
Noise (dB(A)) | ≤42 | ≤44 | ≤45 | ≤47 | ||||||||
Net weight/Gross weight(kg) | 42/45 | 45/48 | 50/54 | 63/68 | ||||||||
Diameter of pipe (mm) | φ50 | φ50 | φ50 | φ50 | ||||||||
Standard Configuration | Metel plate | Galvanized steel White | ||||||||||
Body size(W*D*H) | 936*360*560 | 936*360*560 | 936*360*560 | 1010*370*630 | ||||||||
Compressor | GMCC | |||||||||||
Refrigerant | R410A | |||||||||||
Power supply | 220V/50Hz | |||||||||||
Condenser | Titanium in PVC | |||||||||||
Evaporator | L-1/900*500/φ9.52 | L-2/900*500/φ9.52 | L-2/900*500/φ9.52 | U-2/1200*550/φ9.52 | ||||||||
Four-way valve | SHF-4-23U | SHF-4-23U | SHF-4-23U | SHF-7H-34U | ||||||||
Expansion valve | Capillary Tube | |||||||||||
AC contactor | Eaton (220V-12A) | Eaton (220V-12A) | Eaton (220V-12A) | Eaton (220V-18A) | ||||||||
Motor (with capacitance) | 25W*1(2μf) | 25W*1(2μf) | 25W*1(2μf) | 50W*1(4μf) | ||||||||
Fan | φ400*1 | φ400*1 | φ400*1 | φ490*1 | ||||||||
Controller | Single System(Motorola Chip) | Single System(Motorola Chip) | Single System(Motorola Chip) | Single System(Motorola Chip) | ||||||||
High-voltage switch | 3.6/4.2MPa | 3.6/4.2MPa | 3.6/4.2MPa | 3.6/4.2MPa | ||||||||
Power line connect with unit | 3*1.5mm2 | 3*1.5mm2 | 3*1.5mm2 | 3*2.5mm2 | ||||||||
Package | Polywood packing | |||||||||||
Remark:heating*: working condition, Inlet water temperature 26℃, Outlet water temperature 28℃, Dry bulb temperature 26℃.Humidity 80%. heating**: working condition, Inlet water temperature 26℃, Outlet water temperature 28℃, Dry bulb temperature 15℃.Humidity70%. | ||||||||||||

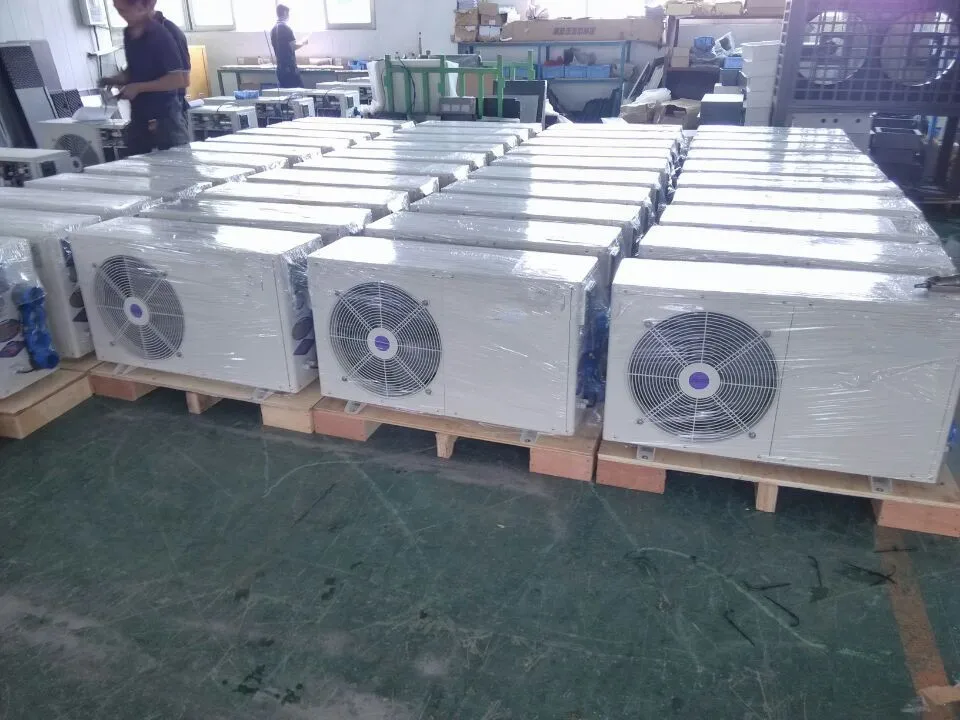

Product packaging
Packaging | Packed by Plywood case/ cardboard case |
Timing | Send out next day after payment if in stock 4-7 working days to deliver |
Logistics | DHL ,UPS,FedEx or as you request |
Company Profile
Power World is a professional heat pump manufacturer since 2004,successfully publicly listed on the NEEQ in 2016 with stock code 870092.It covers an area of 30000 m2 factory in Dongguan,China and has more than 500 emplyees.With 8 flexible production line, it's honored to be top 10 brand heat pump supplier in China with one billion USD output value per year.
Power World has a heat pump R&D center with a team of more than 20 engineers and 4 professional laboratories.Complying with ISO9001:2008 & ISO14001:2004,all products get CE,CB(IEC)certificate and ERP Energy Label based on EN14825,EN14511,strictly according to latest EHPA requirement.
Market Overview
Through years of technological innovation and strategic market expansion, power world has become one of the
most famous and influential brands of heat pump in china. Now power world committed to development of the international market, the products sold to more than 60countries ,serving more than 1/10 of the world’s population.get highly praised by customers
