Product Description




Back lit Translucent Onyx Lighting courtain LED curtain flexible


Patent No.: ZL201220134846

The incredibly quick and easy way to transform a fluorescent cabinet sign into an efficient LED solution.





--Innovative and patent design
--High efficiency 100Lm/w
--High color rendering index (Ra>80)
--High brightness
--Ultra-thin,Lightweight
--Low Energy Consumption
--Low Heat Generation
--Single or double side LEDs
--Non-waterproof or conformal coated
--Various sizes or cuttable to fit with your sizes
--Ideal for unlimitedly large size slim lightbox with even illumination
--Low cost with high performance
--Environment friendly
--Long lasting life-span
--Extremely Easy Installation
--CE, RoHS approval
--3 Year Warranty



Single-side Illumination



Part No.:
BKT41S-41-500
Dimension
500x10x2.8mm/bar
LED distance
41.6mm
Strip Distance
41mm
LED QTY/Strip
12LED
Luminous Flux
270Lm/bar
Power
2.7W/bar
Maximum Roll Size
48bars/roll (12V), 96bars/roll (24v)



Double-side illumination option



Part No.:
BKT41S-41D-500
Dimension
500x10x2.8mm/bar
LED distance
41.6mm
Strip distance
41mm
LED QTY/strip
24leds
Luminous Flux
540Lm/bar
Power Consumption
5.4W/bar
Max Roll Size
24bars/roll (12V), 48bars/roll (24v)

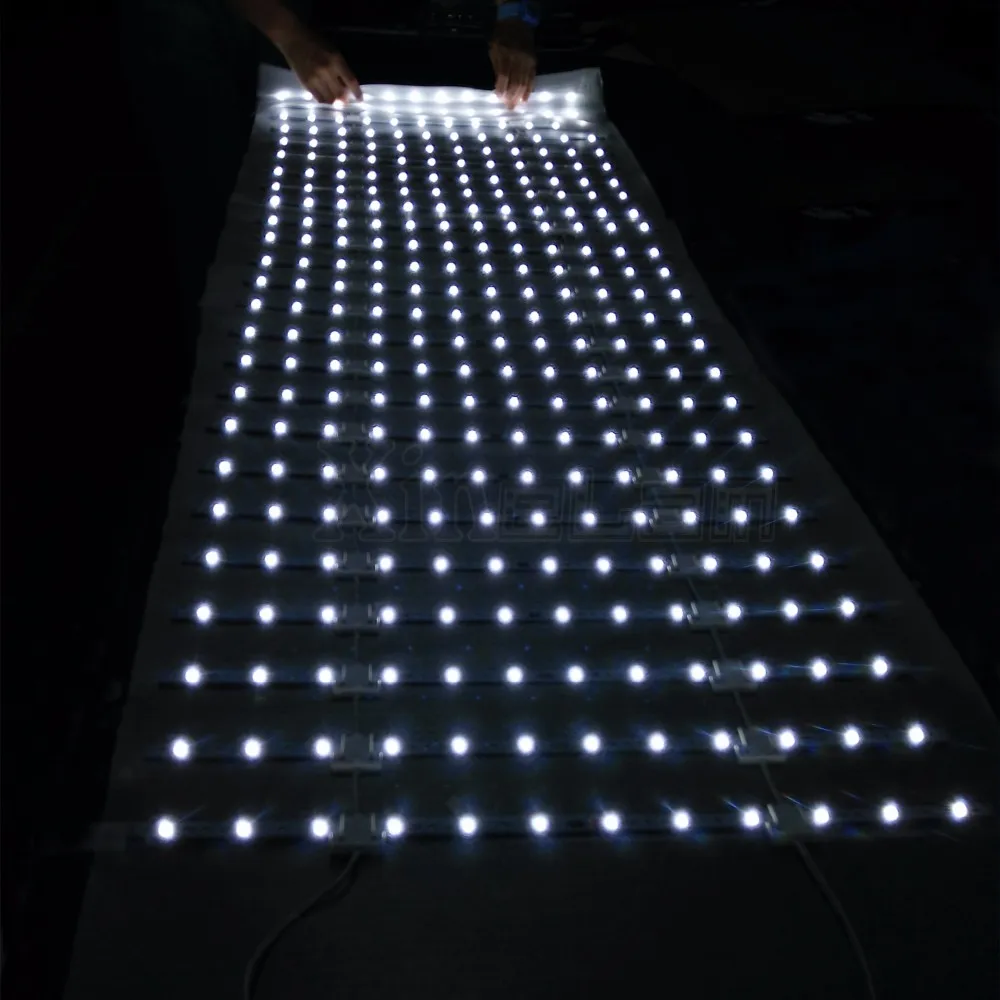

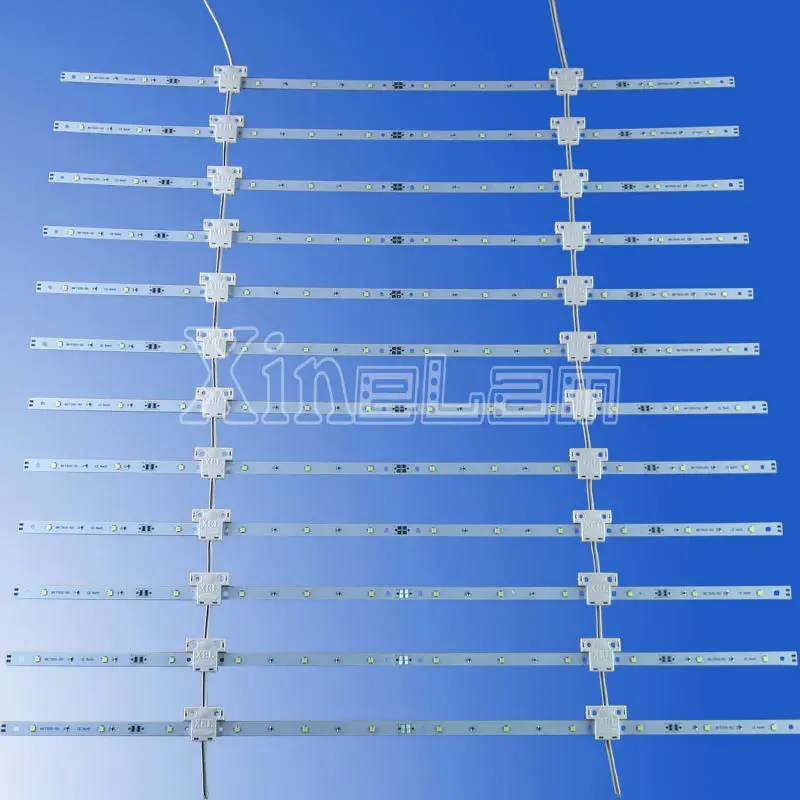

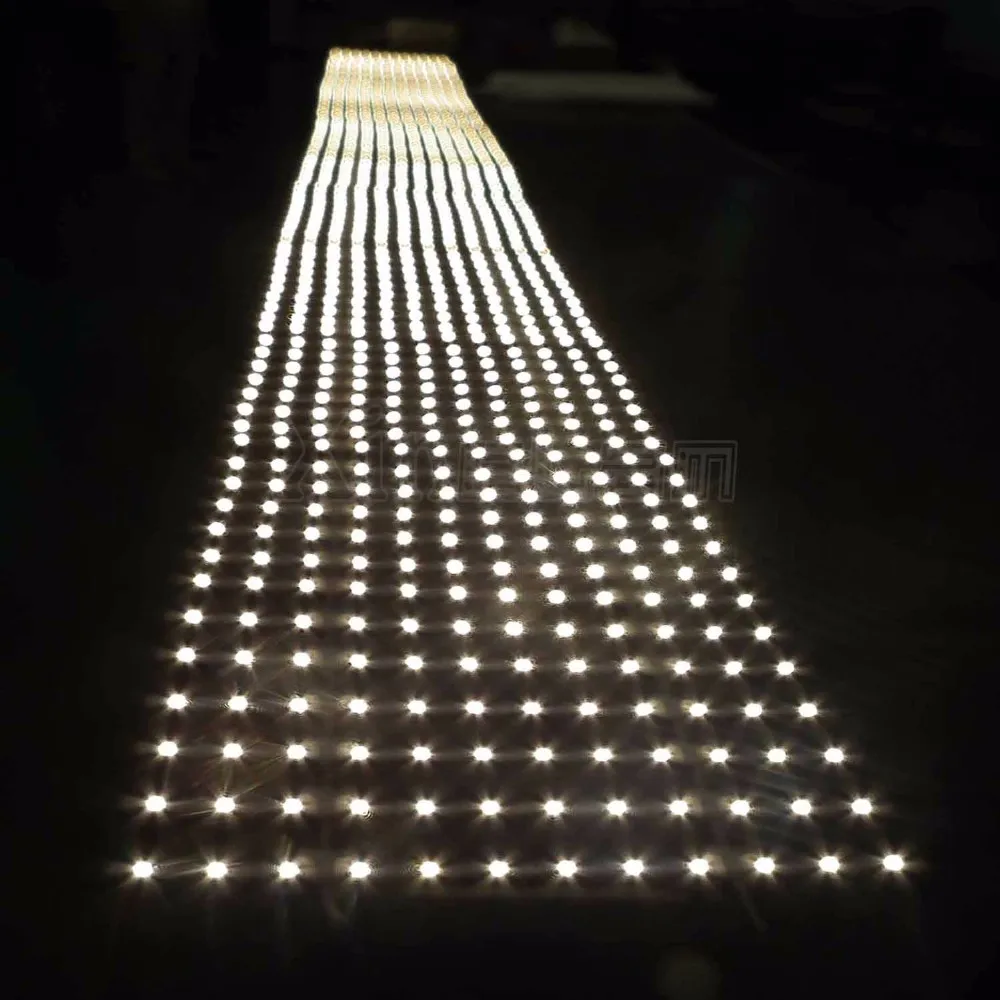

Detailed Images













RGB Color option







\t\t\t\t\t\t\t\t\tProduct Applications \t\t\t\t\t\t\t



1. Signage Backlighting
2. Commercial advertising signs
3. Large letters displays
4. Signboard and Billboards

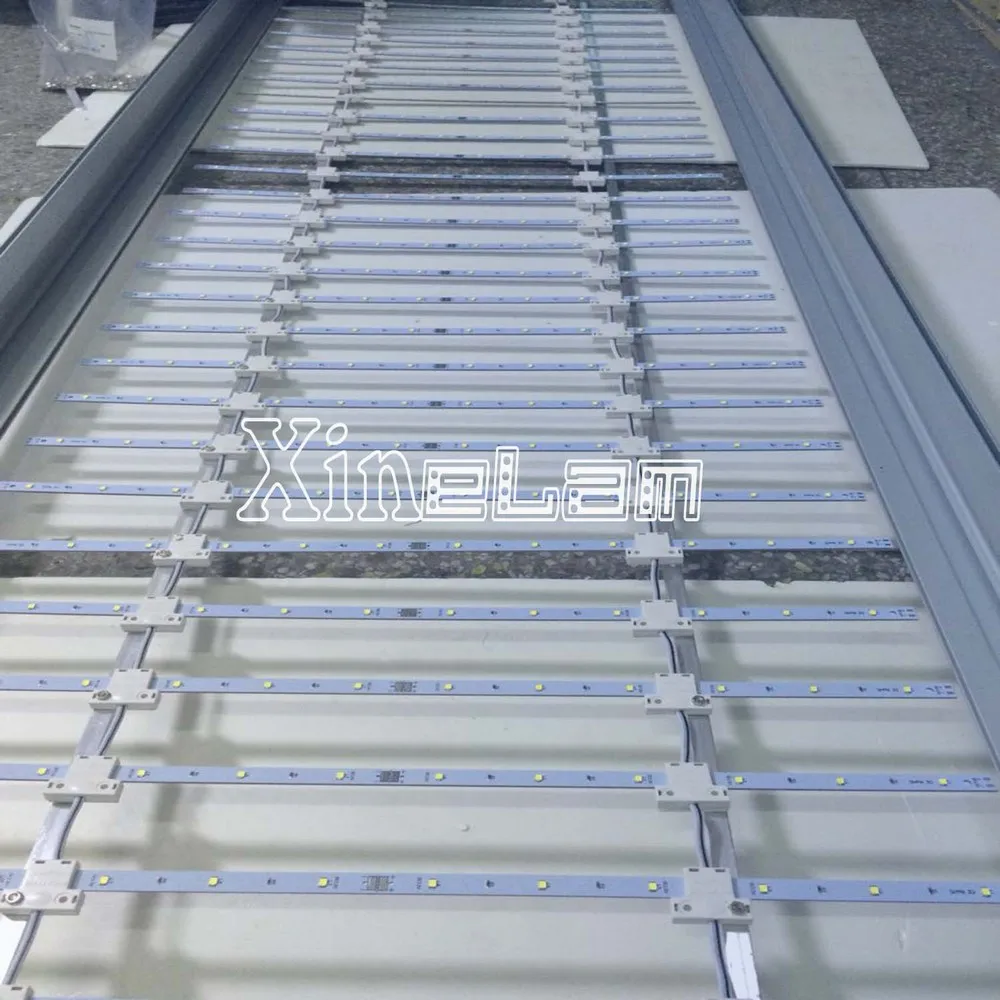

5. Advertisement light-box

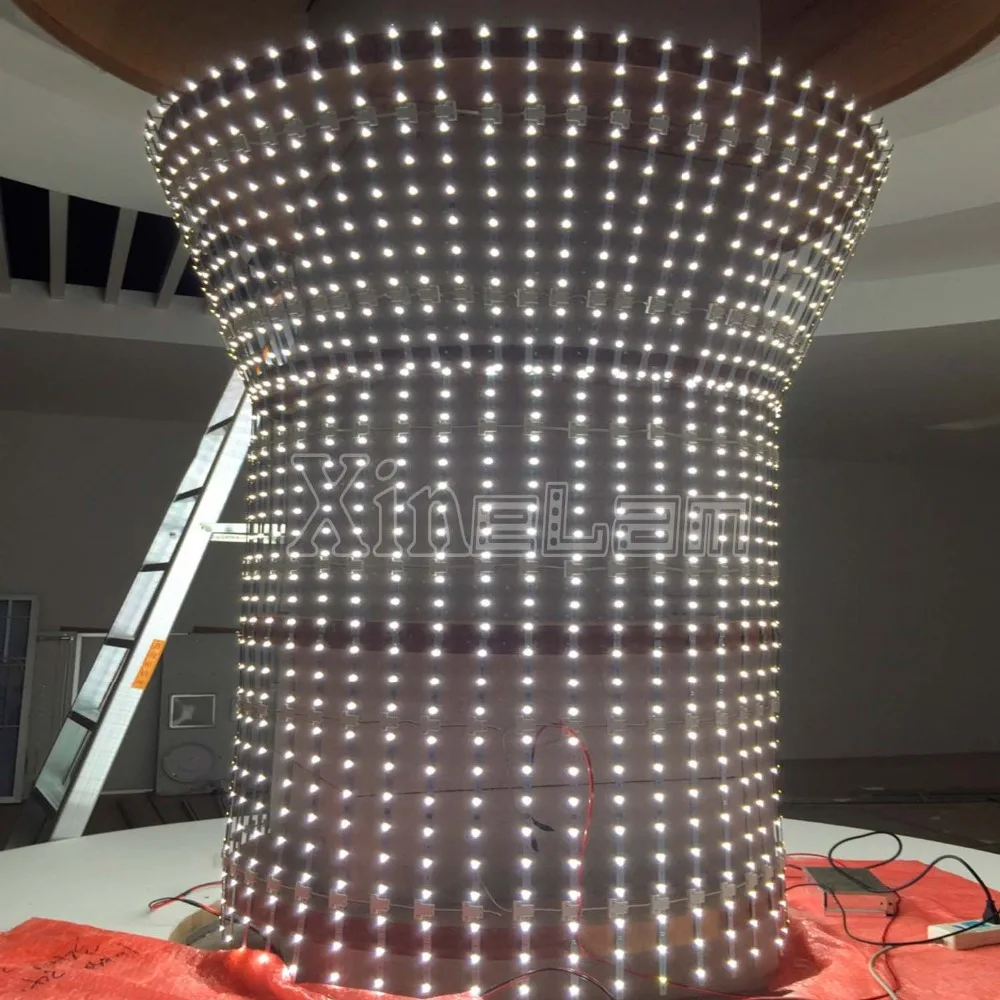

6. Accent lighting Logo backlighting
7. Wall, Glass decorative lighting



Minial depth required 60mm with no hot spots










\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t



XineLam - Ruixian Electronics Factory

was founded in 2003, focusing on designing, developing and producing green LED lighting products.

Our team having strong R&D capabilities and 11 product patents included the invention, utility model and appearance design etc.

Company Culture: Technical Innovation, Quality-oriented, Credit Foremost, Professional Focus, Creating Value for Customers.






\t\t\t\t\t\t\t\t\tTrade Show \t\t\t\t\t\t\t










\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t


//ledstrip.en.alibaba.com/custom_page_2/FAQ.html


Q1. Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100pcs.

Q3. Do you have any MOQ limit for LED light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LED light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on LED light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
