Product Description

product-description_01

Sumore Multi-Purpose Lathe SP2308 with 800mm Center Distance

Mini lathe mill drill combo, multi purpose lathe machine SP2308 is the trend of present world machine tool technology, complex processes on a single machine to reduce machine tool and fixture, eliminating inter-process handing and storage, improve workpiece machine accuracy and shorten the processing cycle and the purpose of saving working area.

Mini lathe mill drill combo, multi purpose lathe machine SP2308 will not only meet the needs of users to reduce floor area, parts delivery and reduce inventory, ensure the machining accuracy and so on, but also to adapt to energy saving requirements of modern society. More and more complex parts using composite machine tools for integrated processing.

SP2305 5.png

Features

Function: cutting ,drilling,Milling etc
Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing;
Complex process can be done in one time
Near silent running, integral splash guard
Metric and imperial thread cutting
Full range of accessories available
Converts to a multi-purpose machine with the milling attachment
High Precision for Model Engineering
Easy Operation & Convenient Reparations

Technical Data

Model	SP2308

Turning
Swing over Bed	420 mm
Distance Between Centers	400 mm
Spindle Bore	20 mm
Spindle Taper	MT3
Range of Spindle Speeds	600 - 1,800 rpm
Compound Travel	70 mm
Cross Slide Travel	120 mm
Carriage Travel	380 mm
Range of Imperial Threads	7 - 30 TPI
Range of Metric Threads	0. - 2.0 mm

Drilling & Milling
Drilling Capacity	15 mm
End Milling Capacity	20 mm
Face Milling Capacity	63 mm
Spindle Speed Range	660 - 2,030 rpm
Spindle Travel	85 mm
Spindle Bore	MT3
Head Tilt Angle	360°

Whole Machine
Motor Power	1,100 w
Power Supply	Customerized
Packing Size (LxWxH)	1,032 x 580 x 1,100 mm
Net Weight	185 kg
Gross Weight	220 kg

Accessories

Standard Accessories	Optional Accessories

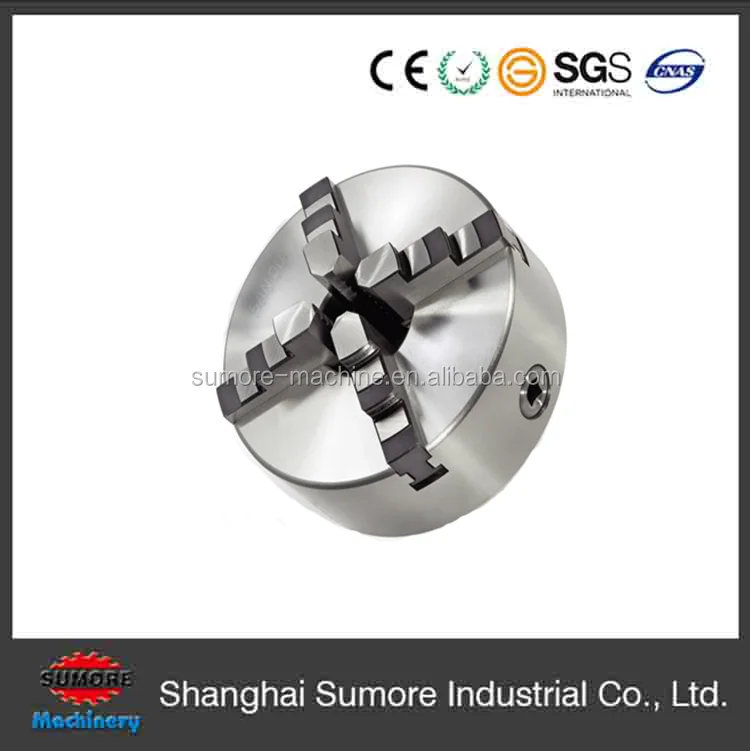

3-jaw chuck	4-jaw Chuck
Dead Center	Face Plate
Cutting Tools	Face Plate Clamping Kit

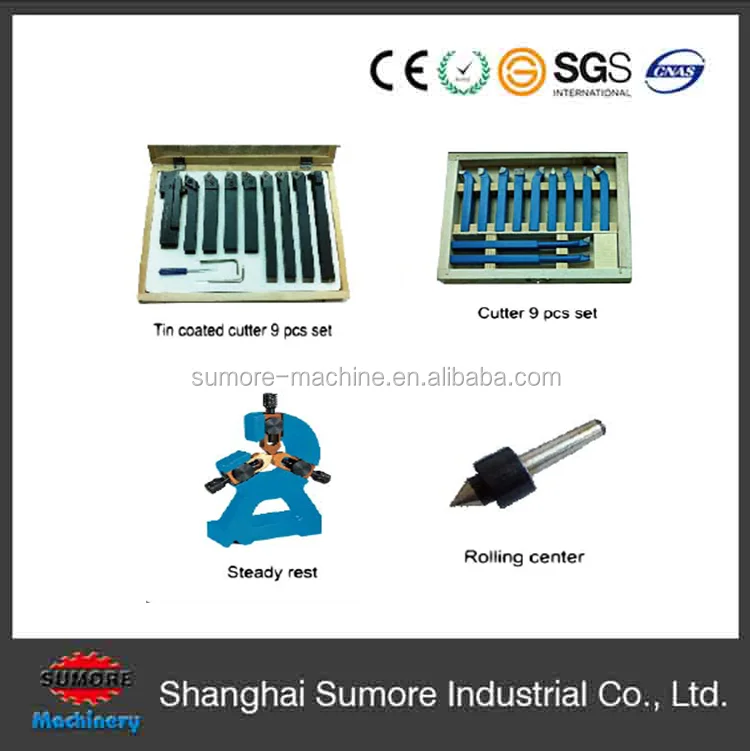

Change Gear Set	TiN Coated Cutting Tools & Replaceable Tips
Splash Guard	Steady Rest
Chuck Safety Guard	Follow Rest

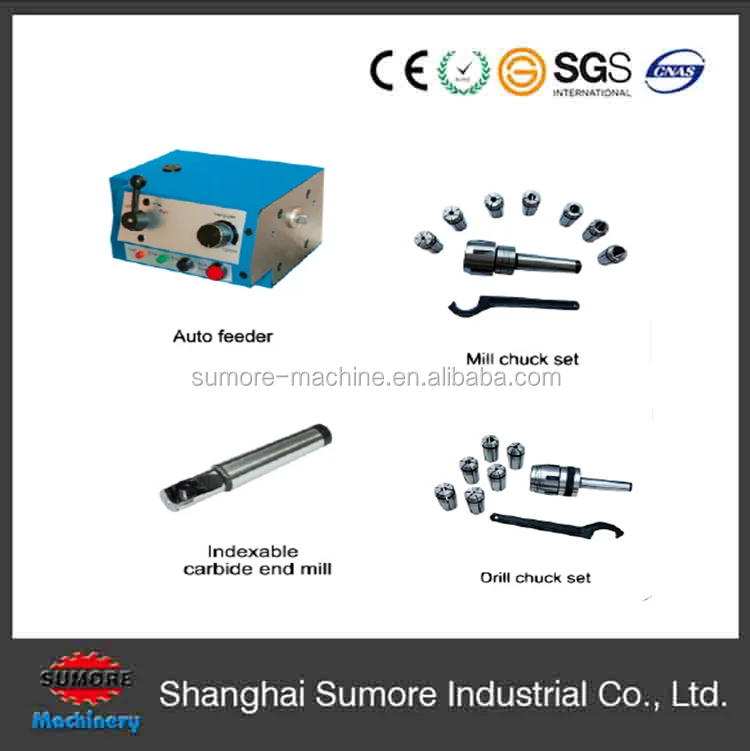

Stand	Drill Chuck and Drill Arbor
Oil Tray	Live Center
Oil Gun	Quick Change Tool Post
Manual & Parts List	Clutch for Feed Rod
	Lead Screw Guard
	Digital Readout Cutting Depth
	Coolant System
	Work Light
