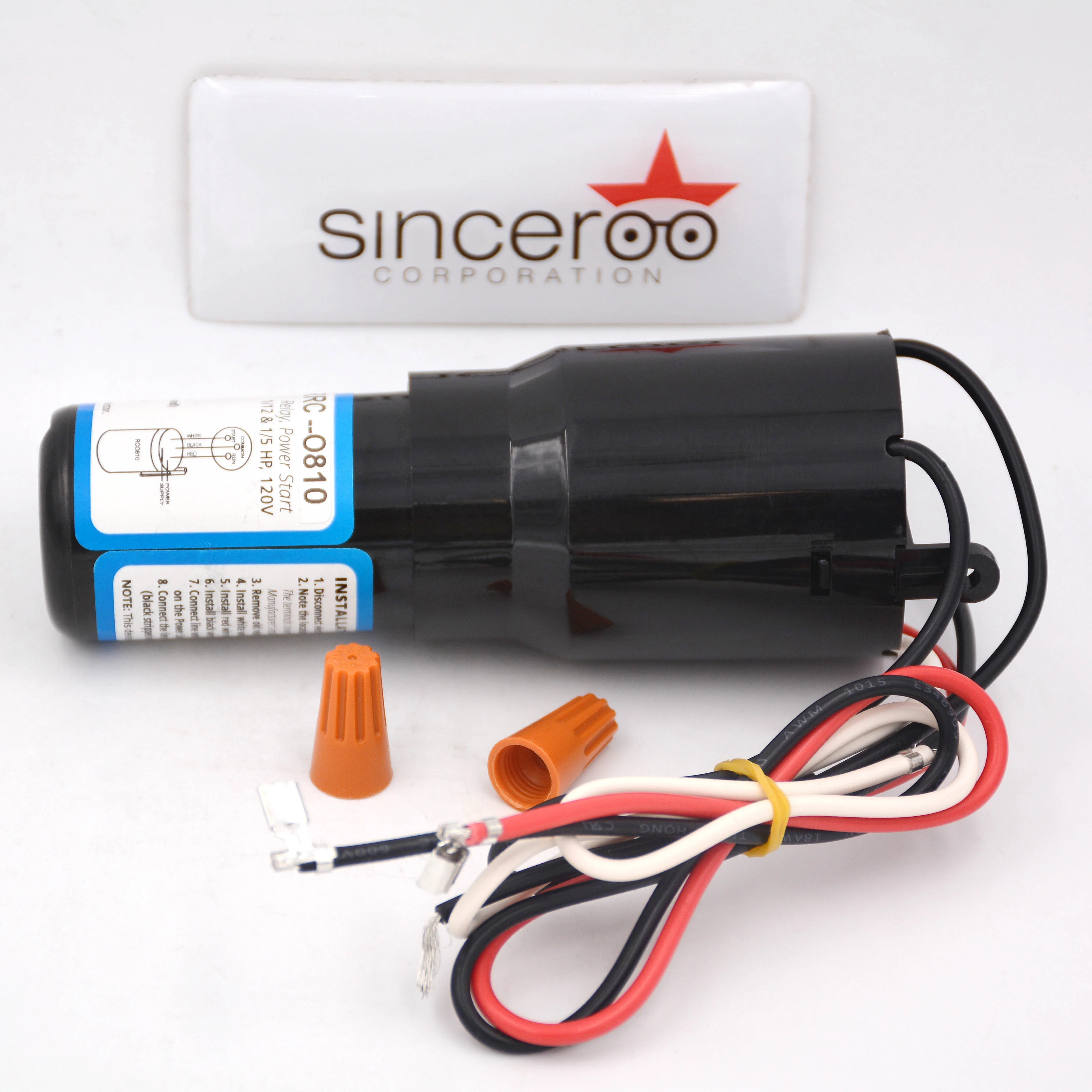

RCO810 3 в 1 твердый стартовый комплект совместимый с реле конденсатора перегрузки 1/12-1/5 HP 110-125VAC
27,74 ₽ - 256,25 ₽
Электронный Термостат для размораживания холодильника с сертификатом TUV 250 В 10 А
- Категория: >>>
- Поставщик: Foshan Tongbao Hualong Contrls Co. Ltd.
Сохранить в закладки 60510667125:
Описание и отзывы
Характеристики

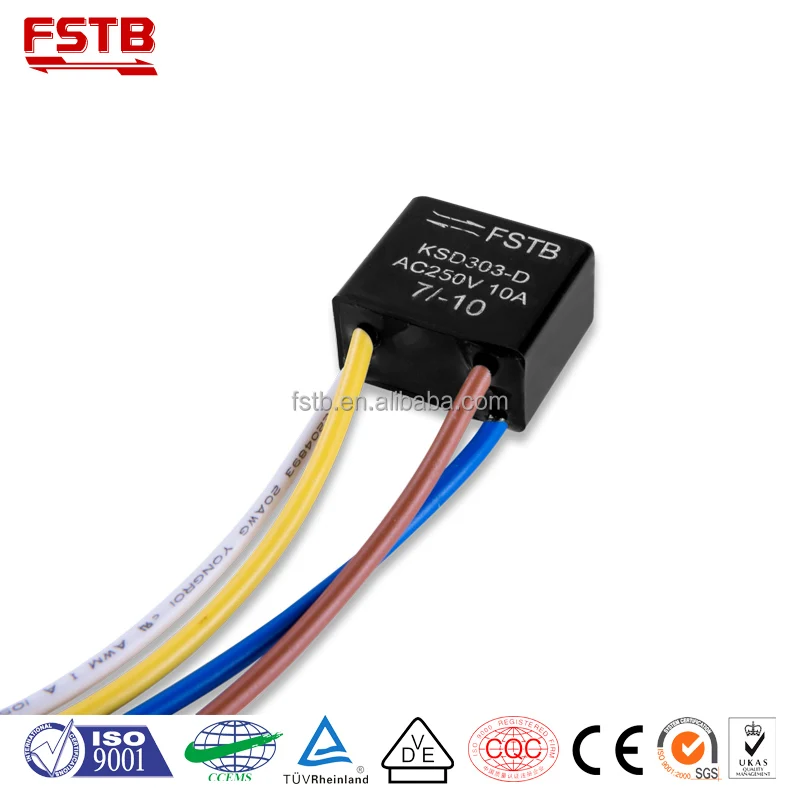

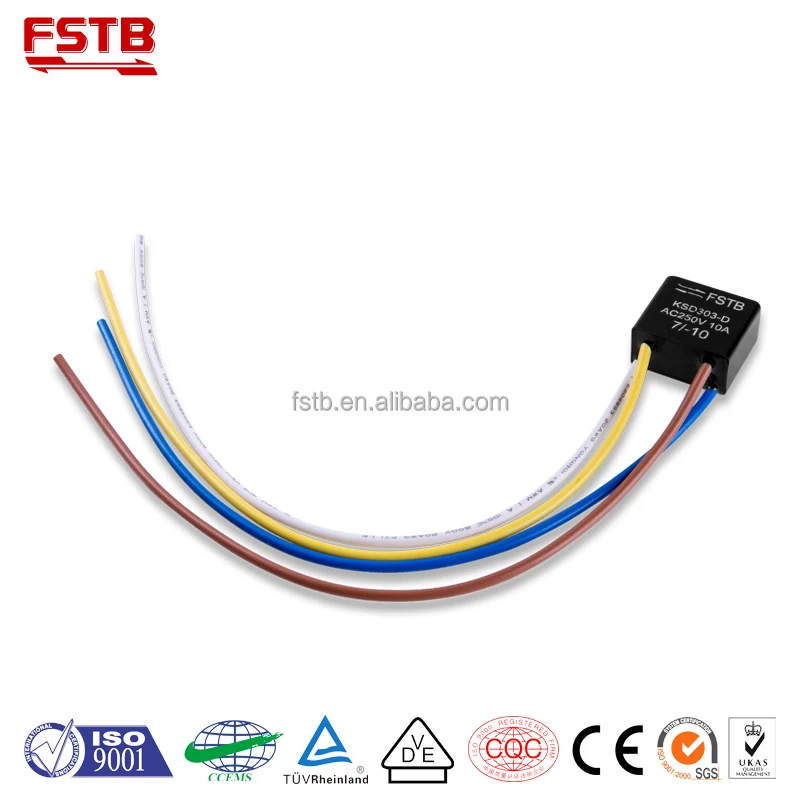

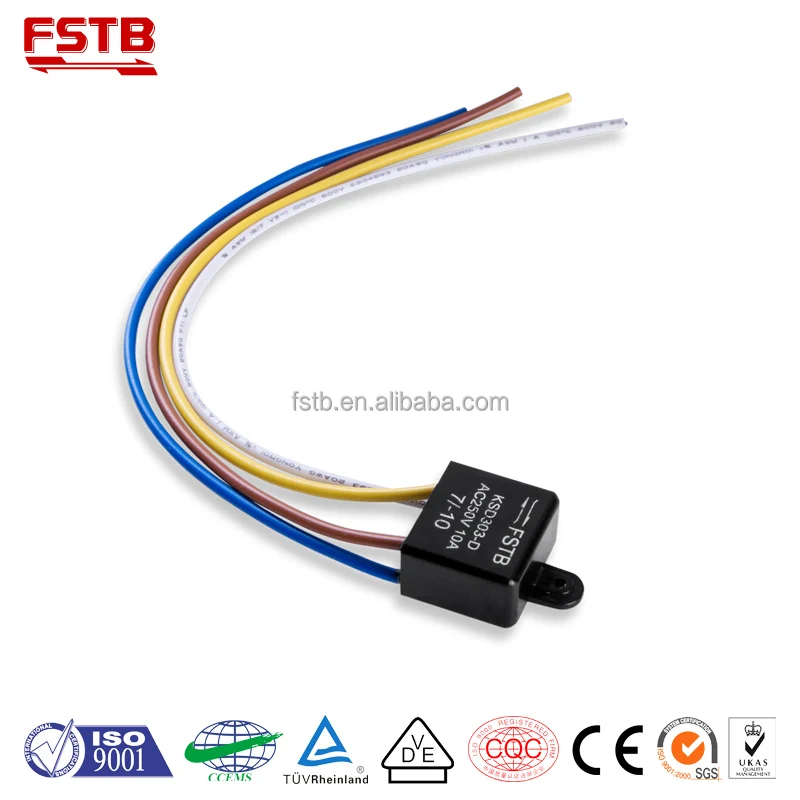

With TUV Certification 250V 10A electronic refrigerator defrost thermostat
Description:
KSD303-D series snap-action defrost thermostat is a kind of miniature waterproof and hermetically seal bimetal thermal protector. It is of single-pole single-throw structure and works under resistive load.
Thermostat is enveloped in cold-resistant and flame-retardant plastic tube or sealing gum for possible underwater applications.
The product series is widely used as heating compensated switch or automatic defrosting control switch in air-cooling frostless refrigerators.
According to different structures, KSD303 series is divided into five sub series as: KSD303-A, KSD303-D.

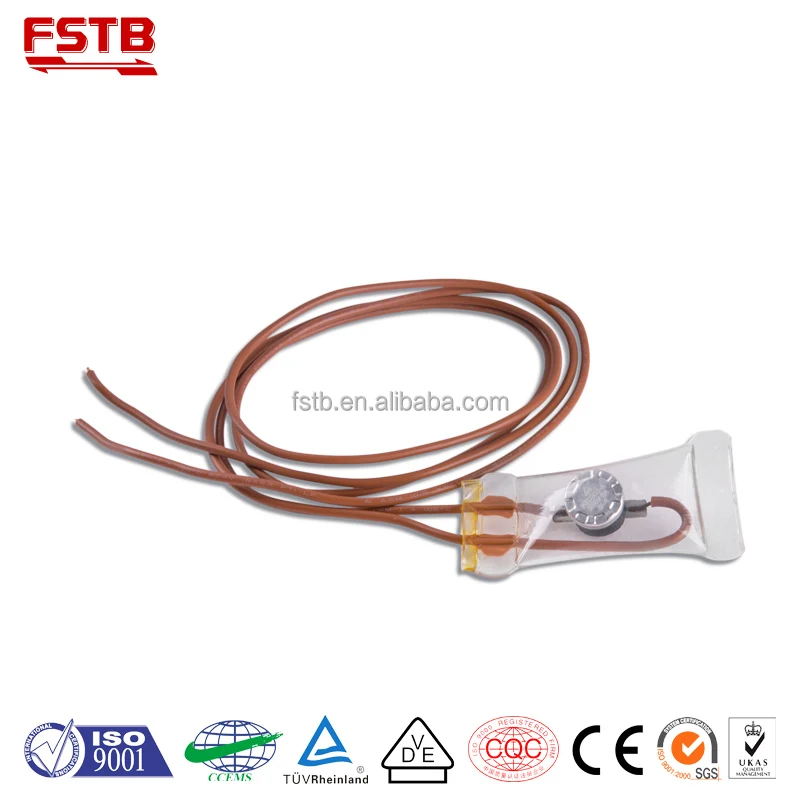

KSD303-A:
Advantages:
High durability No breakdown, no flashover.
Every product will be tested, extremely high temperature pass rate.
High precision.
Water proof.
Assemble the fuse and thermostat in one product .
Parameter:
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators |
Reset type | Automatic |
Base material | resist heat resin base |
Amperage | 3A/6A/10A |
Max. Operating Temperature | 50°C |
Differential | Refer to the regulation |
Min. Diff | 8°C |
Tolerance | Refer to the regulation |
Cold-resistant Temperature | -40°C |
Limit of the tolerance(OFF) | ±2°C |
Limit of the tolerance(ON) | ±4°C |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temp. characteristics: | Normal close, Normal open |
Maximum ambient temperature | 90°C |
Diameter of bimetal disc | F12.8mm(1/2″) |
Approvals | UL/CQC/TUV |
Line | Color: white/brown/yellow/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Dimension of the main body:
KSD303-A:
KSD303-D:
Safety certificate:
KSD303-A
| Rates | Cycles | Max. OT | Certificate |
| 250V 6A | 10,000 | 25 | TUV,CQC |
| 250V 5A / 125V 7A | 10,000 | 15 | UL |

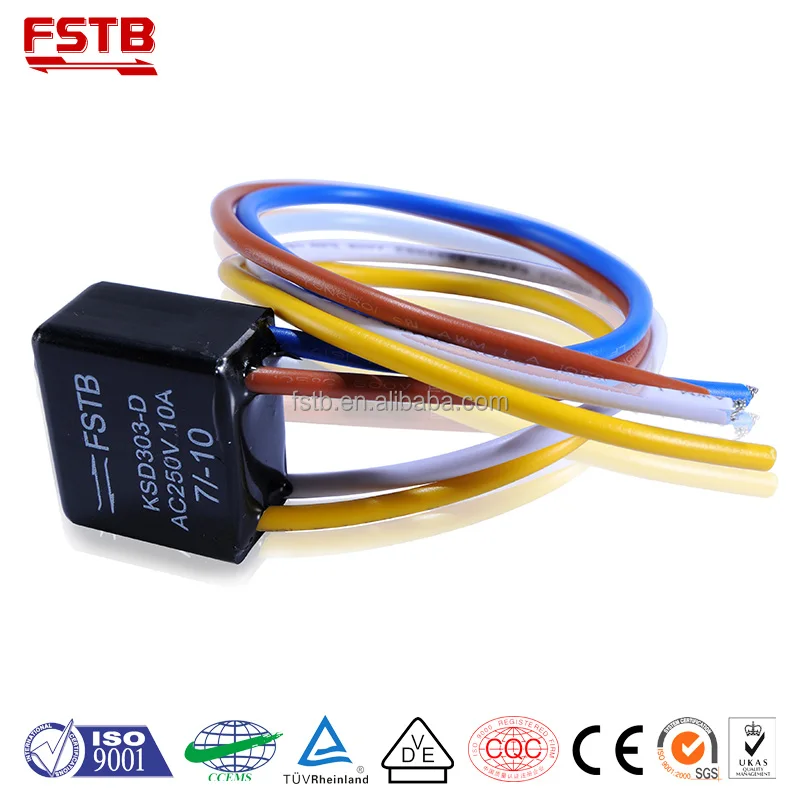

KSD303-D
Rates | Cycles | Max. OT | Certificate |
250V 10A | 10,000 | 40 | TUV |
Order detail:
Packaging details | 200-500 pcs/ctn, the carton size is 480(L)*282(W)*218(H)(mm) |
Minimum order quantity | 1000 pcs |
Payment terms | T/T, West Union |
Delivery time | 15~20 days |
Installation and Direction for Use:
- In the event that the thermostat is employing contact temperature sensing, its cover shall be adhered to the installation position of a controlled appliance.
- The cover shall show no cave-in or deformation resulting in operating temperature variation or bad influence on other performances.
- No excessive force shall be applied to working parts, to prevent them from defects such as cracking base, distorted terminal and wire lead coming off.
- The plastic envelope must be kept intact in the course of installation and usage.
Product recommendation:
Exhibition
AWE 2018 - Appliance & Electronics World Expo 2018
Getting more information about high temperature protector and limit switch, please refer to our website: www.thermostat-gb.com
Company Information
Our Company:
FSTB began to manufacture thermostats in 1982, with many years of development, FSTB became the leading thermostat manufacturer in market and scale of industry worldwide, it has 10 sub-companies with professional bimetal raw material development and production base in upstream of industrial chain,as well as various kinds od thermostats and protectors production base in the downstream of industrial chain.
Contact Us
NOTE: TERMINALS AND COVERS OF THE SNAP-ACTION 16A 250V/125V CERAMIC MANUAL THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT FSTB THERMOSTATS.
( //www.thermostat-gb.com/ )
Похожие товары

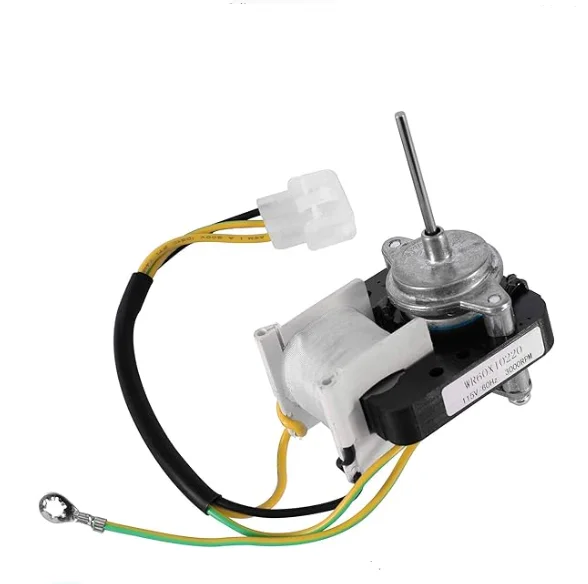

WR60X10220 Refrigerator Condenser Fan Motor Compatible with GE Refrigerators- Replaces PS1766247 AP4298602 WR60X10171
379,38 ₽ - 586,81 ₽

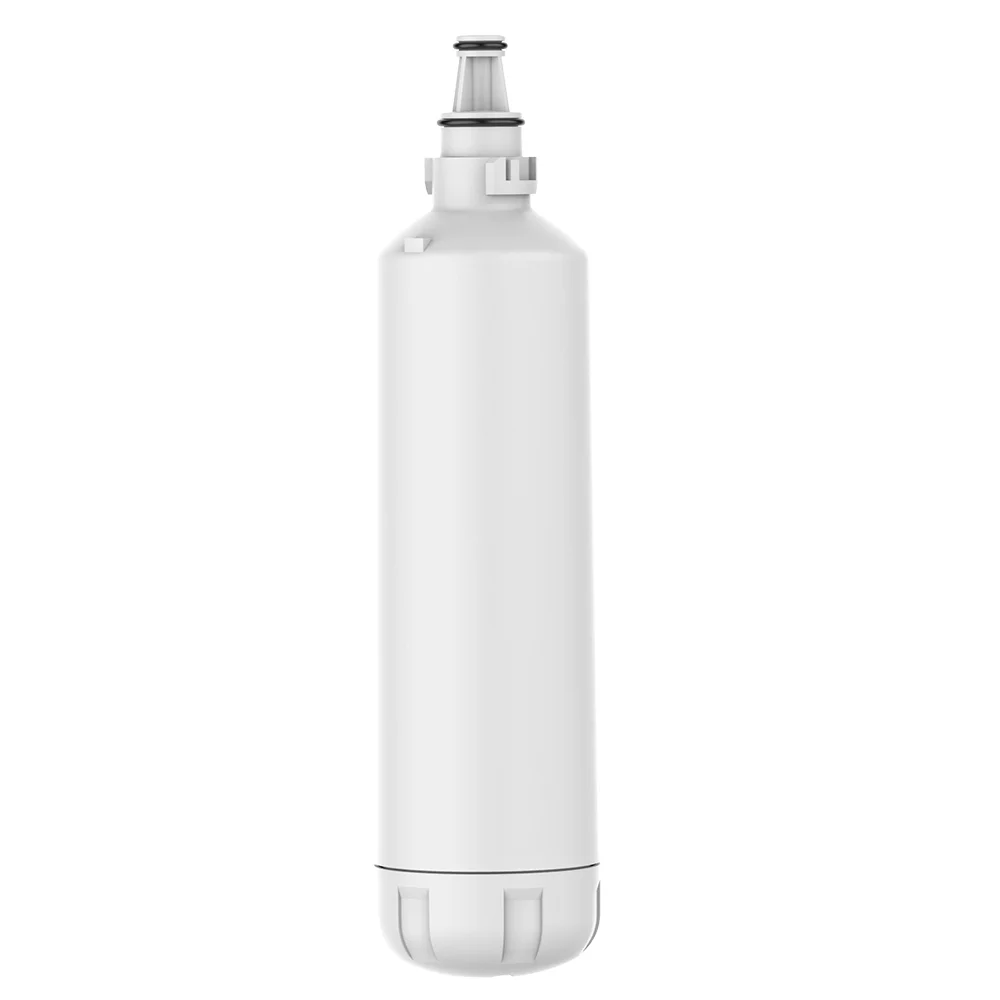

Замена фильтра для воды в холодильнике субнулевой 7012333 UC-151 UC-15I UC-15IO UC-15IP UC-15 UC-151P
331,68 ₽

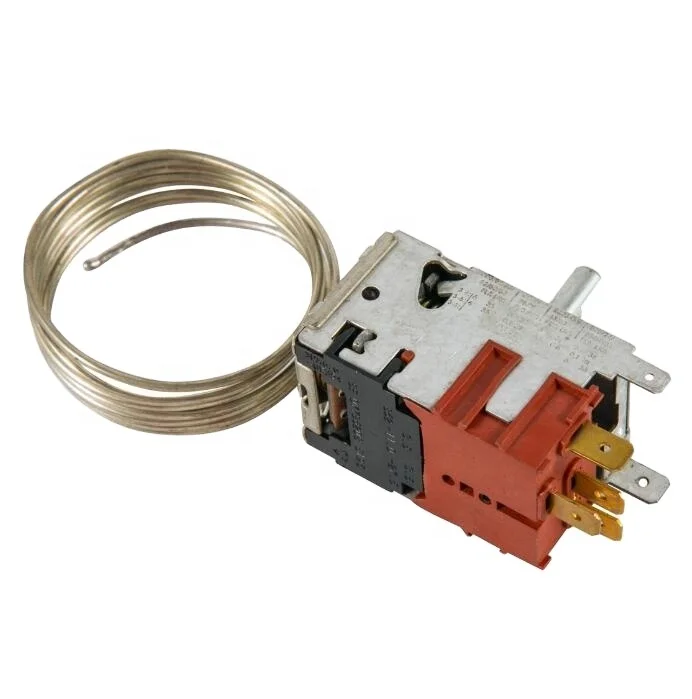

Термостат для размораживания холодильной части 077B капиллярного типа термостат холодильника/холодильника
144,21 ₽
Высококачественный термостатический клапан холодильника с морозильной камерой недавно запущенный долговечный стабильный компрессор аксессуары для электрического источника питания
55,47 ₽ - 77,65 ₽

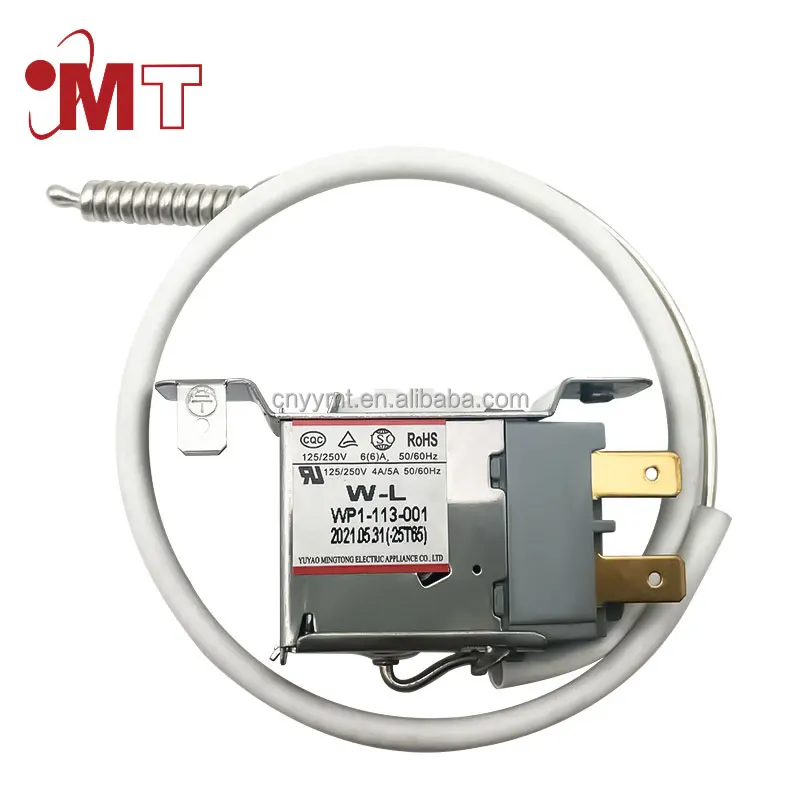

Прямая Продажа с фабрики эффективные капиллярные аксессуары W-L серии WP1-113-001 Морозильник Холодильник размораживание термостат

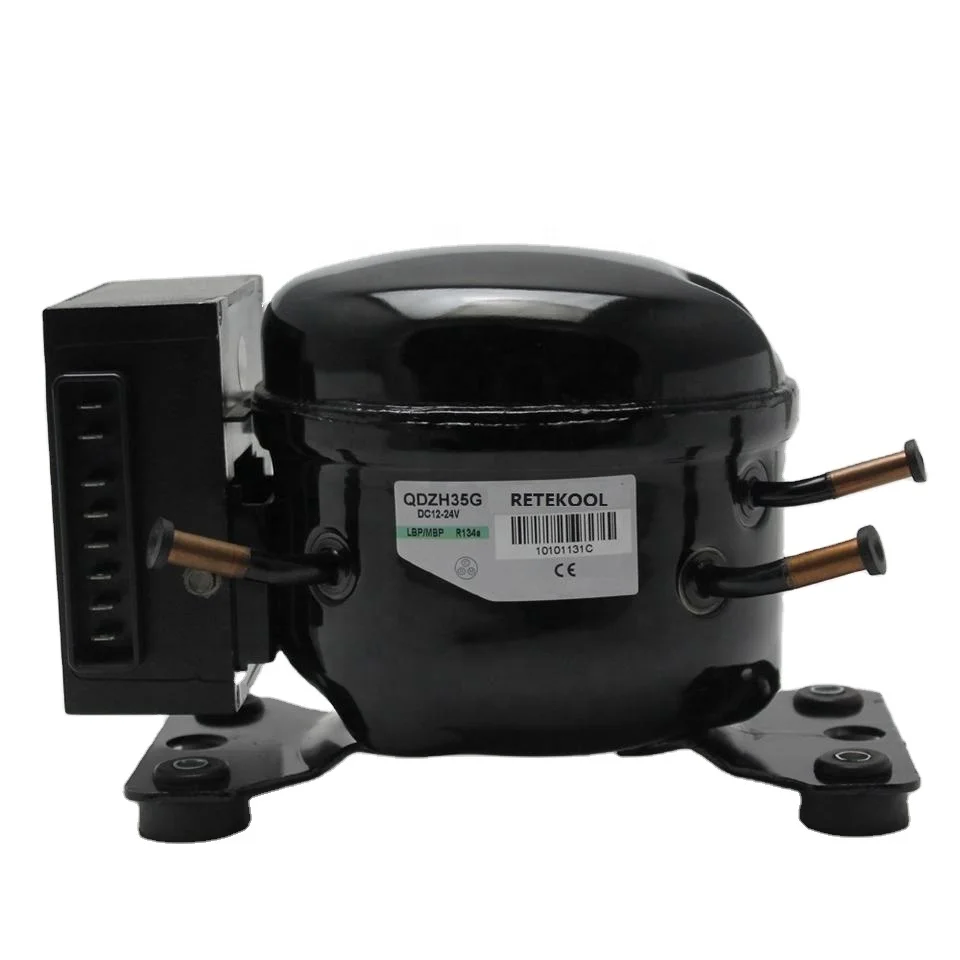

24V R134A QDZH35G компрессор для 12 вольт холодильника постоянного тока Электрический/газовый автомобилей наружного использования Запчасти
2 218,55 ₽ - 2 773,19 ₽

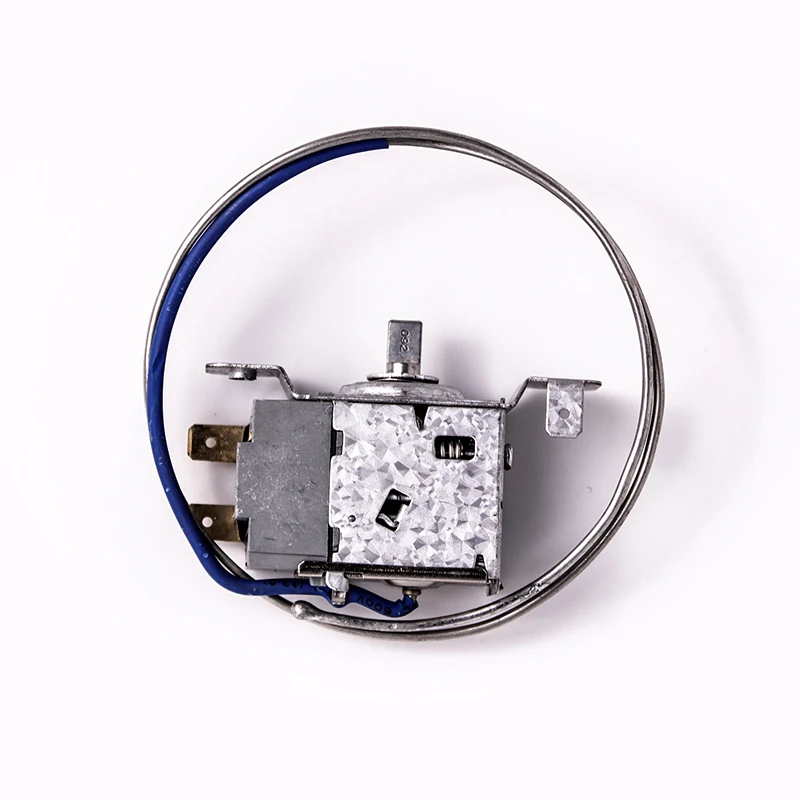

120 В 250 морозильник холодильник капиллярный термостат
