10 4 дюймов промышленных ПК все в одном открытая рамка Linux промышленная панель Емкостное касание плоский экран дисплей емкостный сенсорный с открытой рамкой
- Категория: >>>
- Поставщик: Shenzhen Touch Think Intelligence Co. Ltd.
Сохранить в закладки 60511953872:
Описание и отзывы
Характеристики

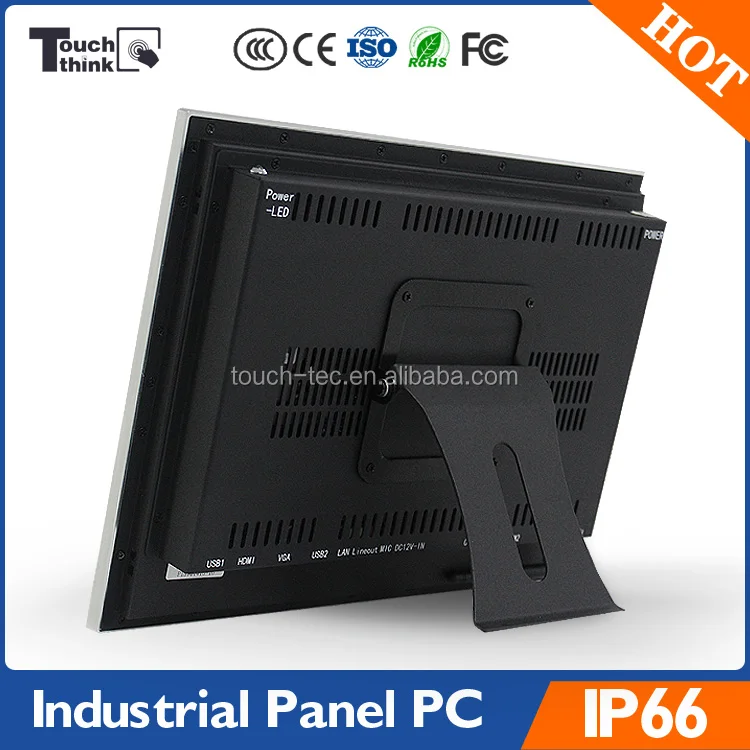

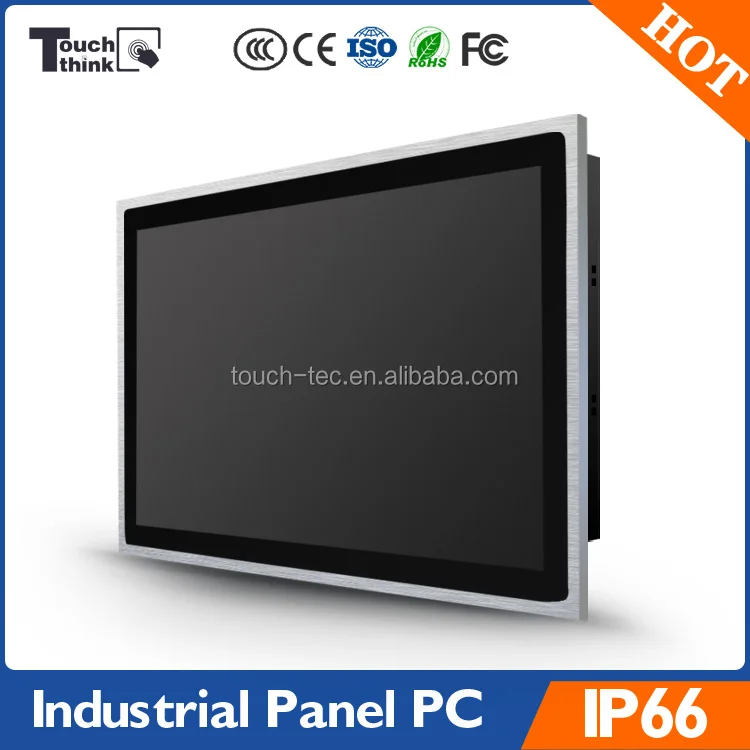

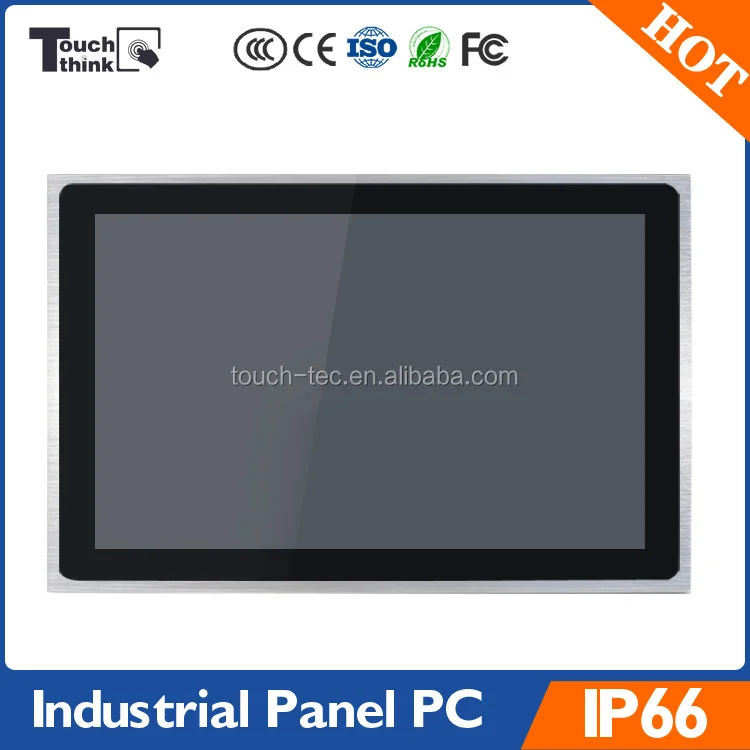

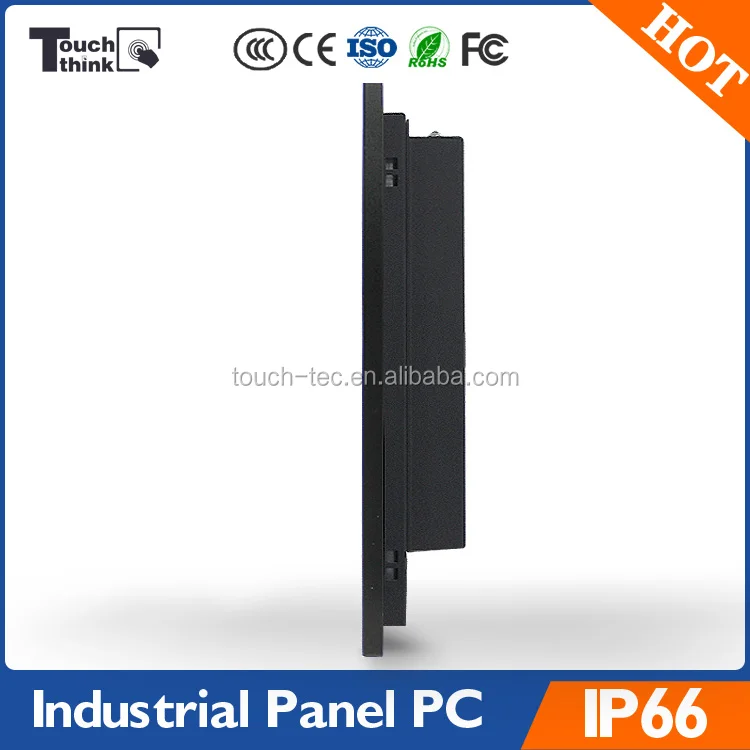

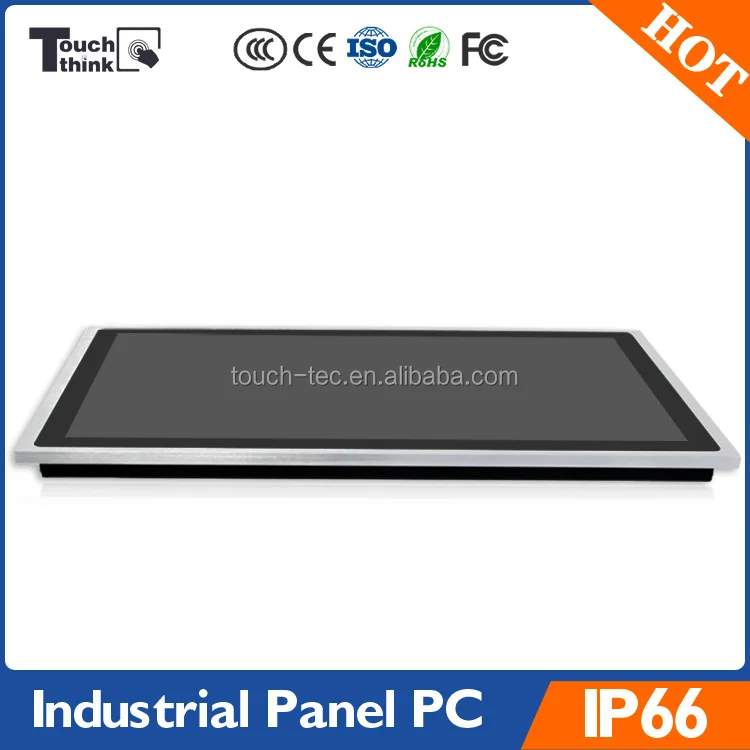

10.4 inch industrial all-in-one open frame Linux Industrial Panel PC
Linux Industrial Panel PC
Linux Industrial Panel PC
Linux Industrial Panel PC
Linux Industrial Panel PC
Linux Industrial Panel PC
10.4 inch industrial all-in-one open frame Linux Industrial Panel PC
Product Information
Backlight | TFT LED | ||||
Screen Size | 10.1", 10.4", 12", 12.1", 15", 15.6", 17", 17.3", 19", 21.5", 22"(support wide screen design) | ||||
Aspect ratio | 4:3 16:9 16:10 | ||||
Bezel thickness | 3mm 10mm (other thickness is accepted) | ||||
Resolution | 800*600 | 1280*800 | 1024*768 | 1366*768 | 1280*1024 |
1600*900 | 1280*1024 | 1440*900 | 1920*1080 | 1680*1050 | |
Display color | 16.7M colors | ||||
Body color | Black, silver or others | ||||
Contrast | 1000:1 | ||||
Power supply mode | 12V-5A external power adapter | ||||
Screen distance | 0.264mm | ||||
Power supply performance | 100-240V, 50-60hz | ||||
Display brightness | 400cd/m2 (can be customized ≤1500cd/m2) | ||||
Energy consumption | ≤45W | ||||
Working current | ≤3.5A | ||||
Temperature | Operation:-10℃ to 50℃ Storage:-20℃-60℃ | ||||
Working life | 50,000 hours | ||||
Response time | 5(ms) | ||||
Housing/Enclosure | Iron/Plastic/Aluminium alloy | ||||
Bracket | VESA/Desktop stand/Wall mounted/Embedded/Shutter | ||||
Touch screen | Without touch/Infrared/SAW/Capacitive/Resistive touch screen(4/5 Wire Resistive Touch Screen) | ||||
Touch times | Resistive (more than 35 million)/Capacitive (more than 50 million) | ||||
Interface | DVI, VGA, USB, COM, HD, LAN, LPT, WIFI, OTG, LVD, etc. | ||||
Configuration | ||
CPU | Intel Celeron 1037 motherboard 1.86GHz dual core; J1900 motherboard 2.4GHz quad core fanness ; Intel core i3/i5i7 | |
Operation System
| Window | Android |
Win7/ win8/ win10 | RK3188/RK3288/A83 | |
Graphic Card | Integrated Intel HD Graphics | |
GMA3650 ( Share Memory 128/224MB) | ||
RAM | 1G DDR3, 2G DDR3(can be extended to 4G/8G/16G DDR3) | |
WIFI | Built-In | |
Expansion Card Slot | 2xMini-PCIE slot, support SSD, WIFI, 3G module | |
Storage | HDD | SSD |
500G | 32G, 64G, 128G, 256G | |
Audio | Realtek AlG 662 sound track audio frequency, support MIC Line Out | |
Internet | Integrated RTL811E gigabit network card | |
I/O ports | 1*12V DC_JACK input (ATX is optional) | |
1*VGA | ||
| ||
4*USB port | ||
1*RJ-45 network interface | ||
1*Audio I/O interface | ||
1*COM(can be extended to 4) | ||
Certificates | CE, FCC, ROHS | |
Size for choosing:
| Size: | 7" | 8" | 10.1" | 10.4" | 11.6" | 12" | 12.1" | 13.3" | 15" |
| 15.6" | 17" | 17.3" | 19" | 19.1" | 21.5" |
10.4 inch industrial all-in-one open frame Linux Industrial Panel PC
Our major product
1, Industrial All-In-One PC
2, Android industrial tablet PC
3, Industrial Monitor
4, Open frame (Embedded) Monitor (support wide screen design)
5, Industrial touch monitor (Resistive/Capacitive/Infrared touch is optional)
6, Touch monitor
Why Choose US
1,High quality industrial LCD panel.
--High brightness 500nit-1500nit LED backlights enhancements, direct sunlight readable.
--Optical bonding and antireflective coating, clearer viewing.
--Stable operation with long working life, more than 50,000 hours.
--IP65(Anti-dust/waterproof)
2,Ultra thin Aluminum alloy enclosure and high strength cold rolled shell.
--Sealed bezel and True flat are more efficient for water resistance.
--Stable running in electromagnetic interference and radiation environment.
--High efficiency for heat dissipation design, can operate in extensive temperatures -20°—60°.
3,Support Narrow bezel and wide screen design.
4,Lower energy consumption: 35W
5,Factory lowest price, one year warranty.
6,OEM service is welcome.
7,Flexible delivery for sample and big order.
8,Certification: IP65, CE, FCC, RoHS, ISO.
Transport and Packing process
*Express(UPS,DHL,Fedex,EMS,etc) is available.
*Sea and Air delivery is available.
Delivery Time
Samples: 1-5 working days
500PCS or More orders: 12-17 working days
Application area
Our IPC and monitor are widely used for:
ATM, KOISK, Hotel/Hospitality, Military, Vending machine, Industrial&Automation control, power automation, Education, Exhibition, Advertisement, POS cash register, Transport and Ticketing, Entertainment /Casino Systems, Food and Beverage order Dishes etc.
Our service:
1. We guarantee that all our items are "as stated" in their descriptions. All products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other.
questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.
3.Repair of the freight, based on specific product damage reason and responsibility. If it is product quality problems, we will bear the freight.
4.For the RAM policy: We will fix it for free within one year. The buyers need to pay for the freight cost of returning, we will pay for the freight cost of sending back, but man-made damage is not included.
